PSG 61.000 Adjustable hinge M20 100x100x4 mm

22,94 EUR including 23.00% VAT
Product code: #41695

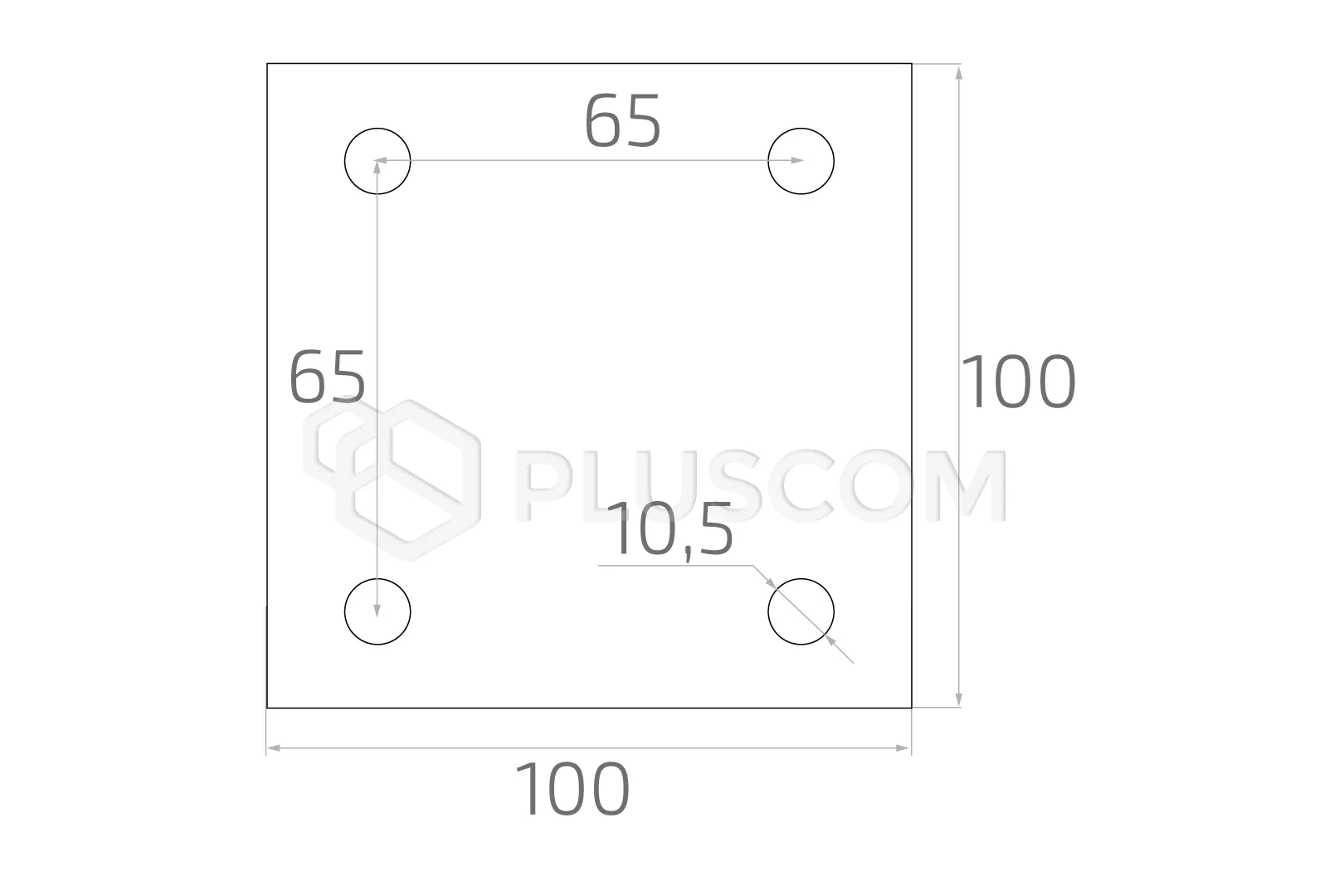

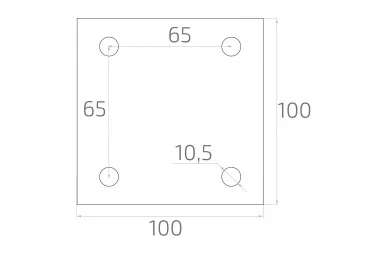

  • Mounting plate: 100 x 100 x 4 mm
  • Mounting hole spacing: 65 x 65 mm
  • Mounting holes: ø 11 mm
  • Thread: M20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.000 Adjustable hinge M20 100x100x4 mm

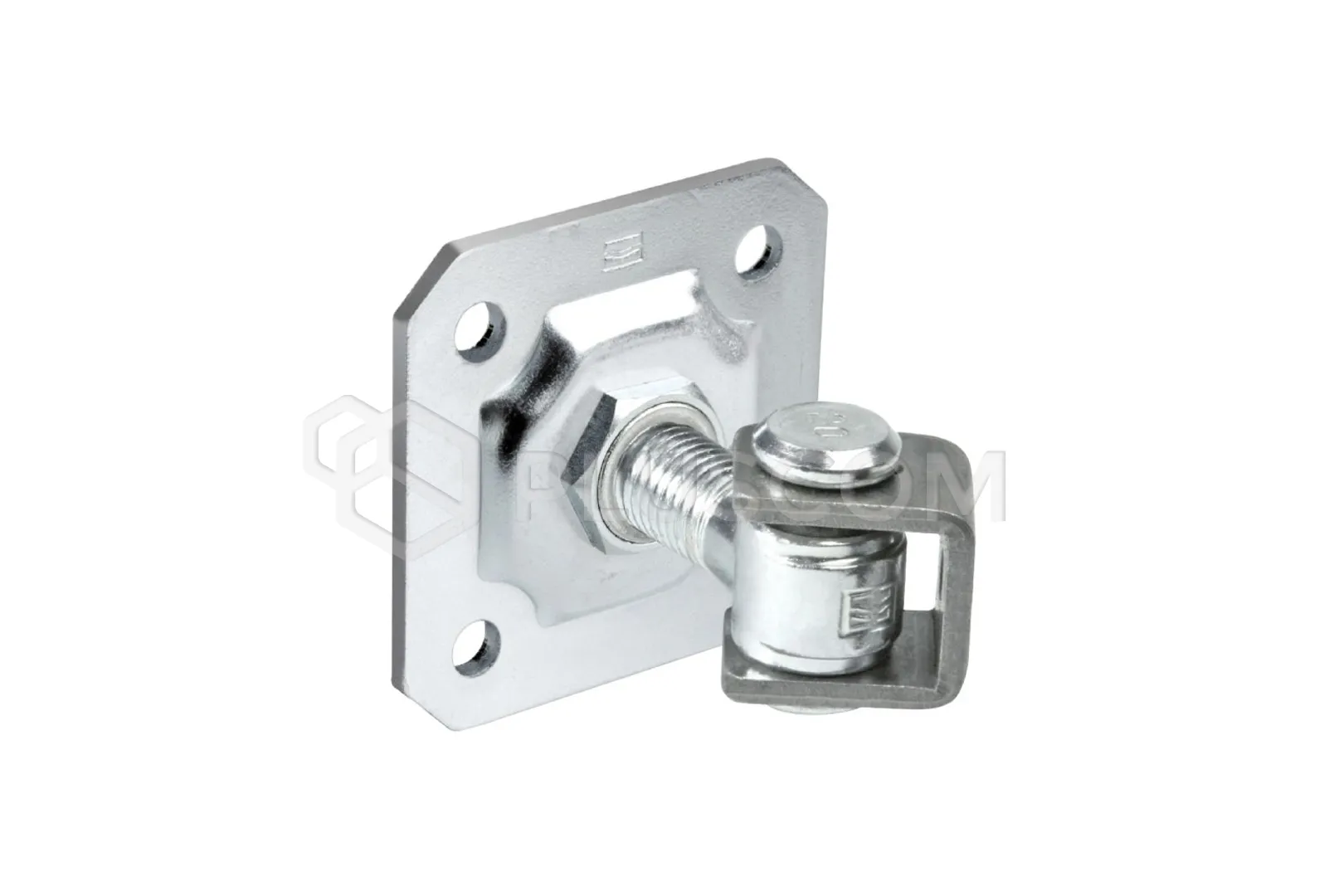

Metal adjustable hinge with M20 thread. It has a mounting plate with dimensions of 100 x 100 mm and a thickness of 4 mm with holes with a diameter of ø 11 mm, enabling screwing.

Galvanized product (with an ear from black salt) - intended for outdoor use, provides high resistance to corrosion.

FEATURES:

  • Mounting plate with dimensions of 100 x 100 mm and thickness of 4 mm
  • Mounting holes with a diameter of 11 mm
  • Thread M20
  • Galvanized product (with black eye)
  • Possibility of adjustment
  • Mounting hole spacing 65 x 65 mm

POSSIBILITY OF ADJUSTMENT

Using this hinge will help in simple and faster adjustment of swing gates after the installation is completed, using an adjusting nut. The hinge can be adjusted at any time, e.g. in the case of the structure hanging or when extreme temperatures occur.
Metal will become tense due to, for example, a sudden drop in temperature in winter. In such situations, you can loosen the adjustable hinge or tighten it as needed.

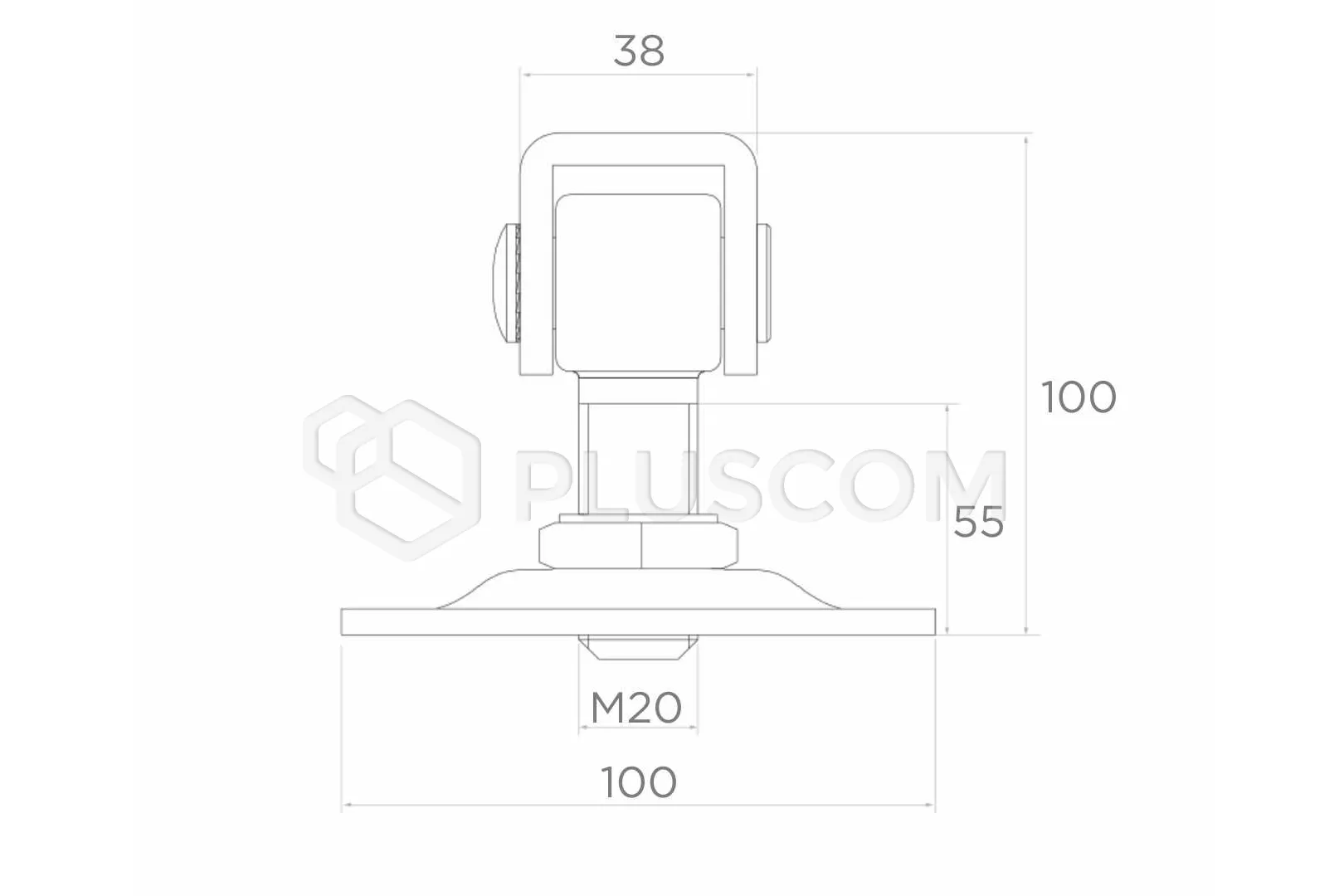

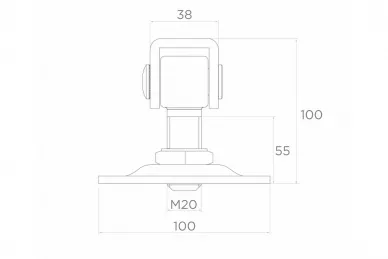

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)
  • Mounting plate: 100 x 100 x 4 mm
  • Ear width: 38 mm
  • Screw: M20
  • Mounting holes: ø 11 mm
  • Mounting hole spacing: 65 x 65 mm
