PSG 61.000.20 Adjustable hinge M20 100x100x4 mm

6,91 EUR including 23.00% VAT
Product code: #41144
  • The maximum load of a pair of hinges on a 2m long door leaf is 105 kg
  • Ear width: 43 mm
  • Length: 88mm
  • Mounting hole spacing: 65 mm
  • Mounting plate: 100x100x4 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.000.20 Adjustable hinge M20 100x100x4 mm


Steel adjustable hinge with M20 threaded screw. Equipped with a 100x100 mm mounting plate, with a sheet thickness of 4 mm.

Galvanized product - intended for outdoor use, provides high corrosion resistance. Using this hinge will help in simple and quick adjustment of swing gates after the assembly is completed, using an adjustment nut.

Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, as needed, loosened.

Permissible load of a pair of hinges on a 2mb long wing: 105 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of adjusting the hinge after assembly
  • High abrasion resistance
  • Aesthetic visual effect

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)

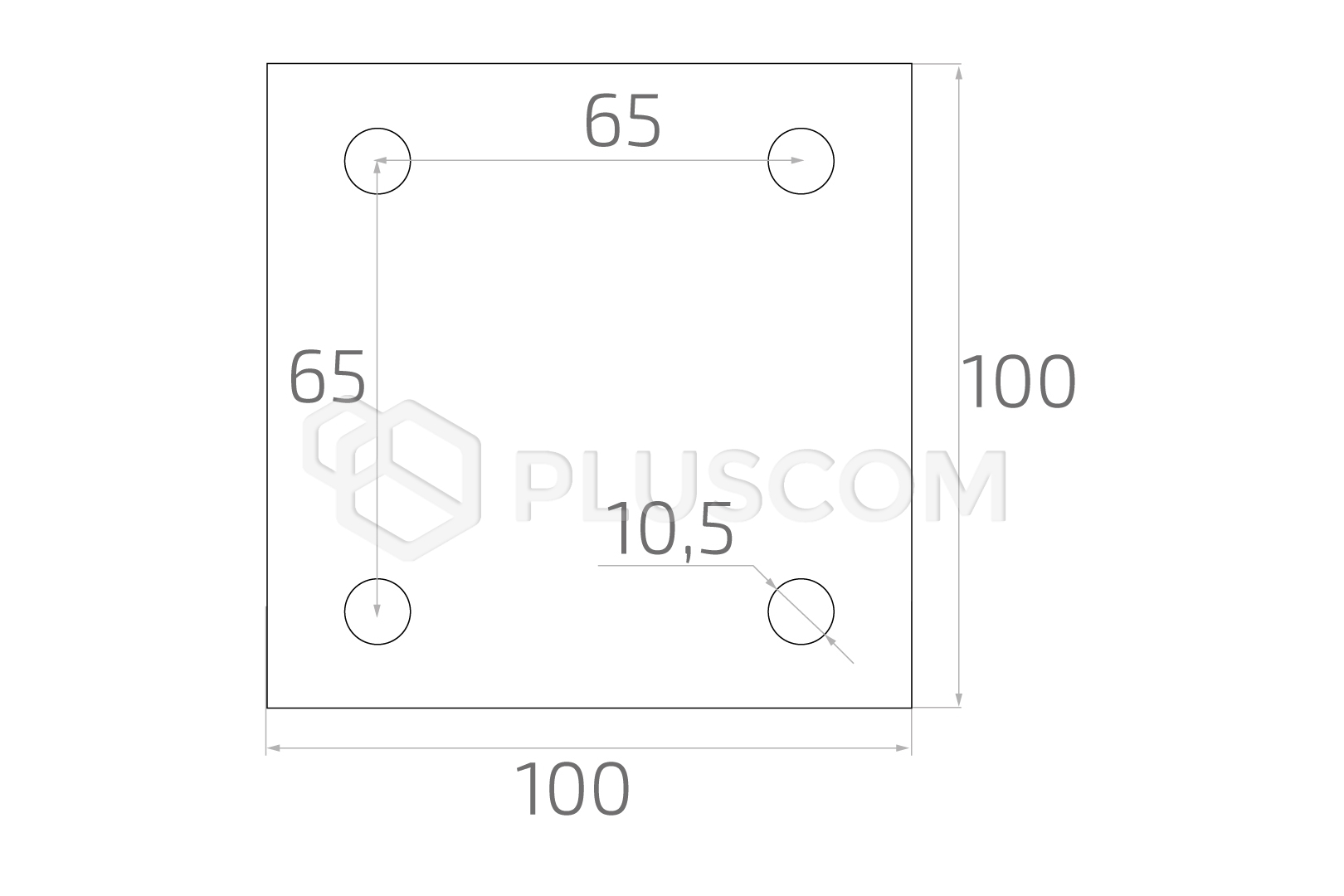

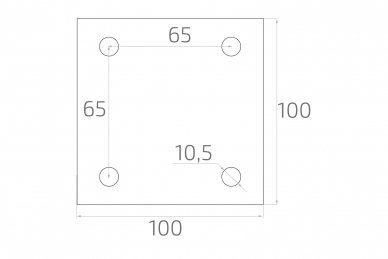

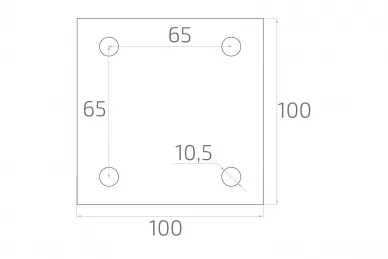

  • Mounting plate: 100x100x4 mm

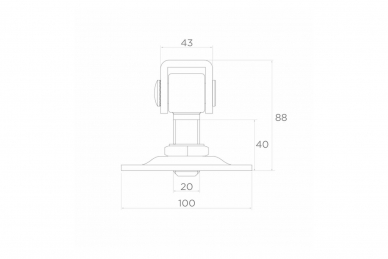

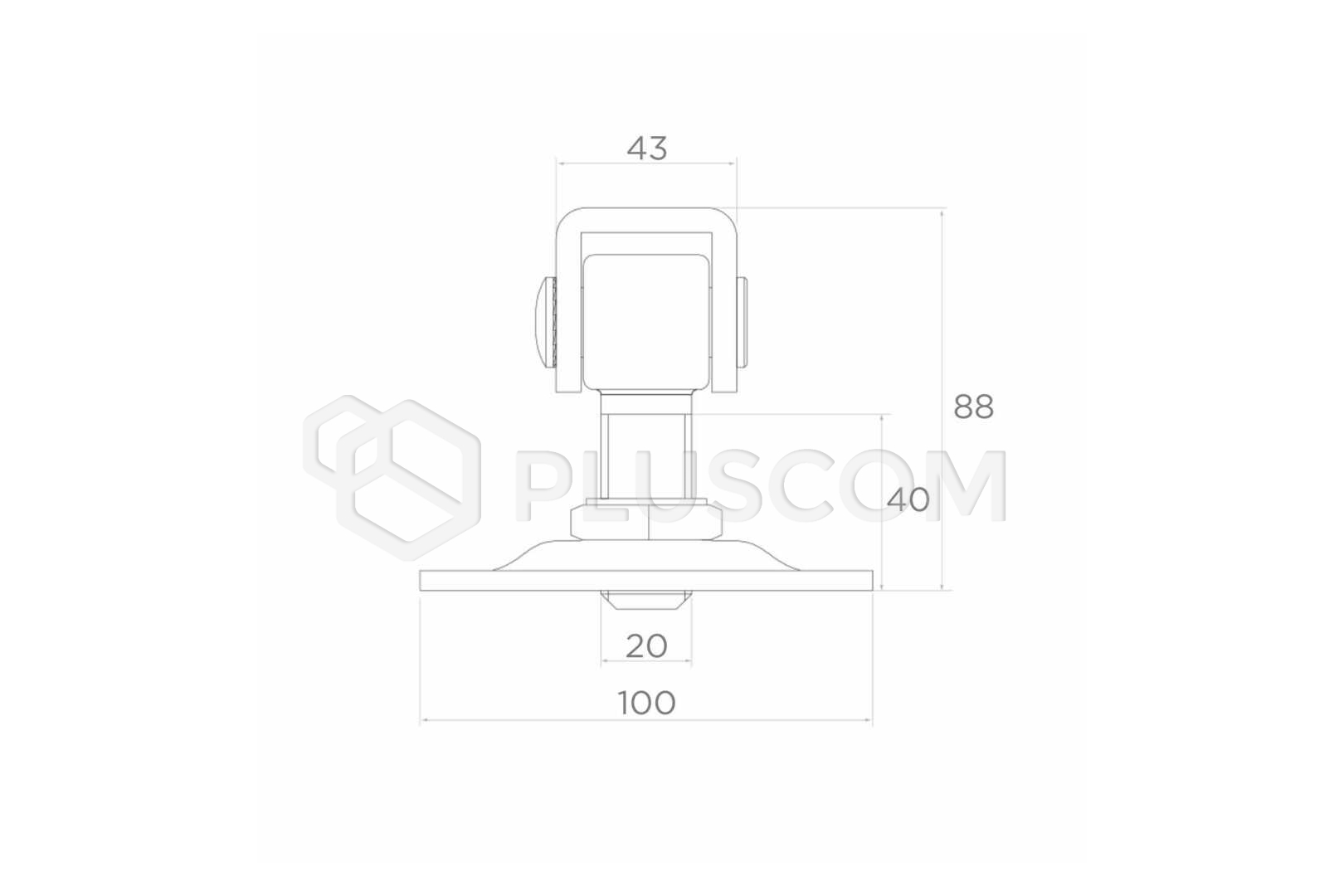

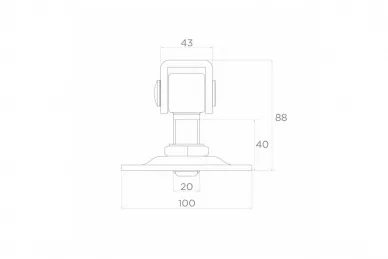

  • Ear width: 43 mm
  • Length: 88 mm
  • Mounting hole spacing: 65 mm
  • Hole diameter: 10.5 mm
  • Screw diameter: M20
