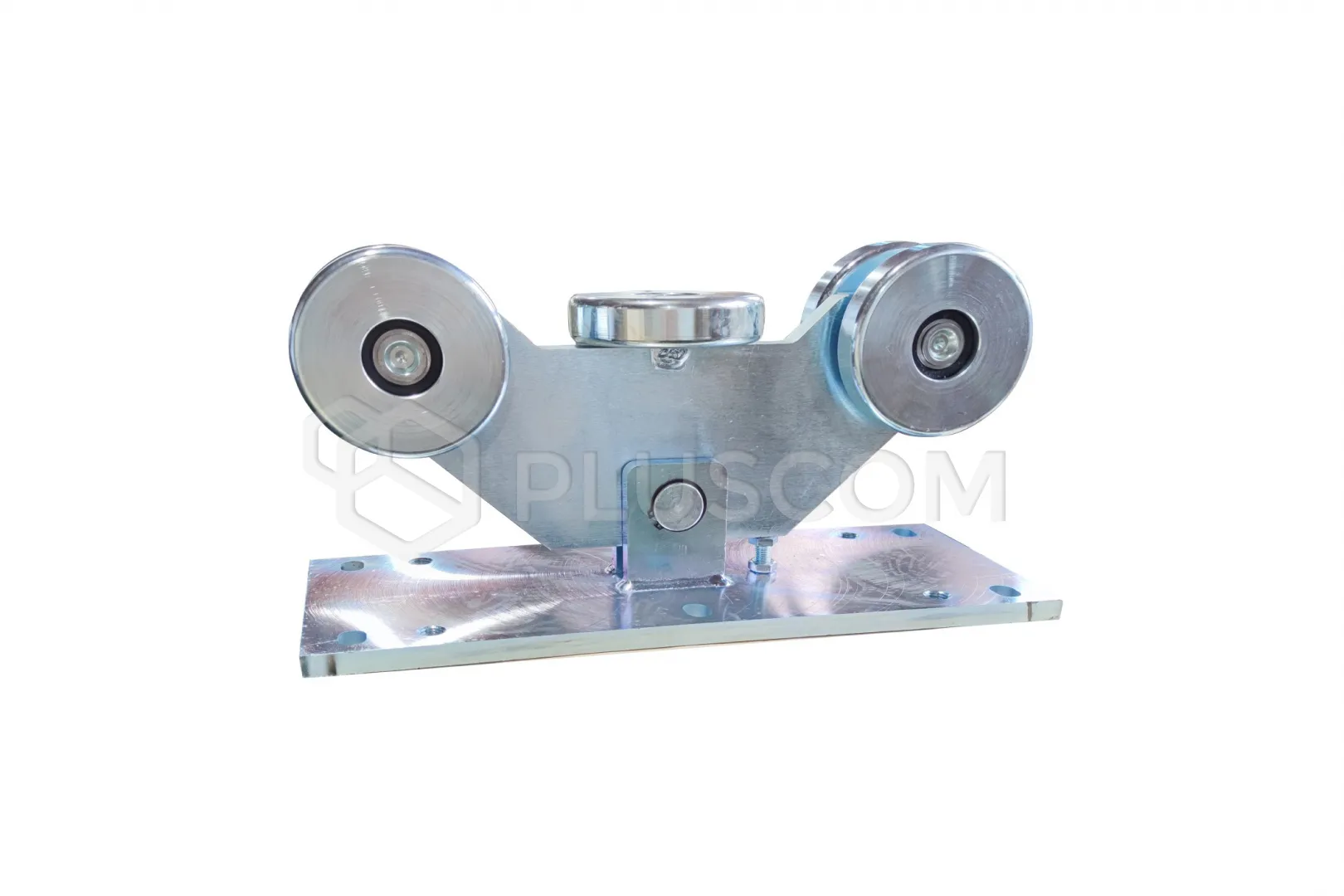

Carriage 140 - 5-roller, steel rollers with a diameter of 126 mm

The carriage for a 140 x 140 mm rail with steel rollers with a diameter of 126 mm is a solid load-bearing component designed for sliding gates. Its job is to guide the gate leaf smoothly along the rail, with stability and repeatable operation in everyday use.

KEY FEATURES OF CARRIAGE 140:

• For a 140 x 140 mm rail: matched to work with this specific rail size, which makes correct installation and gate guidance easier.
• 126 mm steel rollers: the steel construction of the rollers and their large diameter promote stable travel and resistance to heavy use.
• Maximum load 1500 kg: allows stable and safe operation even with heavy sliding gates.
• One horizontal roller: additional side support that helps stabilize the leaf and keep an even travel path.
• For sliding gates: a component designed for systems in which the gate runs on a rail and requires secure, load-bearing guidance.

126 MM STEEL ROLLERS - STABLE OPERATION UNDER LOAD

The large roller diameter (126 mm) has practical significance in sliding gates: it makes travel along the rail smoother and promotes stable operation of the running gear. Steel rollers are chosen where durability and resistance to the working conditions typical of driveway gates matter, namely frequent opening and closing and loads resulting from the weight of the leaf.

ONE HORIZONTAL ROLLER - BETTER GUIDANCE AND LESS “DRIFTING” OF THE GATE

Using one horizontal roller allows better control of the gate position relative to the rail. In practice this helps maintain a stable travel path and limits lateral deflection of the leaf during movement. This solution is especially useful when you want even, predictable gate operation and a lower risk of rubbing or unwanted “tilting” of the running gear.

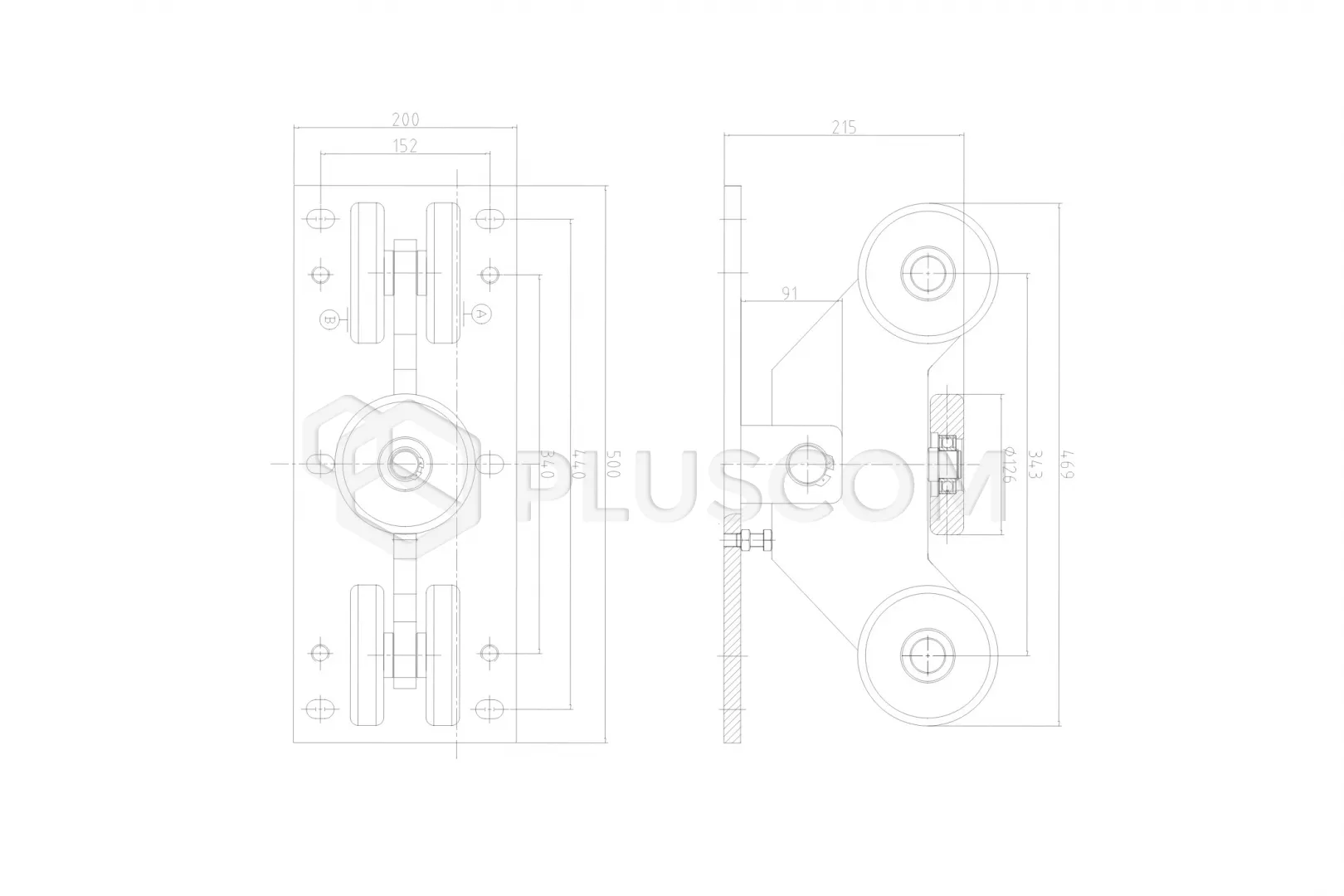

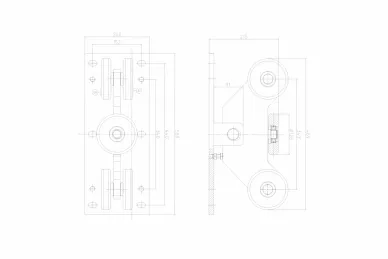

TECHNICAL DATA:

• Color: SILVER
• H (mm): 246
• L (mm): 200
