PSG 60.069.ZN Rail for sliding gate 68x68x3.5 mm, 6 m long
The 6 m long rail is a key structural element that
enables smooth and stable movement of the gate along the established
route.
The rail is mounted on the ground and cooperates with rollers or wheels, which
are part of the gate, ensuring its movable nature. Thanks to this, the suspended gate
can be easily and safely opened and closed.
Dimensions:
- External cross-section: 68x68 mm
- Wall cross-section 3.5 mm
The precise design means that the gate will operate without
jamming and noise. In addition, the use of solid materials ensures convenient and effortless sliding of the gate.
Thanks to the galvanized coating, the rail is characterized by increased resistance
to corrosion, and at the same time is more durable and resistant to the adverse effects of
atmospheric conditions.
Application
Suspended sliding gates are particularly useful in the
industrial sector. They are ideal for industrial halls, warehouses and
other utility rooms where space is limited and requires
flexible solutions.
Thanks to well-selected elements, such gates ensure efficiency
and ease of use, which significantly facilitates work in such
environments.
FEATURES:
- The use of this type of guide eliminates the effect of oblique (angular) forces on the trolley's load-bearing wheels, thus extending their
lifespan
- Resistance to weather conditions: The rail material is
resistant to corrosion and unfavorable weather conditions
- Purpose: 60.069 trolley package
- Ease of use: Ensures smooth and quiet sliding of the gate
- Channel equipped with mounting holes enabling
screwing the rail to the gate structure (dimensions 29 x 11mm)
- The process of screwing the rail to the gate is technologically cheaper and
simpler than welding, and also eliminates the risk of rail warping in the
process of welding the gate assembly

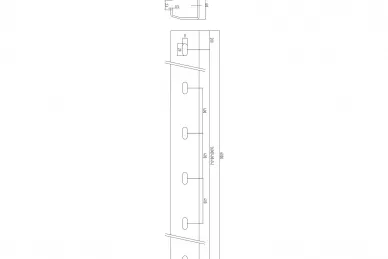

Technical data:
- Cross-section external: 68x68 mm
- Wall cross-section: 3.5 mm
- Length: 6 m
- Mounting holes: 29x11 mm
