PSG 60.069 Carriage 68 for sliding gate system 68x68

54,80 EUR including 23.00% VAT
Product code: #41342
  • Steel rollers
  • System: 68x68
  • Running gear: 8 steel rollers on two levels
  • Trolley height: 157 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 60.069 Carriage 68 for sliding gate system 68x68


The carriage is the foundation for smooth and efficient operation of sliding gates. It is an essential element to ensure stability and long-term, trouble-free use of each gate system.

Equipped with an advanced carriage system with eight steel rollers, arranged on two levels, they ensure smooth movement of the gate in all conditions.

FEATURES:

  • Running system: The carriage consists of eight steel rollers, arranged on two running levels, which ensures stability and smooth movement of the gate
  • Compatibility: This carriage is designed for use with the 60.069.ZN guide rail, which ensures perfect adjustment and efficiency of operation
  • The use of 6201 RS ball bearings in the rolling system significantly contributes to quiet operation and increases the reliability of the entire system
  • Extended service life: Elimination of oblique forces acting on the bearings translates into quieter operation and increases the reliability of the carriage
  • The use of high-quality black steel, additionally protected against corrosion by galvanizing, guarantees durability and resistance to weather conditions
  • Adjustment: Possibility of adjusting the carriage to foundation anchors by placing washers, which allows precise adjustment to the individual needs of the installation

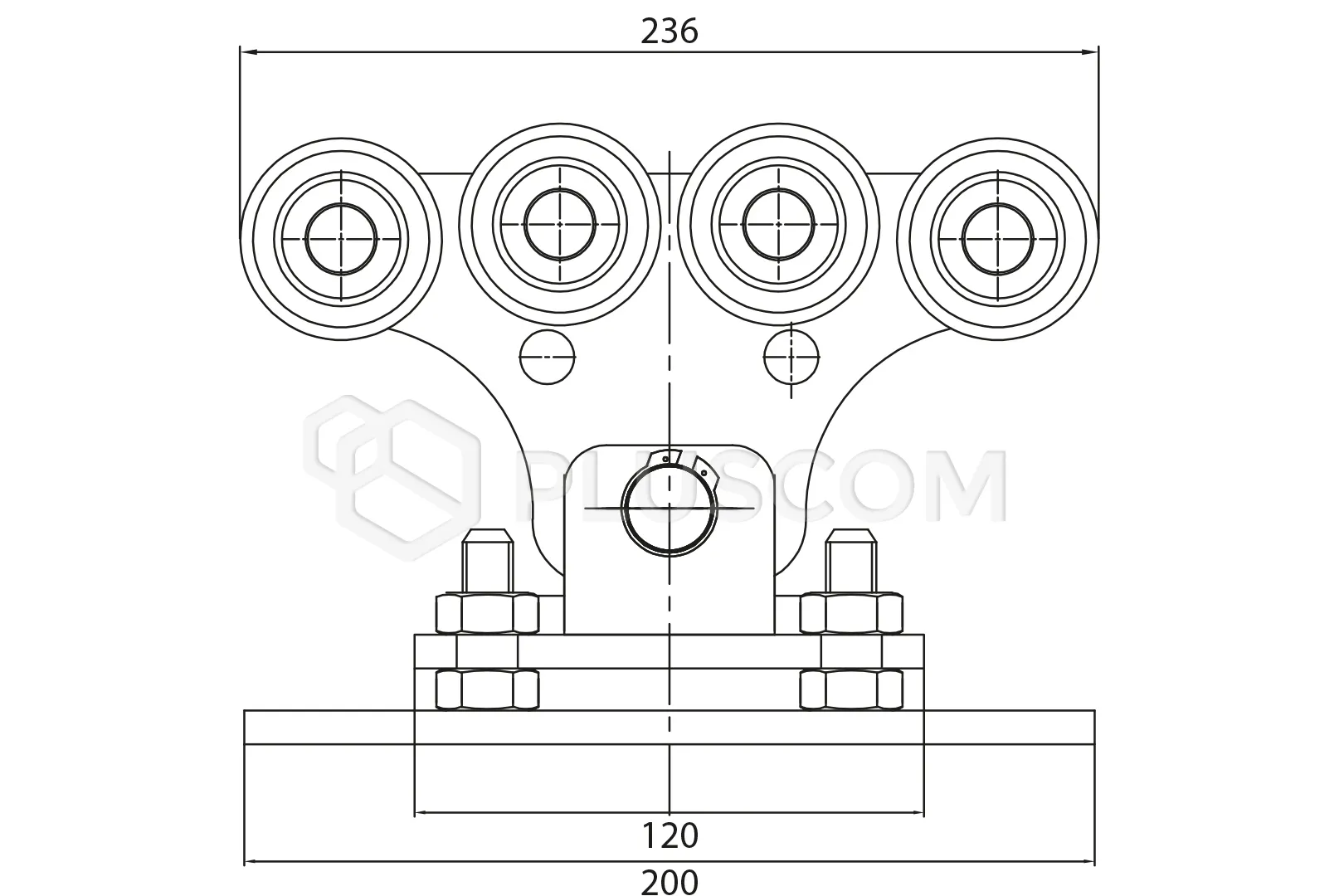

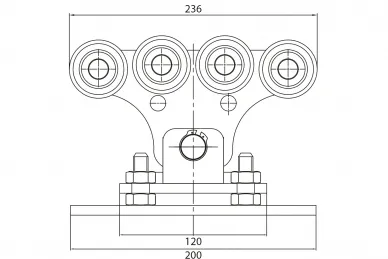

Technical data:

  • System: 68x68
  • Runner: 8 steel rollers on two levels
  • Material: Steel, electro-galvanized

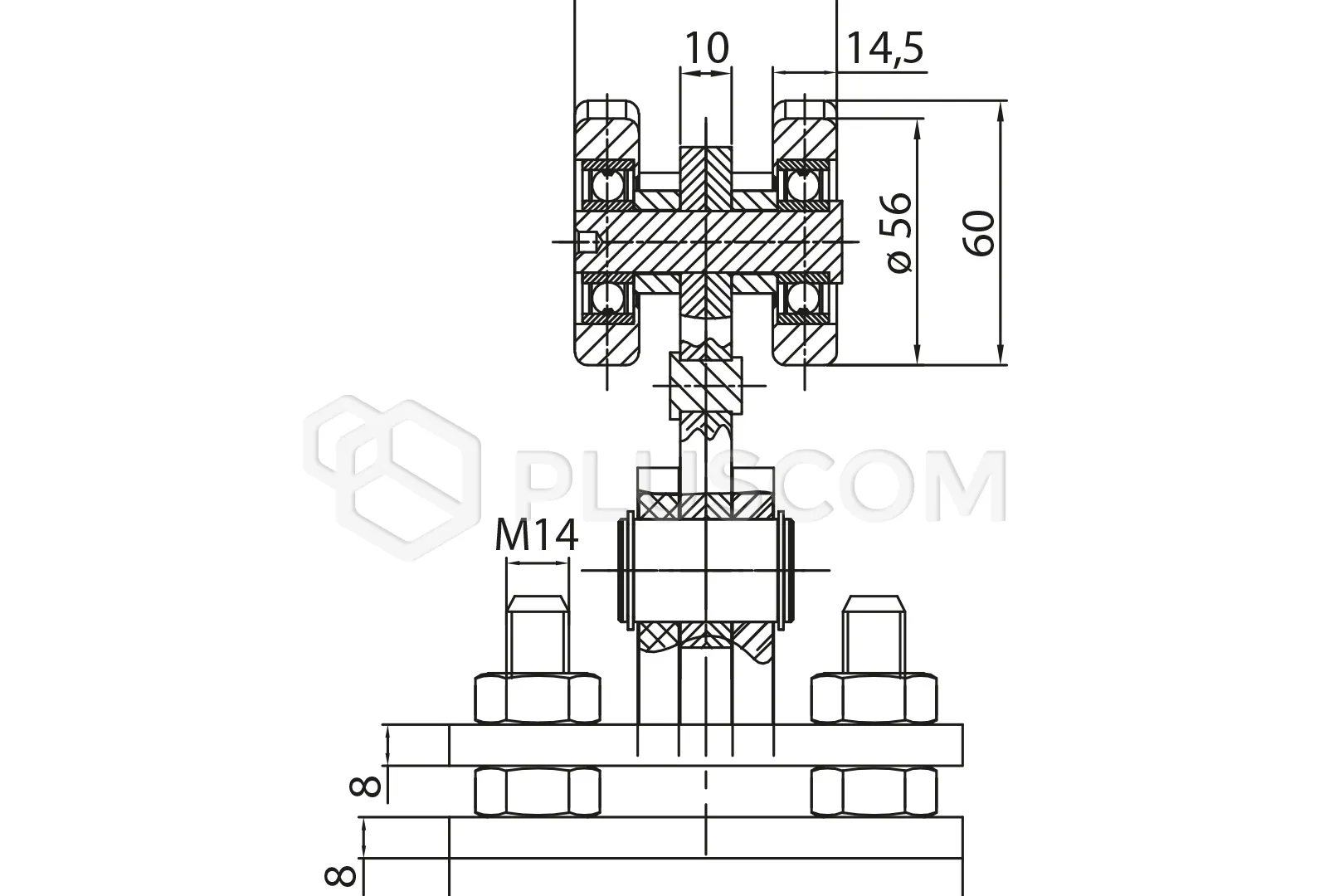

  • Roller diameter: 68 mm
  • Bearings: ball, 6201 RS

Technical data:

  • Material; Steel, electro-galvanized
  • Runner: 8 steel rollers on two levels
  • Bearings: Ball, 6201 RS
  • System: 68x68
  • Roller diameter: 68 mm
  • Trolley height: 157 mm
  • Rail: 60.069.ZN
