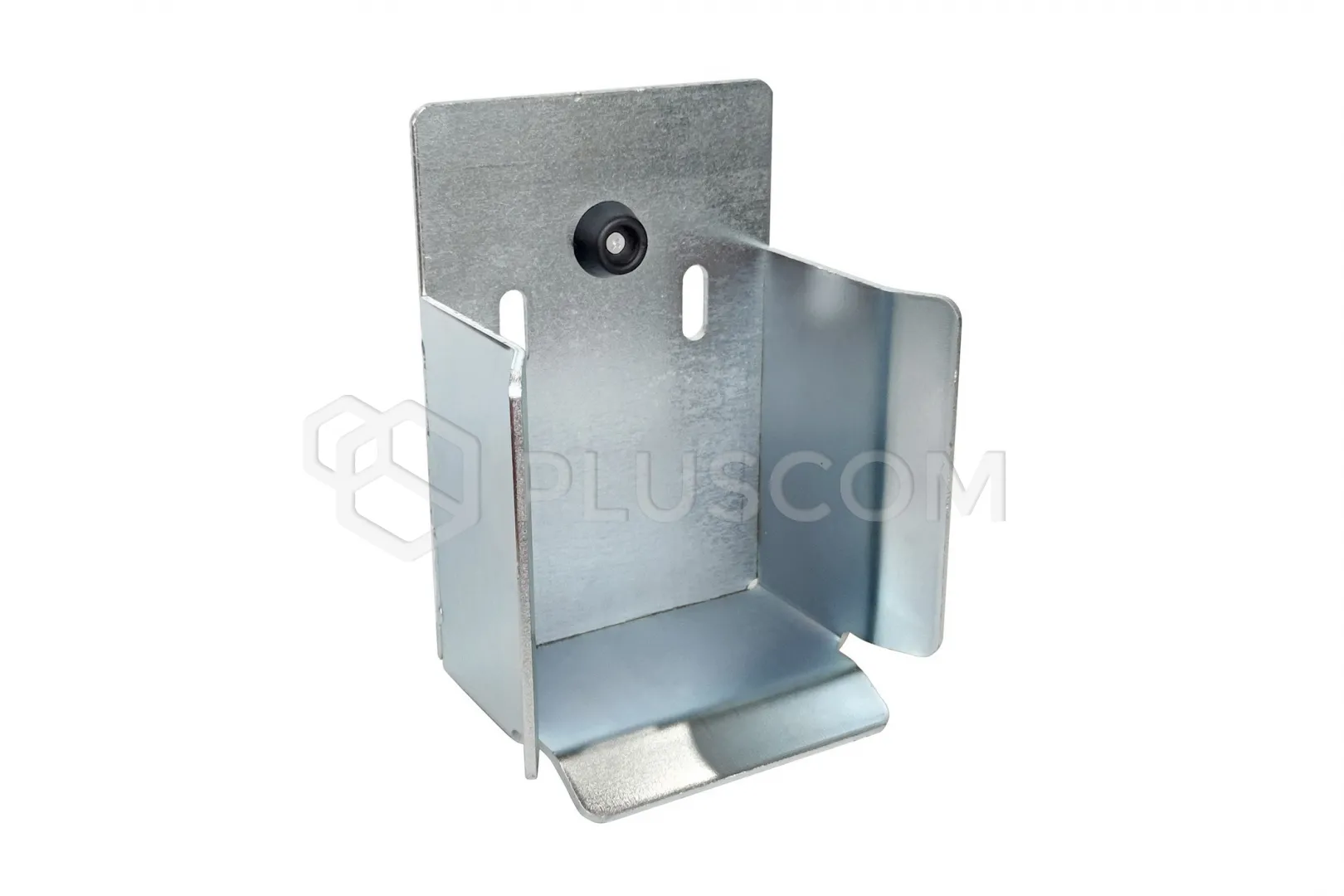

End catcher for sliding gate – for 140x140 mm rail

The end catcher is a final element that “catches” the sliding gate leaf in the last phase of closing and sets it in a fixed, repeatable position. It is mounted at the closing post so that the gate stops exactly where it should. Such a bracket stabilizes the closed gate and helps relieve the running gear, which means smoother operation and less wear of the mechanism.

Check the features of the end catcher:

• application: for a rolling sliding gate on a 140×140 mm rail (a rail system set in the ground, on which the gate moves on matched rollers)

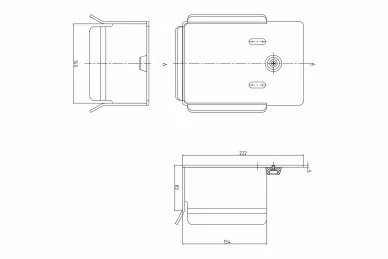

• width: 180 mm
• depth: 110 mm
• height: 222 mm
• material: steel function in the gate system: precise stopping and stabilization of the leaf in the closed position and support during closing
• mounting location: at the end of the travel track

Key feature: relieving the running gear

Relieving the running gear is a feature that genuinely extends the “life” of the gate. During closing, the gate's roller/end-catching element enters the bracket, so part of the load is transferred to the closing point instead of constantly working on the carriages and running rollers. This limits sagging of the gate front over time, improves smooth operation and helps keep the closing stable and even – particularly important for heavier and frequently used gates.

TECHNICAL DATA:

• Color: SILVER
• H (mm): 222
• L (mm): 110
