PSG 60.019.9005 End catcher 80 - for 80 x 80 mm and 70 x 70 mm rails, galvanized, black (RAL9005)

PSG 60.019.9005 End catcher 80 - for 80 x 80 mm and 70 x 70 mm rails, galvanized, black (RAL9005)

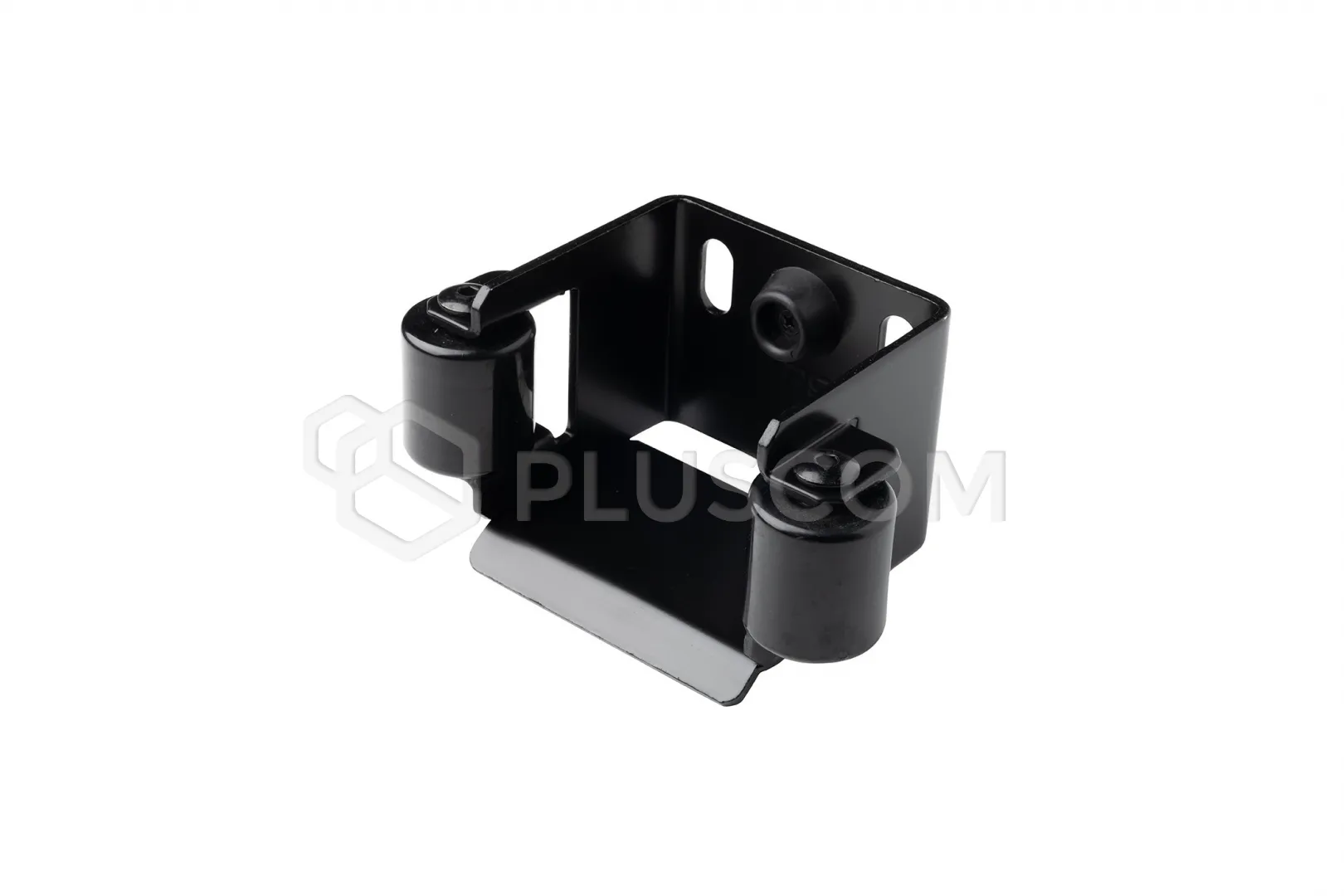

End catcher for sliding gate - for 80 x 80 mm and 70 x 70 mm rails, black

The black end catcher for 80 x 80 mm and 70 x 70 mm rails is an important element of the cantilever gate system, responsible for its proper support and stabilization after closing. Mounted at the post, it works with the end roller and helps safely guide the leaf into its final position. As a result, the gate works more reliably and the load is spread over more elements, which has a positive effect on the durability of the entire running gear.

FEATURES OF THE PSG END CATCHER:

• Intended for 80 x 80 mm and 70 x 70 mm rails: the bracket fits two popular rail sizes, which increases its versatility.
• Gate stabilization after closing: the element holds the leaf in its final position and limits its vibration.
• Two plastic rollers: the rollers guide the gate and support its smooth entry into the bracket.
• Distance between rollers 90 mm: a suitable spacing makes it easier to guide the leaf correctly during closing.
• Rubber buffer: protects the gate at the moment of closing and improves comfort of use.
• Hole spacing 70 mm: makes it easier to fit the element during installation.
• Slot size 25 x 10 mm: allow adjustment and precise positioning of the bracket.
• Galvanized coating: increases resistance to corrosion and weather conditions.

STABLE CLOSING AND BETTER GATE SUPPORT

One of the most important functions of the end catcher is stabilizing the leaf after closing. After the gate is properly guided into the bracket, its position becomes more secure and the whole structure less prone to movement, vibration and deflection. This solution improves everyday comfort of use and supports trouble-free gate operation for a long time.

GUIDE ROLLERS THAT MAKE THE SYSTEM WORK EASIER

The bracket is fitted with two plastic rollers that guide the gate during closing. They help smoothly bring the leaf into the correct position, reducing the risk of improper approach and improving the smooth operation of the entire system.

The well-designed roller spacing and the rubber buffer further increase convenience of use and protect the gate elements during closing.

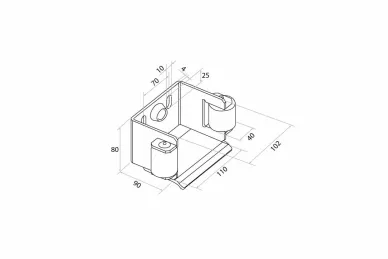

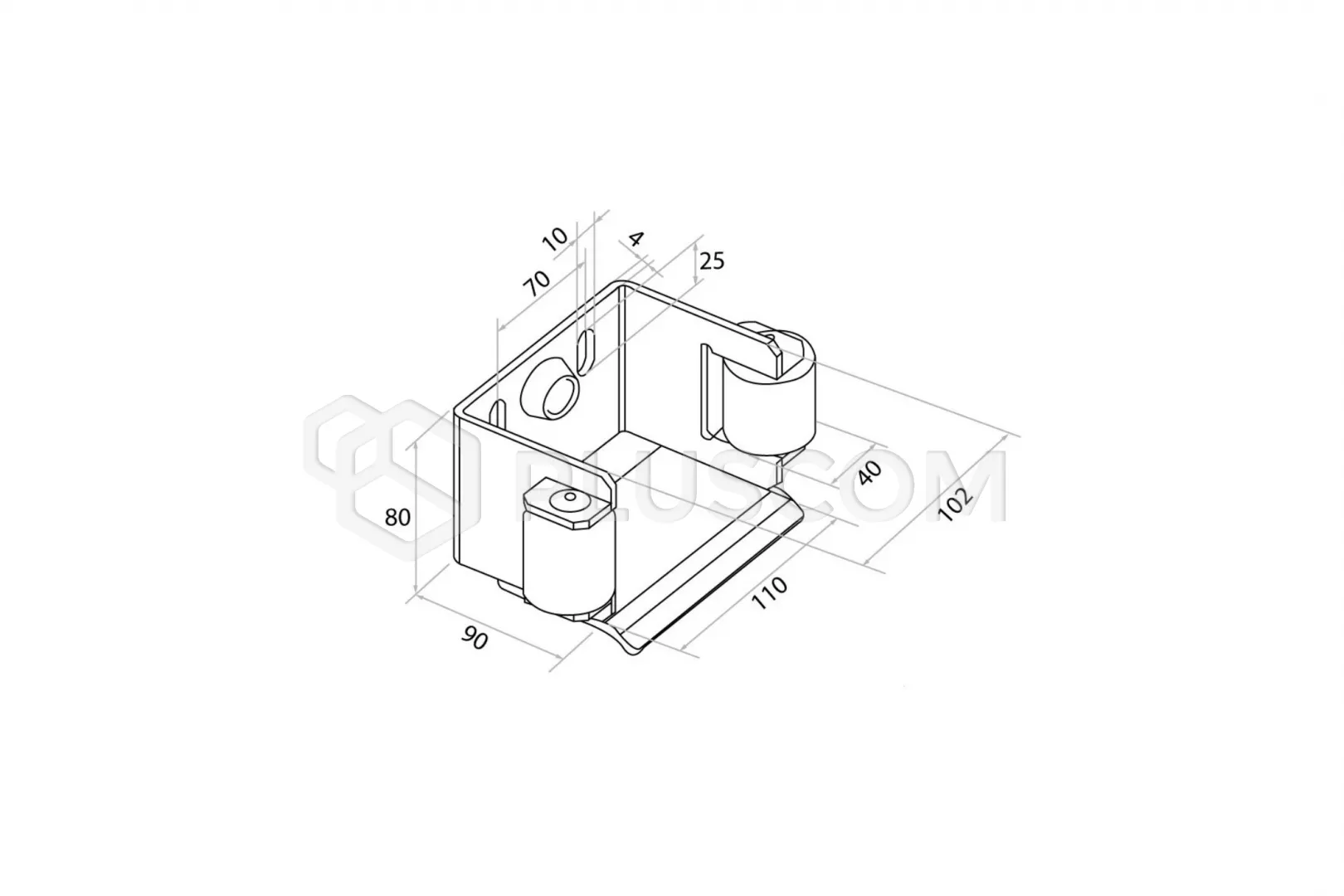

TECHNICAL DATA:

• L (mm): 110
• Color: BLACK
