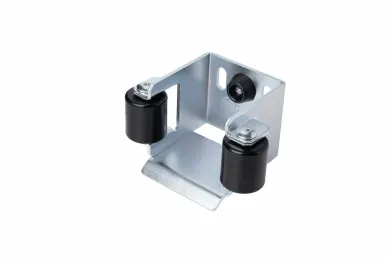

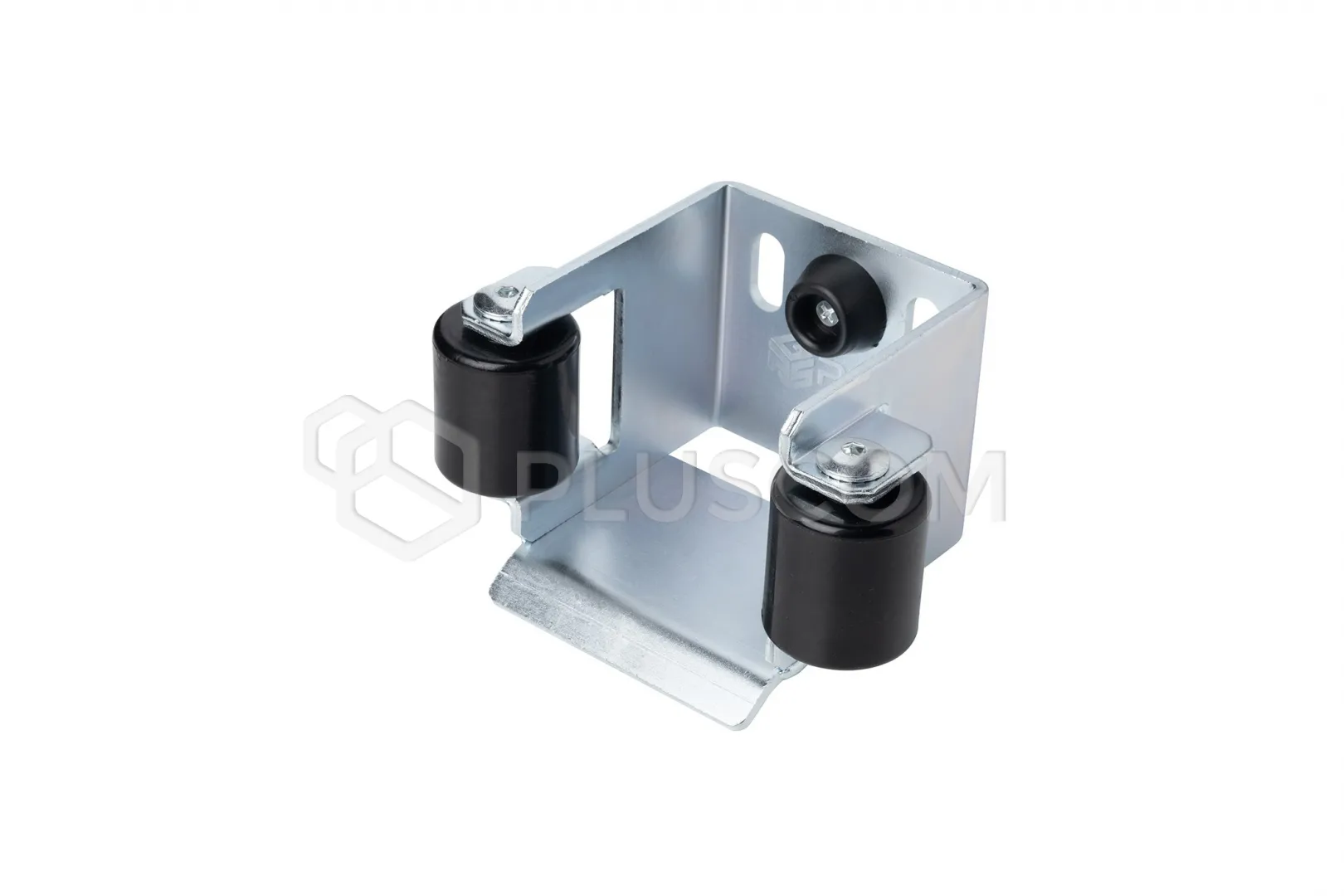

End catcher for sliding gate 69 x 69 mm

The end catcher for a 69 x 69 mm rail is a steel element intended for rolling sliding gates that move on a rail set in the ground. It is mounted at the closing post, at the end of the gate's travel. Its task is to precisely “catch” the leaf in the final phase of closing and set it in a fixed, repeatable position.

Thanks to the bracket, the gate stays more stable and better supported after closing. The element helps limit sagging of the gate front, improves the smooth operation of the entire system and supports smooth closing of the leaf. This is particularly important for heavier and frequently used gates, where the running gear is regularly exposed to loads.

FEATURES OF THE PSG END CATCHER:

• Fits 69 x 69 mm rail: the element is intended for a specific rail size, which makes it easier to select for the gate system.
• Precise gate closing: the end-catching element enters the bracket in the final phase of movement, which improves the smooth operation of the entire system.
• Material: steel: the solid construction withstands the loads arising when the gate closes. Steel gives the bracket adequate rigidity, durability and resistance to intensive work in sliding gate systems.
• Slot size 10 x 25 mm: the mounting holes allow convenient positioning of the bracket during installation.
• Spacing between slots 70 mm: this parameter makes it easier to fit the element to the mounting location.
• Roller diameter 40 mm: the roller supports proper guidance and seating of the leaf in the bracket.

RELIEVING THE RUNNING GEAR

When closing, the gate's end-catching element enters the bracket, so part of the weight and stress is transferred to the closing point. The carriages and running rollers then do not have to take the full load of the leaf all the time. This solution can extend the service life of the mechanism, reduce wear of the running components and help keep the gate running smoothly for longer.

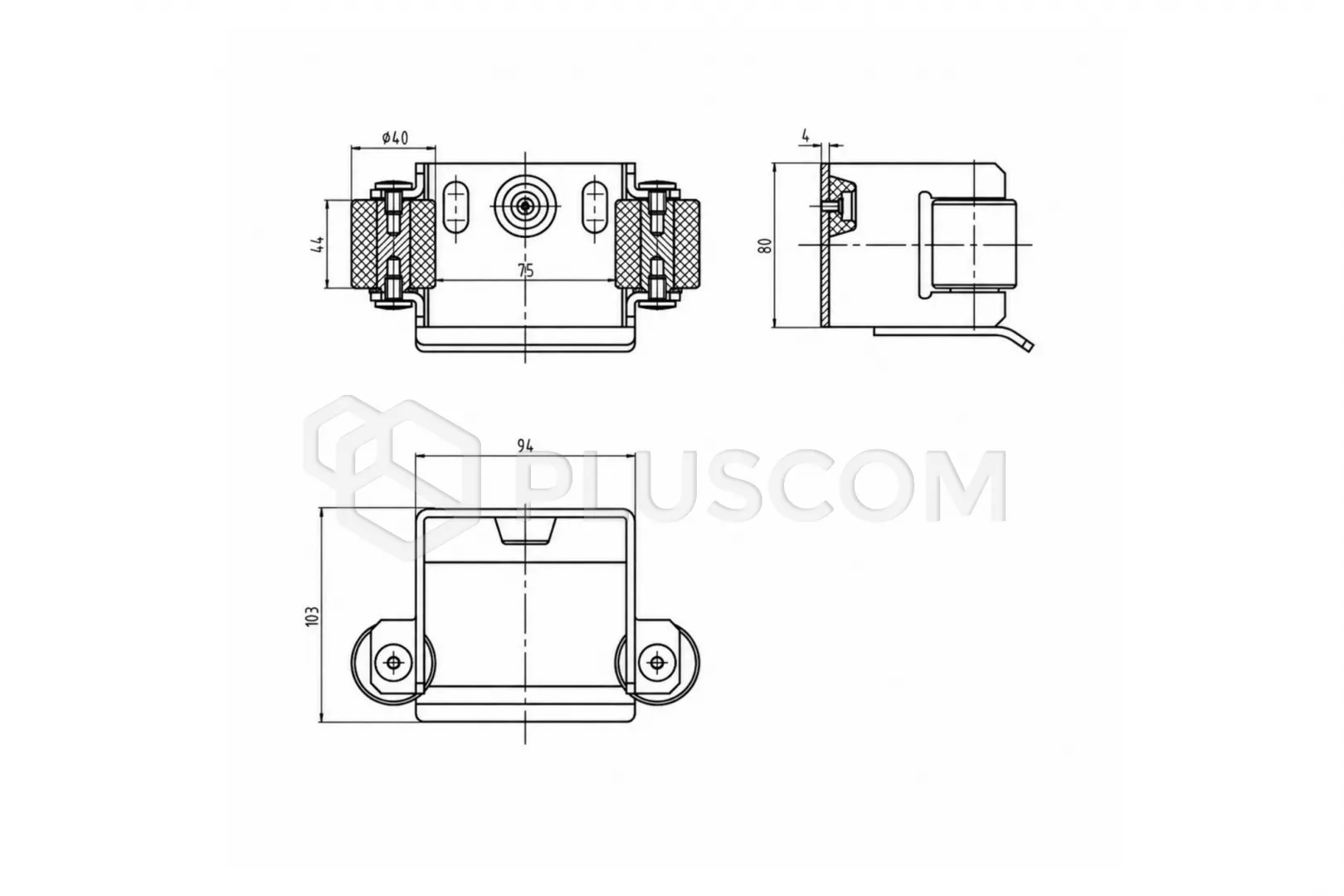

TECHNICAL DATA:

• L (mm): 110
