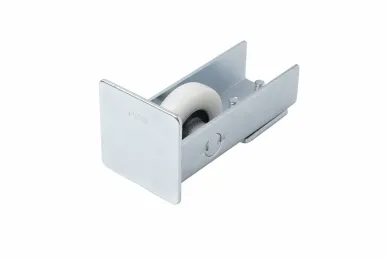

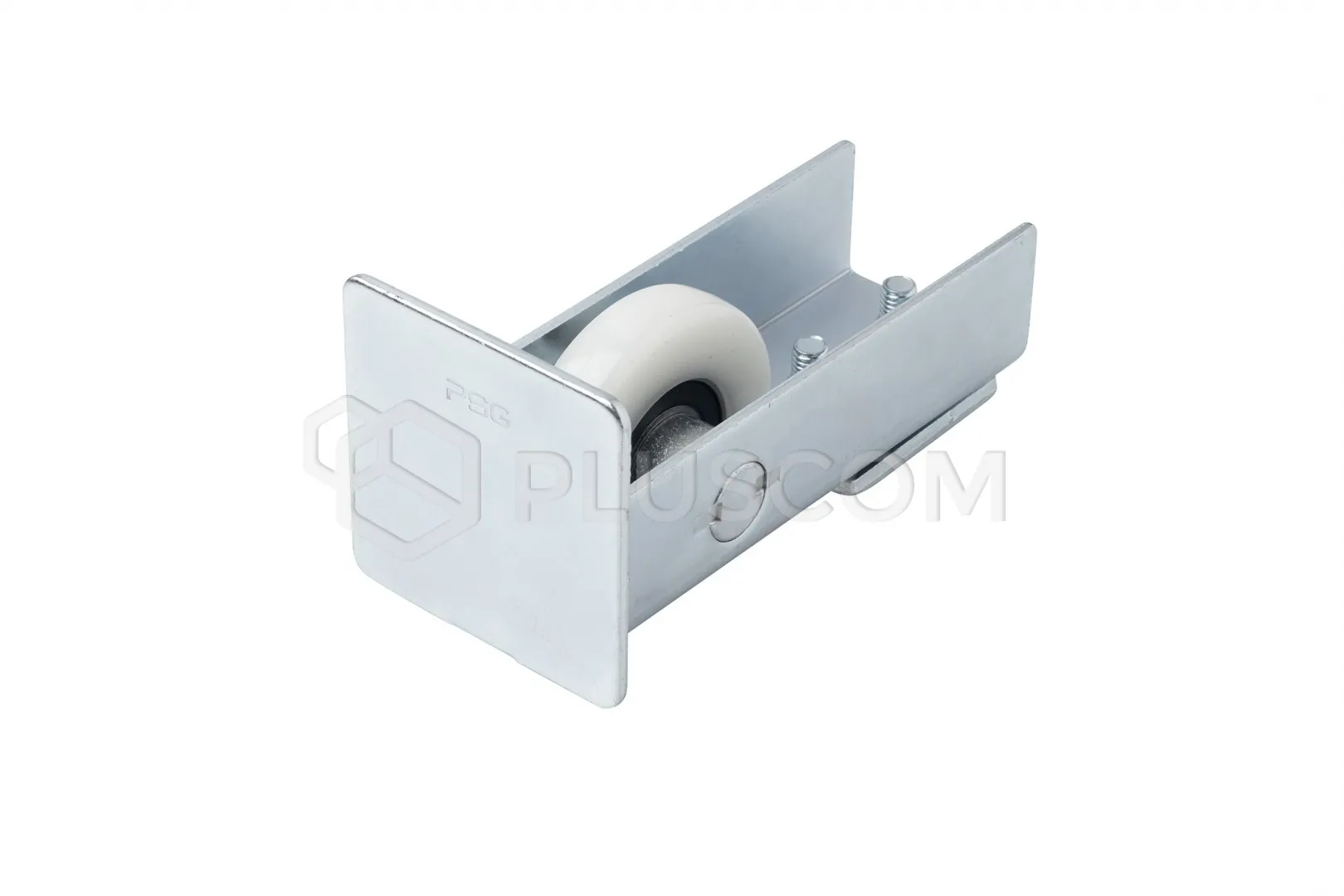

End roller 70 - for sliding gate and 70 x 70 x 4 mm rail

A practical element for a cantilever sliding gate, mounted at the start of the rail. Its task is to smoothly guide the leaf into the end catcher mounted to the post, which improves the stability of the gate after closing and has a positive effect on the operation of the entire running gear.

A small but very important component that helps spread the load over more elements and thus supports the durability of the system. The product fits a 70 x 70 x 4 mm rail, is made of steel and protected with a galvanized coating, so it performs well in outdoor conditions.

FEATURES OF THE PSG END ROLLER:

• For 70 x 70 x 4 mm rail: matched to a specific rail profile, which makes correct installation and cooperation with the gate easier.
• Steel construction: ensures durability and resistance to the daily operation of the gate.
• Stabilization after closing: after entering the end catcher, the roller helps keep the leaf in the correct position.
• Relieves the carriages: distributes the weight of the gate over more elements, which reduces the load on the running gear.
• Galvanized finish: increases the element's resistance to weather conditions.
• Mounting screws included: allow faster installation of the product without having to select additional accessories.

STABLE GATE CLOSING AND BETTER LOAD DISTRIBUTION

The most important function of the end roller is its cooperation with the end catcher mounted to the post. When the gate closes, the roller enters the bracket, giving the leaf an additional support point. This solution improves the stability of the gate and helps keep it in the correct position. At the same time, the weight of the leaf does not rest solely on the carriages, which has a positive effect on the operation of the entire system.

PROTECTION OF THE RUNNING GEAR AND GREATER DURABILITY OF THE ENTIRE SYSTEM

Using the 70 end roller extends the service life of the carriages, because it reduces their constant load when the gate is closed. This is particularly important for gates used regularly, where every element works under a heavy load.

An additional advantage is the roller end cap, which helps protect the profile from snow and ice. As a result, the entire system can work more reliably and maintain better efficiency in everyday use

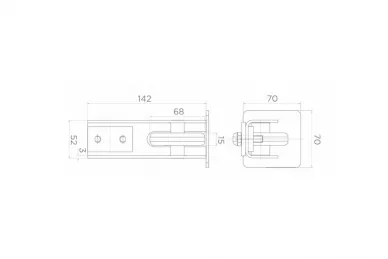

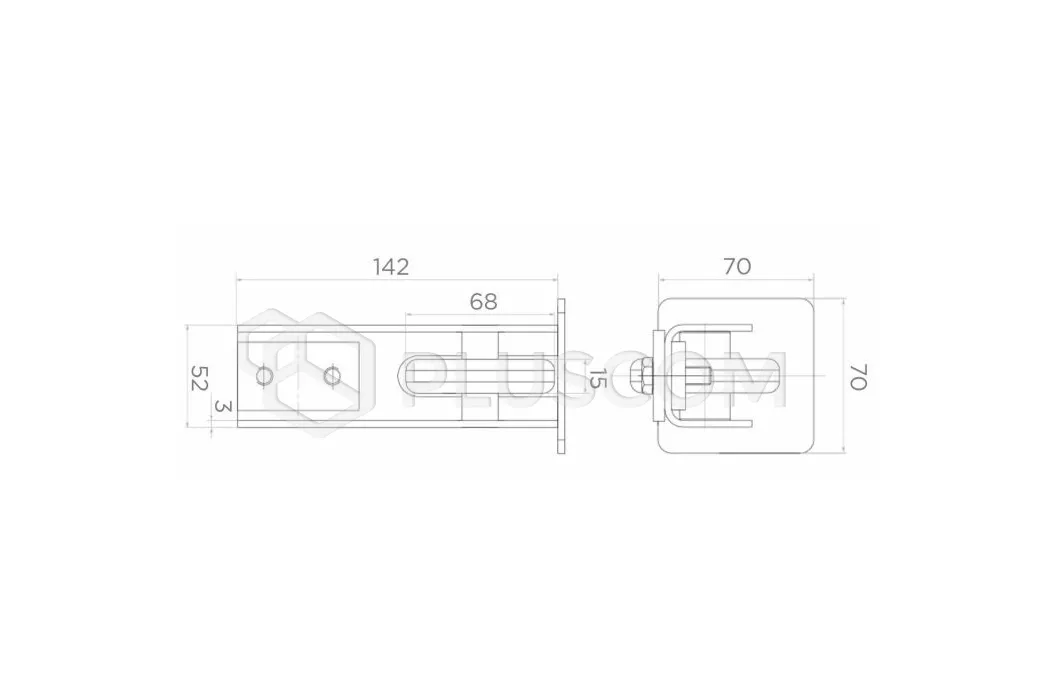

TECHNICAL DATA:

• L (mm): 142
