PSG 60.011.140 End roller 140 mm with end cap, for sliding gate

PSG 60.011.140 End roller 140 mm with end cap, for sliding gate

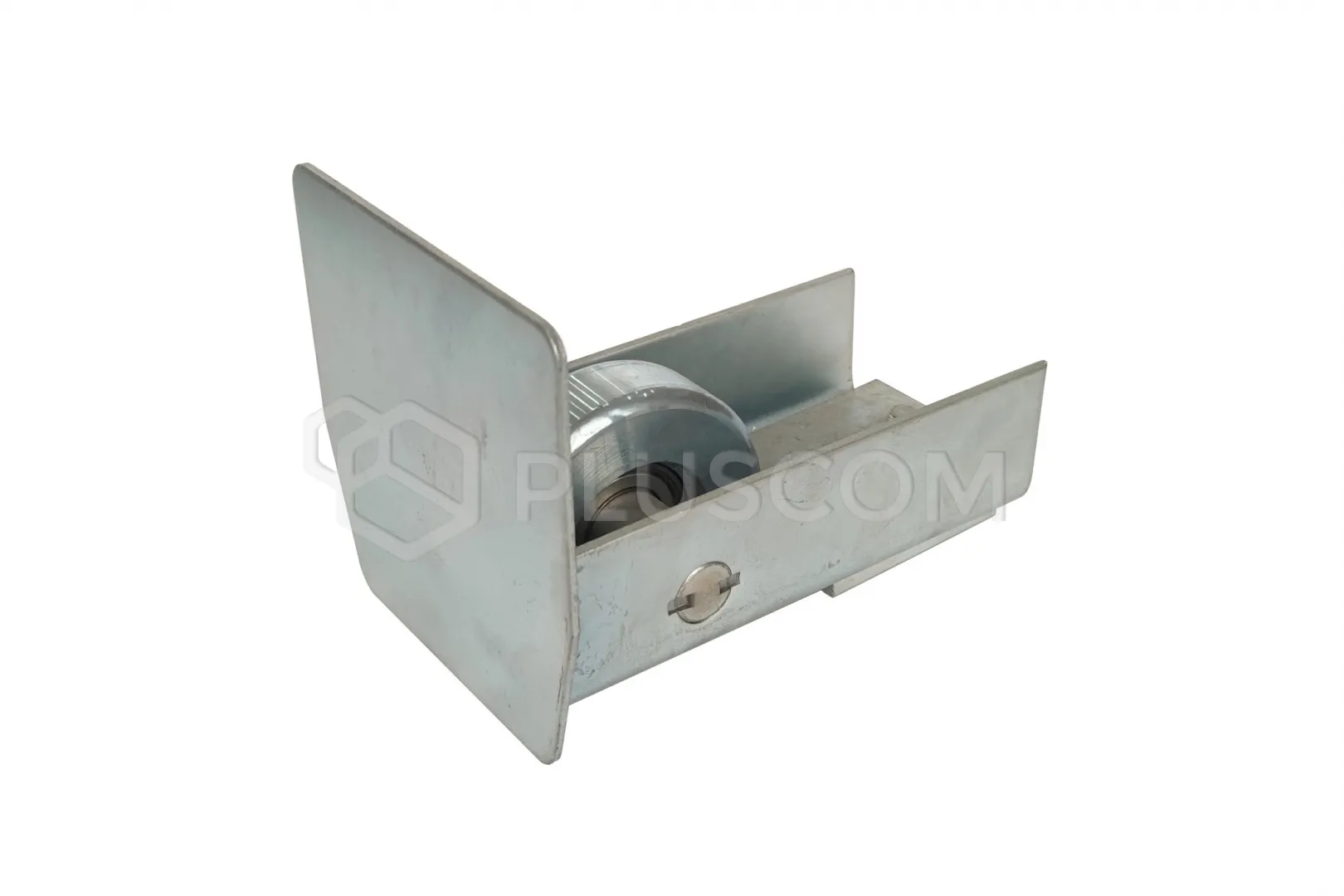

End roller with end cap for cantilever sliding gate 140x140x6 mm

The end roller with end cap is a solid steel element mounted at the start of the cantilever sliding gate rail. Its task is not only to stabilize the leaf in the closed position, but also to genuinely relieve the key components of the running system. It is a small structural detail that significantly affects the durability and smooth operation of the entire gate.

FEATURES OF THE PSG END ROLLER:

• Fits 140x140x6 mm rail: compatible with the popular profile used in cantilever gates.
• Solid steel construction: ensures durability and resistance to intensive use.
• Gate stabilization after closing: after entering the end catcher, the roller stabilizes the leaf and keeps it in the correct position.
• Mounting screws included: allow quick and convenient installation without additional purchases.

STABLE CLOSING AND EVEN WEIGHT DISTRIBUTION

After the roller enters the end catcher mounted to the post, the weight of the gate is partly transferred from the carriages to an additional support point. As a result:

• the load on the running system is spread over more elements,
• the gate leaf is stabilized in the closed position,
• vibration and stress on the structure are reduced.

This solution improves comfort of use and has a positive effect on the service life of the entire sliding mechanism.

HEAVY WEAR ON THE CARRIAGES

Regular use of the gate without an end-catching element can lead to excessive wear of the carriages. Using an end roller significantly extends their service life, because it reduces the constant load acting on the gate guidance system.

This is particularly important for heavy steel leaves and intensively used gates.

End roller 140 with end cap
Width	140 mm
Depth	195 mm
Height	150 mm
Weight	3.9 kg

TECHNICAL DATA:

• Color: SILVER
• H (mm): 150
• L (mm): 195
