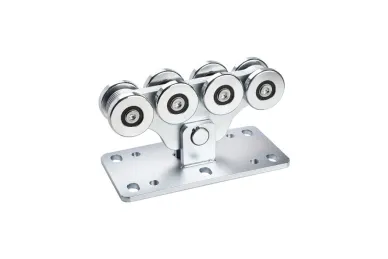

PSG 60.00P.89 Carriage kit 60.089 for 100 x 90 rail - with end roller and end catcher
Carriage kit 60.089 for 100 x 90 mm rail - with end roller and end catcher

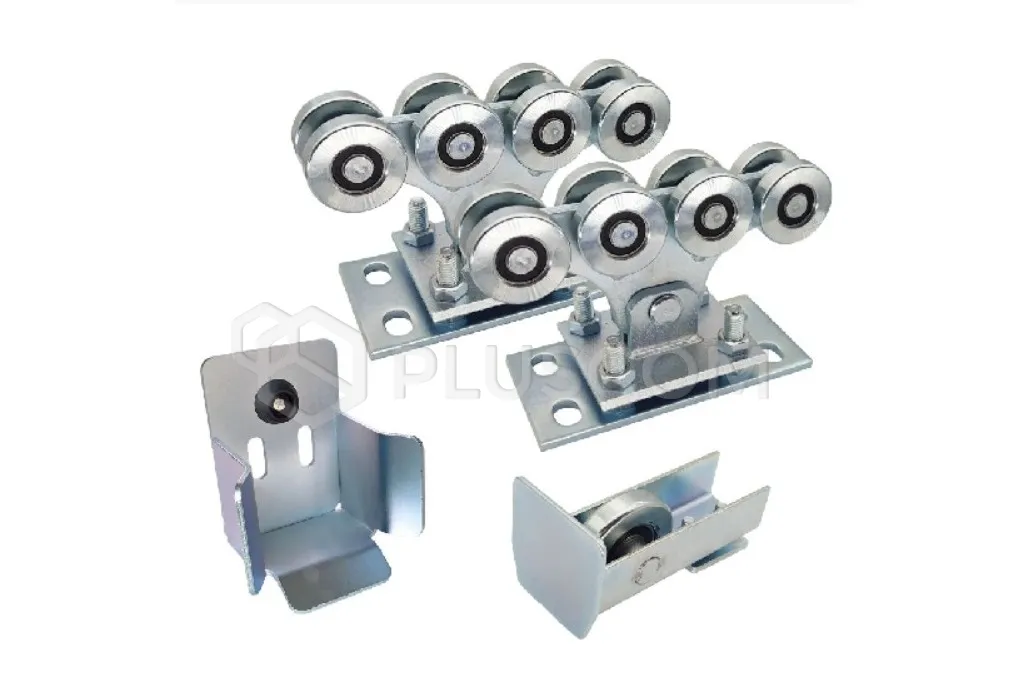

A complete set of elements for installing a cantilever sliding gate with a 100 x 90 mm rail. The kit includes carriages, an end roller and an end catcher, the key components responsible for smooth movement, stable guidance and proper closing of the gate. It is a practical solution for those who want to put together the most important elements of the running system in one set.
Using properly matched carriages and end-catching accessories helps distribute the weight of the gate evenly, reduce the load on the mechanism and increase everyday comfort of use. The kit is suitable for building new sliding gates and for upgrading existing structures.

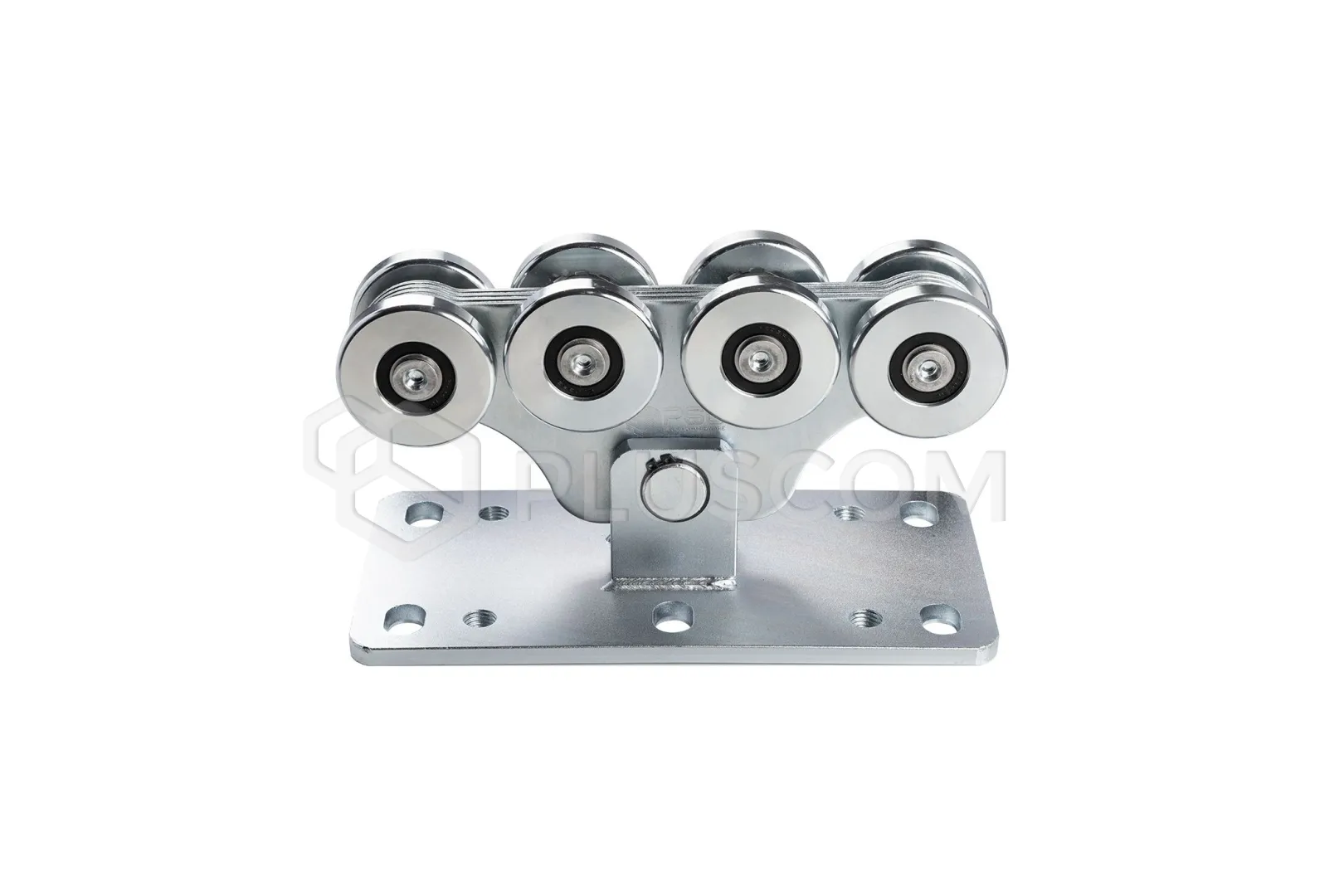

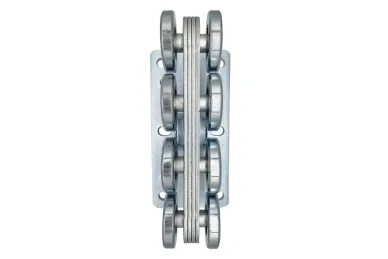

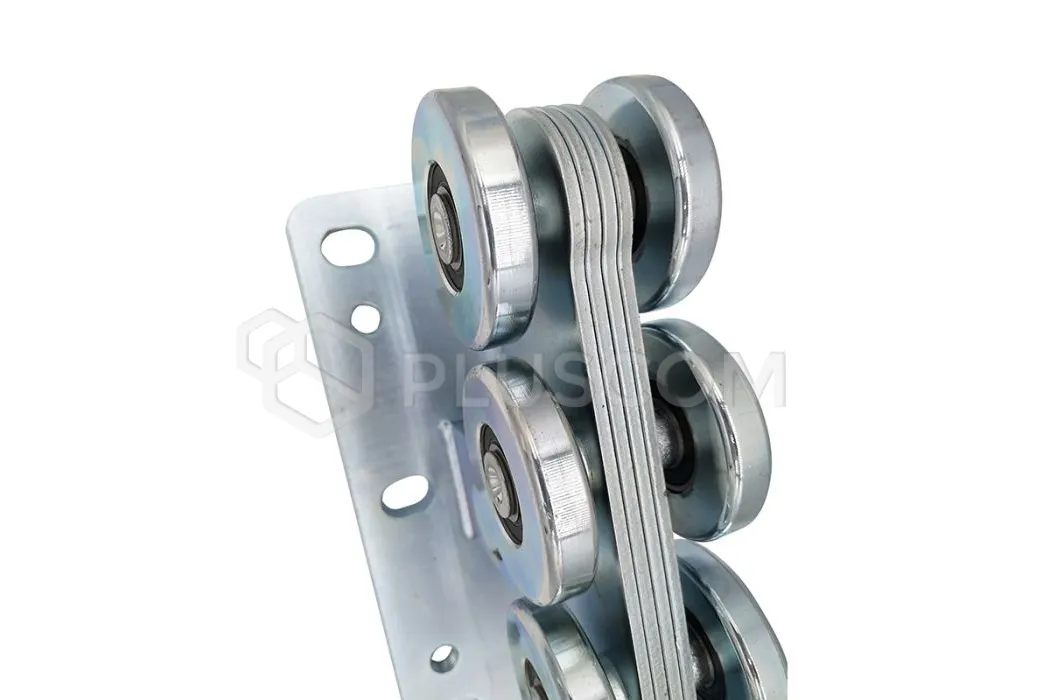

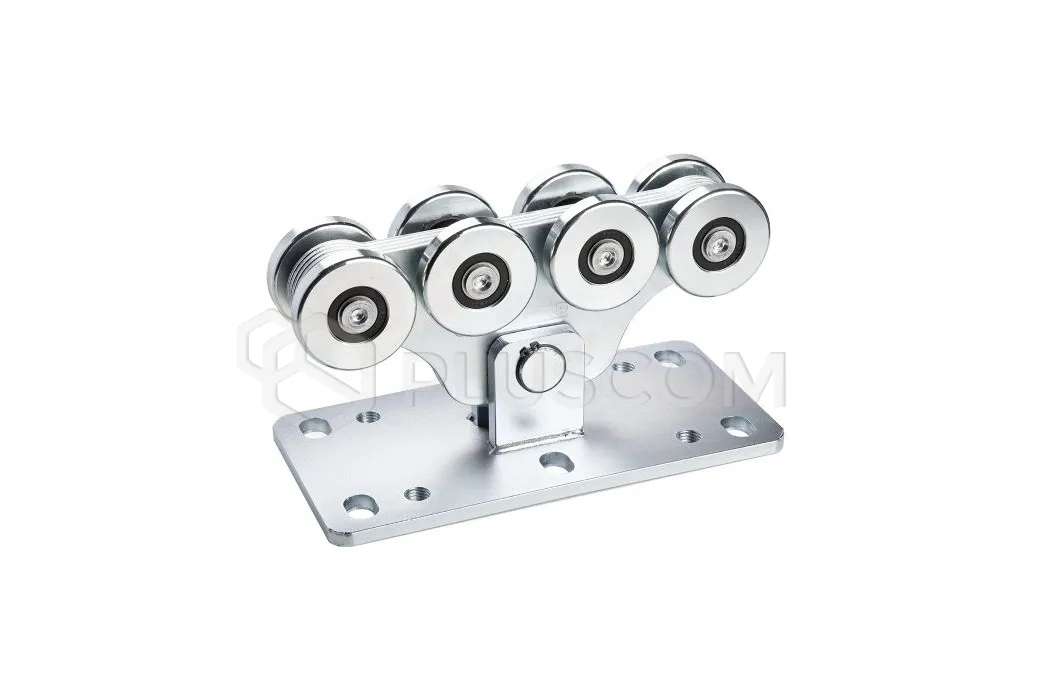

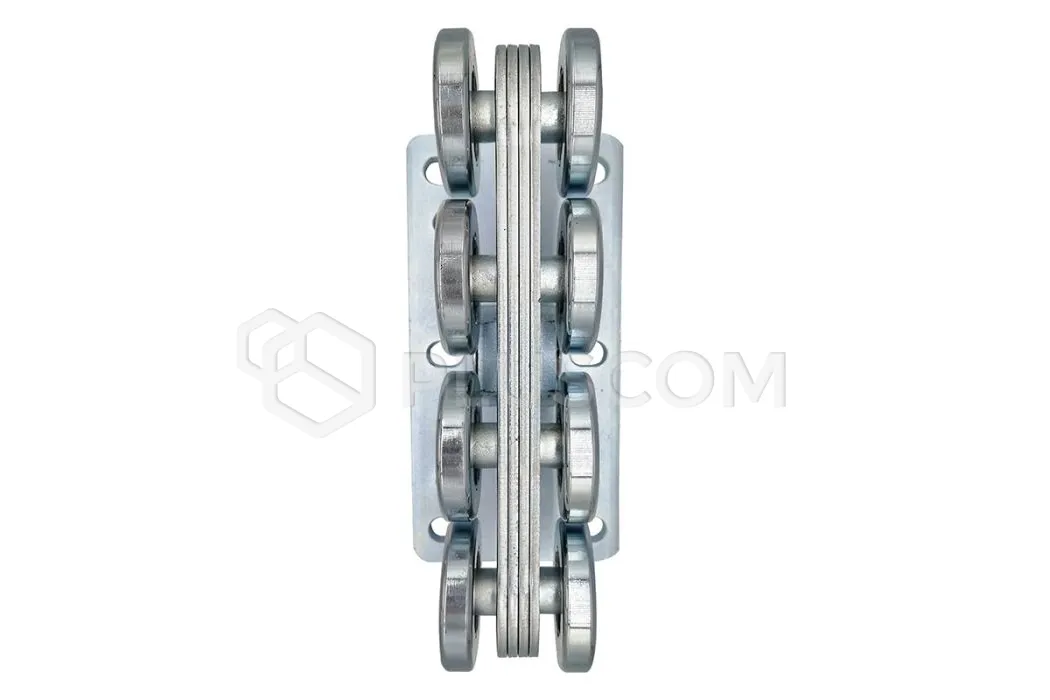

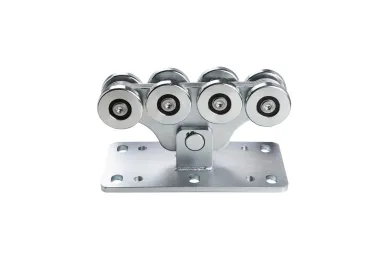

FEATURES OF THE PSG 60.089 CARRIAGE:
- 8-roller, pivoting design: increases gate stability and ensures smoother movement of the leaf when opening and closing.
- increased strength: the multi-plate central structure increases the durability of the carriage and allows intensive use.
- resistance to mechanical damage: high-quality materials promote long, trouble-free operation in demanding outdoor conditions.
- compatibility with rail 6V.089: the carriage is designed to work with a specific rail model, ensuring a precise fit.
- steel rollers: make the gate easier to move, reduce resistance and limit wear of the mechanism.

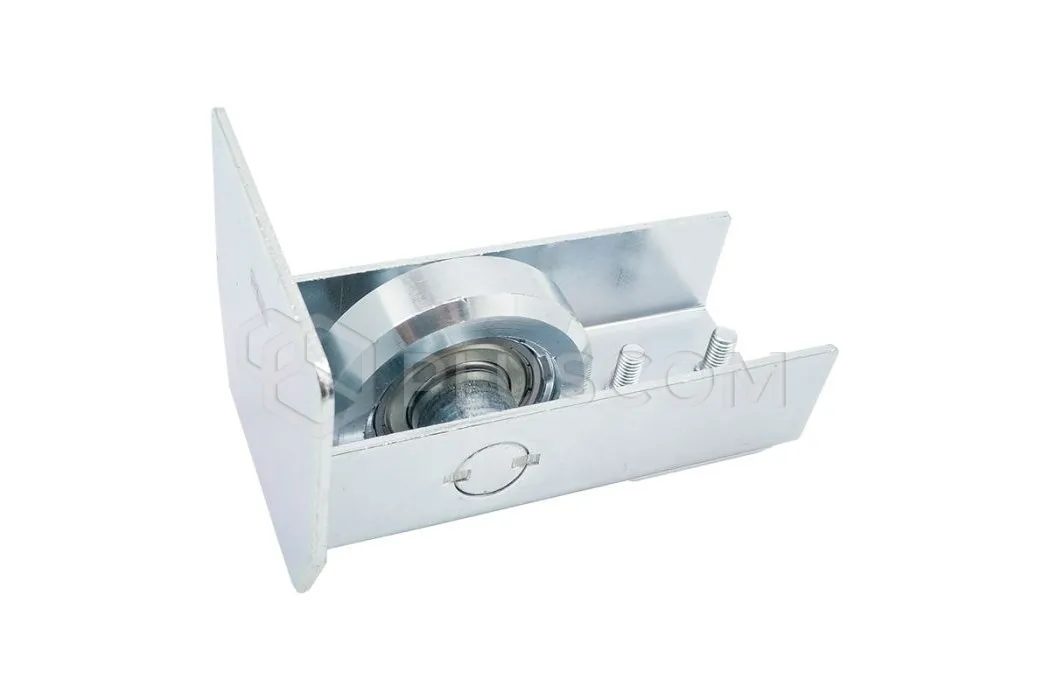

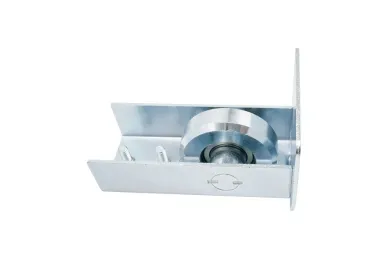

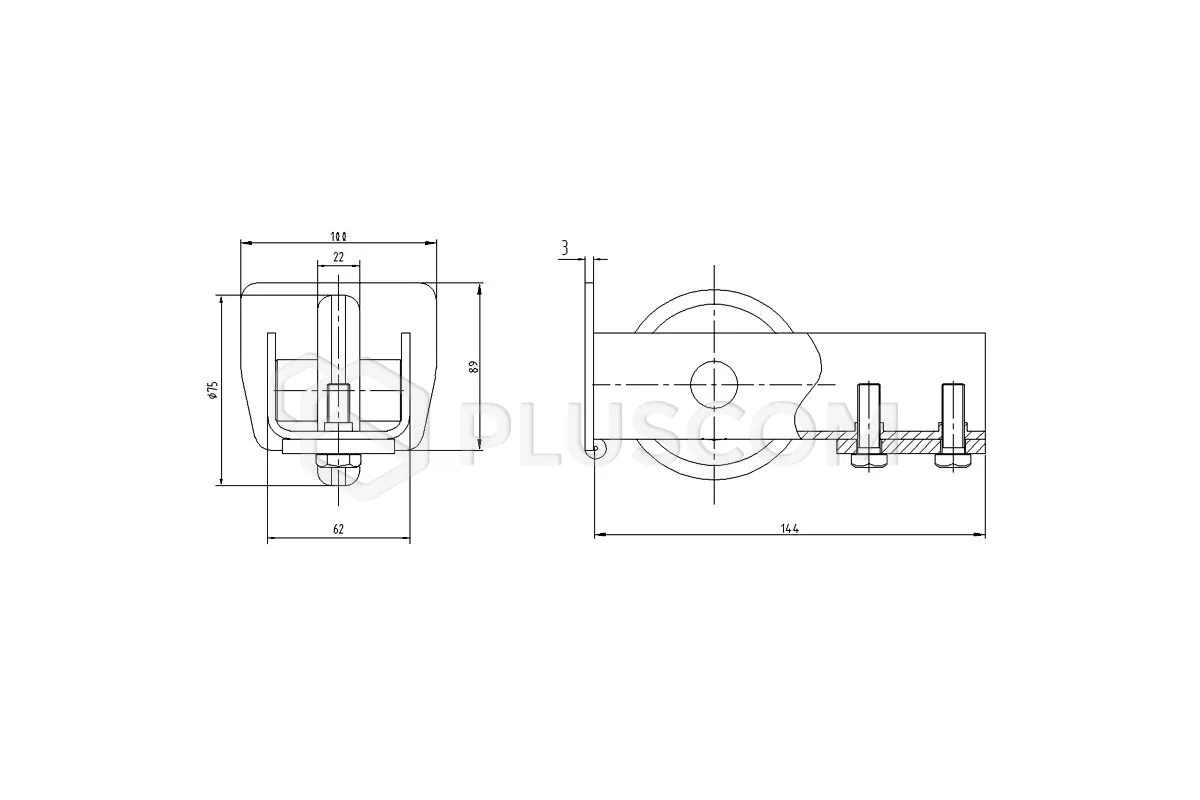

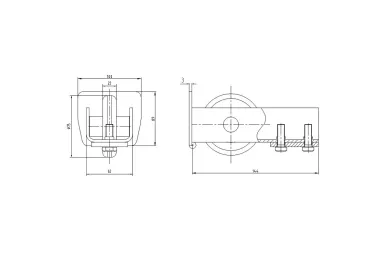

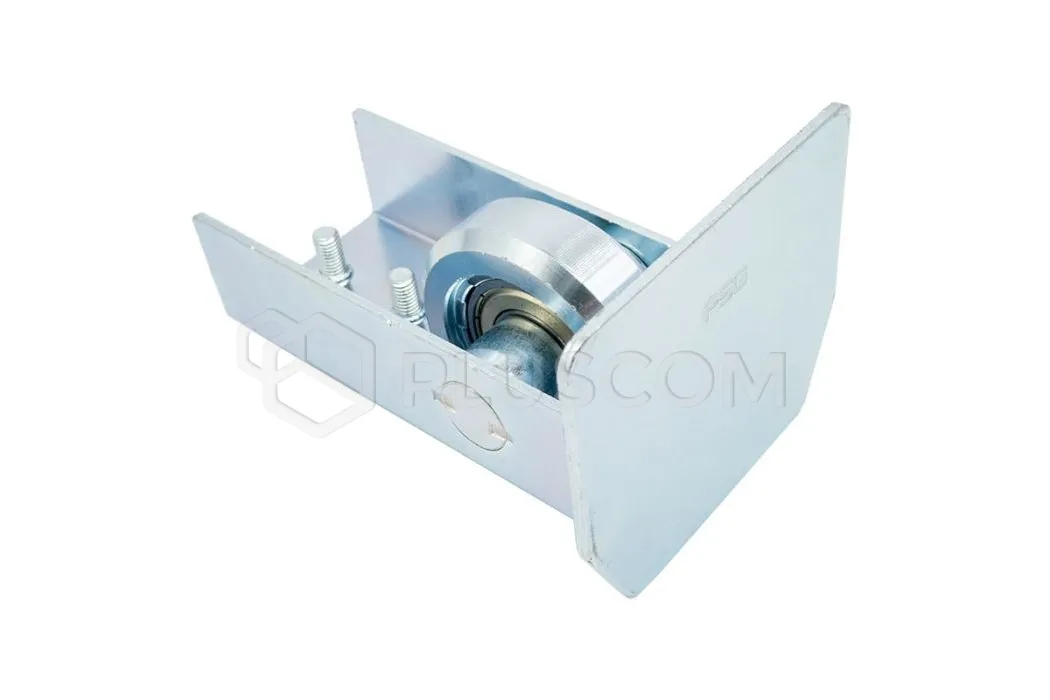

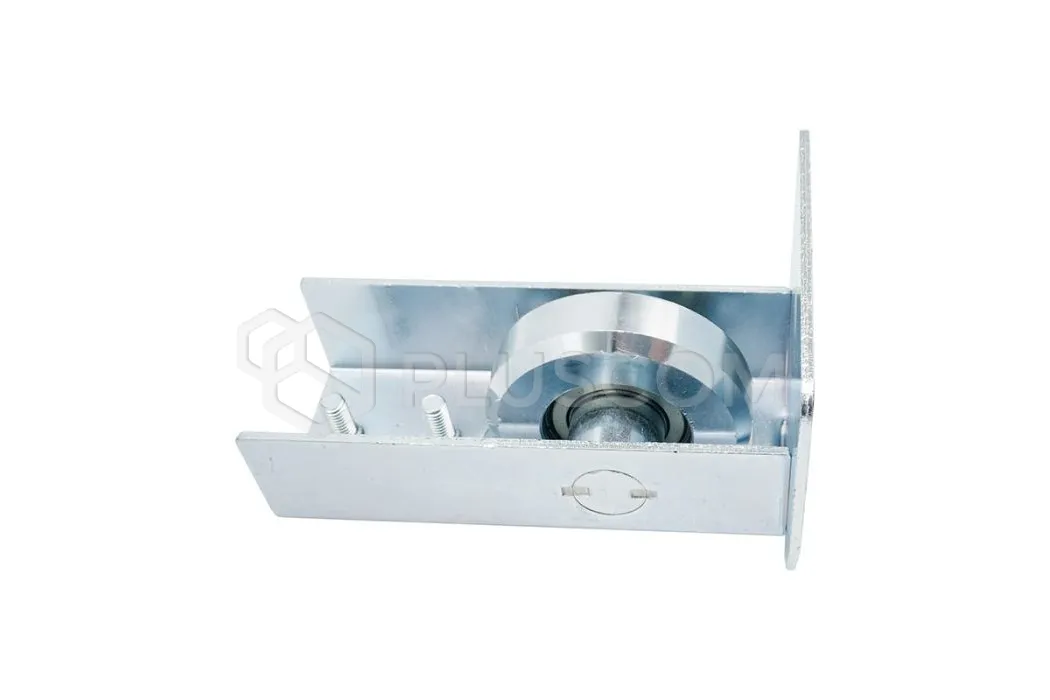

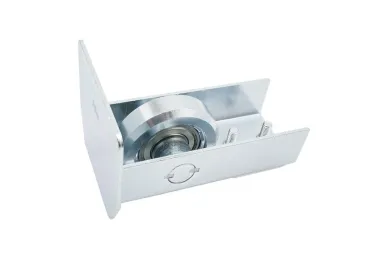

END ROLLER 89 X 100 WITH END CAP
A steel element intended for cantilever sliding gates. It is mounted at the start of the rail so that, when the gate closes, the roller enters the end catcher mounted to the post. This solution stabilizes the gate, helps distribute its weight more evenly and relieves the carriages, which can extend their service life.
- for cantilever sliding gates
- fits 89 x 100 x 5 mm rail
- galvanized steel
- mounting screws included

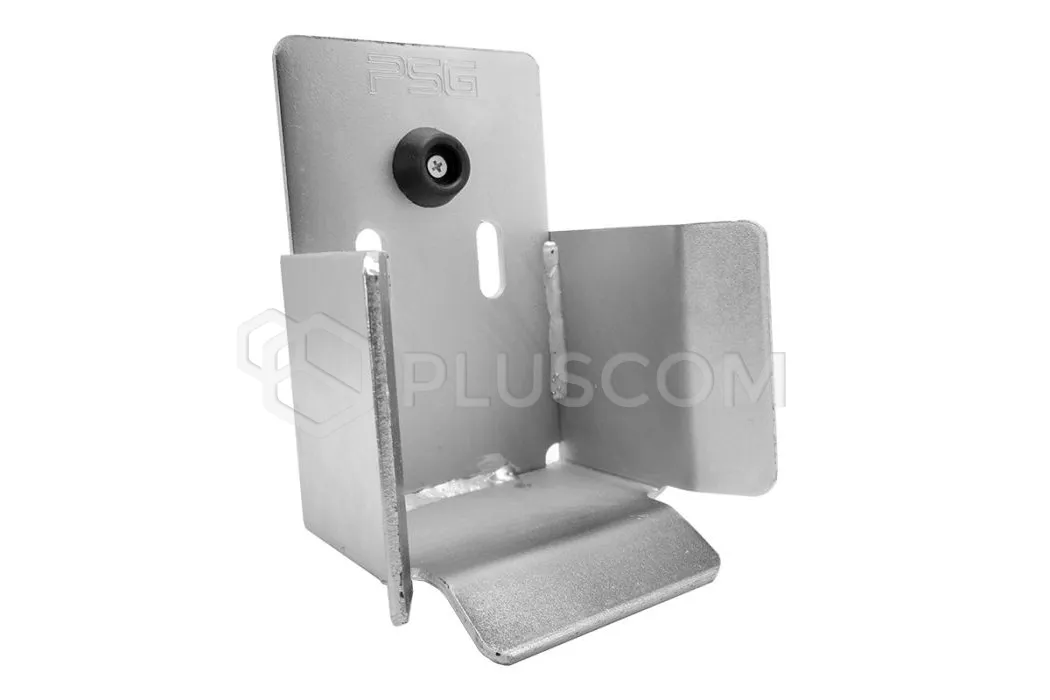

END CATCHER FOR 89 X 100 MM RAIL
An element intended for installing cantilever sliding gates. It is used as part of the gate closing and stabilization system, working together with the end roller. The product is suitable for structures using an 89 x 100 mm rail.
- fits 89 x 100 mm rail
- works with the end roller
- practical mounting element for gate structures

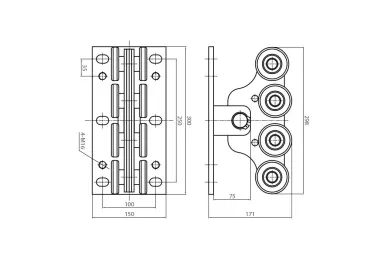

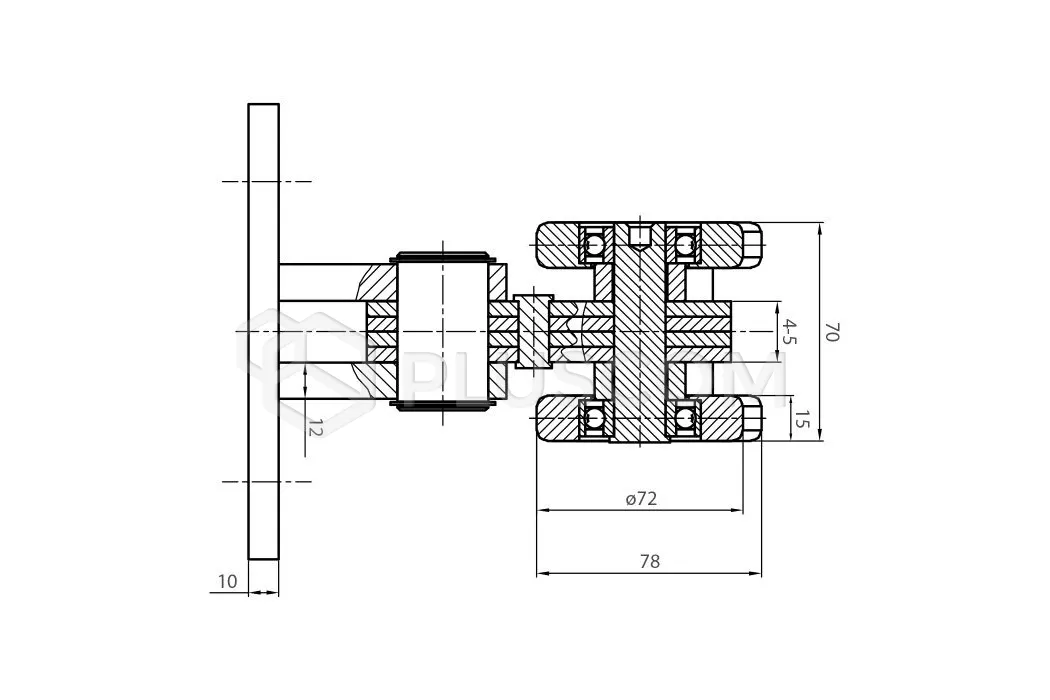

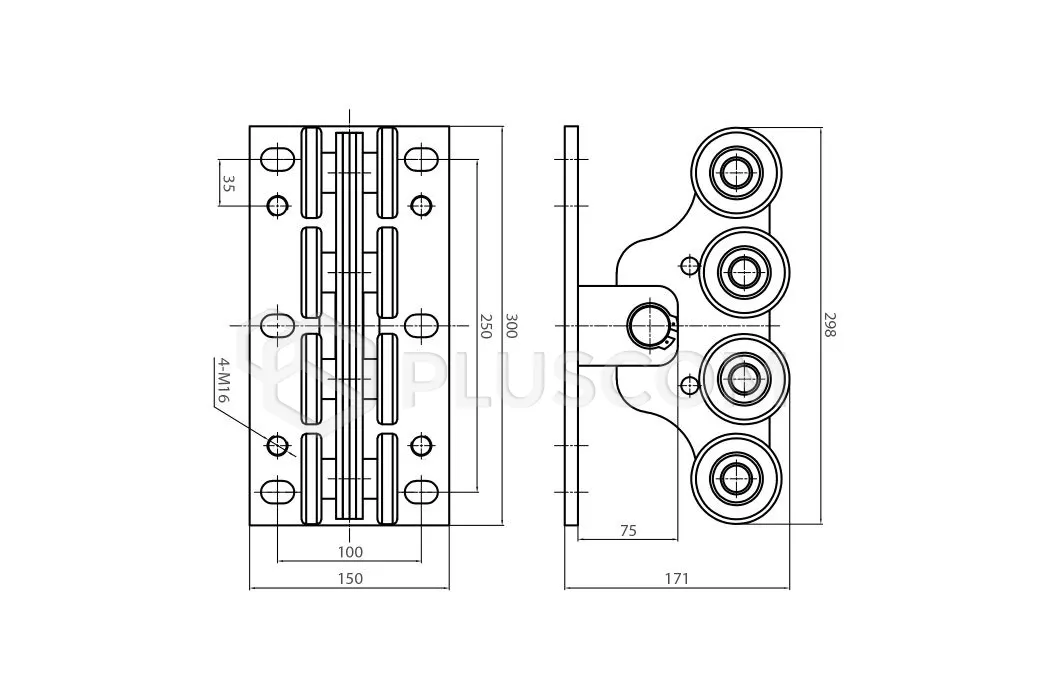

Carriage 60.089
|
|---|
Design
|
8-roller
|
Compatibility
|
with rail 6V.089
|
Application
|
for sliding gate
|
Roller material
|
steel
|
Base dimensions
|
300 x 150 mm
|
Base hole spacing
|
250 and 100 mm
|
Roller diameter
|
72 mm
|
Base plate thickness
|
10 mm
|
End roller
|
|---|
Mounting location
|
start of the sliding gate rail
|
Compatible rail
|
89 x 100 x 5 mm
|
Material
|
steel
|
Finish
|
galvanized
|

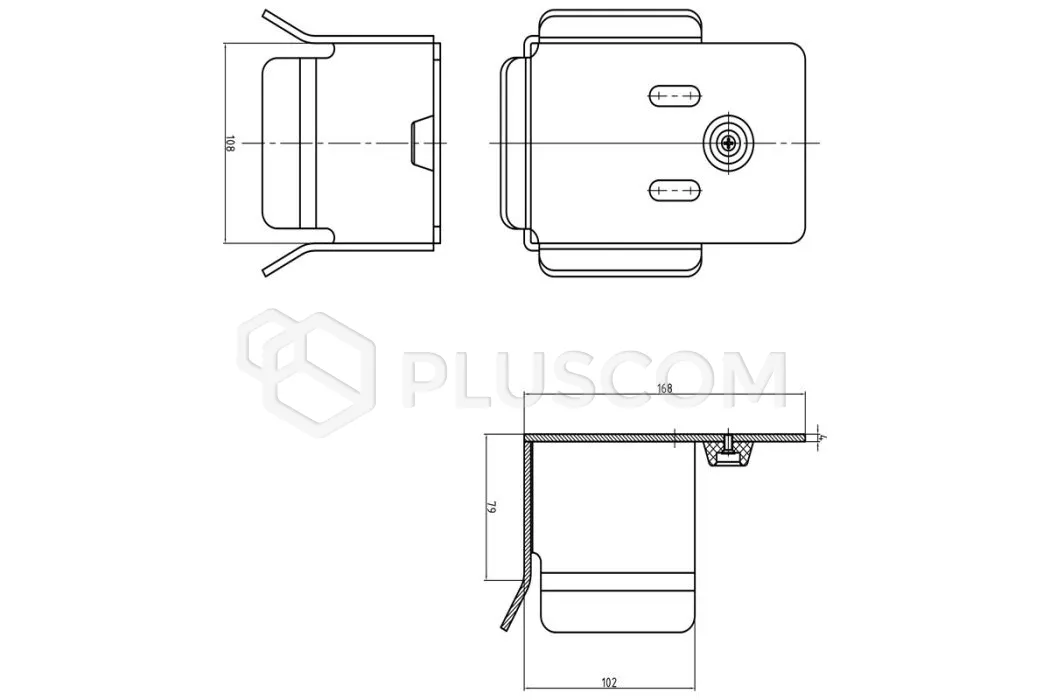

End catcher
|
|---|
Dimensions
|
168 x 102 x 79 mm
|
Rail compatibility
|
89 x 100 mm
|
TECHNICAL DATA:
