Carriage kit 60.003 for cantilever sliding gates with accessories

The kit contains a complete set of elements needed to build the running and end-catching system of a cantilever sliding gate based on an 80 × 80 × 5 mm rail. It includes two 60.003 carriages, an end roller with end cap 60.011.80 and an end catcher 60.019. The elements ensure smooth guidance of the gate, its proper support and stabilization of the leaf in the closed position. The kit is suitable both for building a new gate and for replacing worn parts of an existing running system.

Check the features of the set:

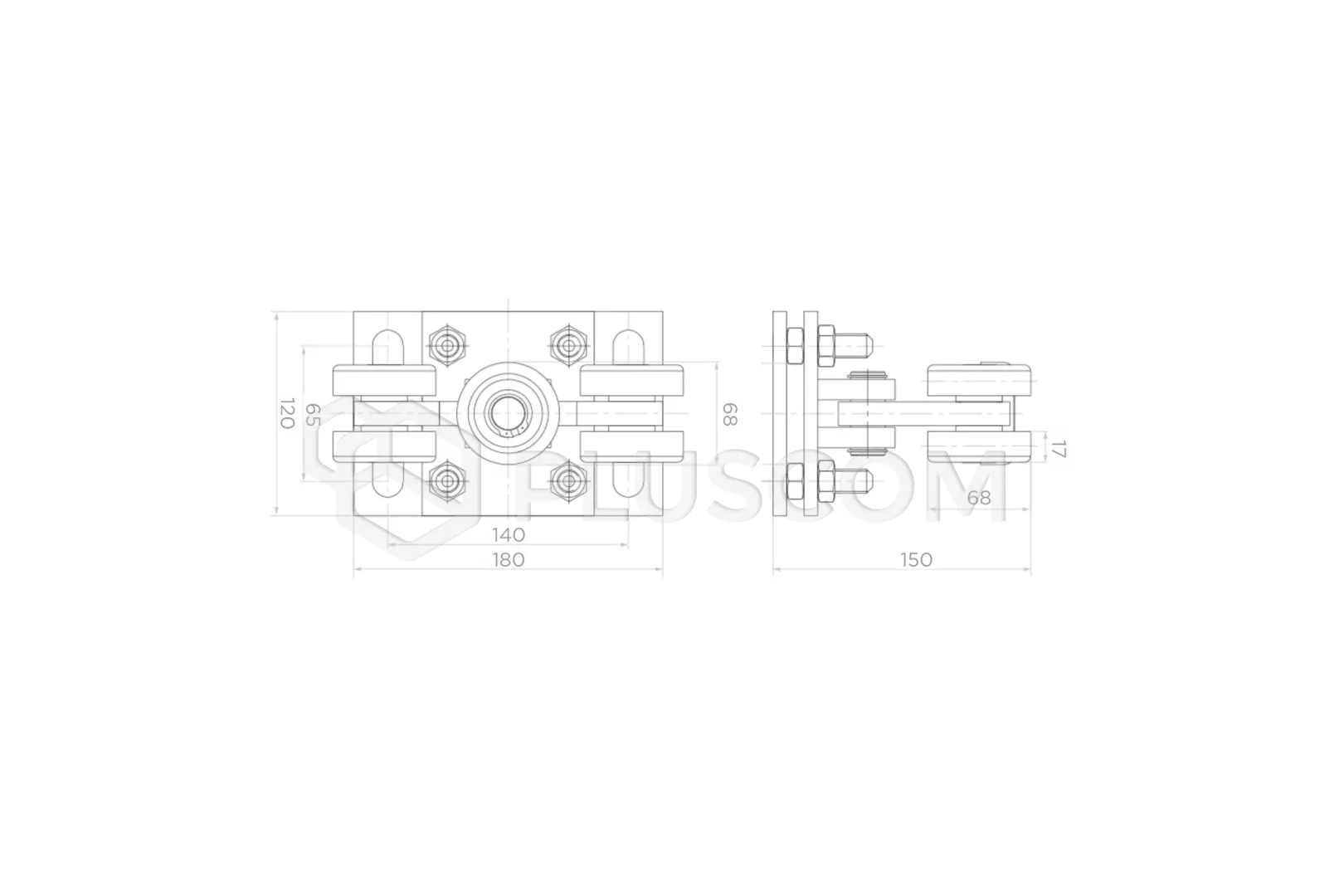

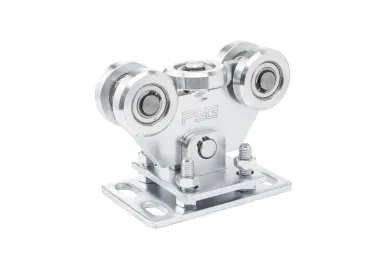

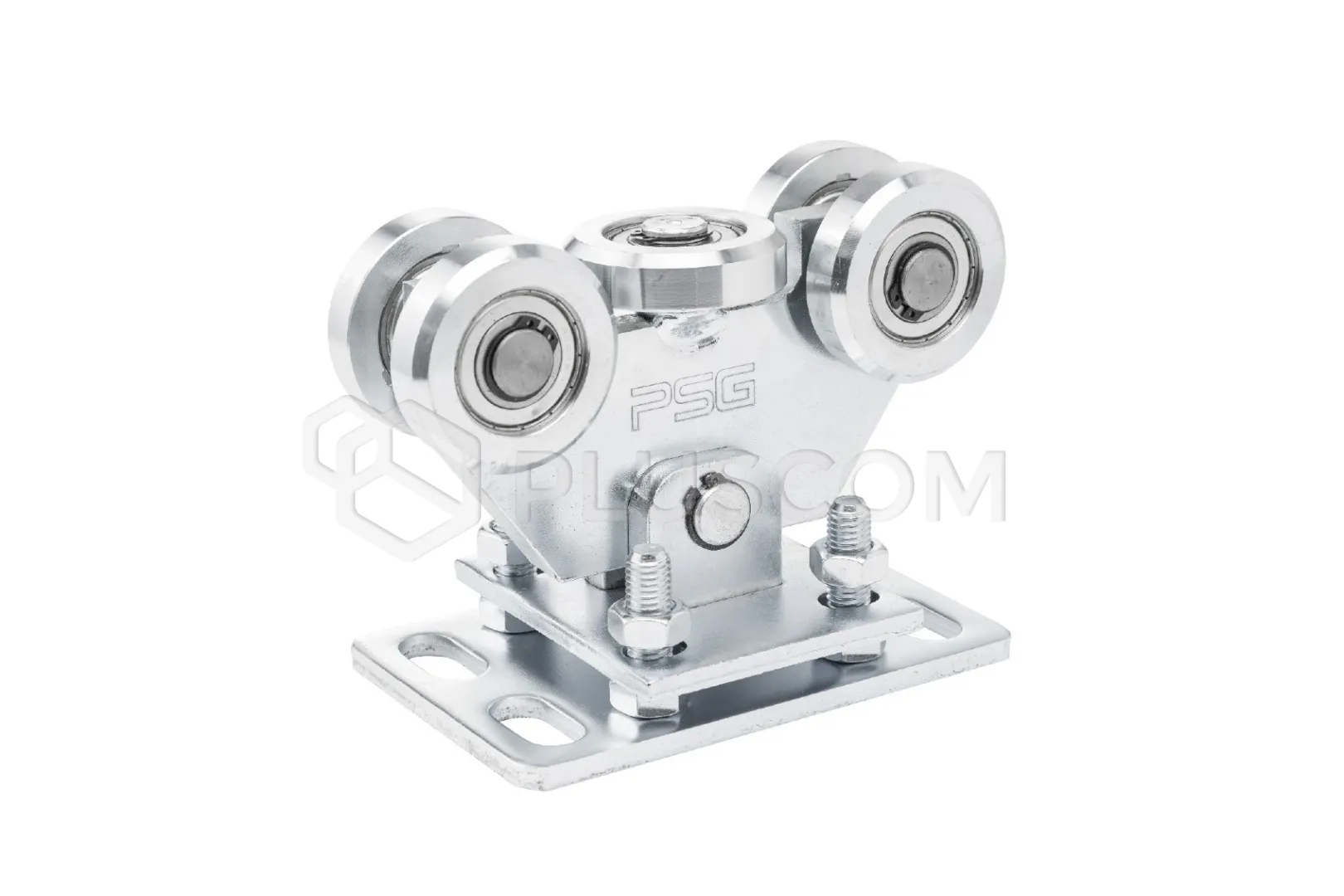

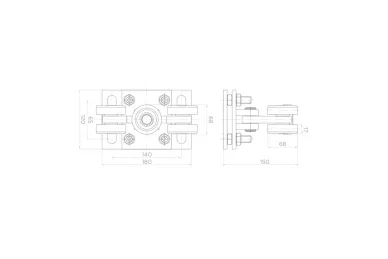

• 2 carriages 60.003 – each equipped with 5 metal rollers, including one horizontal roller responsible for proper guidance of the gate
• pivoting carriage design – the connection to the base by means of a pin allows the carriage position to adapt to the working gate rail.

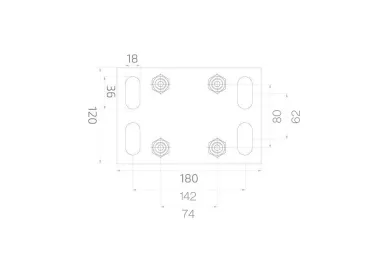

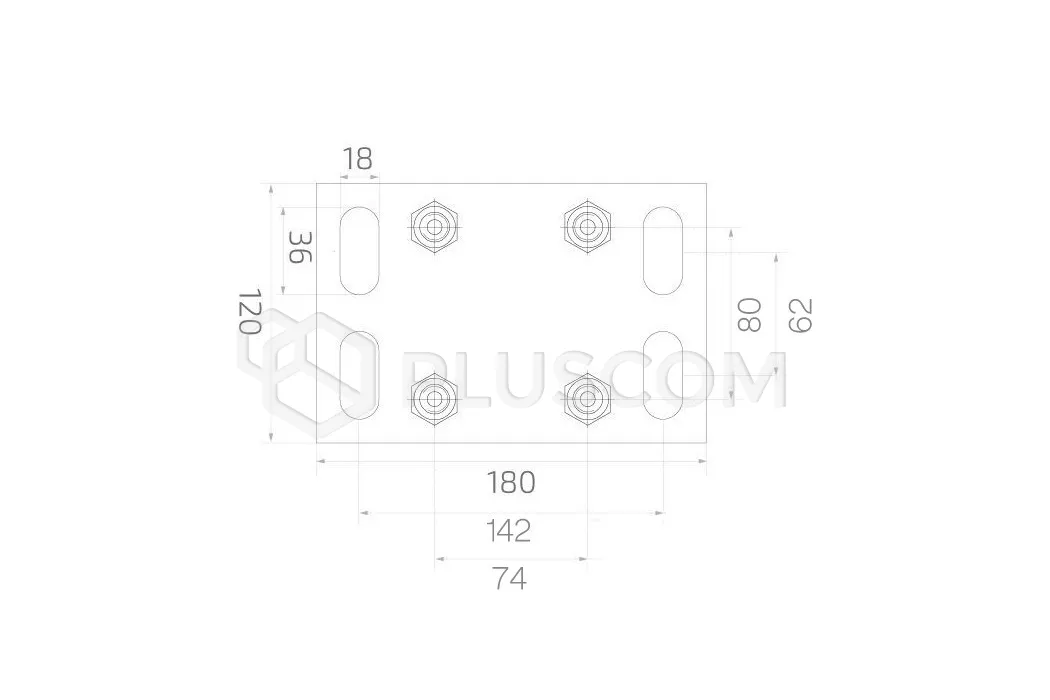

• carriage height adjustment with screws makes it easier to set the leaf correctly during installation.
• carriages intended for 80 × 80 × 5 mm rail.
• end roller 60.011.80 with end cap – a steel element intended for 80 × 80 × 5 mm rail; the profile end cap limits the entry of snow, ice and other contaminants into the rail
• mounting screws for the end roller included.

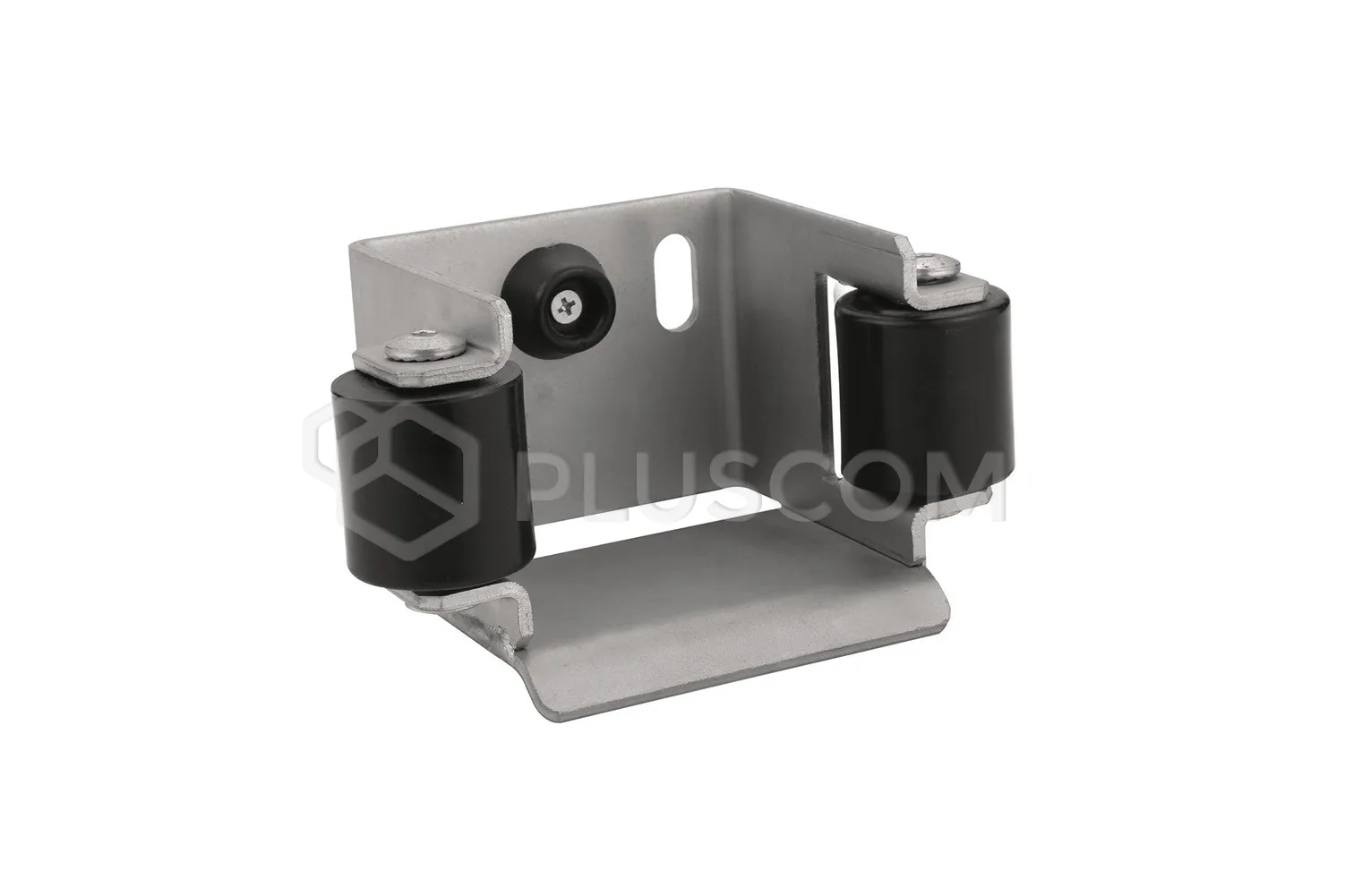

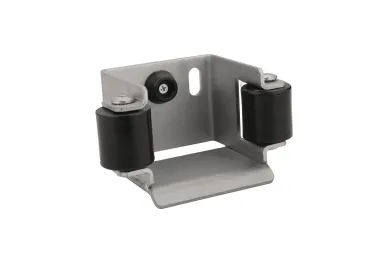

• end catcher 60.019 – a steel element fitted with two plastic rollers that help guide the gate during the final phase of closing
• distance between the rollers of bracket 60.019: 90 mm, mounting hole spacing: 70 mm, slot size: 25 × 10 mm
• rubber buffer in the end catcher reduces direct impact of the gate parts when closing
• steel elements protected with galvanizing, which increases their resistance to weather conditions

Stable gate closing and reduced load on the carriages

When the gate is closed, the end roller enters between the rollers of bracket 60.019 mounted to the post, so the leaf is effectively guided and stabilized in its final position. The bracket takes over part of the load of the closed gate, reducing the pressure constantly acting on the carriages. Two plastic rollers make it easier to guide the end roller in correctly, even with slight deviations in the path of the leaf. The rubber buffer additionally cushions the contact during closing and reduces impacts between metal parts. This solution improves the stability of the entire structure and can reduce wear of the running gear over many years of gate use.

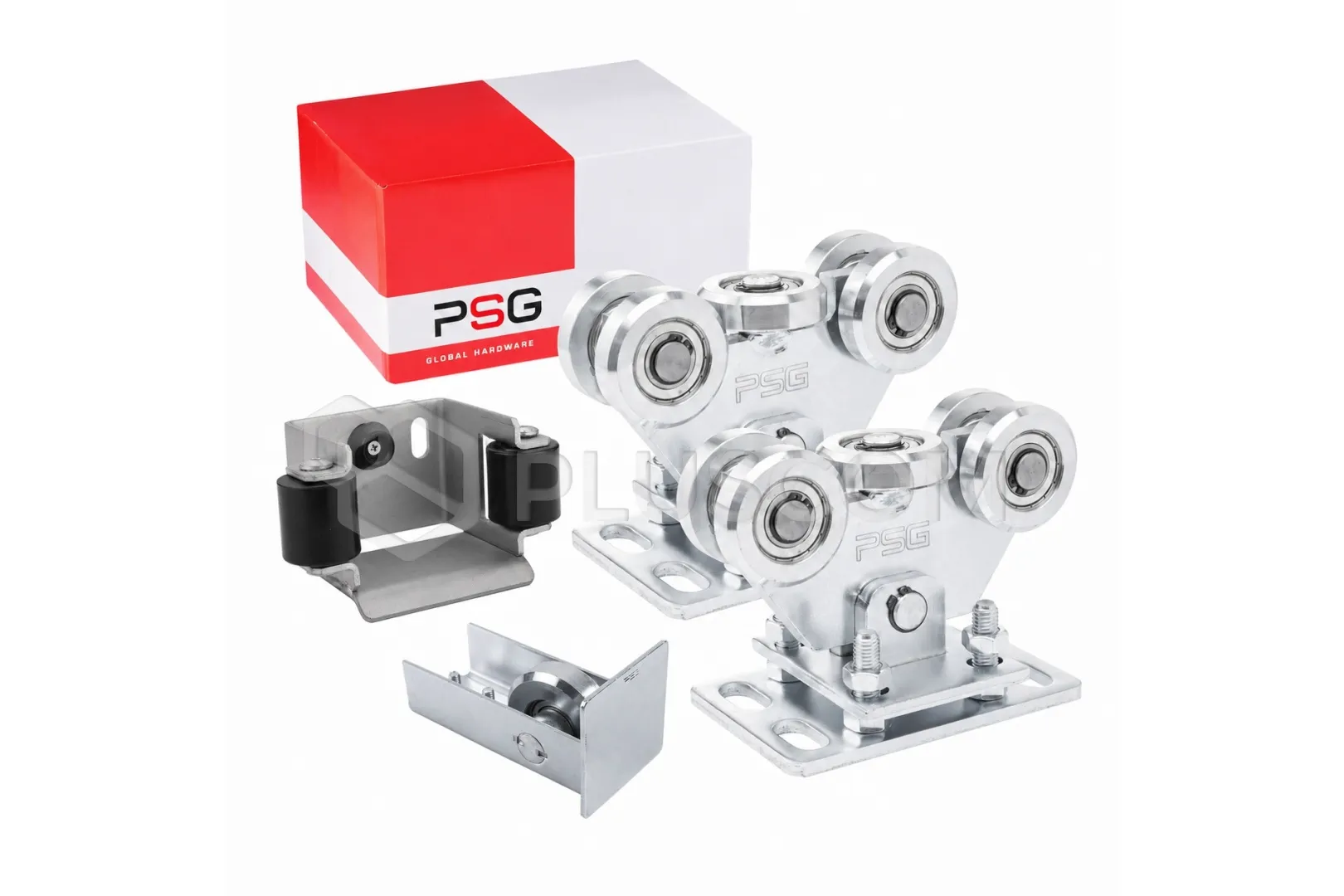

The set includes:

• carriage 60.003 – 2 pcs,
• end roller with end cap 60.011.80 – 1 pc
• end catcher 60.019 – 1 pc
