PSG 60.00P.69 Package of trolleys 60.069 for profile 68x68

122,07 EUR including 23.00% VAT
Product code: #41340
  • With ramp roller and ramp holder included
  • Base dimensions: 200x100x8 mm
  • Roller diameter: 68 mm
  • Trolley height: 157 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 60.00P.69 Package of trolleys 60.069 for profile 68x68

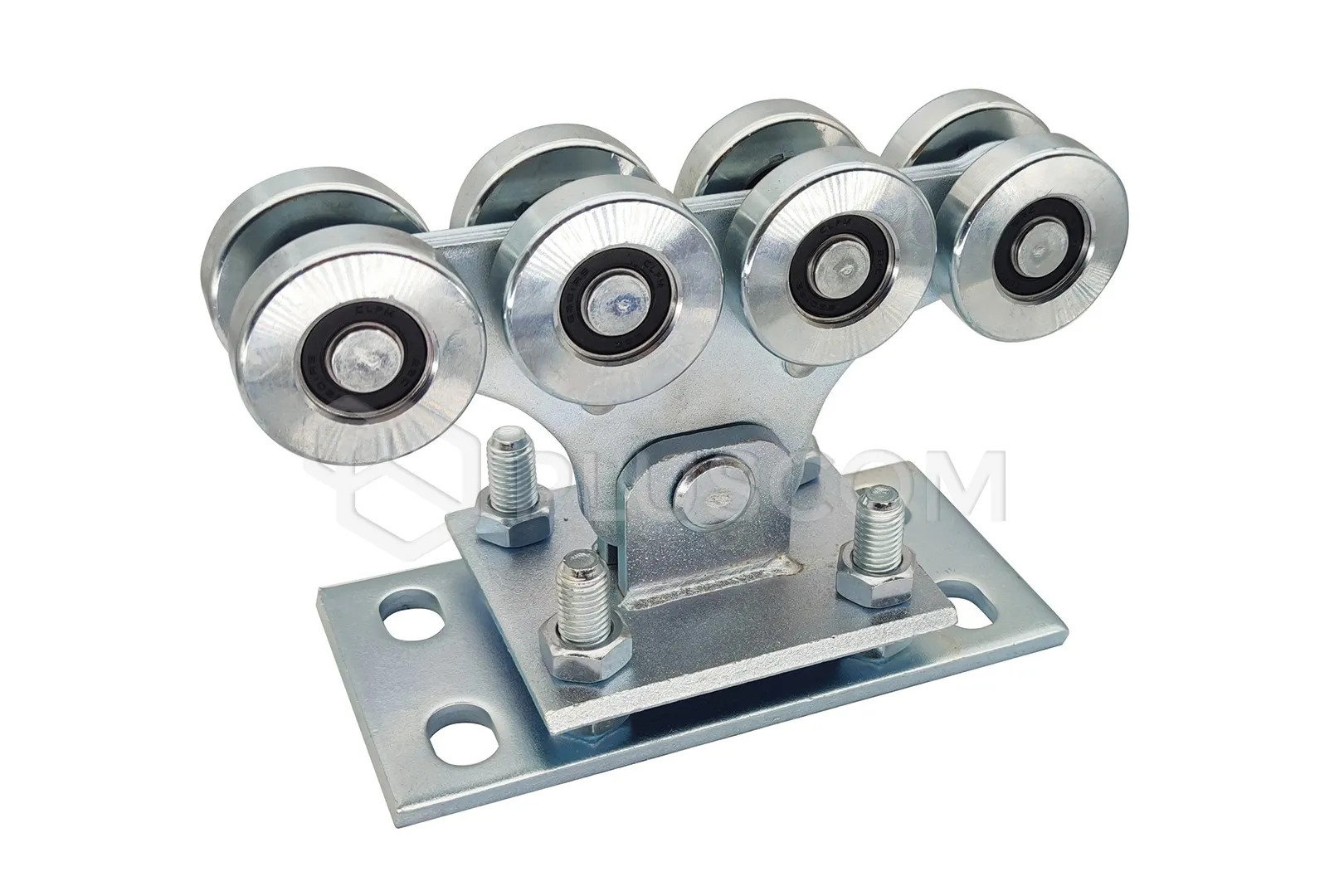

The package of trolleys for sliding gates is a key element that guarantees smooth and efficient operation of each sliding gate.

FEATURES:

  • Made of steel, electro-galvanized

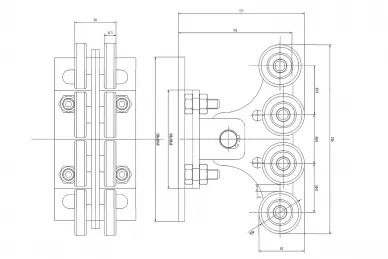

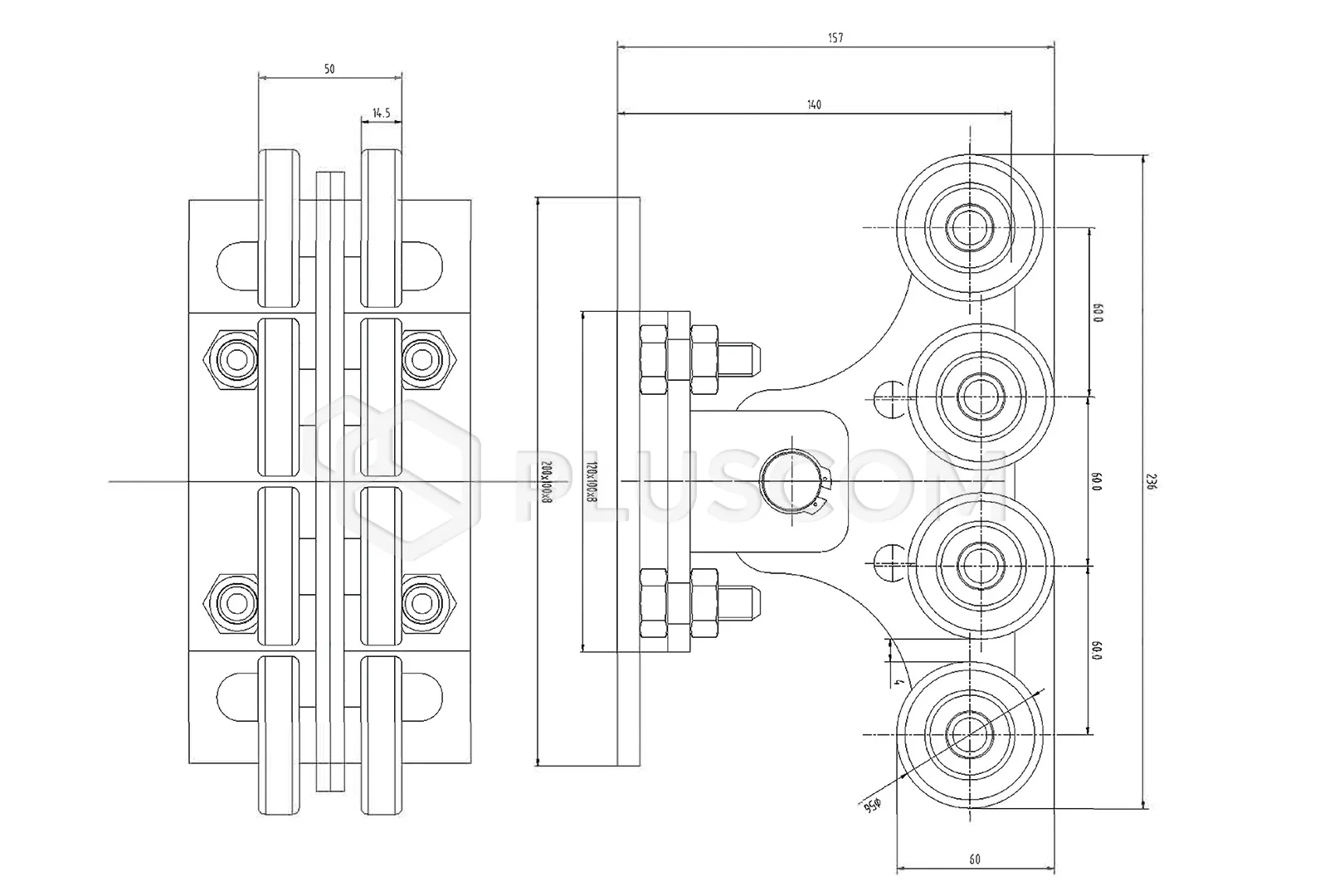

  • Equipped with a running gear consisting of eight steel rollers, arranged on two running levels
  • 60.069 trolley designed for use with 60.069.ZN guide rail
  • 6201 RS ball bearings were used in the rolling gear

Set contents:

  • 60.069 running gear - 2 pcs.
  • Run-up roller
  • Handle driveway

FEATURES:

  • Reliability: The lower and upper rows of wheels in the carriage work alternately during the opening and closing of the gate, thanks to which individual wheel assemblies are used twice as much as in the 5-roller carriage
  • Material: High-quality black steel, additionally galvanized
  • Extended service life: Oblique forces acting on the bearings have been eliminated, which translates into quieter operation, increasing its reliability
  • Adjustment of the carriage: It is done on the foundation anchors by placing washers

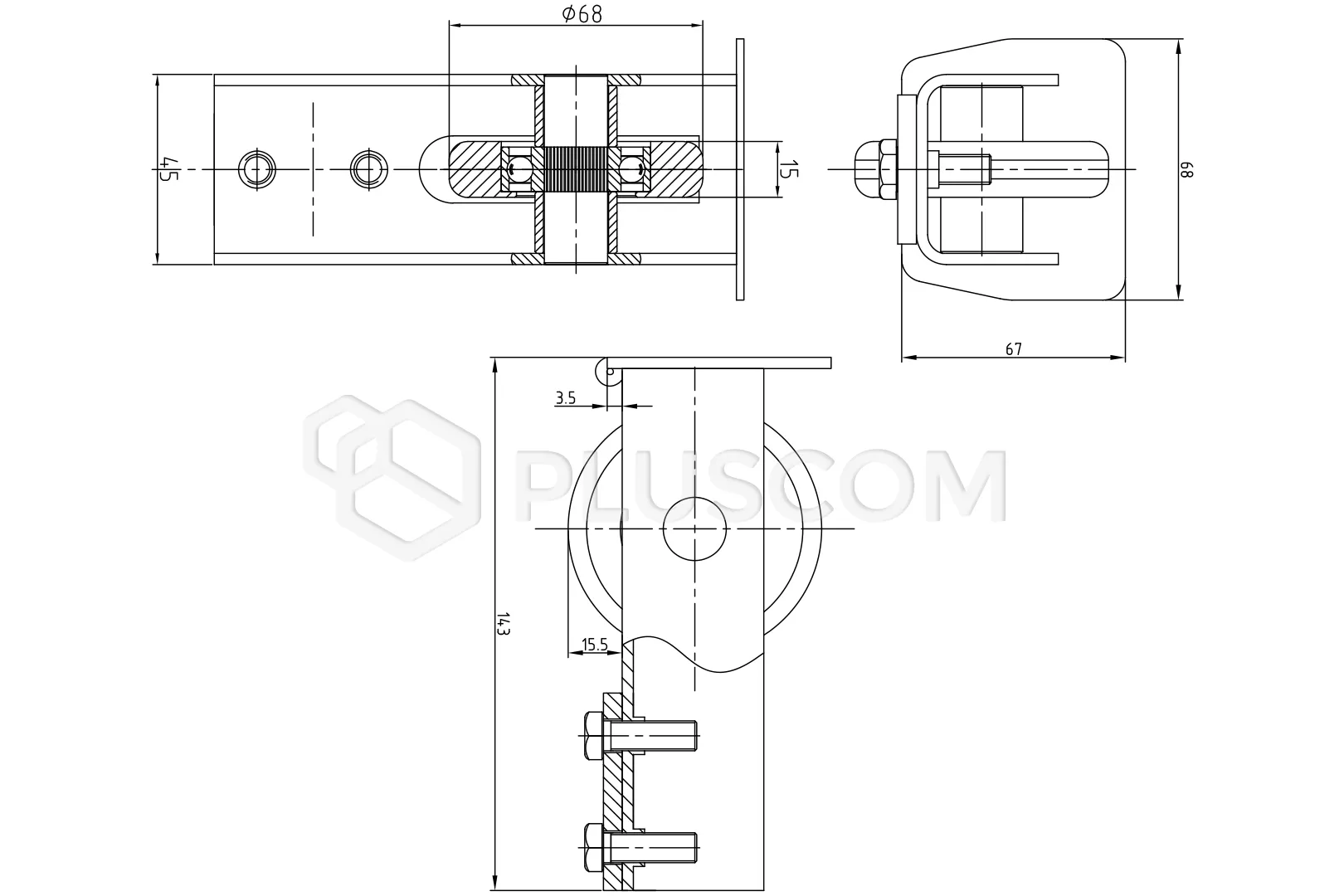

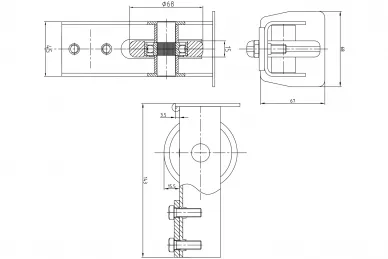

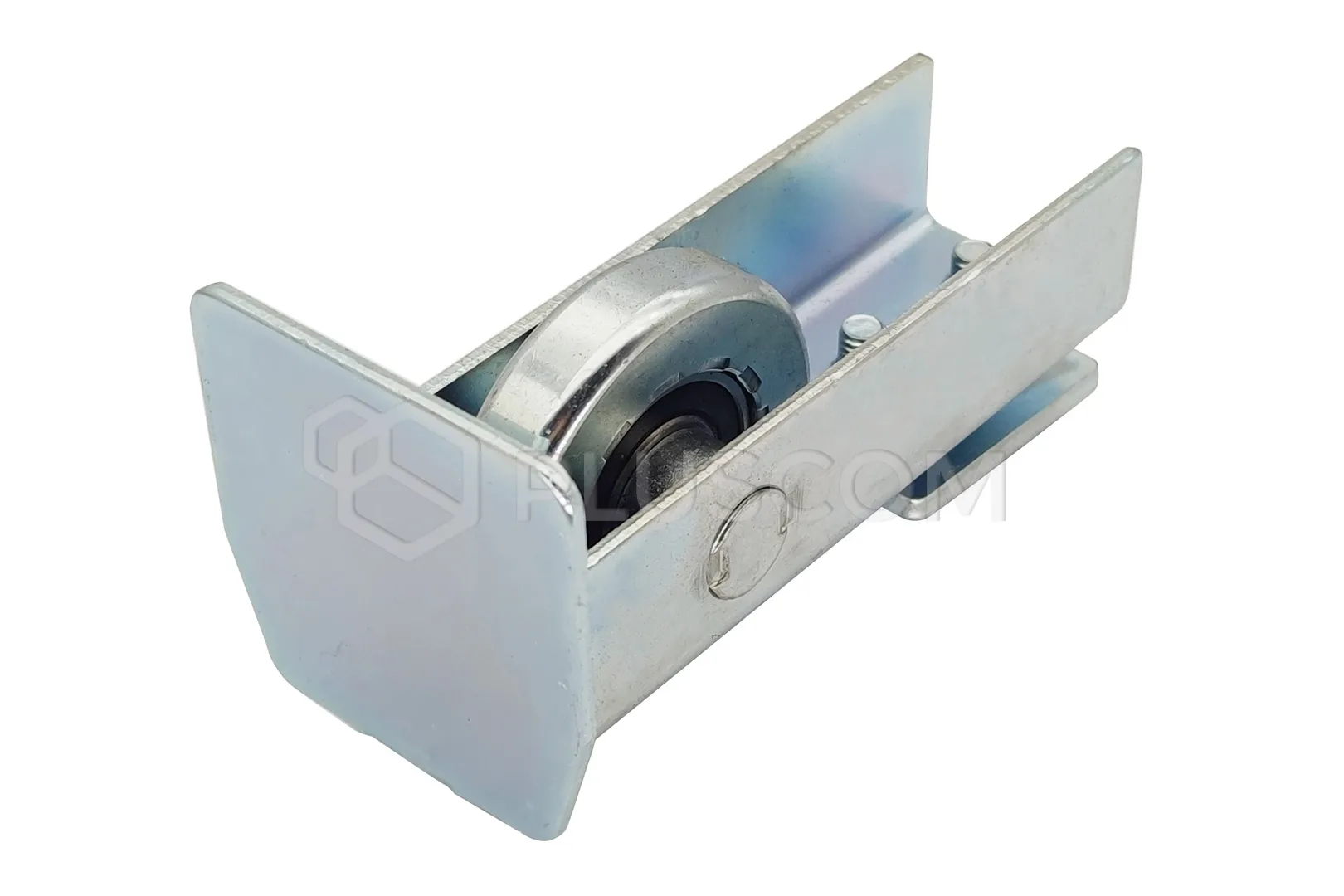

Driveway roller

The driveway roller mounted at the beginning of the self-supporting rail of the sliding gate is a steel element supporting stability and distributing the weight of the gate.
It cooperates with the drive handle at the post, which contributes to stabilizing the gate and its secure closure.
Using the drive roller increases the life of the gate carriages and protects against the negative effects of snow and ice.
  • Fits the 68x68 system
  • Galvanized

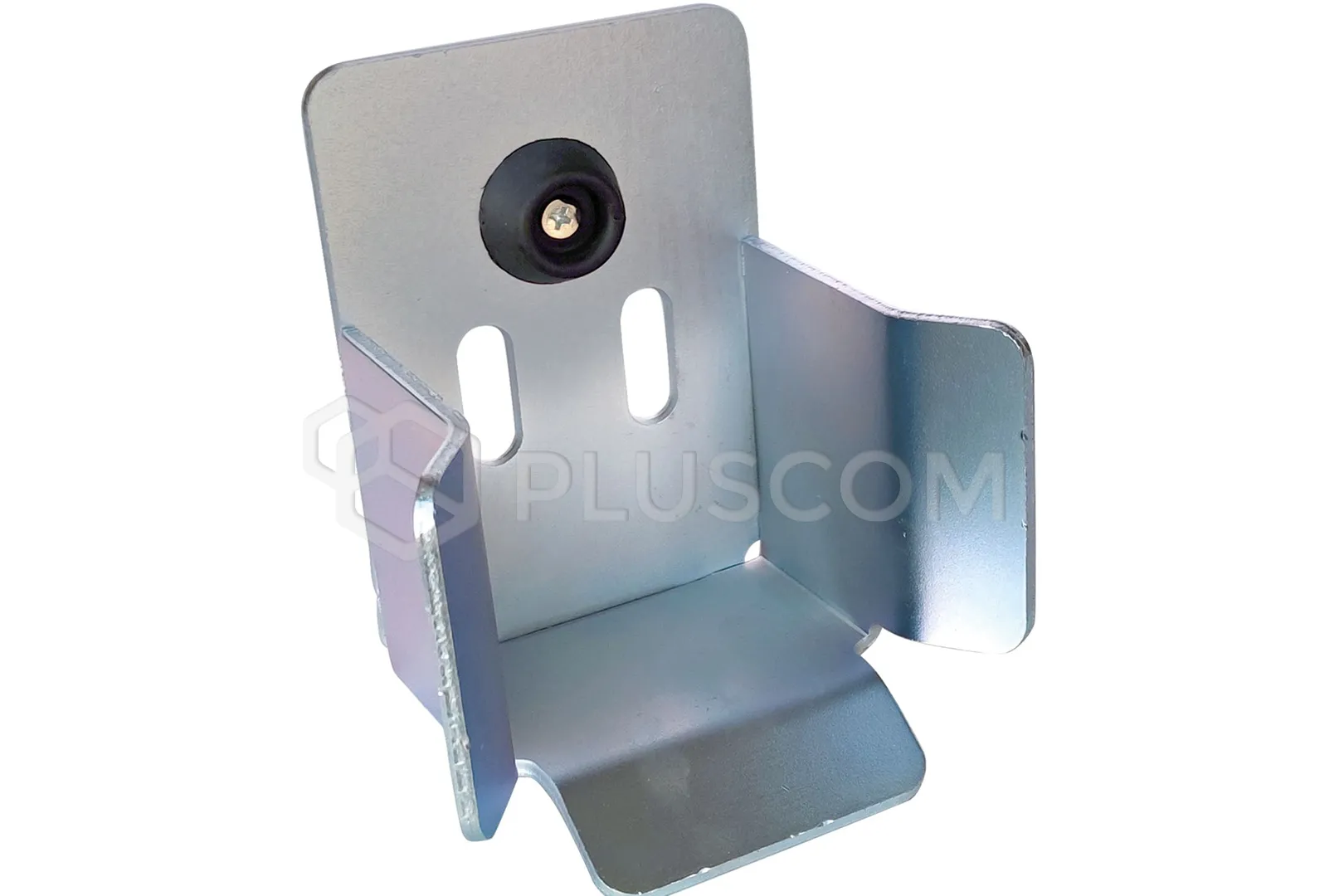

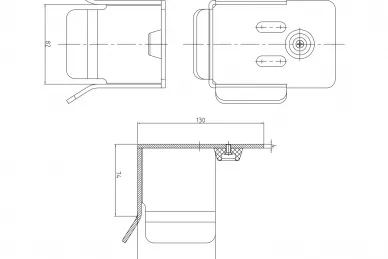

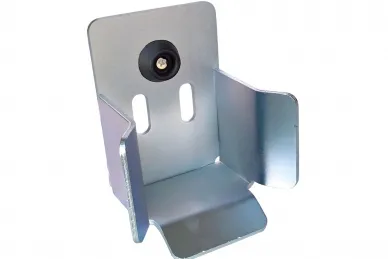

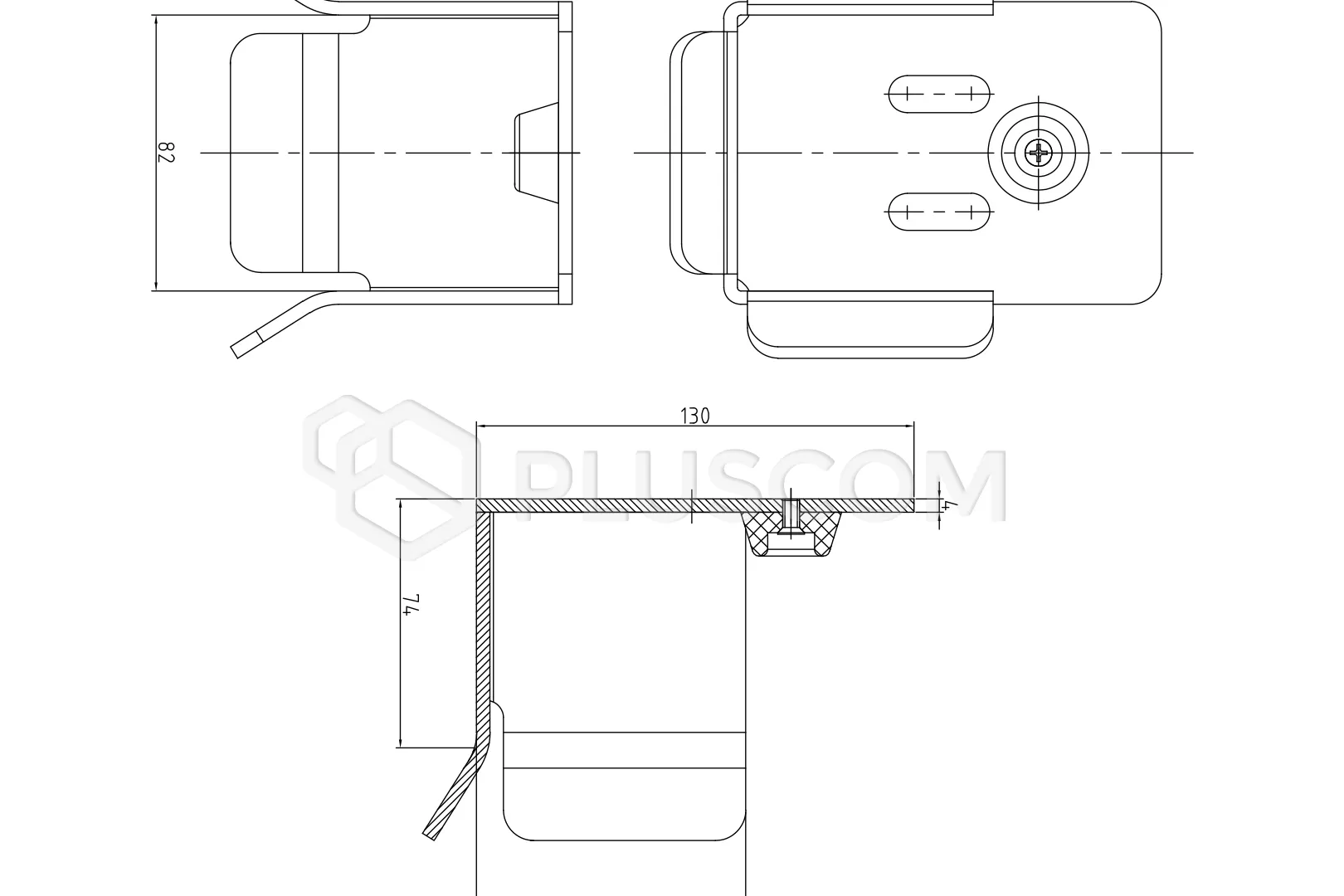

Drive handle

It is one of the basic elements of the sliding gate's drive system.
The drive socket assembly is quick and easy - the element is screwed to the lower part of the crowning post.

Using the socket in combination with the drive roller creates a configuration that allows the gate to reach the post and thus close the entire system.
  • Galvanized
  • Fits the 68x68 system

Technical data:

  • Material: Steel, electro-galvanized
  • Runner: 8 steel rollers on two levels
  • Bearings: Ball, 6201 RS
  • System: 68x68
  • Base dimensions: 200x100x8 mm
  • Roller diameter: 68 mm
  • Trolley height: 157 mm
