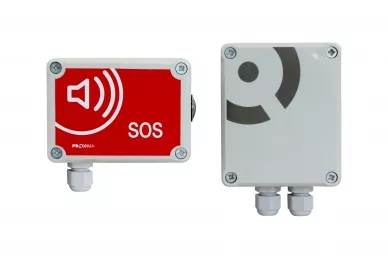

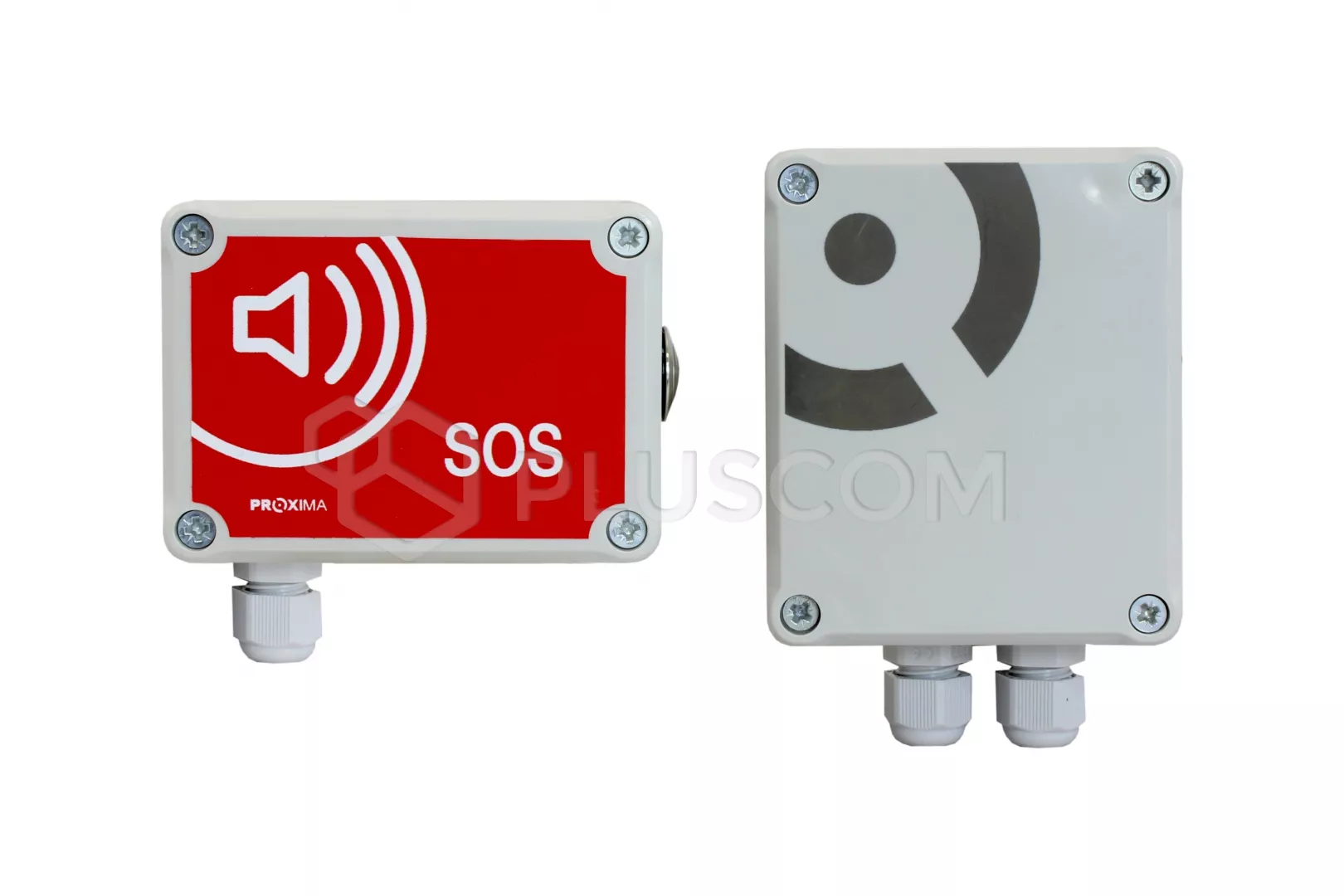

Proxima SOS PIN with an external microphone

817,35 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #33055
Manufacturer: Proxima
  • controller opened by Siren - SOS_PIN
  • output: 1x NO, 24V/1A
  • number of pilots residents: 999
  • wide range of supply voltage: 12-24V AC / DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

SOS_PIN Siren opened driver with external microphone

Increasingly, before entering the areas of housing estates and housing communities, there are barriers preventing entry of unauthorized vehicles into the parking lot. However, there may be a situation of having to open a barrier for emergency services. At the moment when every minute is counted in order not to damage the barrier to its opening, you can use the Controller opened by the Proxima siren PIN.

The controller with an external microphone allows emergency opening of the barrier or gate by means of acoustic signals. It is enough that the privileged vehicle switches on for about 3s a siren with the signal DOG (YELP), WOLF (WEIL) or two-tone signal (HI_LO, LEON). In addition, the controller recognizes a loud acoustic signal (horn) lasting about 8 seconds.
Proxima SOS PIN with an external microphone

Proxima SOS PIN with an external microphone



FUNCTIONS:
  • two virtual channels control one relay
    • SOS channel, activated by a siren or SOS remote control, unlimited number of SOS remotes
    • inhabitant channel number of pilots 999
  • SOS technology (variable-code SOS remotes that do not require registration in the receiver, being equipment for privileged vehicles, ten types of services)
  • access to the controller configuration can be protected by a four-digit PIN code
  • opening barriers and gates using the HI-LO or YELP signal
SPECIFICATIONS:
  • power supply: 12-24V AC / DC
  • power consumption: 25mA (relay off)
  • output: NO relay, contact load capacity 24V / 1A
  • number of serviced pilots: 999
  • number of channels: 1 (relay channel)
  • modes of the SOS channel: monostable (1s, 3s, 10min, 30min, 60min), until further notice
  • user channel modes: monostable (1s, 3s, 5s, 25s, 1min, 2min)
Download
CE Declaration 0.07 MB
