PROXIMA Resistance strip + BKCR

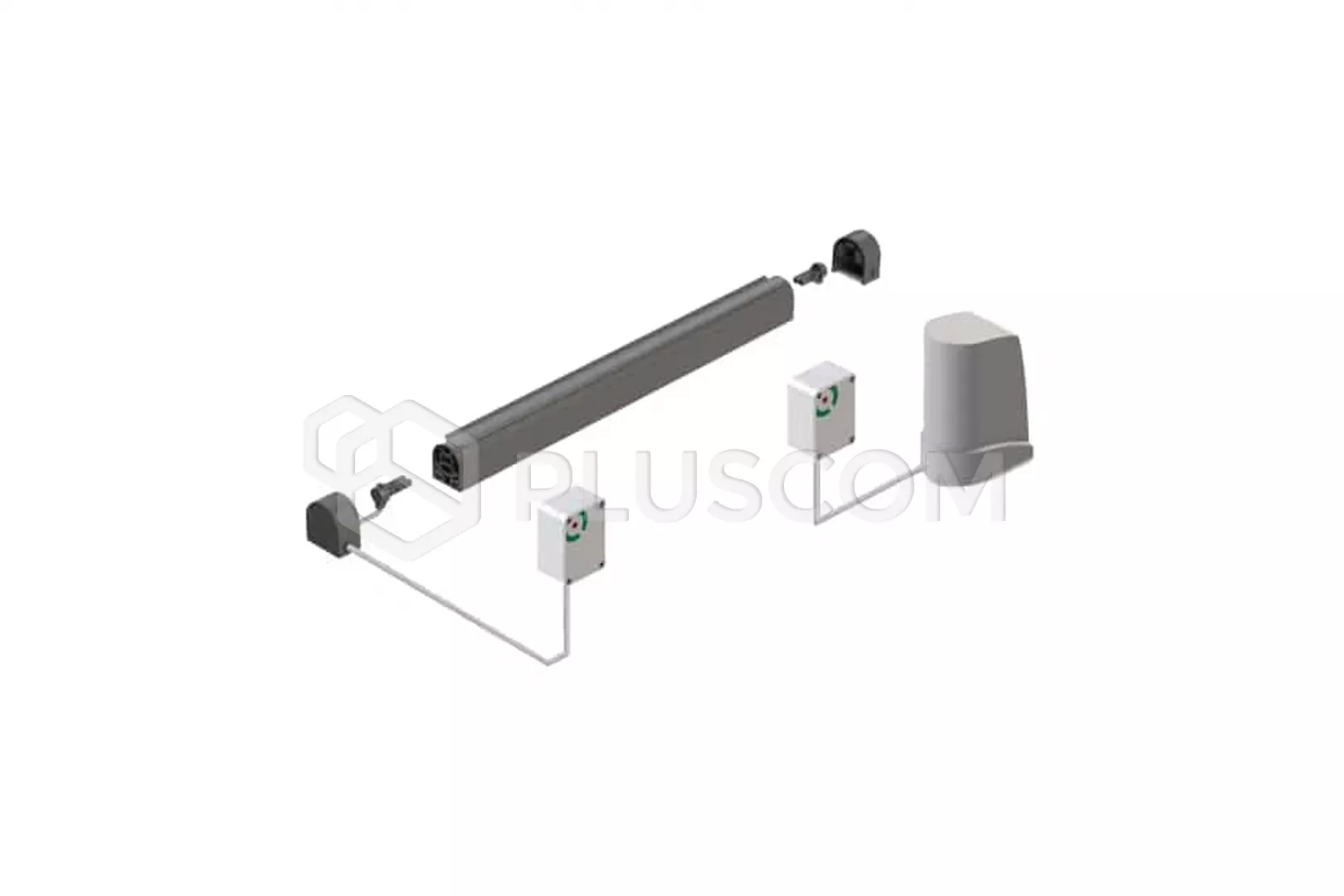

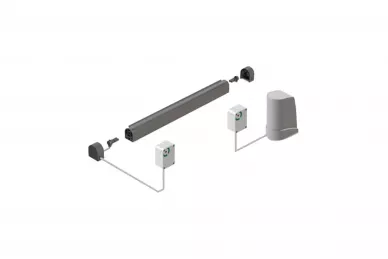

A set for securing the moving and stationary edges of the gate. Consists of:
- 1.5m Edge Resistive Strip
- Gate Controller for BKCR Moving Sensors
The rubber resistive profile changes its resistance when compressed with
8.2kOhm to approx. 200Ohm. Squeezing it slightly may cause it to stop or
changing the direction of the gate movement and information about compressing
the profile by wire, it can receive a radio mobile unit mounted on the gate
leaf. Radio the mobile module transmits information by radio to the radio
stationary module, which transmits information to the gate controller by wire.
The sensors may be an edge, resistive safety edge, a mechanical safety edge or
a door reed switch in the gate segmental.
A pressure-sensitive resistive edge significantly increases safety automatic
gates. It limits the strength of a possible impact. It is constructed from
pressure-sensitive rubber.
MOBILE MODULE
The movable module has two, independently configurable inputs for detectors
which have a resistance of 8.2k in an intact state, and a resistance in a
violated state are short-circuited or open.
The module sends information about the sensor status immediately after each
change of its status, waiting for confirmation information received by the
stationary module. Every 10 seconds, they will automatically send information
about the status of inputs and the power battery, waiting for acknowledgment of
receipt of the information by the stationary module.
- power supply: 3.6V ER14505 battery (AA size)
- current consumption: 50µA; averaged current
- number of resistance strips: max. 2; the end of the 8.2k fall
- frequency: 868MHz; 3 frequencies
FIXED MODULE
The stationary module can ask about the status of the sensors at any time.
unless receives responses from the rover, releases both output relays. The
module of yours buzer can signal a system failure and any change in the state
of sensors.
- power supply: 12-24V; constant voltage
- power consumption: 15mA; relays off
- number of channels: 2; relays NO / NC
- PK response time after pressing the bar: <40ms
- frequency: 868MHz; 3 frequency
