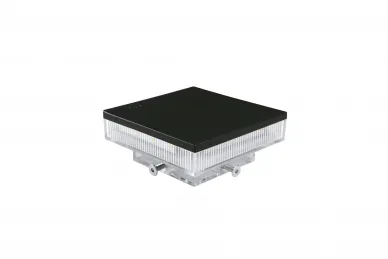

Proxima POST lighting and signal lamp (70×70, 100×100)

38,75 EUR including 23.00% VAT
Product code: #43146
Manufacturer: Proxima
  • LED-light source
  • Power supply: 12-24V AC/DC, 230V AC
  • Continuous or intermittent 1Hz operation
  • Pole mounting
  • Housing: IP54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Proxima LED Post Light and Signal Lamp 12-24V AC/DC, 230V AC, 12V DC with Built-in Circuit Breaker (70×70, 100×100)


The POST lighting and signal lamp is the end of a rectangular post measuring between 70 x 70 mm and 100 x 100 mm. The post opening must be at least 64 x 64 mm. The lamp is powered by 12-24V AC/DC or 230V AC (orange), 12-24V AC/DC (white). The lamp has been enhanced with a lighting function. When the gate opens, the lamp switches to signaling mode.

The lamp has a built-in interrupter that allows the light to be switched at a frequency of 1 Hz (the operating mode must be changed using a jumper).

Installation of the lamp requires drilling a small hole in the post to adjust the screw. The mechanism used clamps the housing inside the post by turning the screw.

TECHNICAL PARAMETERS:

  • Power supply: 12-24V AC/DC, 230V AC
  • Power consumption 230V AC: 2.5W
  • Current consumption 12V: 12V-200mA (white), 12V-170mA (orange)
  • Current consumption 24V: 24V-80mA (orange)
  • Light source: LED
  • Circuit breaker: Yes
  • Flashing frequency: 1 Hz
  • Operating temperature: -20º to +60º C
  • Ingress protection: IP54
  • Dimensions: above the post: 103 x 103 x 26 mm, w słupku: 64 x 64 x 20 mm
  • Weight: 253 g
