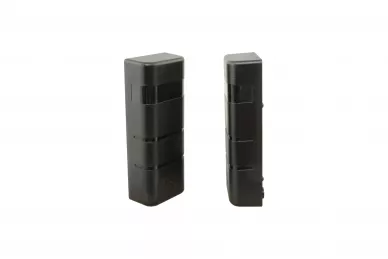

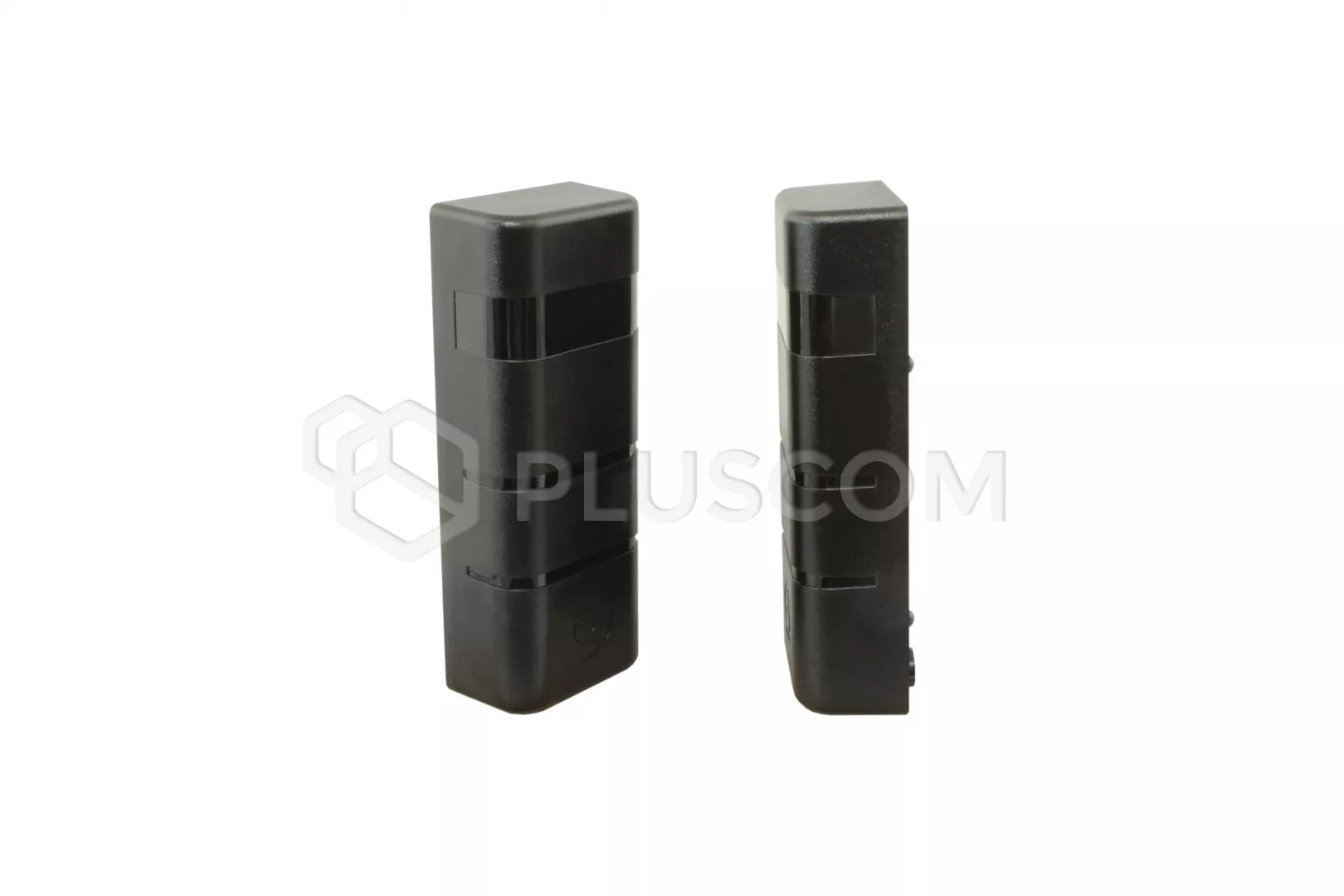

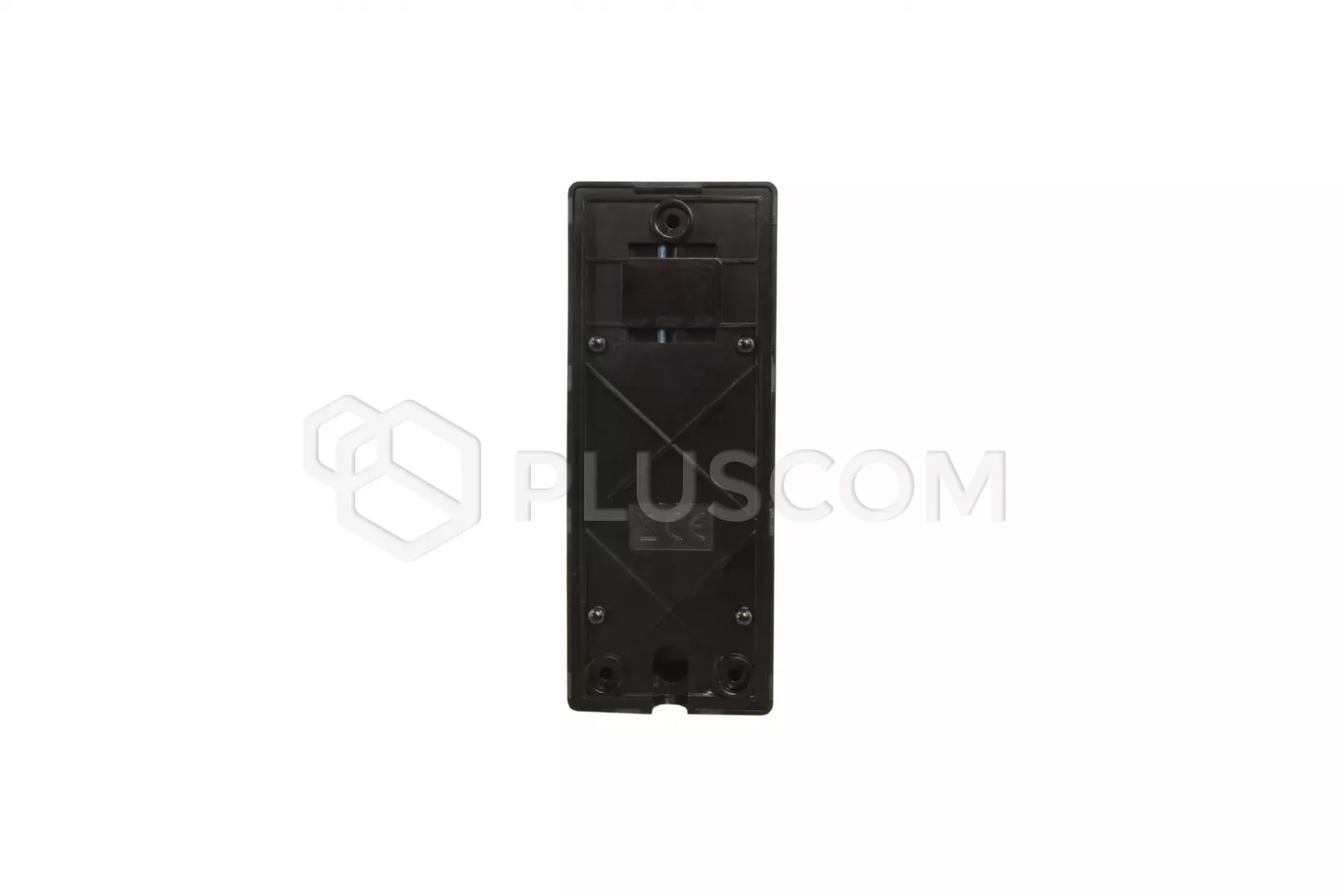

Proxima PB+ Photocell

Proxima Photocell PB+

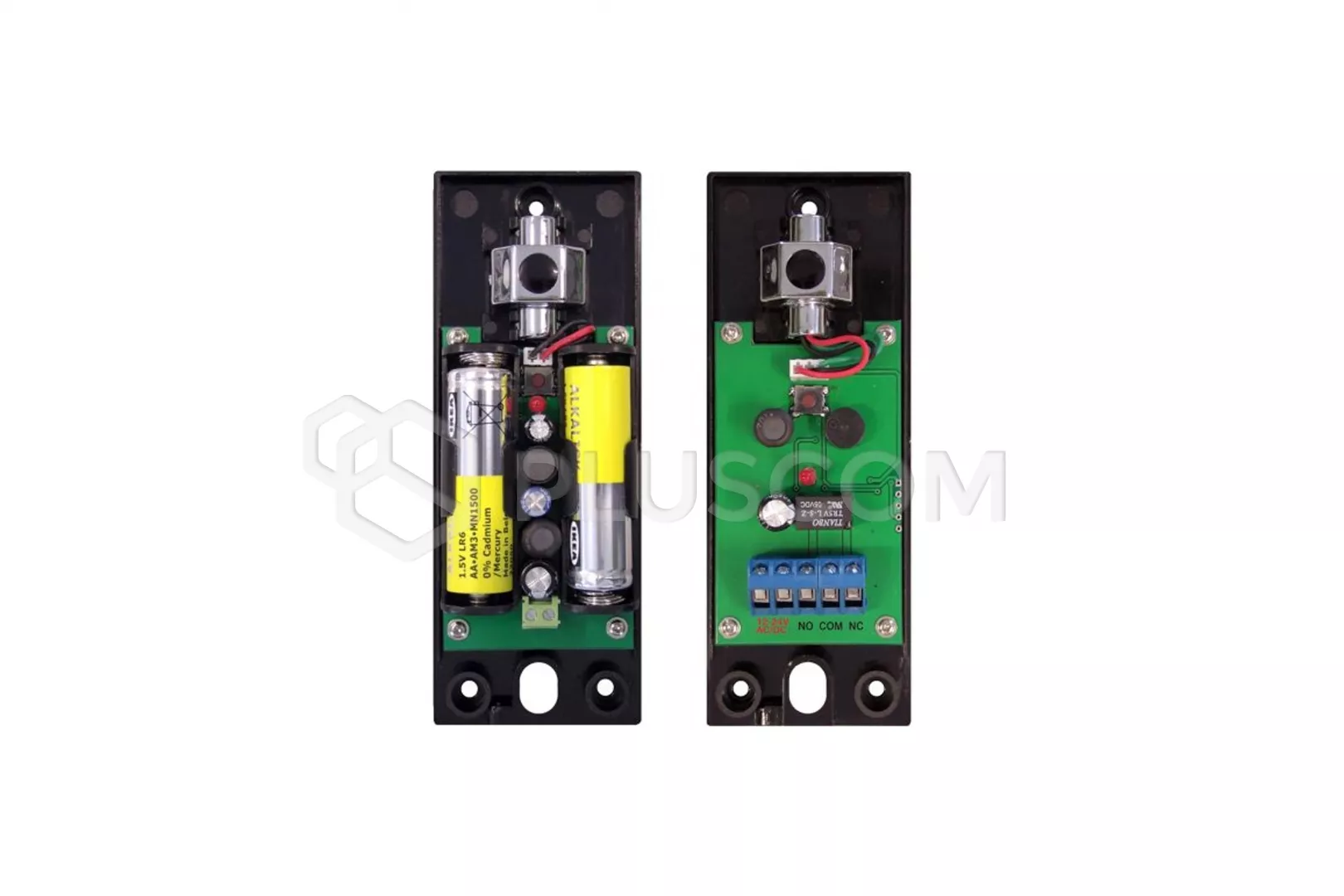

The PB+ photocell is one of the elements of gate automation. Transmitter is powered by two AA batteries or 12-24V AC/DC. By briefly pressing the w button transmitter, we can check the battery status. LED through flashes will tell us how charged they are. If the batteries in transmitter will be weak, it will be signaled by a buzzer.

The most important advantages of the photocell:

• transmitter powered by 2 x AA or 12/24VAC/DC batteries
• 15m range
• can also be installed flush with the door
• three modes of signaling with the buzzer of the violated photocell receiver
• checking the battery status with the transmitter button, the transmitter's LED shows four battery levels
• three levels of receiver response speed to infrared beam violation
• at the limit of range, the receiver's LED flashes, allowing for proper coaxial mounting
• photocell test

An undoubted advantage of the photocell is the ability to adjust the angle +\- 95 °, thanks to why the installation can be both in the light and outside the light of the gate. Led receiver's blinks helps to determine where the limits of coverage are. At the time When the photocell is set at the limit, the receiver's LED flashes rapidly.

In addition, we can set three levels of photocell reaction and the method informing us about the interrupted beam.

TECHNICAL PARAMETERS

• power supply: 12-24V AC/DC (or 2 x AA 1.5V batteries in the transmitter)
• maximum power consumption of the transmitter: 2 x AA 1.5V- 120uA, 12V- 5mA, 24V- 3mA
• maximum receiver current consumption: 12V- 20mA, 24V- 10mA
• output signal: NO and NC, 30V DC 100mA
• wavelength: 950 nm
• transmission and reception angle: +/- 5°, rotation 190°
• maximum operating range: 10 m
• sealing class: IP54
• dimensions: 50 x 127 x 28 mm
• Weight: 146g
