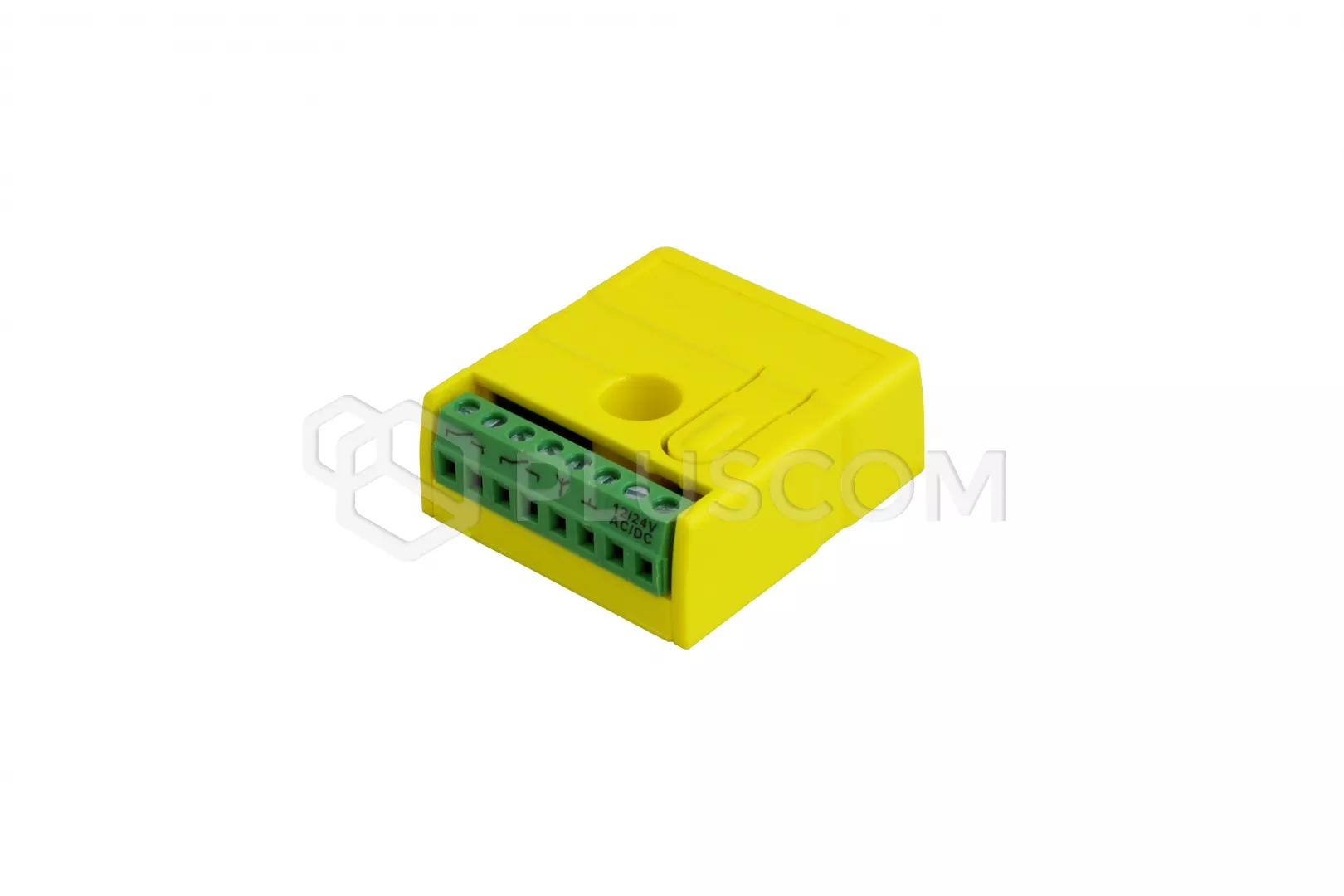

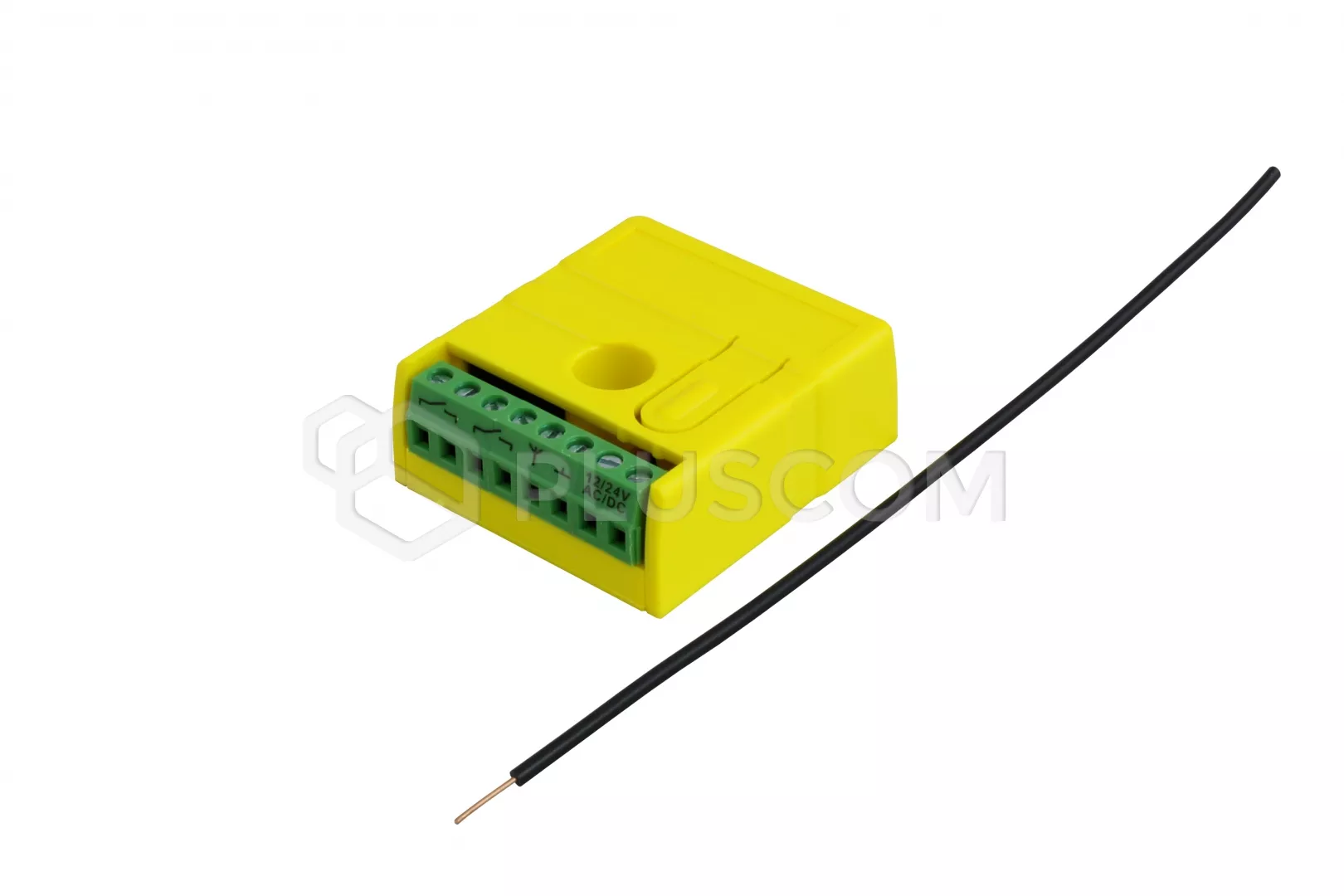

Proxima NW2 radio receiver compatible with the road radio PROXIMA NIP -
4000 keyfobs
Miniature superheterodyne radio receiver 433.92MHz equipped with two relay
outputs NO. It can work with 4000 pilots. The driver is a perfect solution for
controlling the system in condominiums and facilities with a large number of
users where no management is required by the administrator.
NIP system is a two-channel receiver, two and four-button remote controls and a programmer with a PC
program.
The program, after activation with a key with the Installer's NIP number, creates its own unique management
system remote controls and receivers.
System with NIP Installer, supports 65 thousand. objects.
The facility may have seven entrances operated without registration in the
receiver for 4 thousand pilots of this facility and may have any number of
entrances private requiring traditional registration of the remote button of
the facility in receiver.
Remotes and receivers contain the tax identification number and the object
number. To correct operation, devices with the same tax identification number
are required. Remotes are an exception universal (max 96 remote controls), for
the operation of which only the same is required NIP in the remote control and
in the receiver.
PRODUCT FEATURES:
- miniature dimensions, easy assembly
- remembers the coded NIP of the Installer, the number of the object (from
1 - to 16 million) and rolling code 4,000 site pilots
- each channel of the receiver can be one of the 7 entrances, or it can be
an entrance private
- wireless configuration
- three modes of operation:
-
- bistable
- monostable (runtime 1-999s)
- TDJN (As Long As You Press)
- the installer can configure 96 UNIVERSAL keyfobs - each keyfob two /
four-button opens any two / four of the seven entrances to the entrance all
16 million installer objects
Each button on the remote control can be configured as a control button
one of the seven entries or can be configured as a private button.
A remote control button configured as private can be registered in channel 1 or
2 and can control e.g. a tenant's basement roller shutter. Button private
registered in the receiver with the channel number allows control only this
entry, even though the estate may have several entries with this same number.
|
TECHNICAL PARAMETERS
- way radio: PROXIMA NIP
- number of channels: 2
- the number of pilots: 4000
- power supply: 12-24 V DC / AC
- current consumption: 20mA (off relays)
- output load: 1A 2x 24V/1A
- operating frequency: 433.92 MHz
- dimensions: 37x41x15mm hole diameter 4/8mm
- weight 23g
|
Proxima NW2 PROXIMA NIP 2-channel 433.92MHz 4000 pilots
|
