Proxima NW2 PROXIMA 2-channel 868MHz 819 pilots

Proxima NW2 radio receiver compatible with radio PROXIMA - 819 pilots

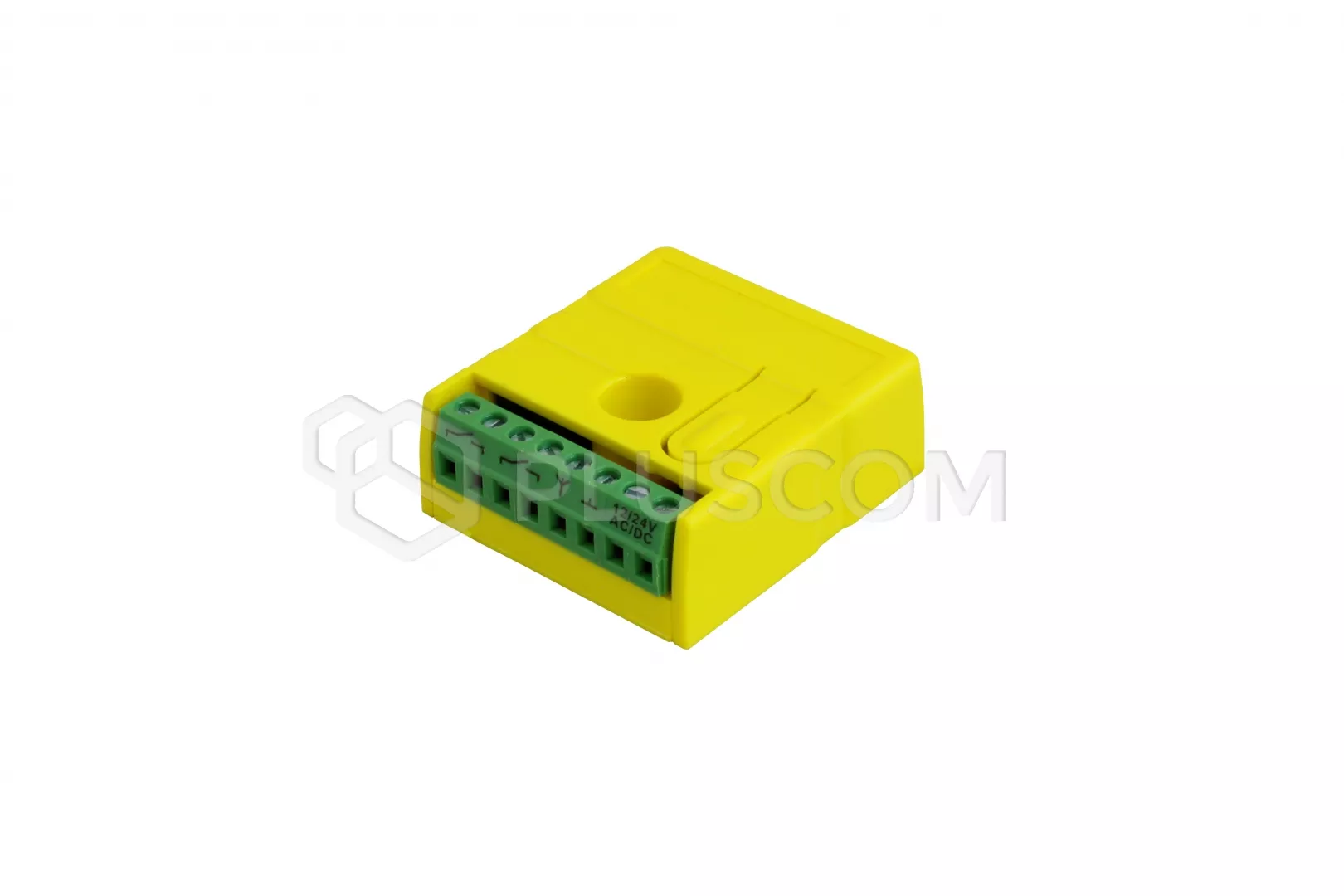

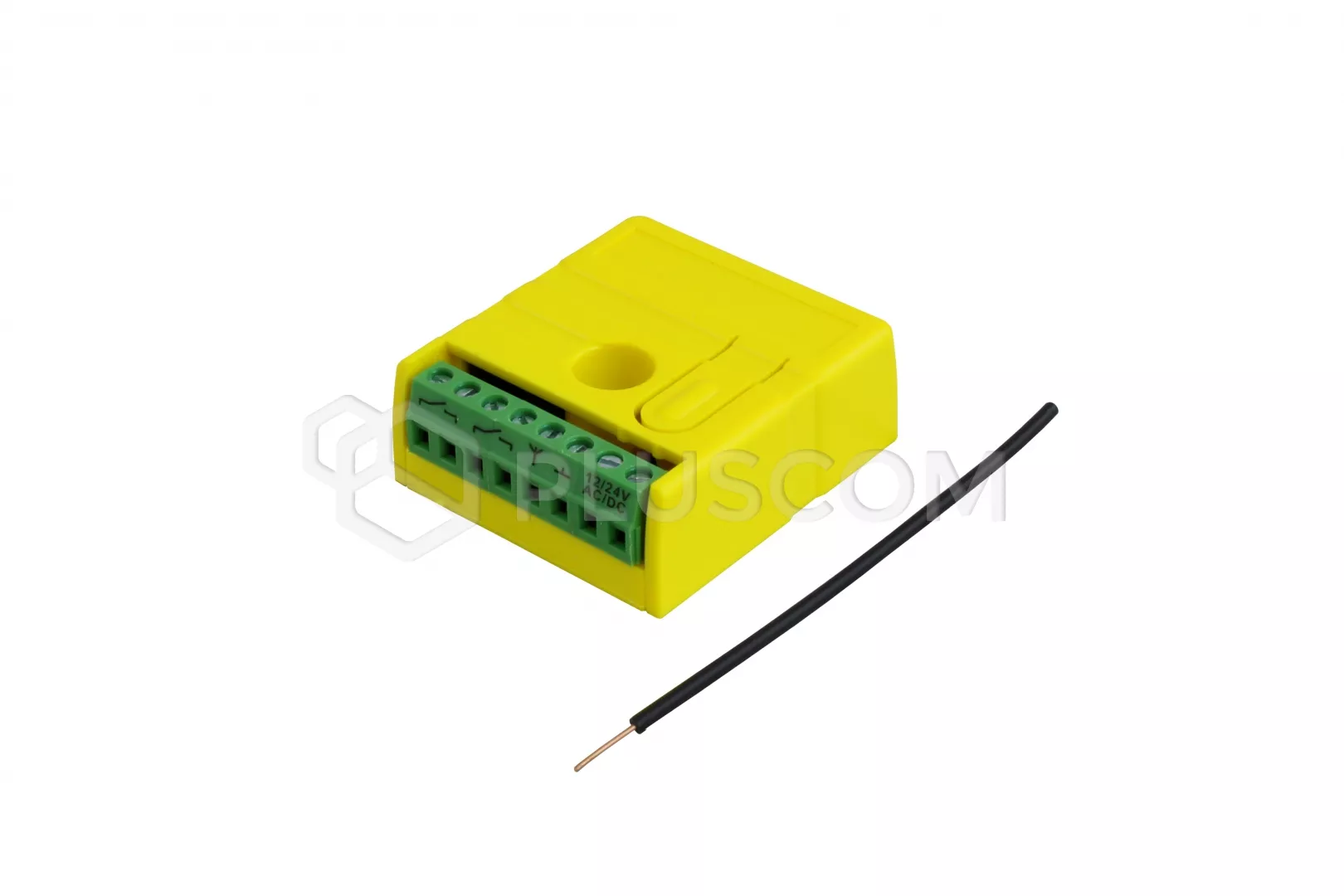

A miniature superheterodyne radio receiver, cooperating with Proxima rolling code remotes on frequency 868MHz equipped with two relay outputs NO. It can work with 819 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings. Will be used in situations where one remote you want to control the automation from different manufacturers.
It is possible to program a combination of buttons on the remote in the receiver.

PRODUCT FEATURES

• miniature size, simple installation
• a large operating range of up to 200m (superheterodyne receiver with high sensitivity)
• the ability to register up to 4 buttons and 10 combinations of buttons on the four-button remote control and two buttons and one button combination of the two-button remote
• accepts PROXIMA rolling code remotes operating at 868 MHz
• the ability to delete the registered remote control without his presence (useful when you want to delete from the memory of a lost remote control)
• three modes of operation:
• • bistable with reset
  • monostable (uptime 1-999s)
  • (as long as the press)
• integrated buzzer, acoustic confirmation response pilots, output activation


Programming mode a particular channel, operating time monostable mode and operations pilots performed using only one button. Navigating the menus and programming facilitates the acoustic driver.

TECHNICAL PARAMETERS way radio: PROXIMA number of channels: 2 the number of pilots: 819 power supply: 12-24 V DC / AC current consumption: 15mA output load: 1A 2x 24V/1A operating frequency: 868 MHz dimensions: 37x41x15mm hole diameter 4/8mm weight 23g

Proxima NW2 PROXIMA 2-channel 868MHz 819 pilots
