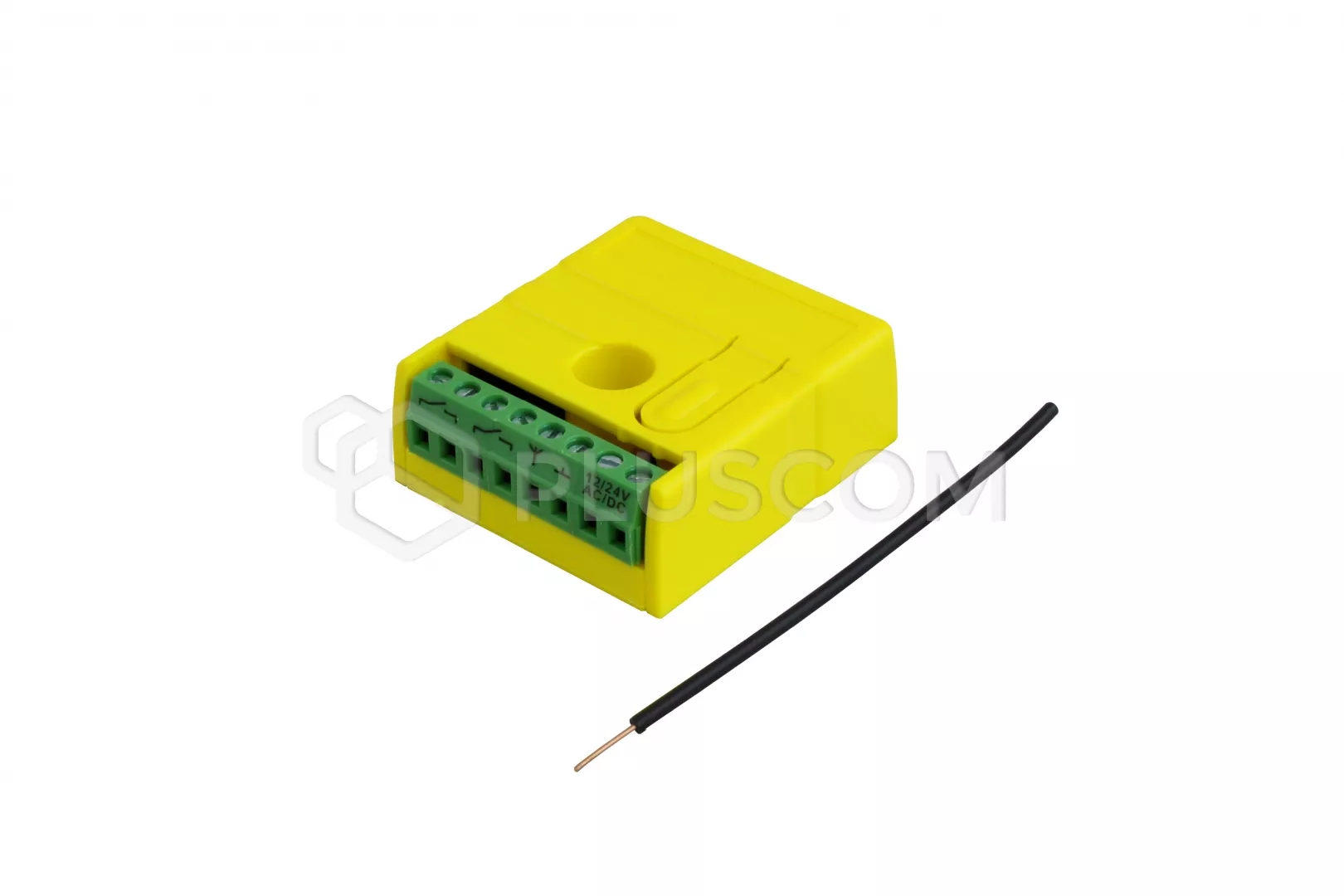

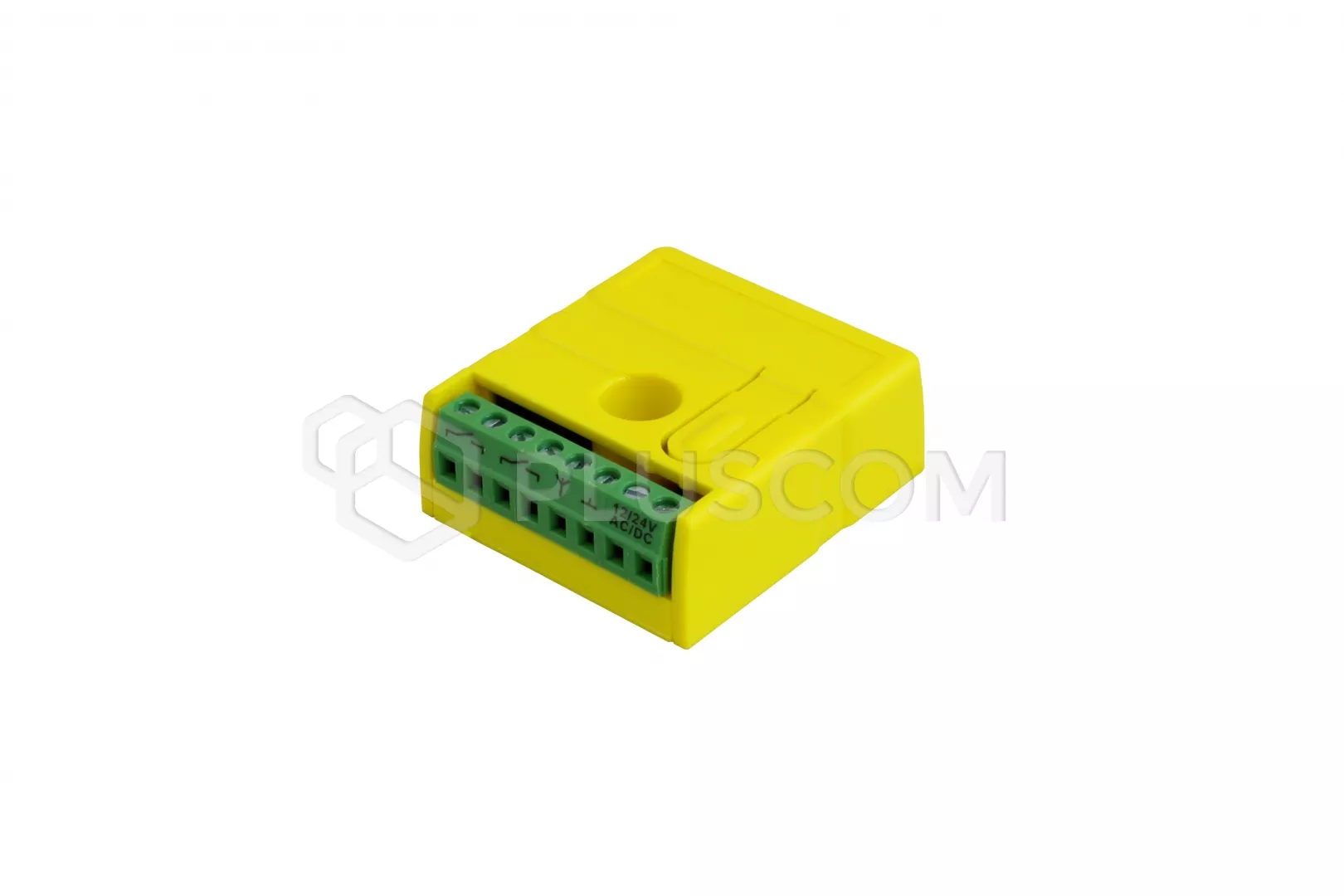

Proxima NW2 Faac SLH 2-channel

Proxima NW2 radio receiver compatible with radio FAAC SLH - 999 pilots

Miniature superheterodyne radio receiver 868MHz equipped with two relay outputs NO. It can work with 999 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings. Will be used in situations where one remote you want to control the automation from different manufacturers.
It is possible to program a combination of buttons on the remote in the receiver.

PRODUCT FEATURES

• miniature size, simple installation
• a large operating range of up to 200m (superheterodyne receiver with high sensitivity)
• the ability to register up to 4 buttons and 10 combinations of buttons on the four-button remote control and two buttons and one button combination of the two-button remote
• adopts leading system rolling code remotes + remotes with HCS system
• the ability to delete the registered remote control without his presence (useful when you want to delete from the memory of a lost remote control)
• three modes of operation:
• • bistable with reset
  • monostable (uptime 1-999s)
  • (as long as the press)
• integrated buzzer, acoustic confirmation response pilots, output activation


TECHNICAL PARAMETERS way radio: FAAC SLH number of channels: 2 the number of pilots: 999 power supply: 12-24 V DC / AC current consumption: 15mA output load: 1A 2x 24V/1A operating frequency: 868 MHz dimensions: 37x41x15mm hole diameter 4/8mm weight 23g

Proxima NW2 FAAC SLH 2-channel
