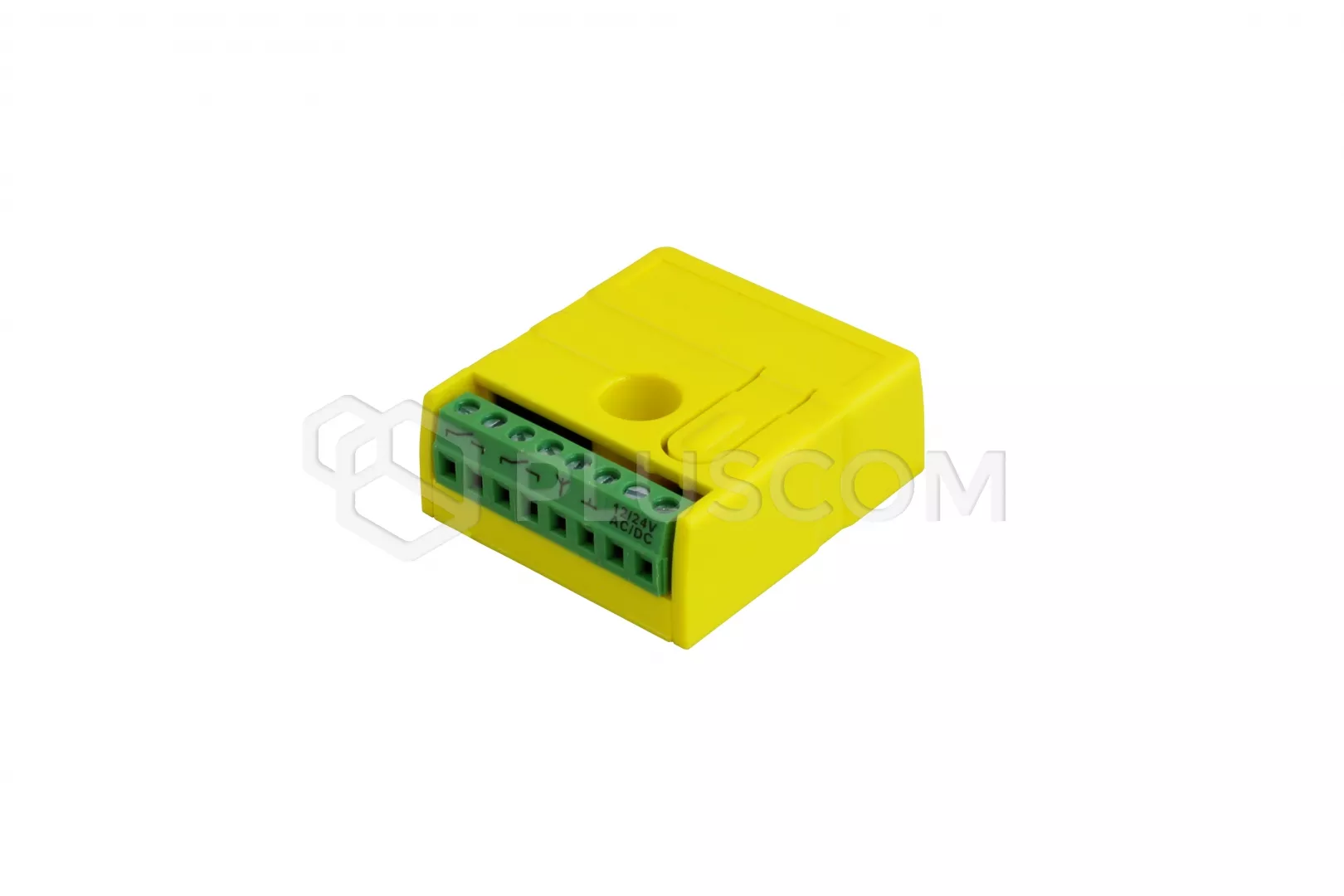

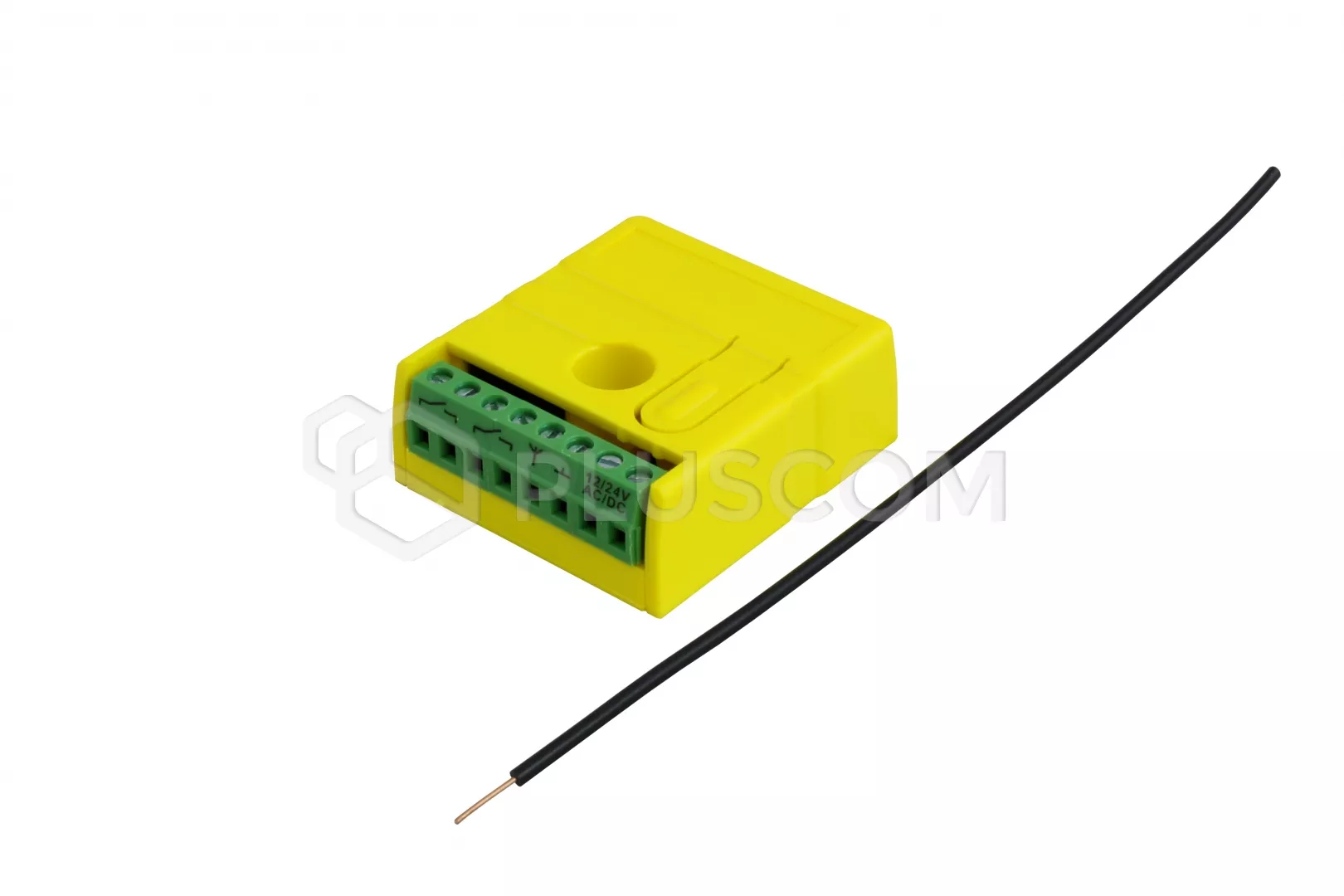

Proxima NW2 BENINCA 2-channel 868MHz 41 pilots

Proxima NW2 radio receiver compatible with radio BENINCA - 41 pilots

Miniature superheterodyne radio receiver 868.3 MHz equipped with two relay outputs NO. It can work with 32 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings.
It is possible to program a combination of buttons on the remote in the receiver.

PRODUCT FEATURES

• miniature size, simple installation
• a large operating range of up to 200m (superheterodyne receiver with high sensitivity)
• the ability to register up to 4 buttons and 10 combinations of buttons on the four-button remote control and two buttons and one button combination of the two-button remote
• adopts leading system rolling code remotes + remotes with HCS system
• the ability to delete the registered remote control without his presence (useful when you want to delete from the memory of a lost remote control)
• three modes of operation:
• • bistable with reset
  • monostable (uptime 1-999s)
  • (as long as the press)
• integrated buzzer, acoustic confirmation response pilots, output activation


Programming mode a particular channel, operating time monostable mode and operations pilots performed using only one button. Navigating the menus and programming facilitates the acoustic driver.

TECHNICAL PARAMETERS way radio: BENINCA number of channels: 2 the number of pilots: 41 power supply: 12-24 V DC / AC current consumption: 15mA output load: 1A 2x 24V/1A operating frequency: 868.3 MHz dimensions: 37x41x15mm hole diameter 4/8mm weight 23g
