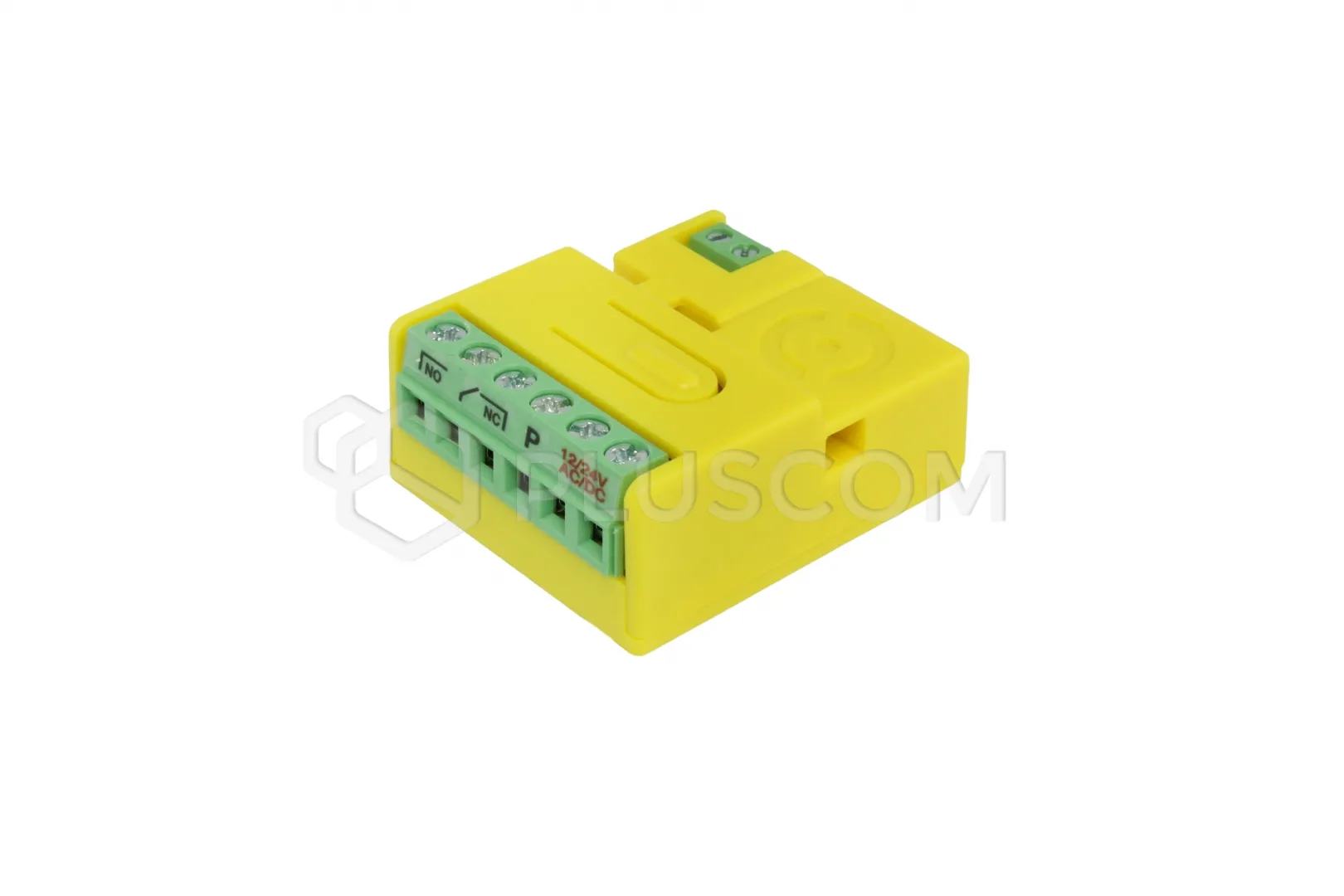

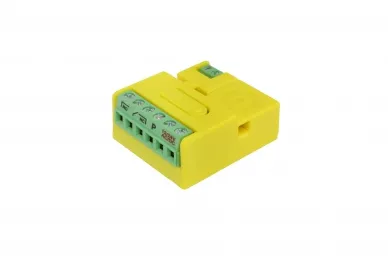

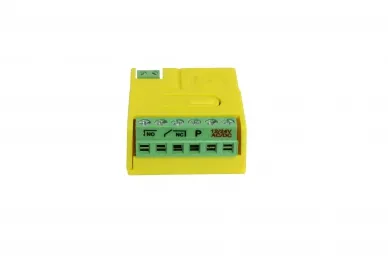

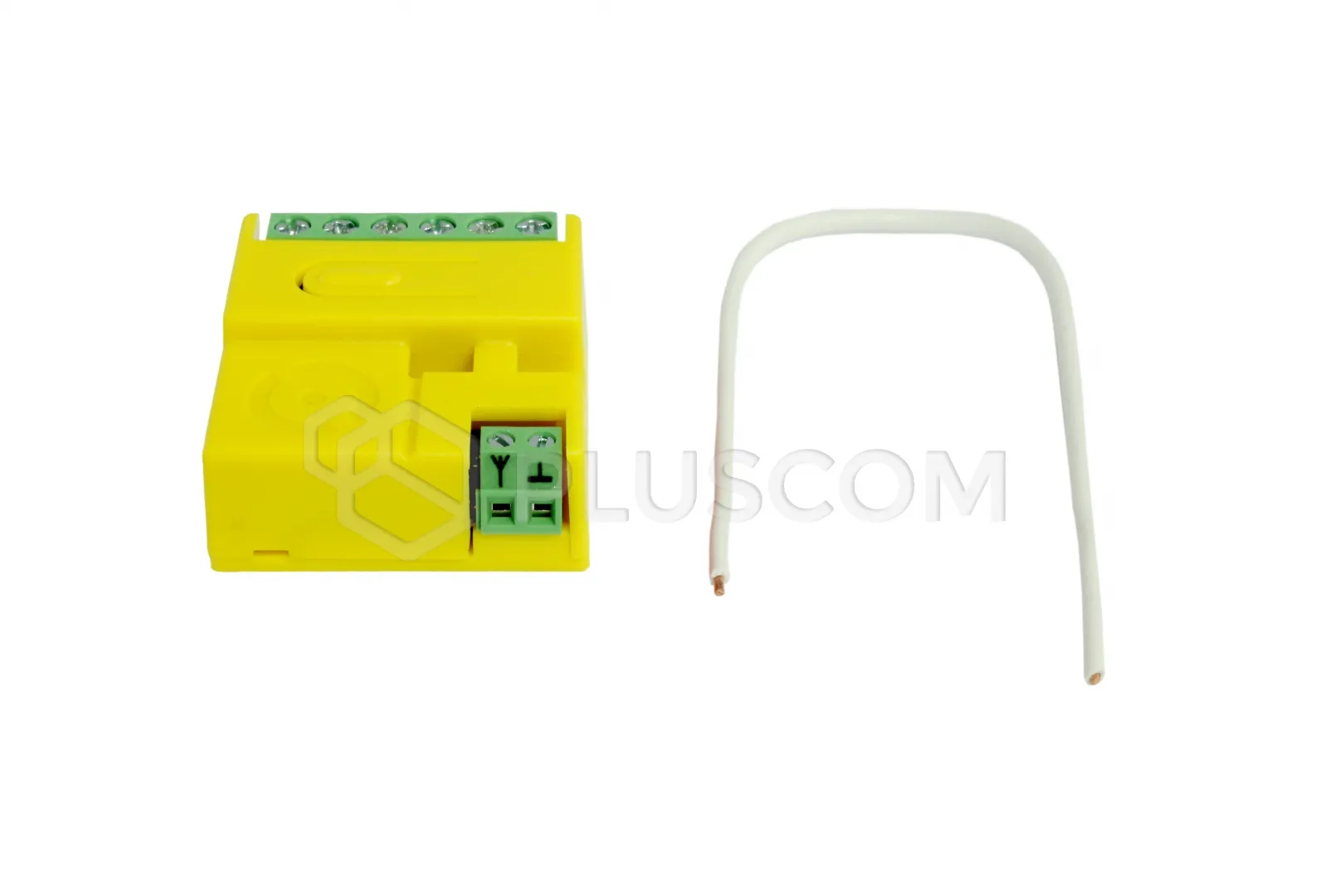

Proxima NW1 HORMANN ECOSTAR 1-channel receiver

Proxima NW1 radio receiver compatible with radio HORMANN ECOSTAR

Miniature superheterodyne radio receiver 433.92MHz equipped with one relay output (NO). It can work with 999 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings. Will be used in situations where one remote you want to control the automation from different manufacturers.

The receiver can be configured less securely (analysis only part of the permanent pilot transmission) to the controller can be registered as well non-system keyfobs (keyfobs from other manufacturers with the HCS system) operating in the 433.92MHz band.

PRODUCT FEATURES

• miniature size, simple installation
• a large operating range of up to 200m (superheterodyne receiver with high sensitivity)
• up to 4 buttons and 10 combinations of buttons on the remote control can be registered four-button and two buttons and one combination of buttons on the remote control two-button (prevents accidental pressing)
• possibility to delete a registered keyfob without his presence (useful when you want to remove a lost remote from the memory)
• the ability to delete the registered remote control without his presence (useful when you want to delete from the memory of a lost remote control)
• three modes of operation:
• • bistable with reset
  • monostable (uptime 1-999s)
  • (as long as the press)
• integrated buzzer, acoustic confirmation response pilots, output activation


Programming mode a particular channel, operating time monostable mode and operations pilots performed using only one button. Navigating the menus and programming facilitates the acoustic driver.
