Proxima NW1 Faac FIX 1-channel

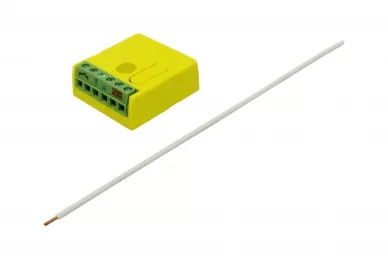

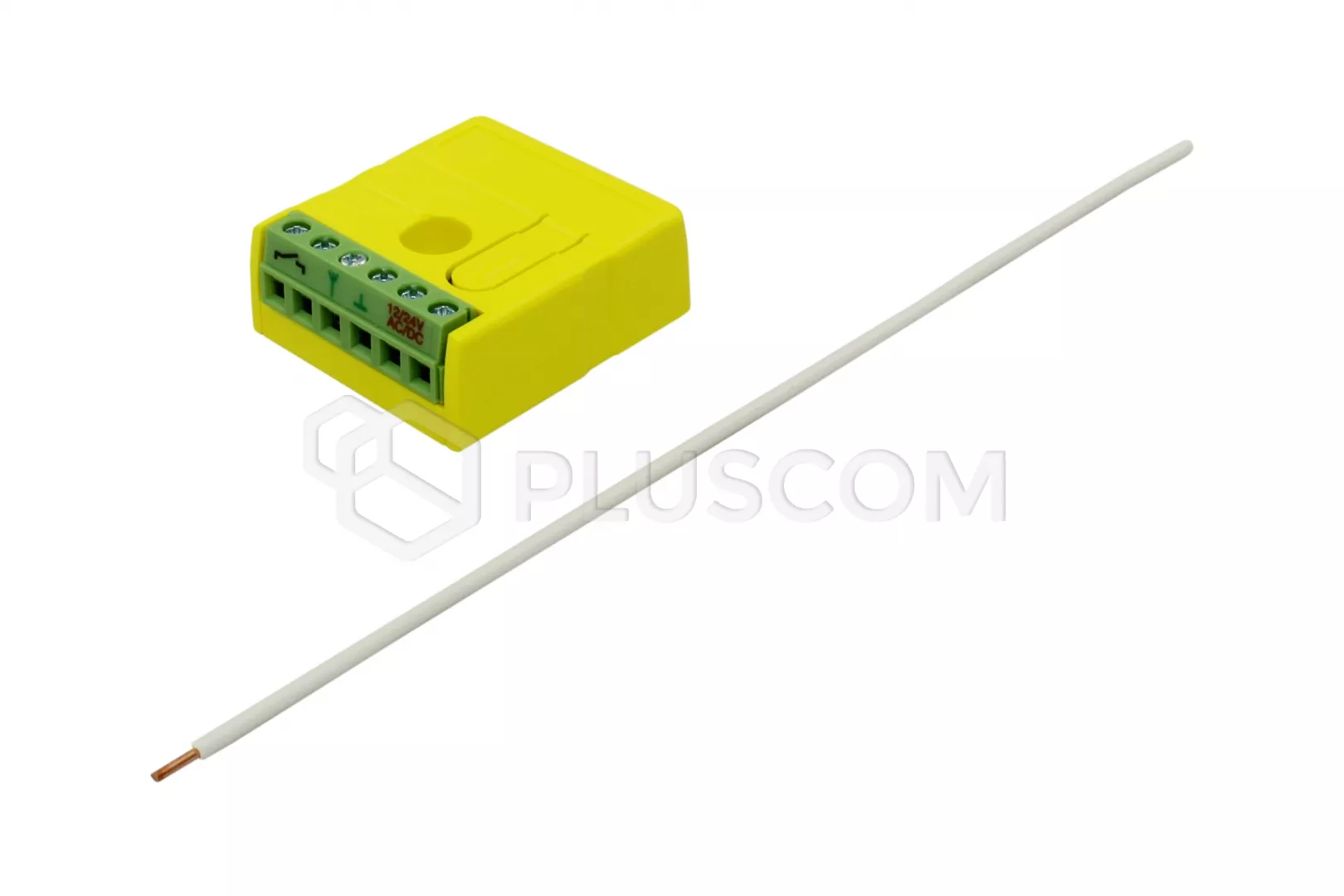

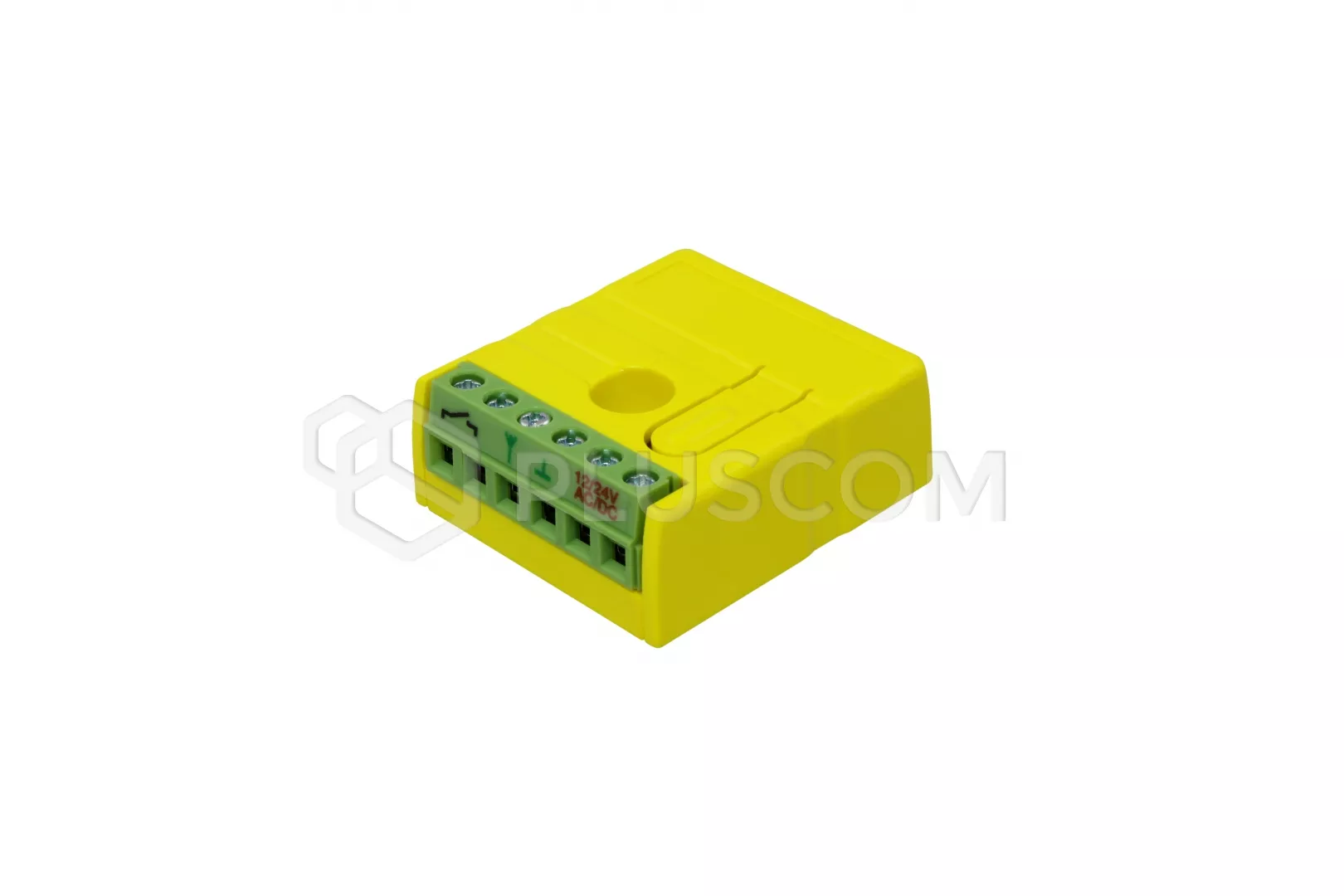

Proxima NW1 radio receiver compatible with FAAC FIX 433MHz radio (memory of 999 pilots)

Miniature superheterodyne radio receiver 433.92MHz with a range of up to 200m. The controller is a perfect solution for controlling automation systems gate, roller shutters and building security systems. It will be used in situations where we want to control the automation of different manufacturers with one remote control. It is rolling code compatible with the FAAC FIX radio control system. The receiver can be configured less securely (analysis only part of the permanent pilot transmission) to the controller can also be registered non-system remote controls (remote controls from other manufacturers with HCS system).

PRODUCT FEATURES:

• accepts 999 codec pilots of the leading system + any remote controls with HCS working in the 433.92MHz band
• acoustic confirmation of receiving the pilot signal
• coption to delete the remote control without its presence
• up to 4 buttons and 10 button combinations can be registered four-button remote control and two buttons and one combination of buttons two-button remote control (prevents accidental pressing)
• a registered remote can be acoustically read its position in receiver and remotely clone the remote control

TECHNICAL PARAMETERS

• Radio Way: FAAC FIX

• number of channels: 1
• the number of pilots: 999

• power supply: 12-24 V DC / AC
• current consumption: 10mA (off relays)
• output load: 1x 24V/1A
• operating frequency: 433.92 MHz

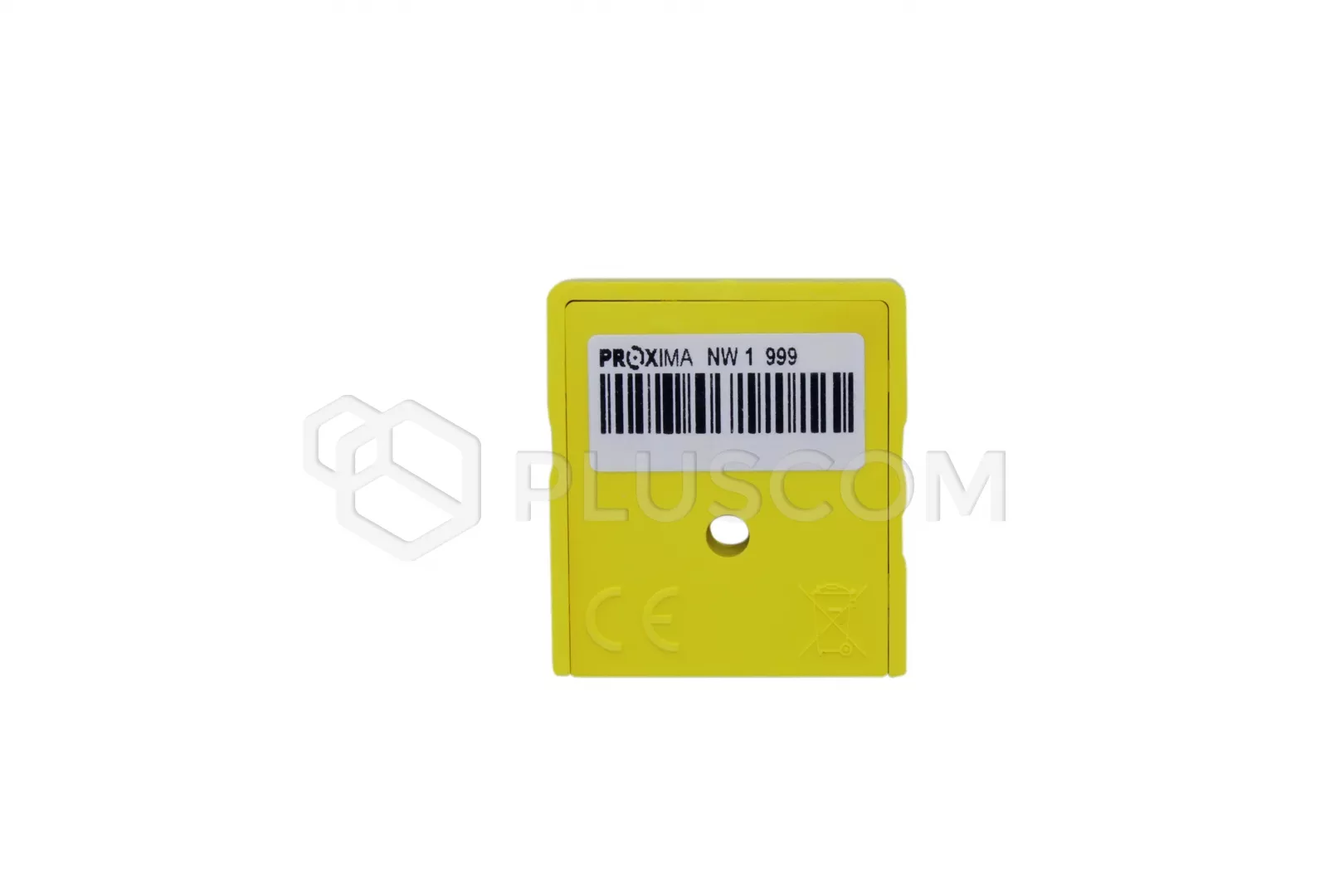

• dimensions: 37x41x15mm hole diameter 4/8mm
• weight 23g
