Proxima NW1 DTM SYSTEM 1-channel

46,90 EUR including 23.00% VAT
In stock. Ships today!
Product code: #23527
Manufacturer: Proxima
  • Memory of pilots: 999
  • Number of channels: 1
  • Power: DC/AC 12-24V
  • Operating modes: monostable (1-999s), bistable, (as long as you press)
  • Radio Way: DTM SYSTEM
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

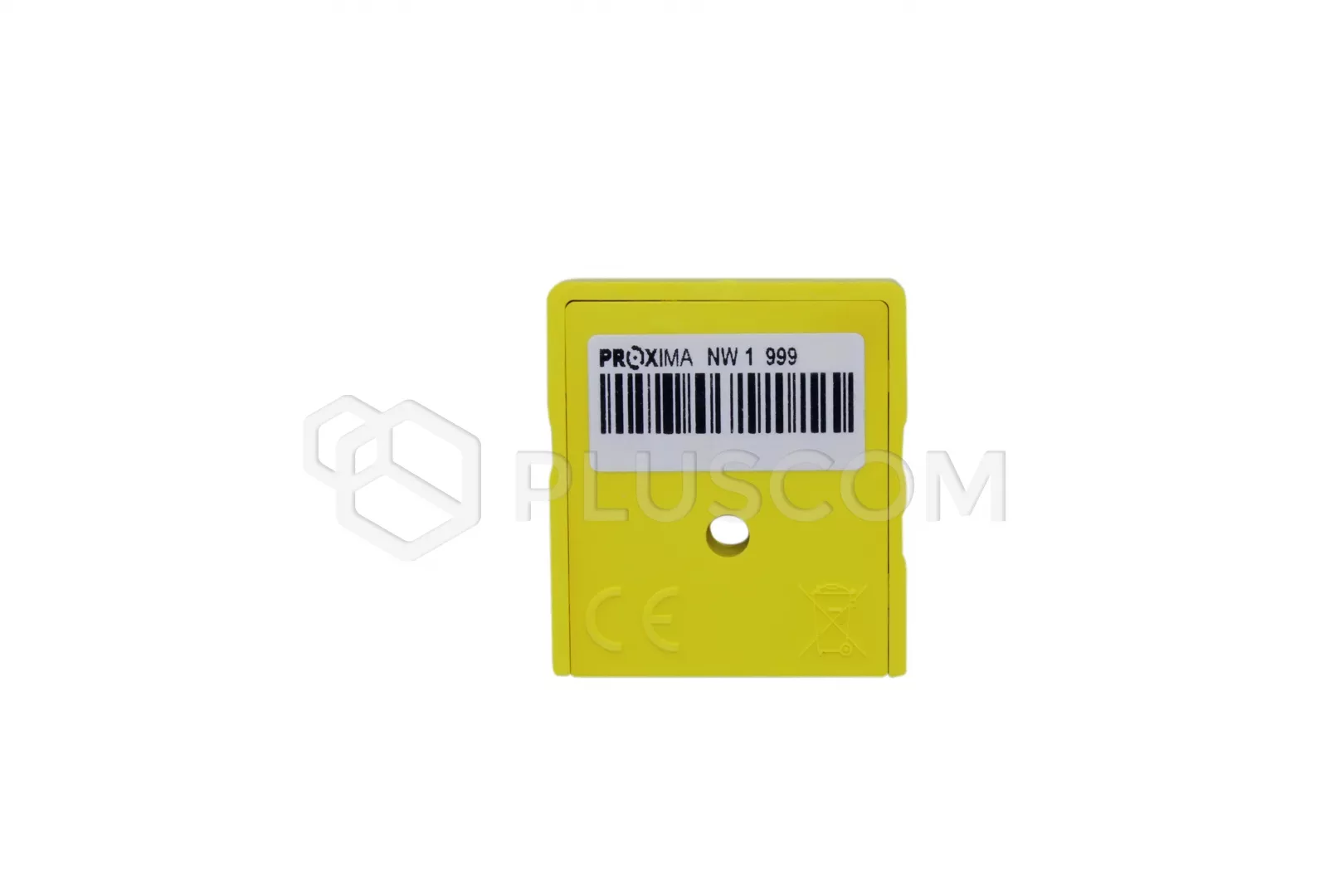

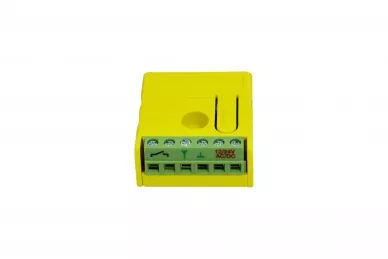

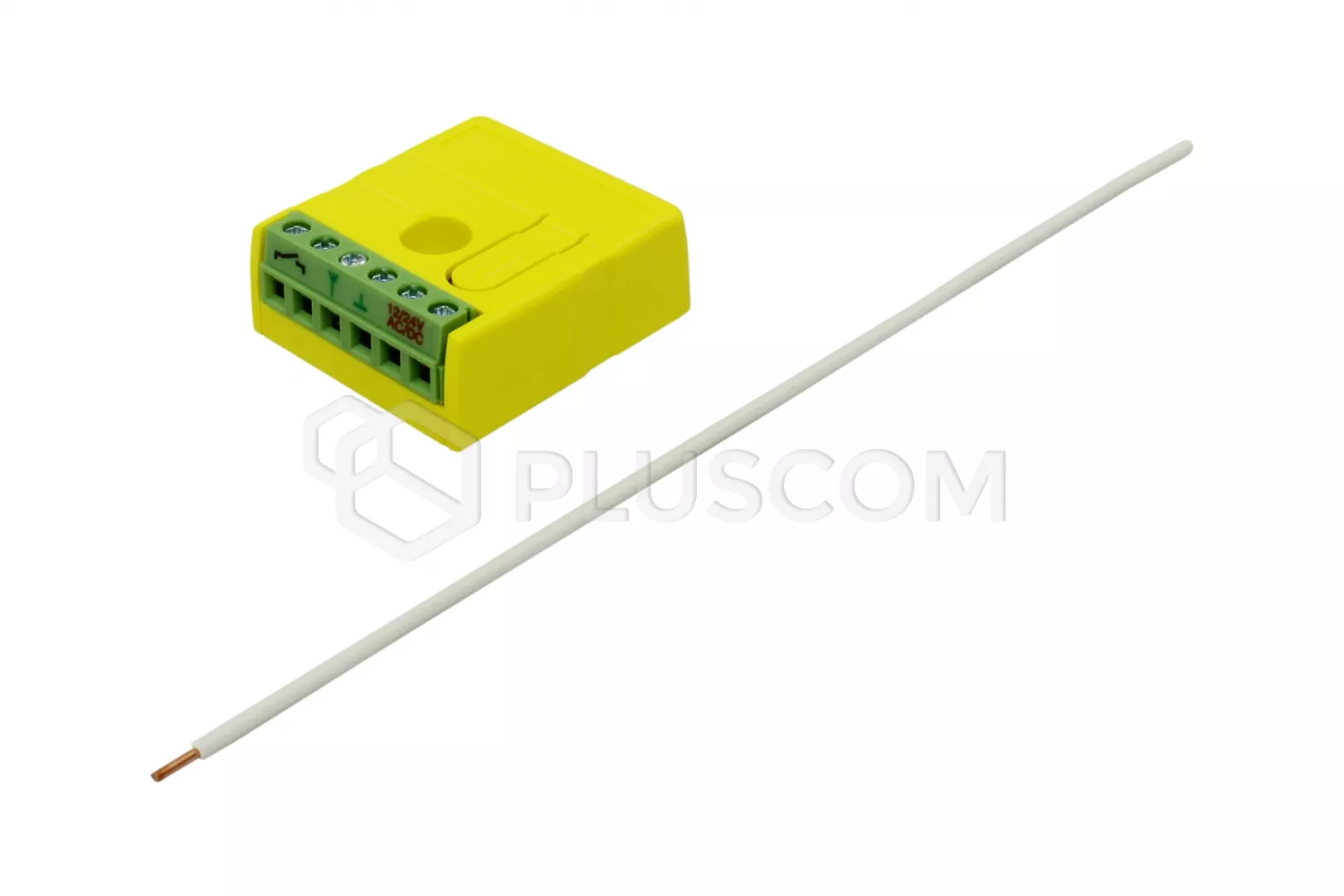

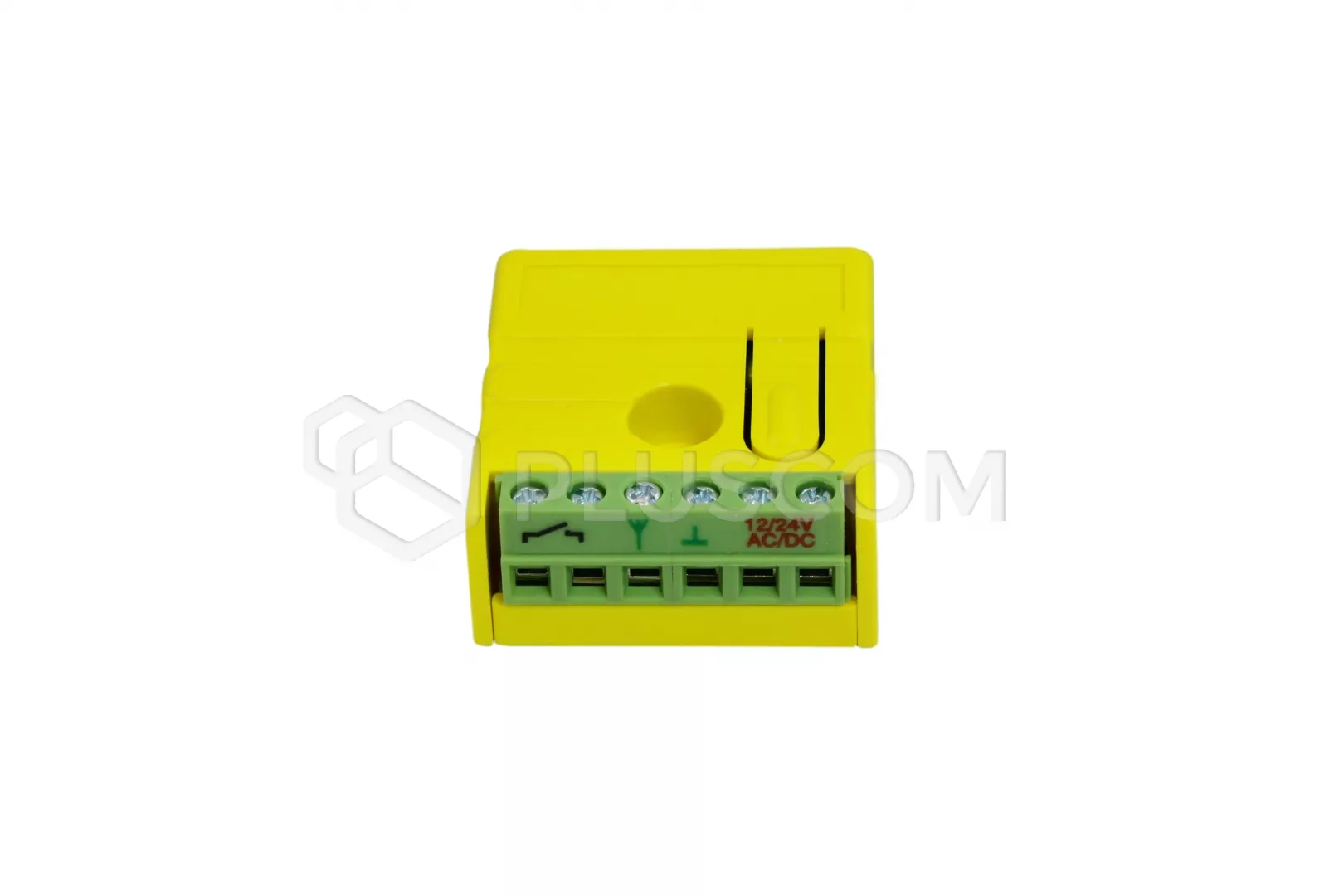

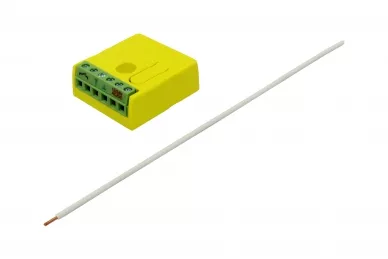

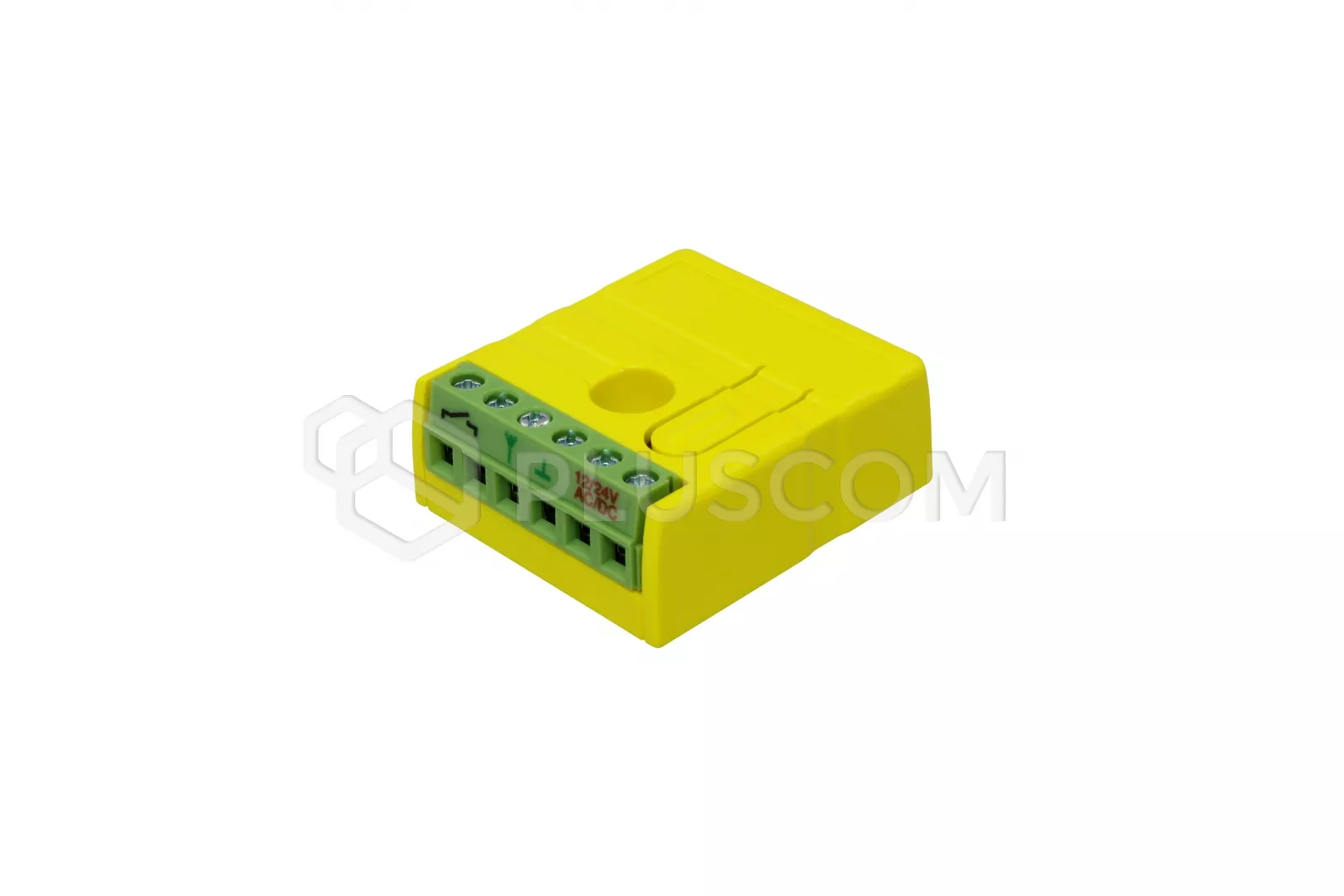

Proxima NW1 radio receiver compatible with DTM SYSTEM 433MHz radio (memory of 999 pilots)


Miniature superheterodyne radio receiver 433,92 MHz equipped with one relay output (NO). It can work with 999 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings. Will be used in situations where one remote you want to control the automation from different manufacturers.

PRODUCT FEATURES:
  • accepts 999 codec pilots of the leading system + any remote controls with HCS working in the 433.92MHz band
  • acoustic confirmation of receiving the pilot signal
  • coption to delete the remote control without its presence
  • up to 4 buttons and 10 button combinations can be registered four-button remote control and two buttons and one combination of buttons two-button remote control (prevents accidental pressing)
  • a registered remote can be acoustically read its position in receiver and remotely clone the remote control
TECHNICAL PARAMETERS
  • Radio Way: DTM SYSTEM
  • number of channels: 1
  • the number of pilots: 999
  • power supply: 12-24 V DC / AC
  • current consumption: 15mA (off relays)
  • output load: 1x 24V/1A
  • operating frequency: 433.92 MHz
  • dimensions: 37x41x15mm hole diameter 4/8mm
  • weight 23g
Download
CE Declaration 0.08 MB
