Proxima NW1 1-channel controller/receiver CAME ATOMO 433MHz

54,01 EUR including 23.00% VAT
Product code: #25809
Manufacturer: Proxima
  • Number of supported remotes: 999
  • Number of channels: 1
  • Power supply: 12-24V AC/DC
  • Operating modes: monostable (1-999s), bistable, TDJN
  • Radio path: CAME ATOMO 433 MHz
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

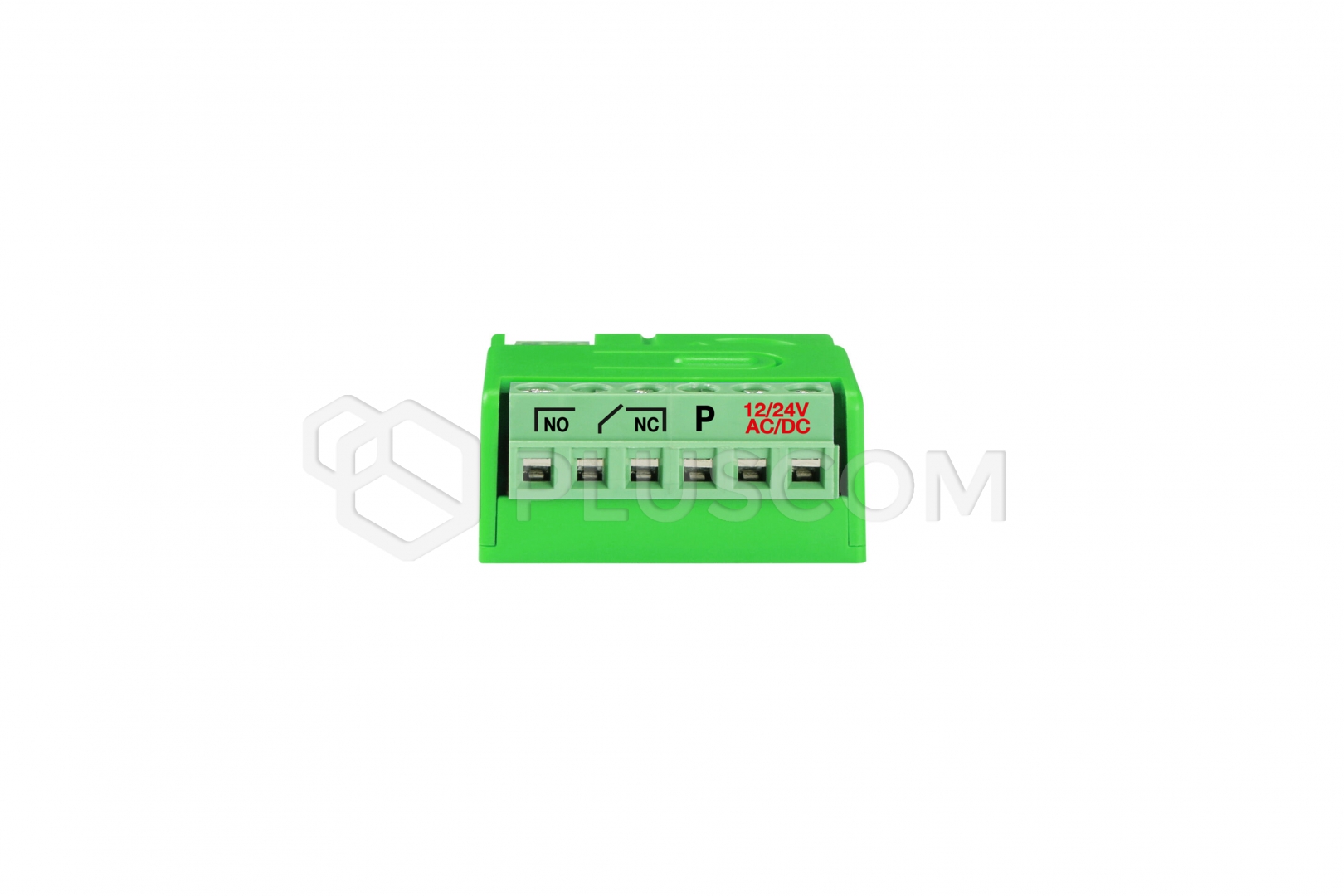

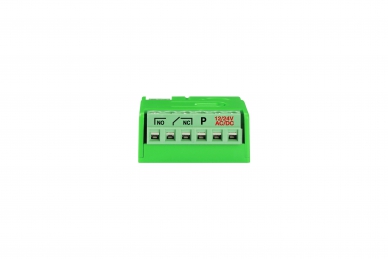

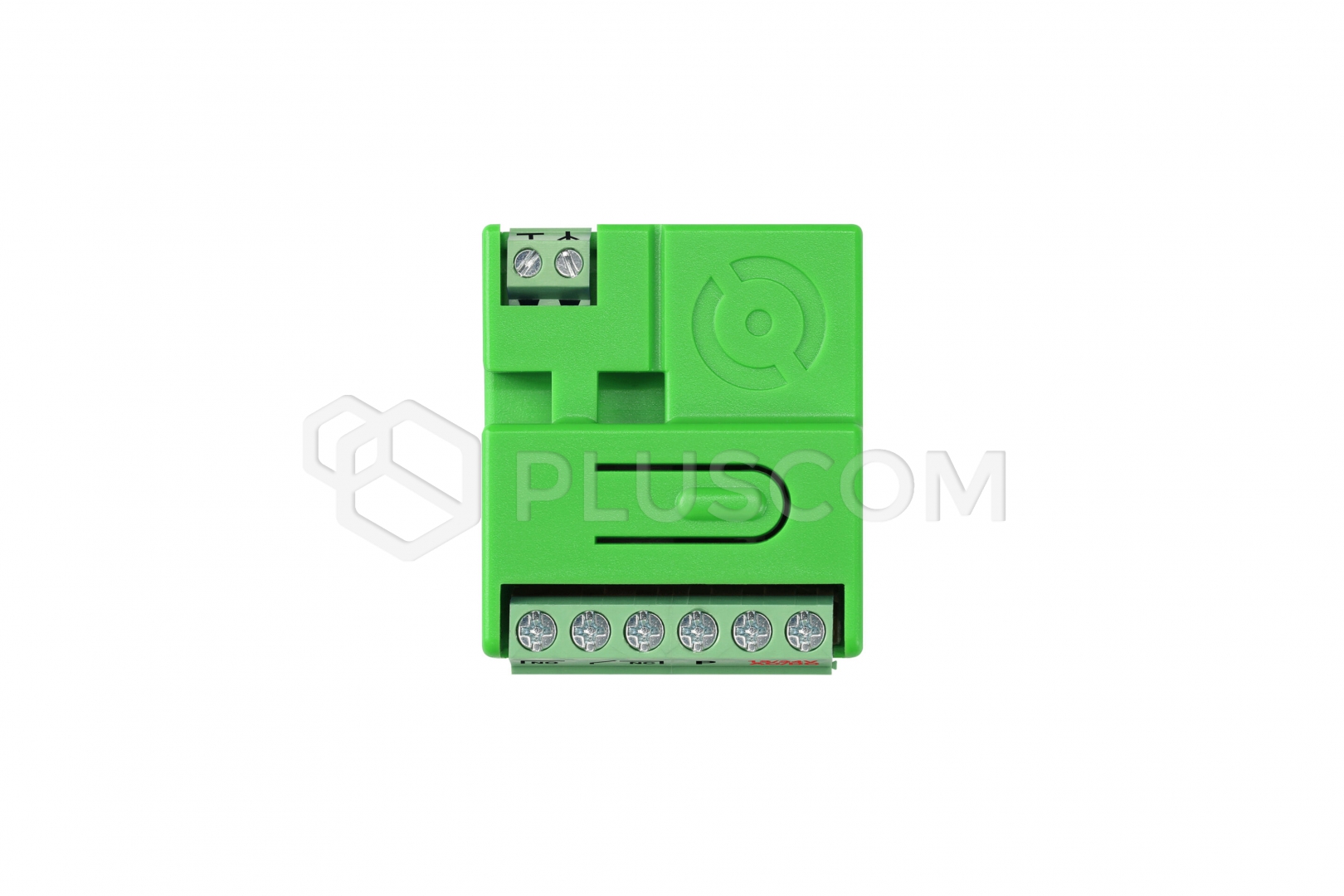

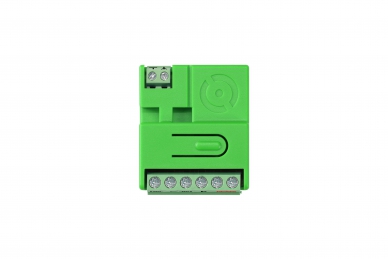

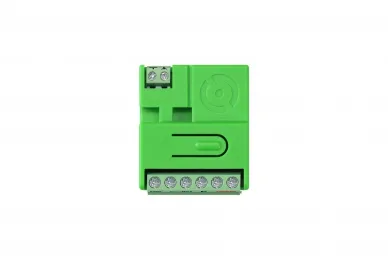

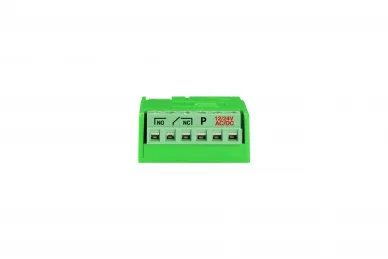

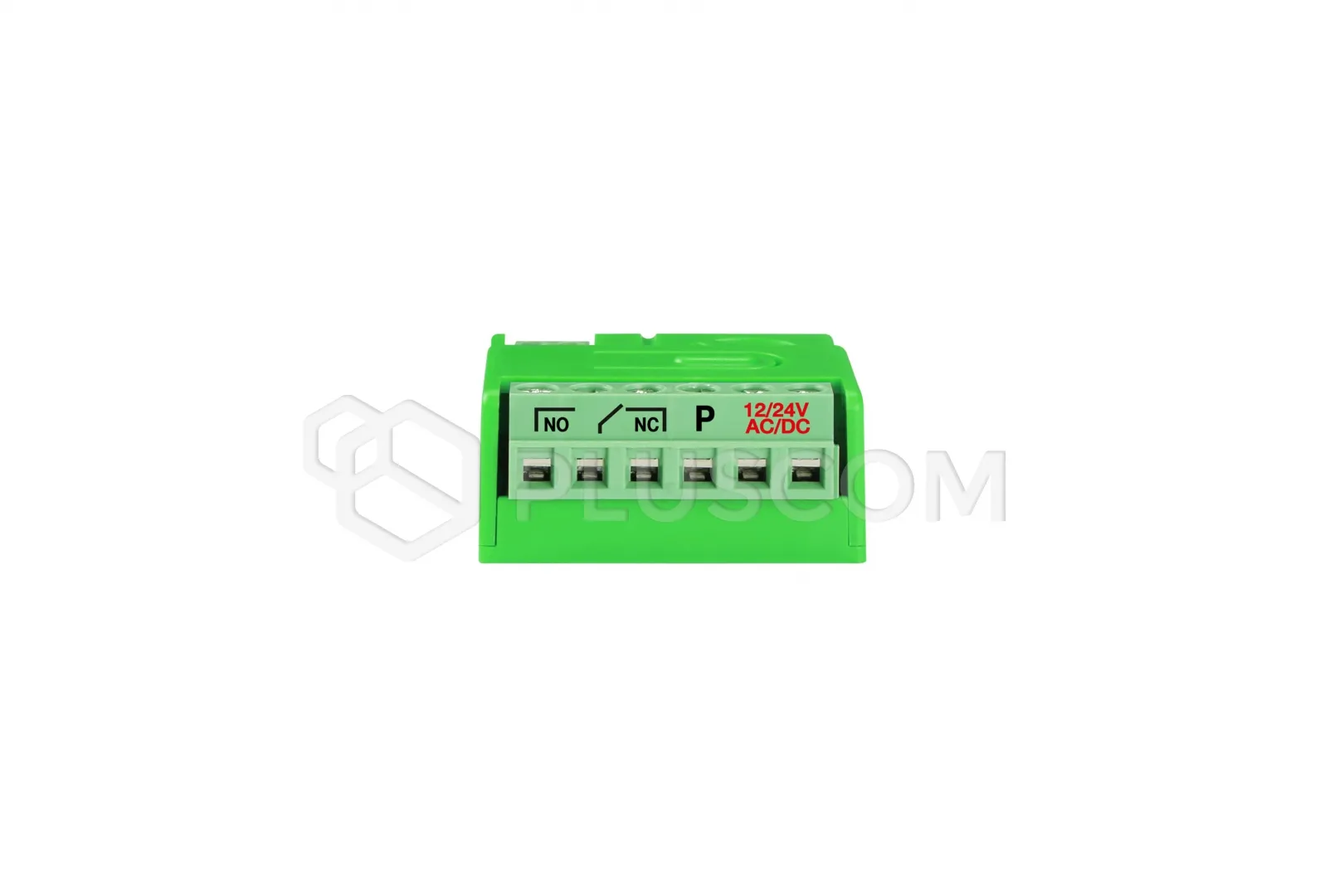

Proxima NW1 1-channel CAME ATOMO 433 MHz controller/receiver


NW1 is a universal receiver designed to work with gate control units and other automation systems. It works in a variable code manner with CAME ATOMO 433.92 MHz radio remote controls + with HCS 433.92 MHz remote controls (analysis of the fixed part of the remote control code). NW1 has a memory for 999 remote controls. The receiver is small and can be mounted using a cable tie. The receiver is programmed with one button, and navigating through the device's menu is confirmed by the built-in buzzer and the receiver's LED diode.

FEATURES:

  • Full NO / COM / NC relay
  • Ability to connect an external antenna (17 cm dedicated wire included)
  • Superheterodyne receiver (range up to 200 meters)
  • Acoustic confirmation of receiving the remote control signal (can be turned off)
  • Acoustic signaling for one minute of a low battery in the remote control
  • Ability to delete a single remote control
  • Ability to register a single remote control button and several simultaneously pressed buttons of a given remote control

TECHNICAL DATA:

  • Power supply: 12-24V AC/DC
  • Current consumption: 10mA
  • Remote control memory: 999
  • Outputs: 1 channel NO/NC (24V, 1A)
  • Channel operating modes: monostable (1-999 s), bistable, TDJN (As Long As You Press)
  • Dimensions: 37 x 41 x 15 mm
  • Weight: 23 g
