Proxima NW1 1-channel controller/receiver BIG TOR

46,69 EUR including 23.00% VAT
Product code: #23936
Manufacturer: Proxima
  • Memory of pilots: 999
  • Number of channels: 1
  • Power: DC/AC 12-24V
  • Operating modes: monostable (1-999s), bistable, (as long as you press)
  • Radio Way: BIG TOR
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Proxima Remote control Mini BIG TOR Bi:KLIK 433,92MHz Proxima Remote control SOFT BIG TOR Proxima Remote control Banana BIG TOR Bi:KLIK Proxima Remote control FLAP BIG TOR Bi:KLIK Proxima Reote cotrol Lighter BIG TOR 433.92MHz Proxima Remote control TRIANGLE BIG TOR Bi:KLIK Proxima Remote control Stalactite BIG TOR Bi:KLIK Proxima Remote control BIG TOR Horseshoe Bi:KLIK Proxima Remote control FLAT BIG TOR Bi:KLIK Proxima Oval Remote control BIG TOR Bi:KLIK

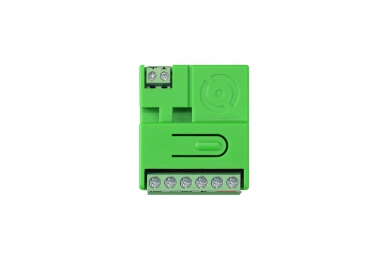

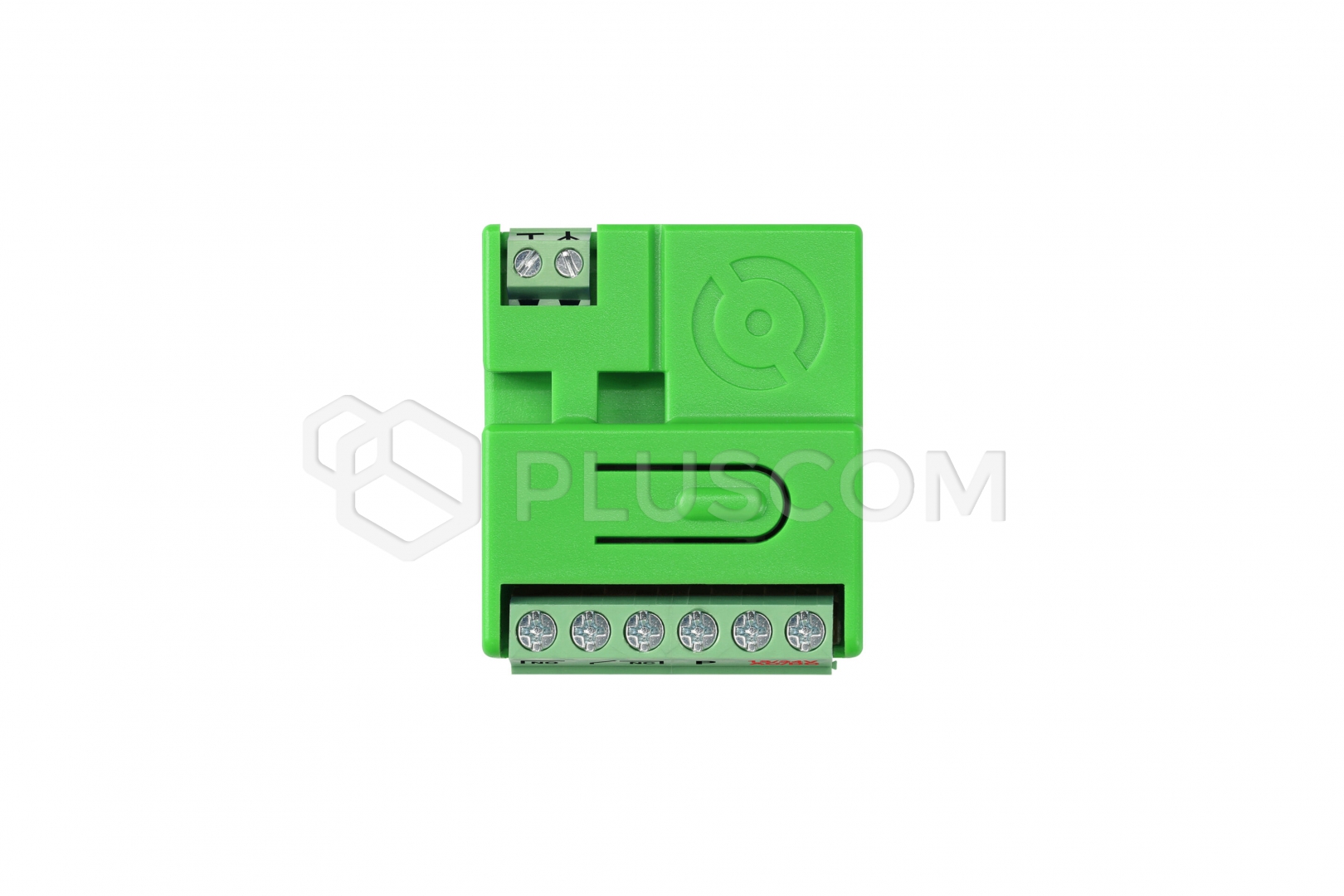

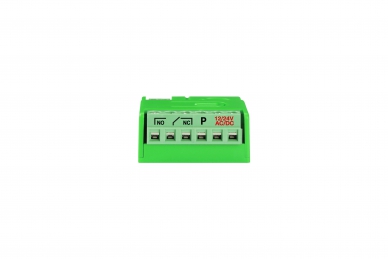

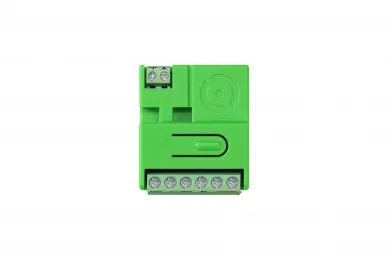

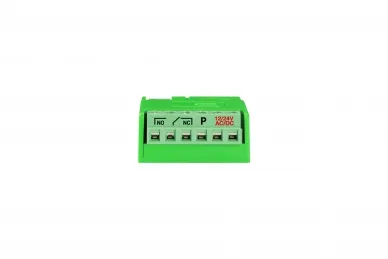

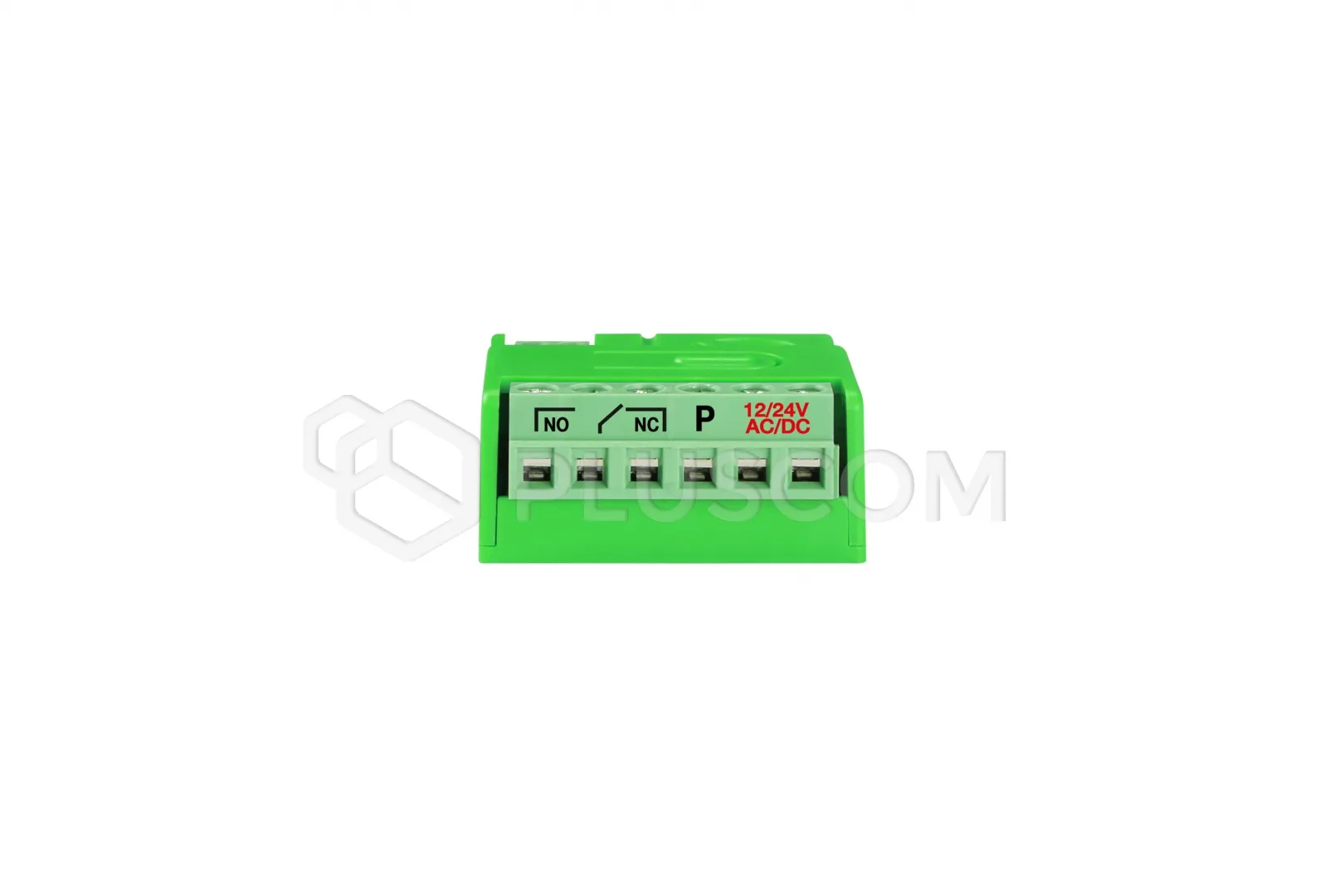

Proxima NW1 radio receiver compatible with the BIG TOR radio path (memory of 999 remote controls)


A miniature superheterodyne 433.92MHz radio receiver equipped with one NO relay output. It can work with 999 remote controls. The controller is a perfect solution for controlling gate automation systems, roller shutters and building security systems. It will be used in situations where we want to control automation from different manufacturers with one remote control.

The controller is compatible with the BIG TOR radio control system in a variable-code manner.
The receiver can be configured in such a way that in a less secure way (analysis of only the constant part of the remote control transmission) it is also possible to register to the controller non-system remote controls (remote controls from other manufacturers with the HCS system) operating in the 433.92MHz band.

PRODUCT FEATURES:


  • miniature dimensions, easy assembly
  • large operating range up to 200m (superheterodyne receiver with high sensitivity)
  • you can register up to 4 buttons and 10 button combinations of a four-button remote and two buttons and one button combination of a two-button remote (prevents accidental pressing)
  • possibility to delete a registered remote without its presence (useful when you want to delete a lost remote from memory)
  • with a registered remote, you can remotely clone the remote or acoustically read its position in the receiver
  • three operating modes:
    • bistable with reset
    • monostable (operating time 1-999s)
    • TDJN (As Long As You Press)
  • integrated buzzer, acoustic confirmation of pilot operation, output activation
  • wide range of AC/DC supply voltage 12-24V
Programming the operating mode of a particular channel, the operating time of the monostable mode and operations on the pilots is performed using only one button. Navigating through the menu and programming is facilitated by the acoustic signaling of the controller.

TECHNICAL PARAMETERS


  • radio path: BIG TOR
  • number of channels: 1
  • number of remote controls: 999
  • power supply: 12-24V DC/AC
  • current consumption: 15mA
  • output load capacity: 1x 24V/1A
  • operating frequency: 433.92MHz
  • dimensions: 37x41x15mm hole diameter 4/8mm
  • weight 23g
