Proxima LN-P 230V AC Radio controller FLOR

65,23 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #10233
Manufacturer: Proxima
  • number of channels 2
  • output: relay NO
  • way radio: FLOR
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

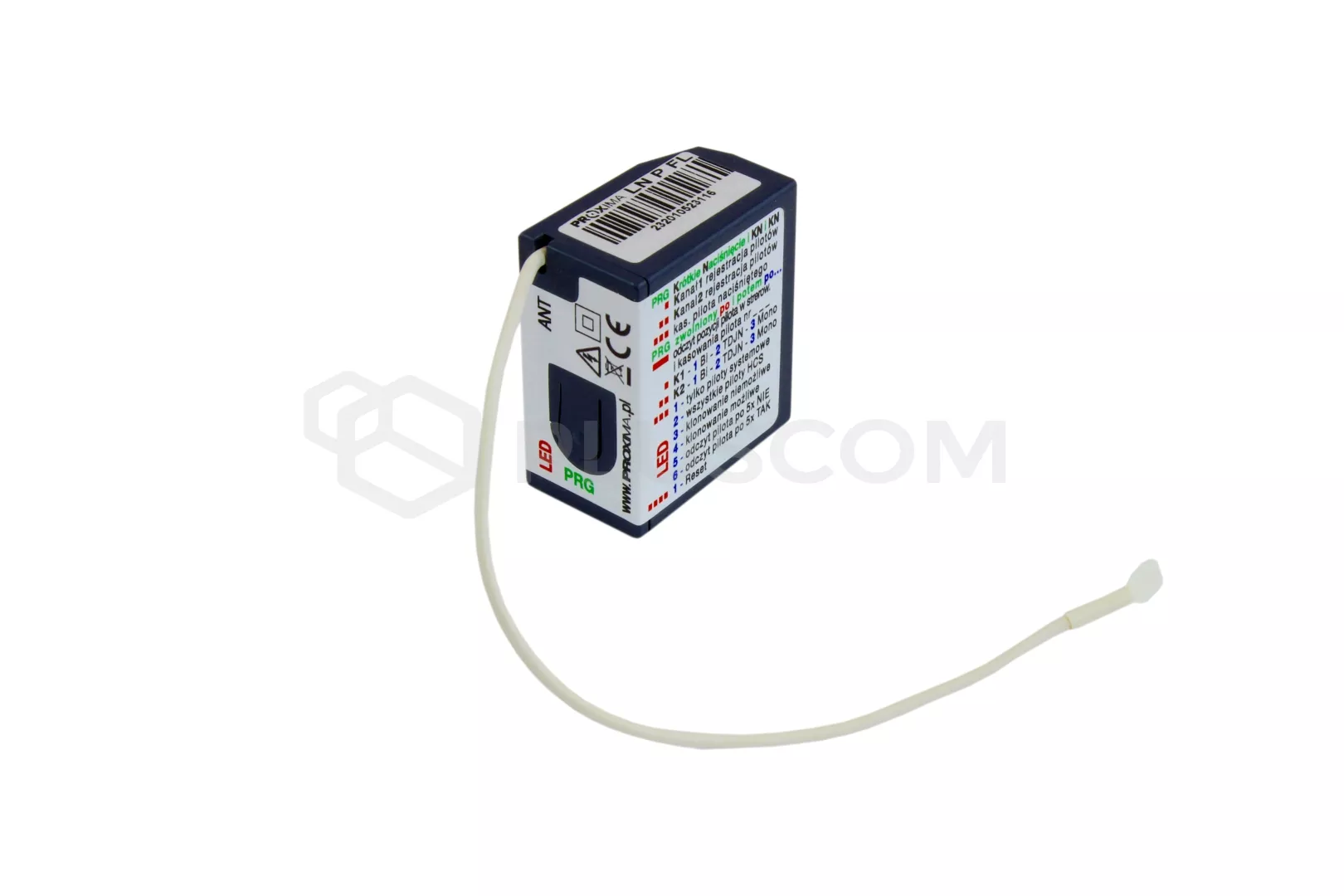

Proxima LN-P
Two-channel radio network controller working in the system FLOR

TECHNICAL PARAMETERS:
  • frequency: 433,92 MHz
  • way radio FLOR
  • memory pilots: 819
  • power supply: 230V AC
  • current consumption: 12mA 0,6W
  • output: relay NO
  • dimensions: 42x37x22mm

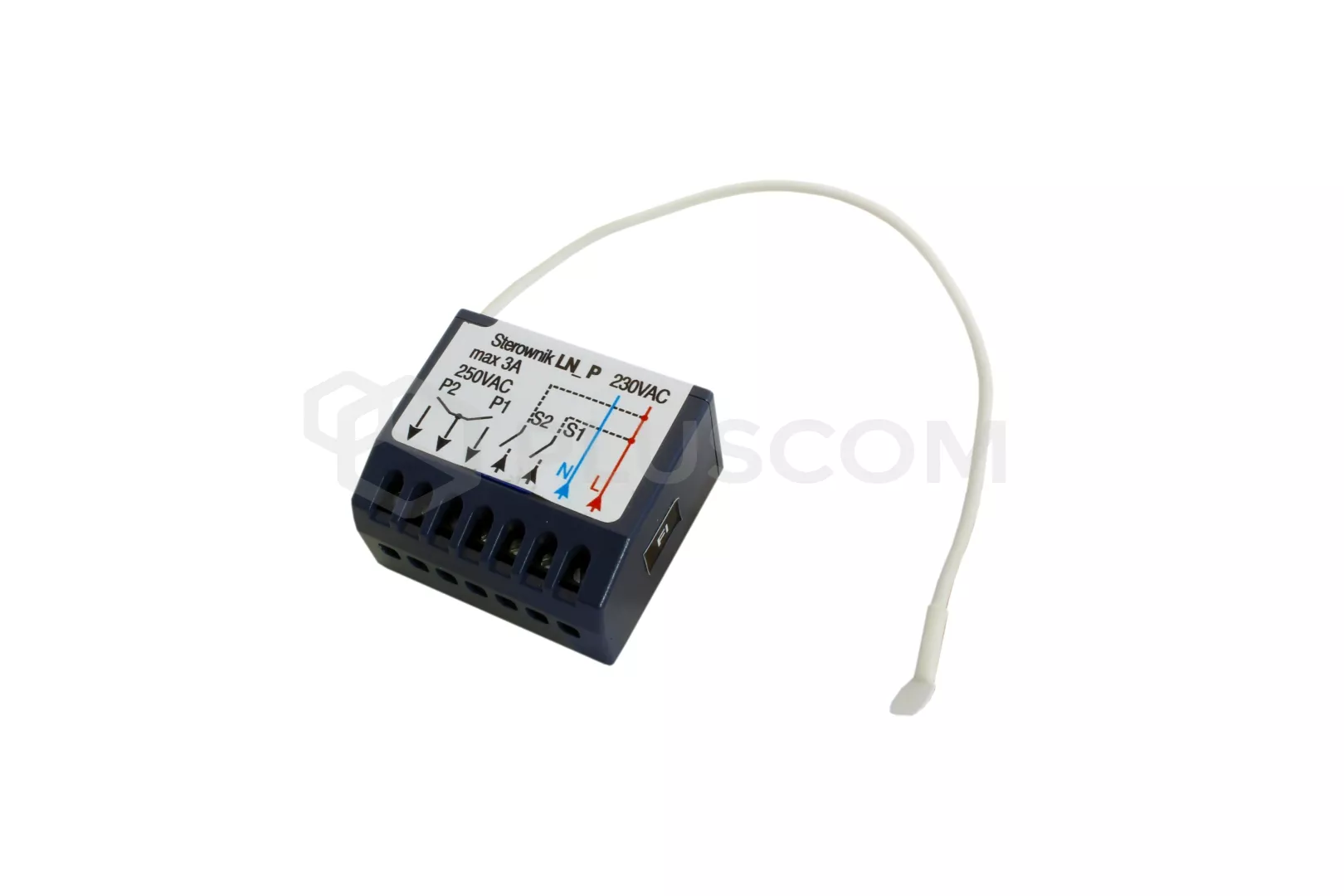

The controller is equipped with two outputs P1 and P2 These are the output relay NO, potential free to the common terminal. You can be controlled by remote or directly connected switches S1/S2. It supports up to 819 pilots and has three operating modes:
  • bistable with reset - on/off, reset a two-second pressing the remote control which forces the shutdown relay
  • TDJN - the output is switched on as long as you hold down the button remote control
  • monostable (time relay operation set in the range of 1-999s with a resolution of 1s)
Superheterodyne receiver has a high sensitivity and a range of work to 200m

The controller is powered by AC 230V and due to its small size (42x37x22mm) can be installed in the flush box.
Download
User Manual 2.54 MB
