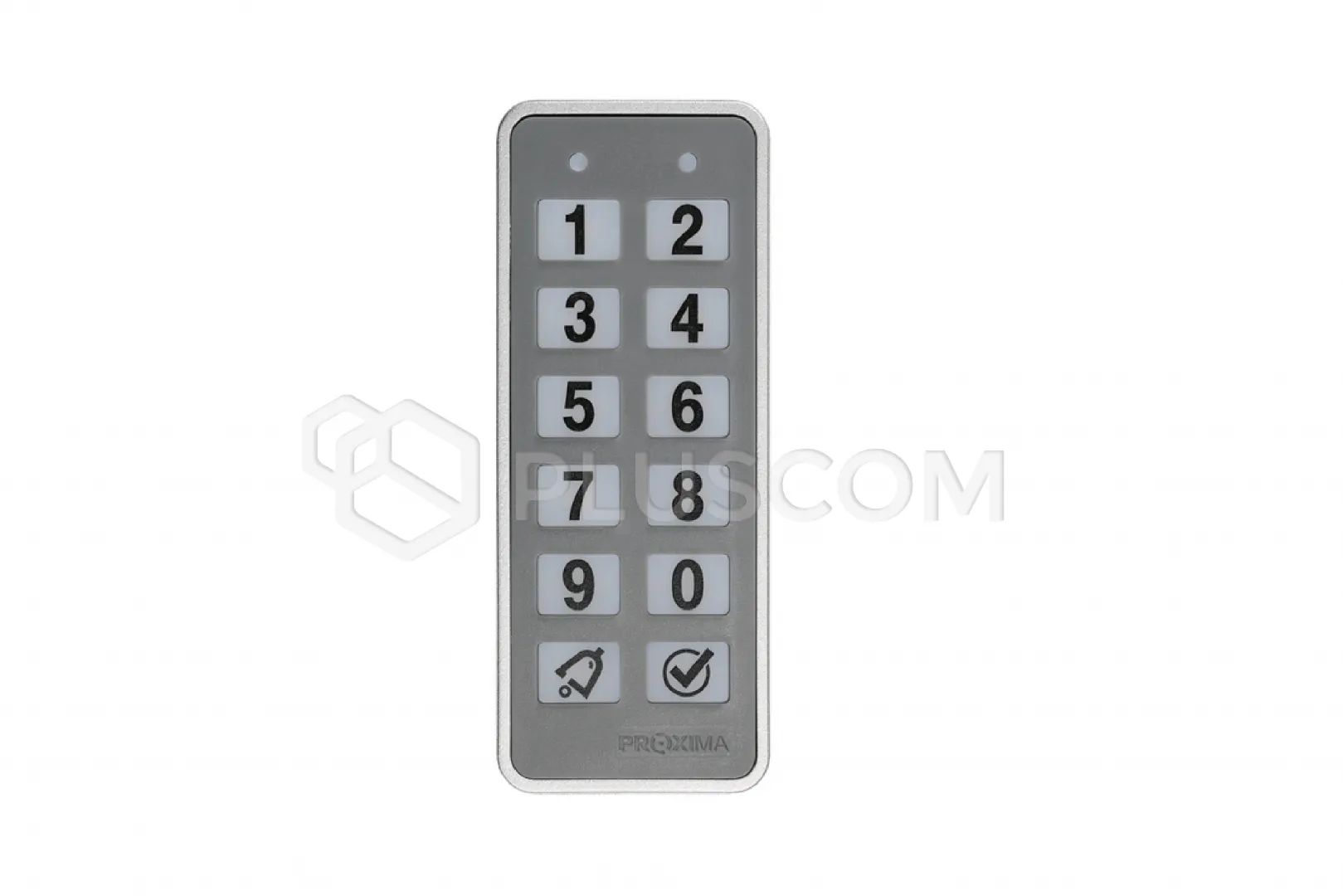

Proxima KSR radio post keyboard SMILO
This wireless, twelve-button, surface-mounted pillar keypad can control an
alarm system, access control, gate, and garage door. The remote is compatible
with the SMILO radio system.

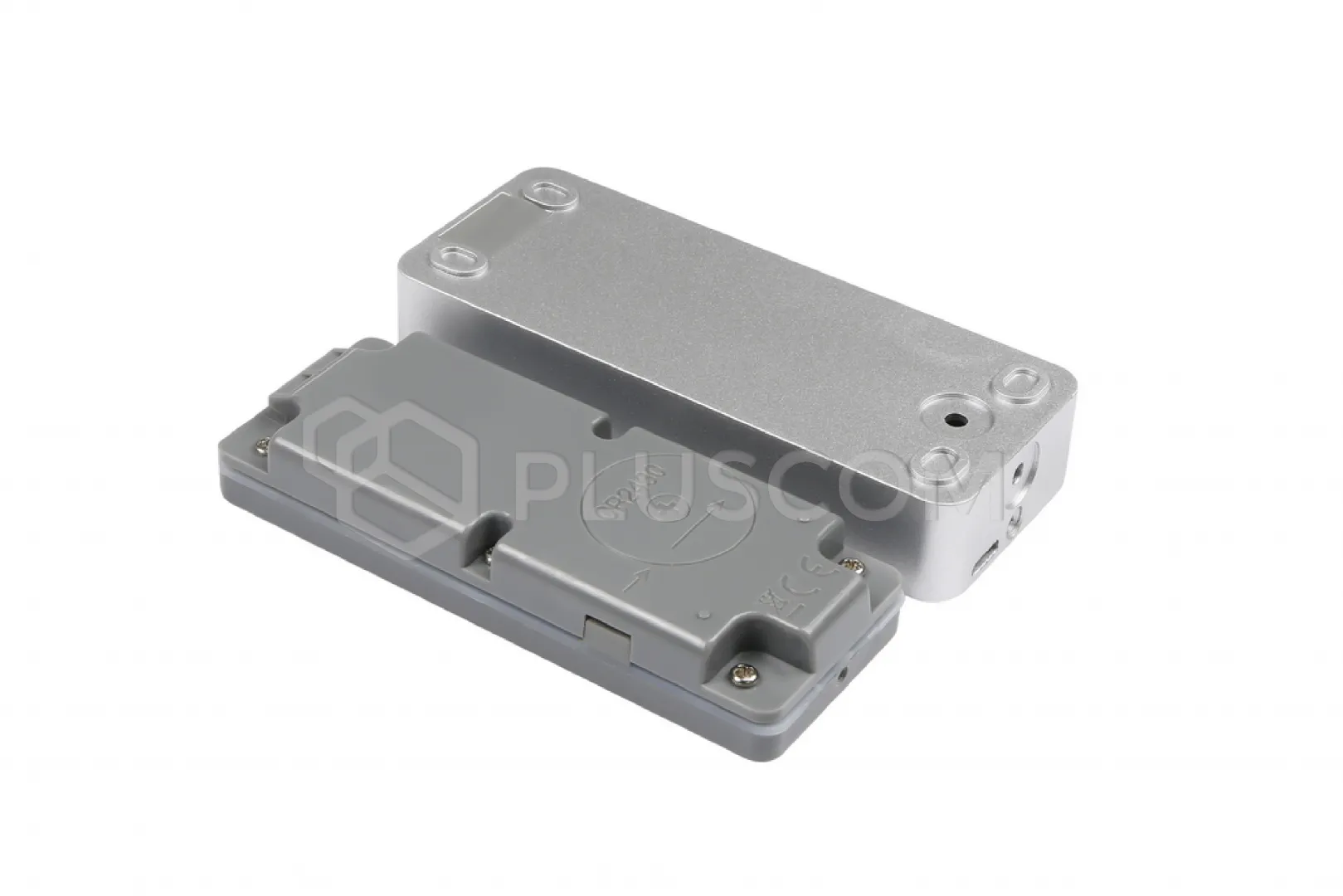

Its housing measures 42 x 105 x 20 mm and has an IP54 rating, making it
suitable for outdoor use. The housing is made of metal elements that are
vandal-resistant.
The keypad buttons are backlit after the first press, making it easier to use
in darkened rooms.
The keypad has two operating modes: KPR or PR. The KSR allows you to connect a
doorbell.
- KPR Mode: 10 channels, 50 user memory, each user can
control their own set of channels (1-10 channels) using their own code (1-8
digits).
- PR Mode: 10 channels, pressing a button from 0-9 sends a
radio command for the selected channel, pressing the doorbell button sends a
radio doorbell code.
In KPR mode, the administrator uses their code to add, edit, and delete
users and selects the operating mode. Additionally, in KPR mode, it is possible
to create a temporary user.
Adding user number 00 means that they will be automatically deleted 1 hour
after using the code.
PARAMETERS:
- Power supply: CR2430 3V
- Current consumption: 60mA
- Frequency: 433.92 MHz, 868 MHz
- Number of channels: 10
- Number of users (KPR mode): 50
- Ingress protection: IP54
- Operating temperature: -20º to +60º C
- Housing: plastic + metal
- Dimensions: 42 x 105 x 20 mm
- Weight: 45 g
