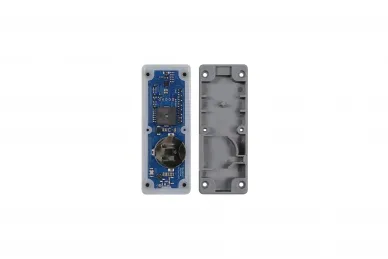

Proxima KSR Radio Keyboard

Proxima KSR Radio Post Keypad

The KSR is an external, 10-channel radio keypad or 10-channel radio transmitter. Compatible with one selected radio channel. The keypad has two operating modes: KPR or PR. The KSR allows you to connect a doorbell.

KPR mode: 10 channels, 50-user memory, each of which can control their own set of channels (1-10 channels) using their own code (1-8 digits). PR mode: 10 channels, pressing a button from 0-9 sends a radio command of the selected channel, pressing the doorbell button sends a radio bell code.

In KPR mode, the administrator uses their code to add, edit, and delete users and select the operating mode. Additionally, in KPR mode, it is possible to create a temporary user. Adding user number 00 means that the user will be automatically deleted 1 hour after using the code.

Features:

• LONG CODE – if the user wants to prevent unauthorized persons from viewing their access code, they can enter any long combination of numbers and then complete it with their code.
• Key Backlight – pressing the button first illuminates the keypad
• RF Path Check – quickly pressing the button five times allows you to check the radio path
• Access Blocking – after 3 unsuccessful code entry attempts, the keypad is locked for 1 minute
• Low Battery Indication – a low battery in the keypad is indicated by eight acoustic signals after pressing the first button

TECHNICAL DATA

• Power supply: CR2430 3V
• Current consumption: 60mA
• Frequency: 433.92 MHz, 868 MHz
• Number of channels: 10
• Number of users (KPR mode): 50
• Ingress protection: IP54
• Operating temperature: -20º to +60º C
• Housing: plastic + metal
• Dimensions: 42 x 105 x 20 mm
• Weight: 45 g
