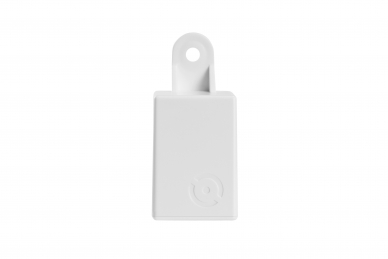

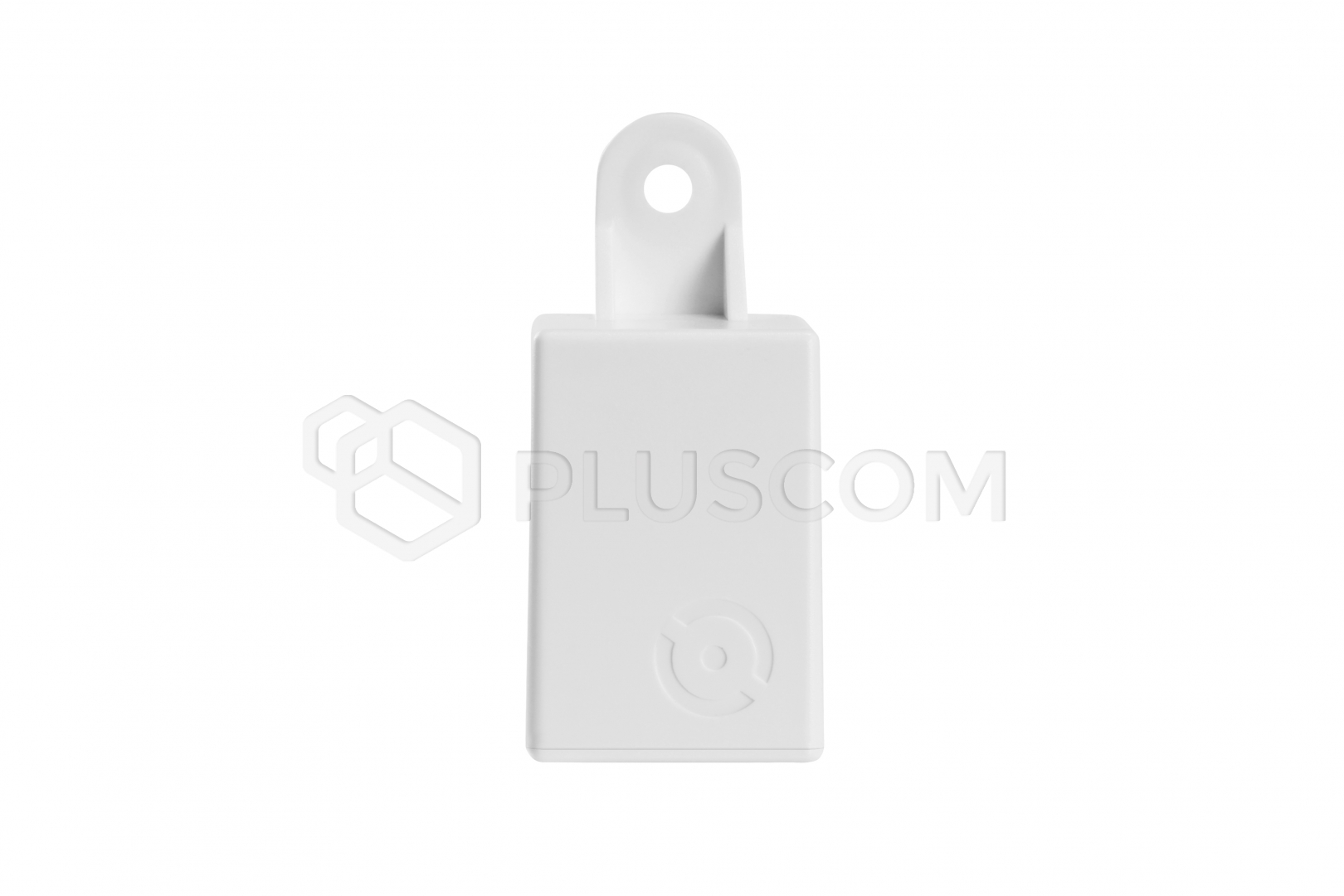

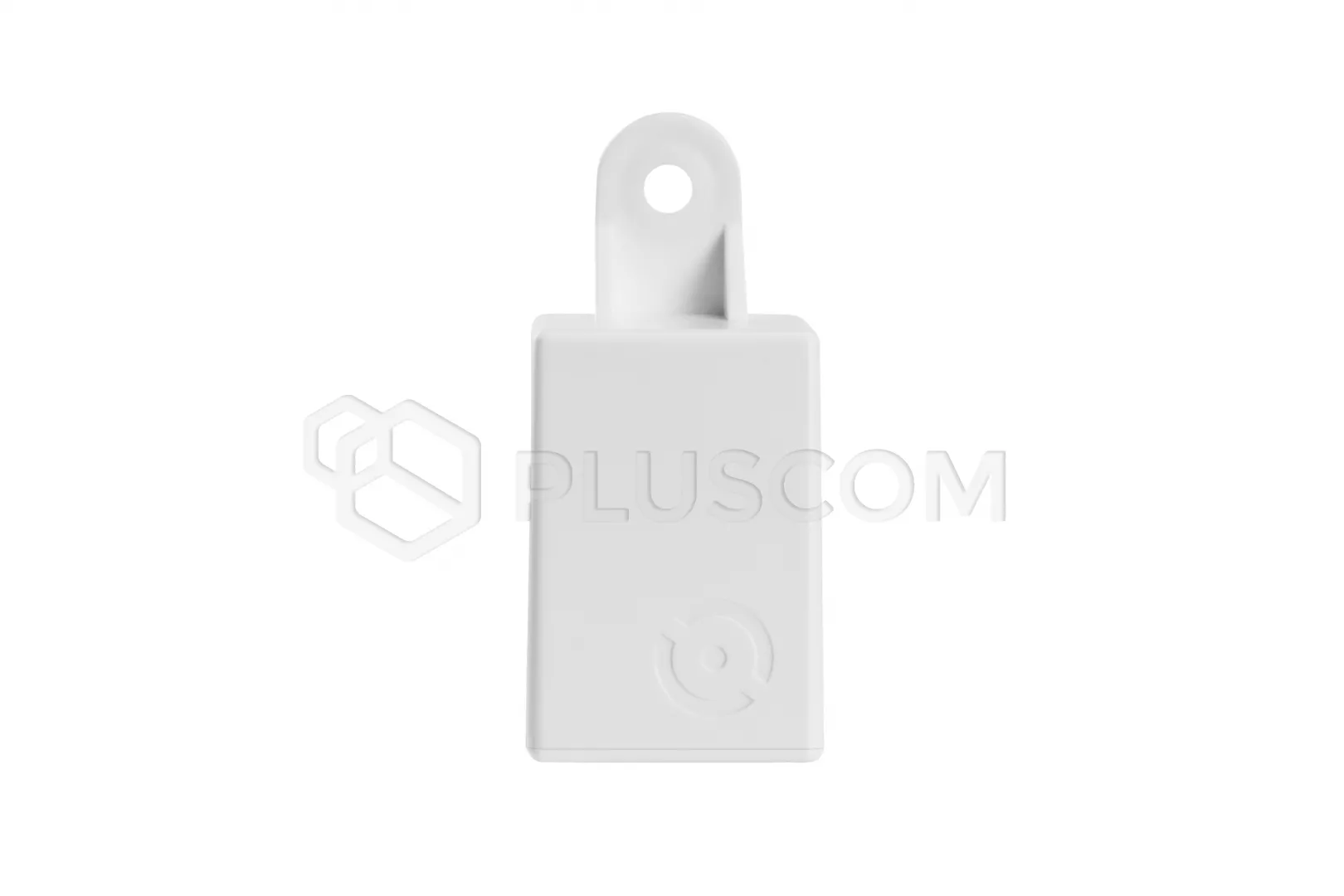

Proxima HB Remote Control DEA - Built-in car

Proxima HB - built-in remote control, radio DEA

The remote control is designed for installation in a car, motorcycle or other vehicle. It is best to connect it to the main beam (high beam), horn or other unused button. Red wire to (+) black to ground (-). The HB remote control acts as a standard four-button remote control. The principle of operation is as follows:

• short single flash of the lights sends a command to button 1
• two short flashes are a command to button no. 2
• three flashes of the lights send a command to button 3
• four flashes of the lights are a command to button no. 4

The procedure for reading the HB remote control is no different from the standard remote control.
The HB remote control is the only one on the market that has the E20 approval required for mounting the remote control in motor vehicles.

The unique function of controlling gate/garage automation using high beams will be appreciated especially by owners of two-wheelers for whom looking for the remote control in your pocket in protective gloves can end badly.

FEATURES:

• a remote control that will never get lost - operated by the high beam switch, horn or any switch
• convenience - to open the gate, just flash the high beams, sound the horn or switch the selected original car button
• aesthetics - rarely is a remote control for a gate or garage a cockpit decoration
• the only one on the market with E20 homologation - a condition for installation in motor vehicles, the CE mark is not sufficient

BASIC PARAMETERS

• Frequency: 433.92 MHz
• Radio path: DEA
• Power supply: 12-24V
• Current consumption: 10mA
• Number of channels: 4
• Dimensions: 40x50x20mm
• Weight: 44g
