PROXIMA DOG ANTI-COLLISION PHOTOCELL

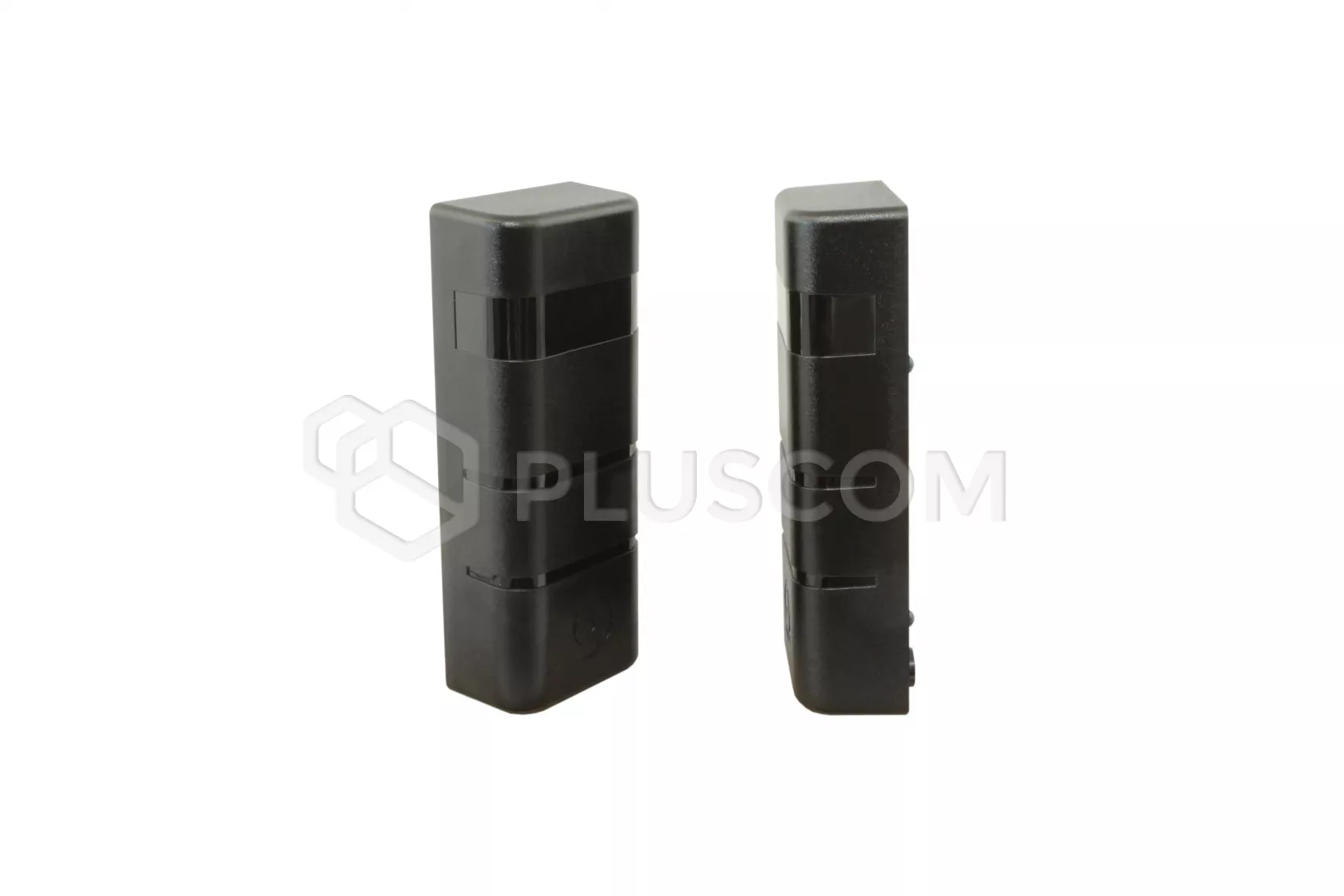

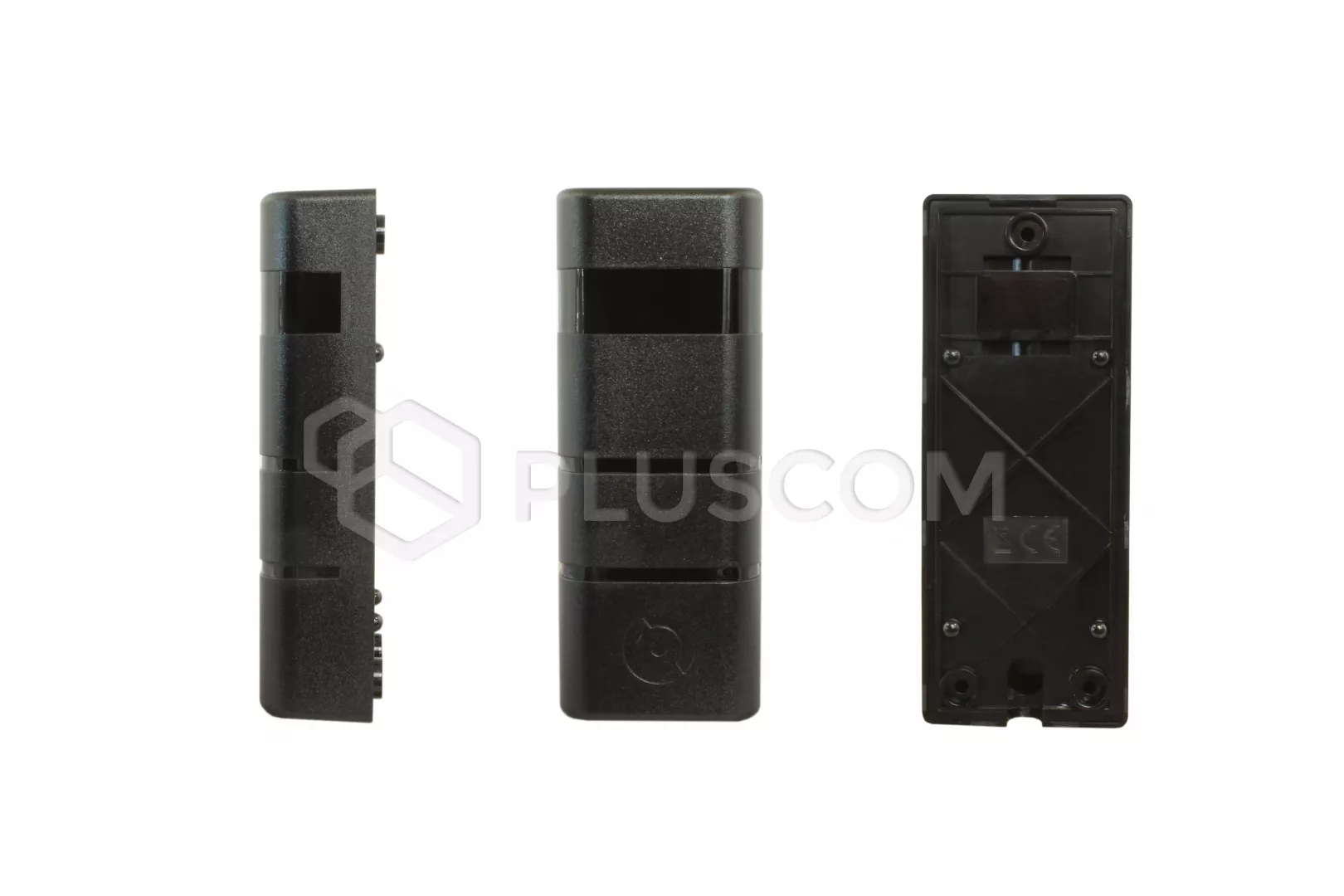

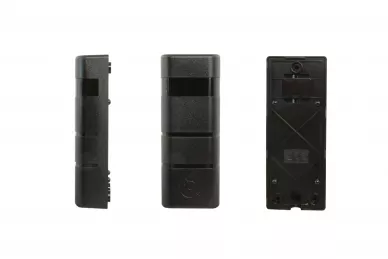

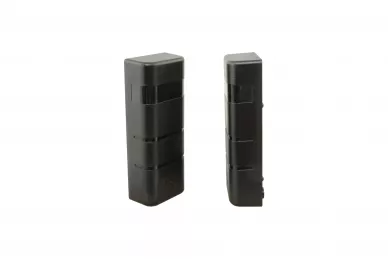

Proxima PSA Anti-collision Photocell

PSA photocells enable the construction of a gate safety system in which Due to their positioning, the photocell receivers perceive the radiation infrared not only from your transmitter.

The PSA photocell is a modern element of gate automation. They have rotary transmitting and receiving heads (190 °), microprocessor failure detection and four adjustable transmitter powers. Additionally, up to four PSA photocells may fail interfere with each other and, unlike photocells from other manufacturers, do not require AC power or special wiring

KEY FEATURES

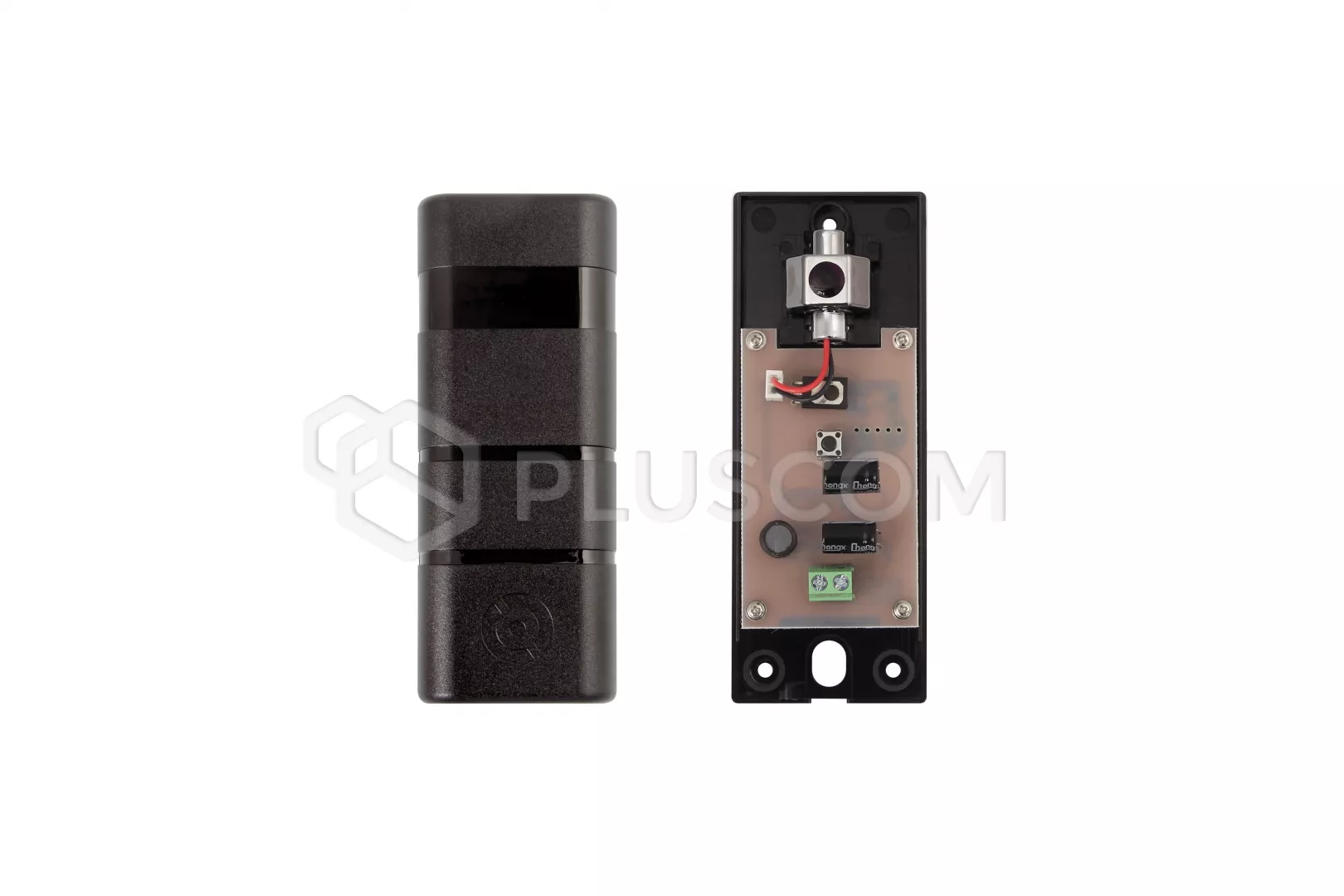

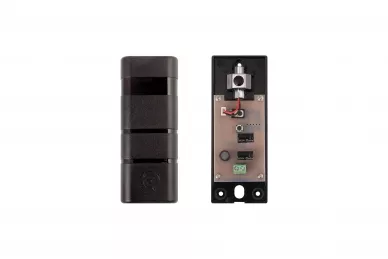

• ROTATING (190 °) construction of the photocell allows it to be installed in and out of the door opening
• FOUR POWER TRANSMITTER of the photocell allows it to be used for gates of different widths and helps to avoid potential bounce problems
• PSA has a system that sets the receiver's output to a violated state AFTER A FAILURE OF THE RECEIVER MICROPROCESSOR
• ANTI-COLLISION - FOUR WORK CHANNELS - the photocell receiver analyzes infrared radiation coming only from the transmitter operating on the same channel as the receiver, although it may receive up to three additional interfering signals from other transmitters operating on other channels
• Receiver's LED helps to set the range limit by flashes, makes it easier to align the transmitter and receiver

TECHNICAL DATA

• Transmitter (full power): 12V-22mA, 24V-12mA
• Receiver, current consumption, relay on: 12V-12mA, 24V-7mA
• Wavelength: 950nm
• Working temperature: -20 ° C to + 60 ° C
• Transmit, receive and rotate angle: +/- 5 ° _rotate 190 °
• Operating range: approx. 15m
• Degree of protection: IP54
• Dimensions: 127 x 50 x 28mm
• Output signal: 0.5A / 30V DC
• Number of anti-collision channels: 4
