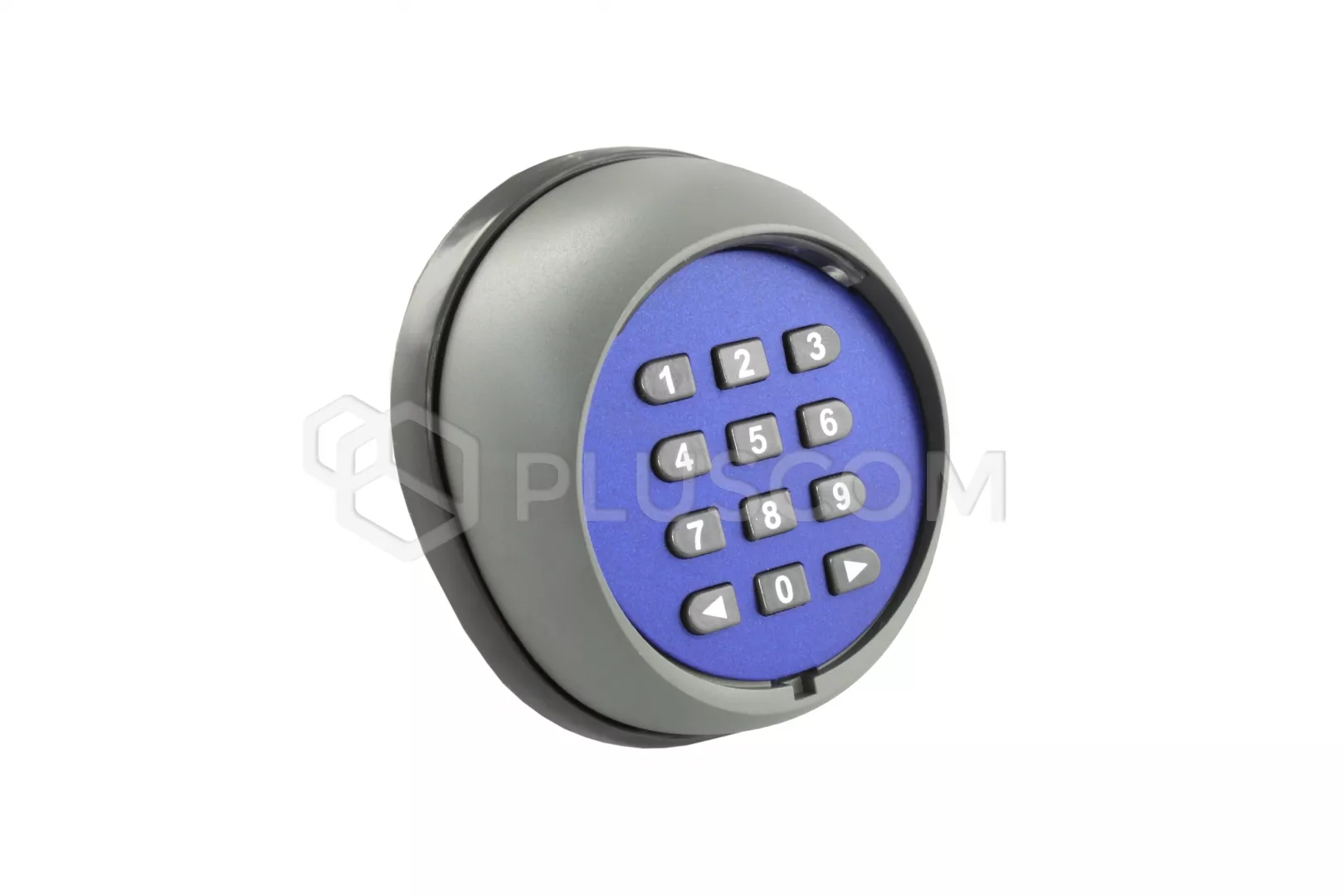

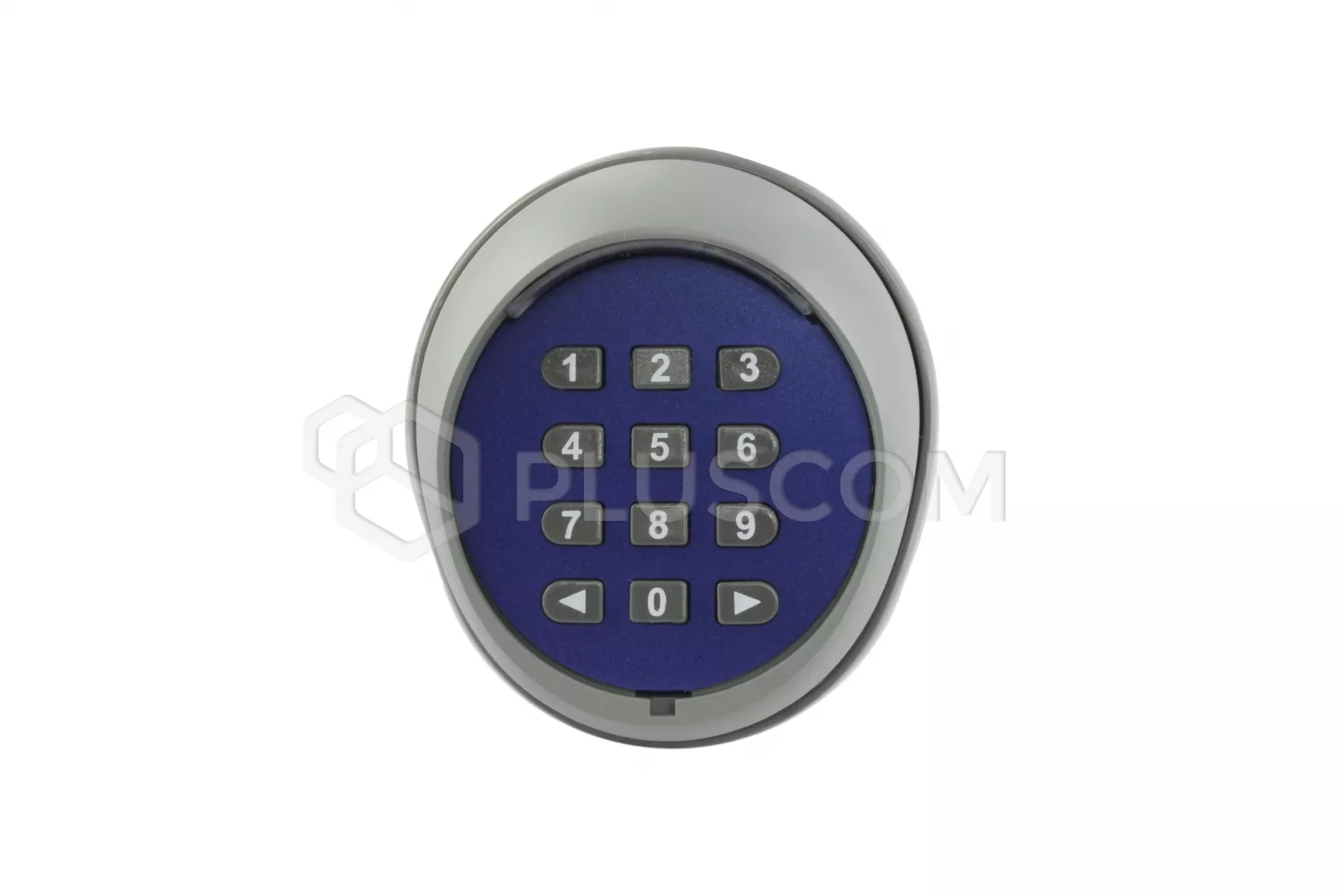

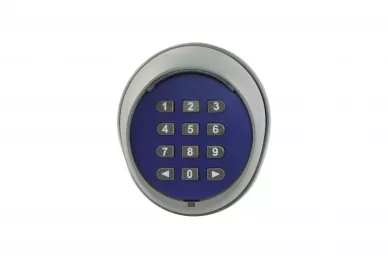

Proxima Radio keyboard - CODE remote control with ELMES radio
A wireless, 12-button, wall-mounted remote control, can control the alarm
system, access control, entrance gate and garage gate. The remote control is
compatible with the ELMES radio system.
It has an IP54 housing, so it can be used on outside the object. The housing is
made of metal elements that are resistant to vandalism.
The keyboard buttons are backlit, thanks to which the use of the remote control
is easier in darkened rooms.
The keyboard is two-channel (includes two independent remotes) with each
channel it is activated after the corresponding code has been entered correctly
given channel. The code can be zero to nine digits long. Code Pilot transmits a
radio signal as long as the arrow button is pressed, but not longer than 20s.
Pressing the buttons is accompanied by an acoustic signal and the keyboard
lights up.
Some systems can be combined under one keyboard, then CODEpilot sends the codes
of two manufacturers.
The keyboard can work in two modes:
- work without code - just pressing the arrow button sends
order
- working with code
The CODE remote control is powered by two CR2032 batteries, which at 10
times 2 years of daily use. It has local and remote status control battery:
- local - after each key press, except for normal signaling characteristic
two tones appear
- remote - the radio signal contains information about the battery
PARAMETERS:
- frequency: 433.92MHz
- number of buttons: 12
- number of channels: 2
- coding: rolling code
- power supply: 2x CR2032 6V battery
- IP54 outdoor case
- dimensions: 74x38x84 mm
- weight: 239g
