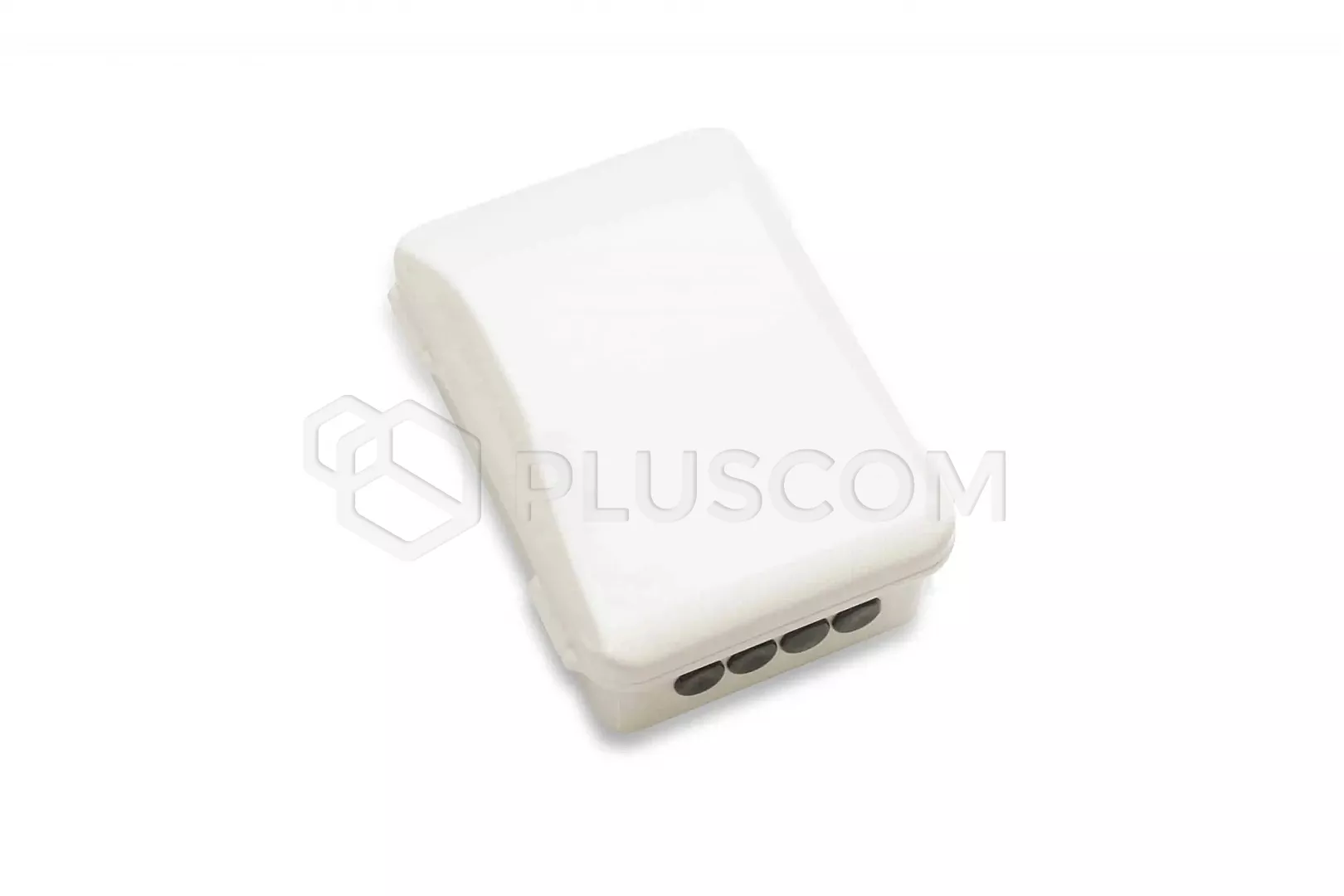

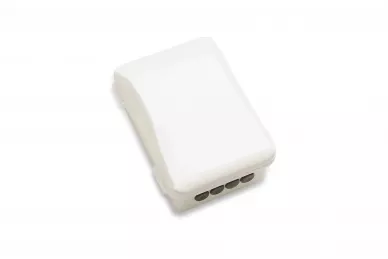

Proxima Centrala SB 1 DISPLAY_P with display

Proxima SB1 DISPLAY_P switchboard with display

After making the purchase, contact us and tell us which system the control panel should cooperate with.

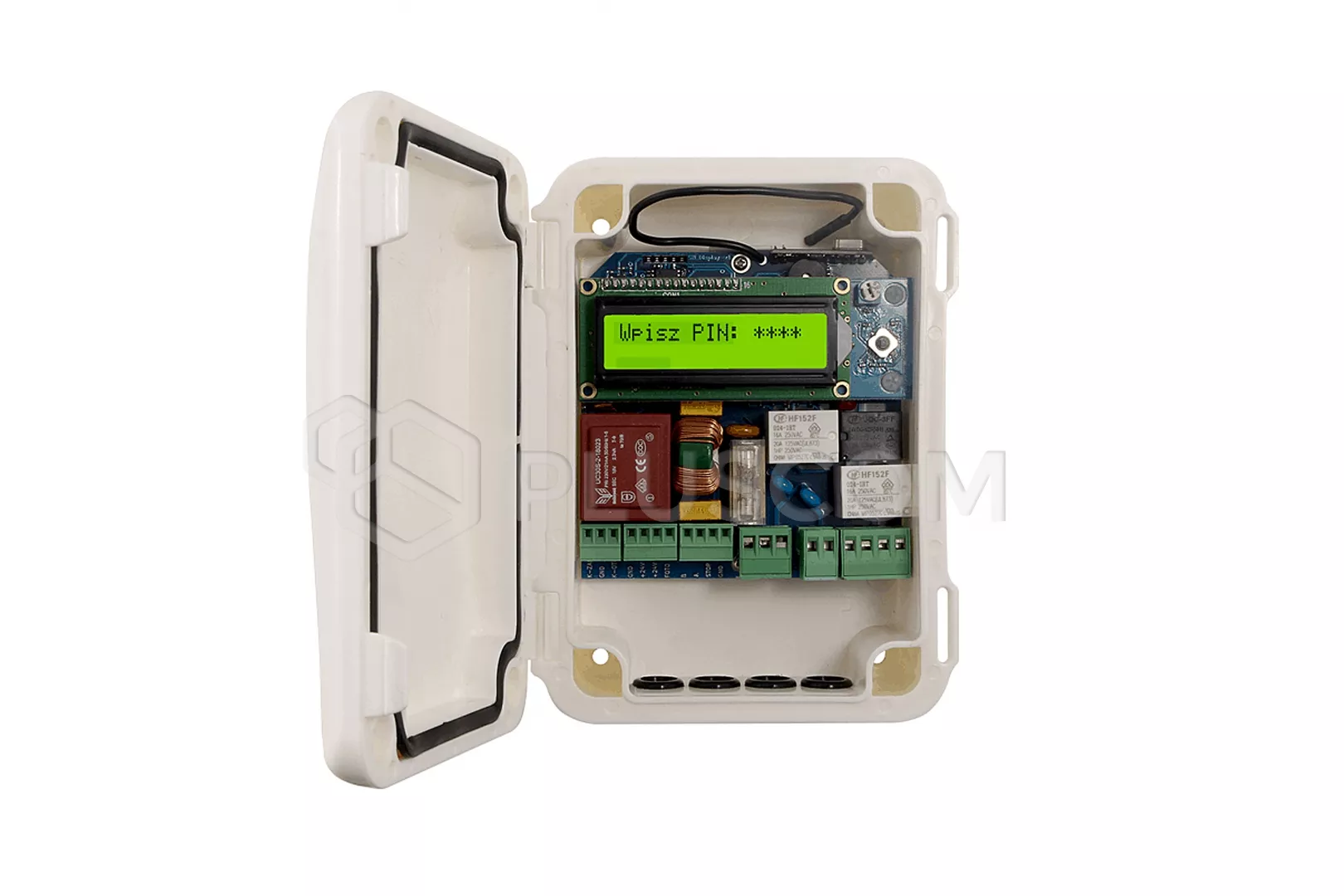

Sliding gate controller for controlling one induction motor with limit switches - with power up to 200W / 230AC. It is intended for assembly surface. It has an easy-to-read display and a joystick that enables convenient configuration.

There are 4 outputs in the driver:

• 230V output for motor control
• 230V output for signal lamp control
• two 24V outputs to power the photocells

There are also 6 inputs in the SB1 DISPLAY_P control panel:

• A and B (NO or NC) which can have one of eight scenarios work
• NC STOP
• PHOTO (NO or NC)
• inputs for connecting limit switches

The control unit enables digital setting of the gate movement force on a scale from 1-9, the gate's slowing movement position and the resistance upon which the gate is encountered reverses the movement. It is also possible to include the auto-closing function and auto-closing after violation of the photocells line with an adjustable time from 1-9999s.
In SB1, DISPLAY_P has the ability to enable or disable the pulse function starter, thanks to which the drive will start with 100% power.

FEATURES:

• 30 gateway settings
• convenient configuration via text display
• managing registered remotes
• preflashing, 4 lamp scenarios
• number of door cycles between maintenance - 3 scenarios reaction

The built-in radio has a memory of 1900 remotes that can operate according to one of the scenarios:

• Step by Step - open - stop - close - stop
• closing, and when it is moving - stop
• to open, and when it is moving stop
• opening
• stop
• shutdown
• partial open
• closing TDJN - Deadman

In the receiver it is possible to delete a remote with a known position in the controller's memory without its presence and remove the available remote, and you can clone the remote in near the receiver.
All settings can be PIN protected.

The SB control panel is compatible with the following systems:

• ALLMATIC
• APRIMATIC
• BENINCA
• BFT
• CAME SPACE
• DEA
• DTM SYSTEM
• DOORHAN
• ELDRIM
• ELMES
• ERREKA
• FAAC FIX
• FAAC RC
• FLOR
• GORKE
• KEY
• MOOVO/MHOUSE
• NORMSTAHL
• NOVOFERM
• PROXIMA
• SMILO
• WIŚNIOWSKI MIDO

TECHNICAL PARAMETERS

• power supply: 230AC / 50Hz
• motor: 230V / max. 415W
• load + 24V: max. 50mA
• lamp: 100W
• frequency: 433.92 MHz; 1900 pilots
• dimensions: 165 x 123 x 67mm
