PROCET PT-PSE104GO-30 55V 0,55A (30W) Gigabit Ethernet PoE power supply

111,78 EUR including 23.00% VAT
Product code: #22083
  • DC 55V 0.55A output voltage

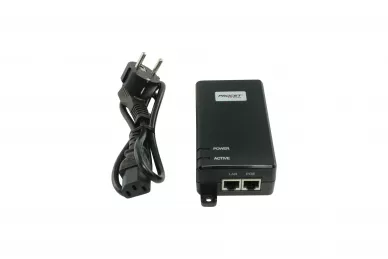

  • Power cable included
  • Gigabit Ethernet
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PROCET PT-PSE104GO-30 55V 0,55A (30W) Gigabit Ethernet PoE power supply

PT-PSE104GO-30-5 is a single port PoE Injector. It provides 55Vdc, 0.55A power for remote PDs over 2 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE NBase-T. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It fully complies to IEEE802.3af/at PoE standard.

PT-PSE104GO-30-5 is designed for indoor use. It works with input voltage of 100-240Vac and operates under -40 to +65 . It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.



TECHNICAL SPECIFICATIONS

  • output voltage / current: 55VDC / 550mA
  • input voltage: 100-240VAC
  • Gigabit Ethernet compatible
  • working temperature: -40°C - 65°C
  • dimensions: 146x66x34mm
  • weight: 255g
  • protection class: IP40

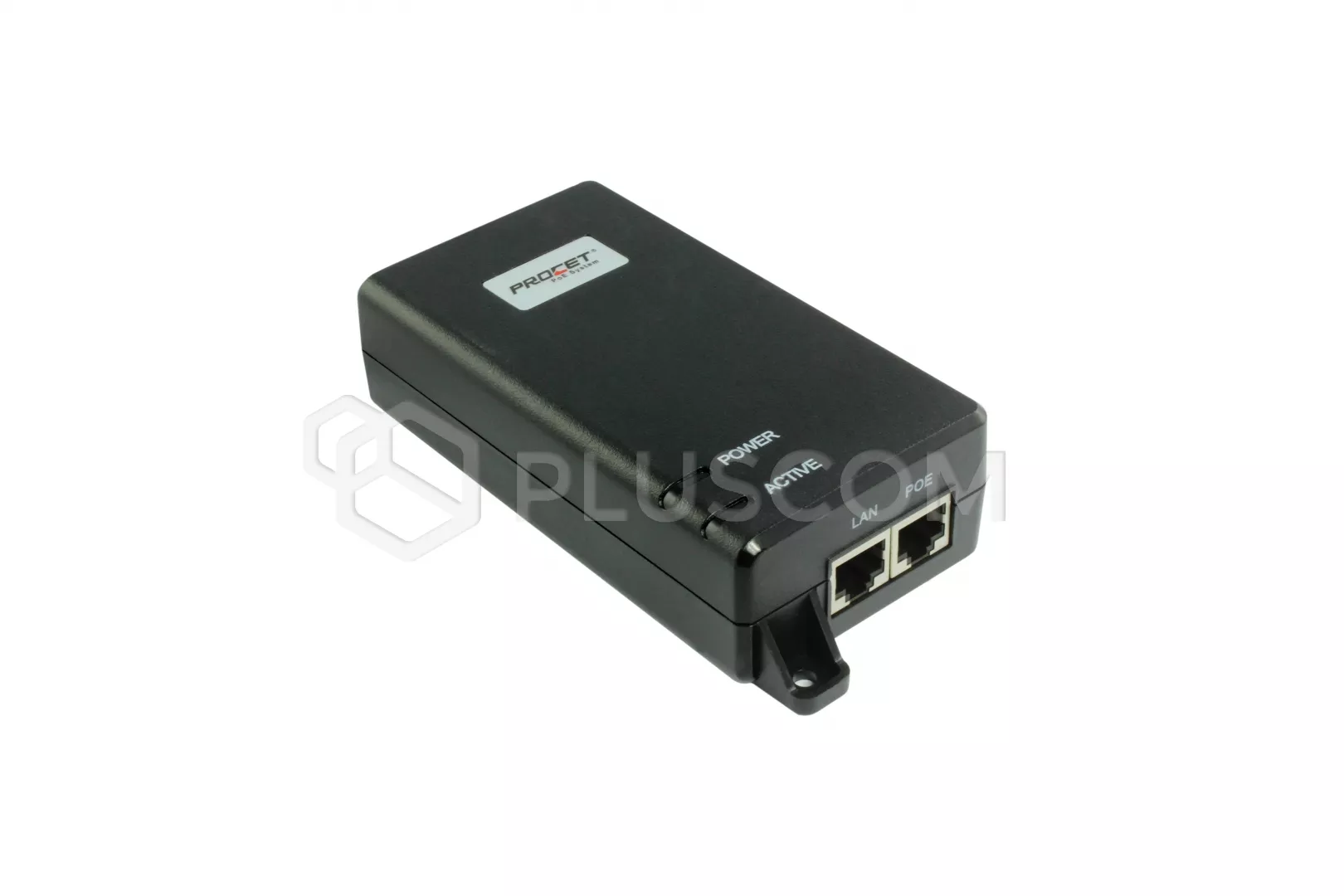

Gigabit Ethernet PoE power supply:

Gigabit Ethernet PoE power supply:

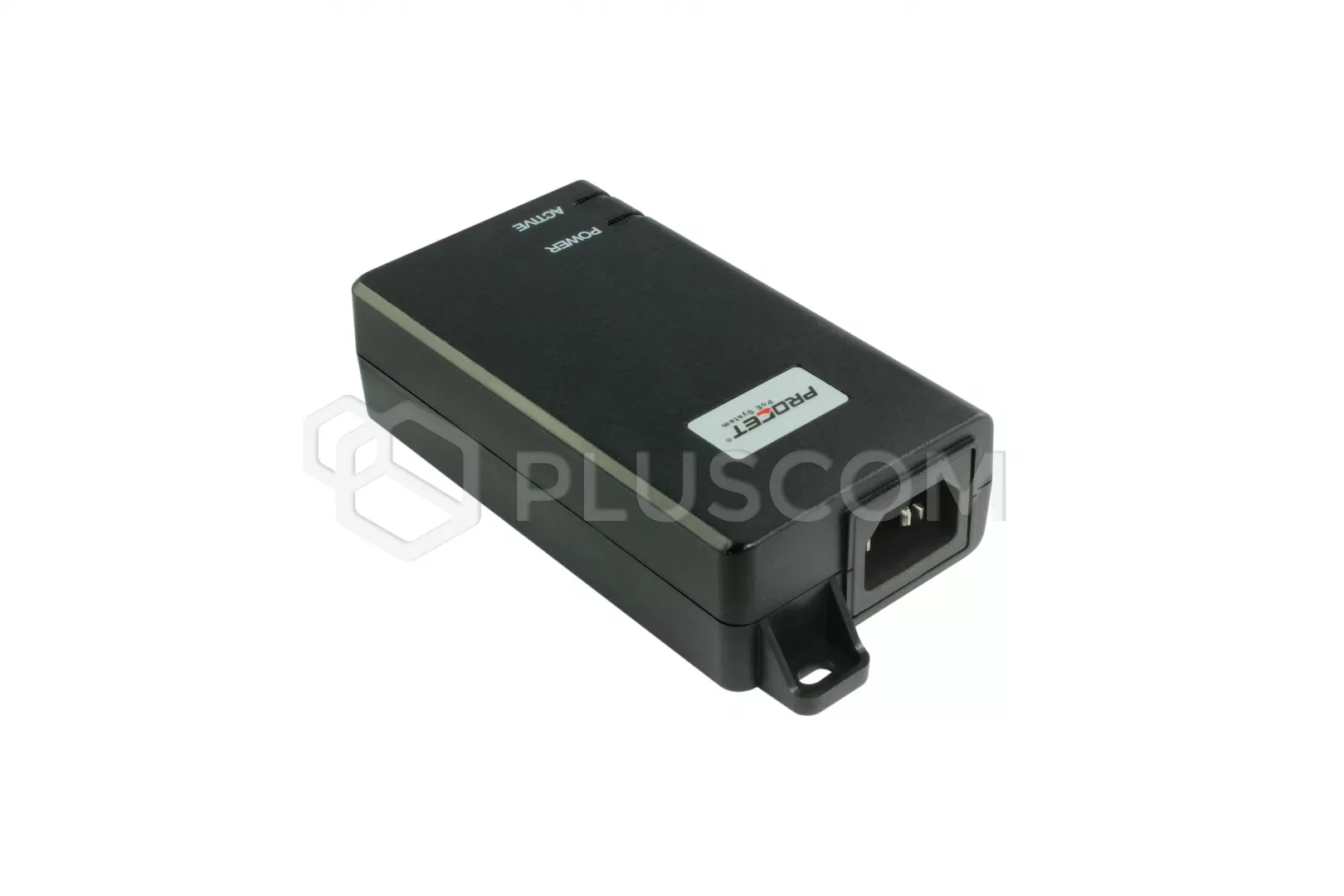

Power socket:

Power socket:

Download
Datasheet 0.47 MB
