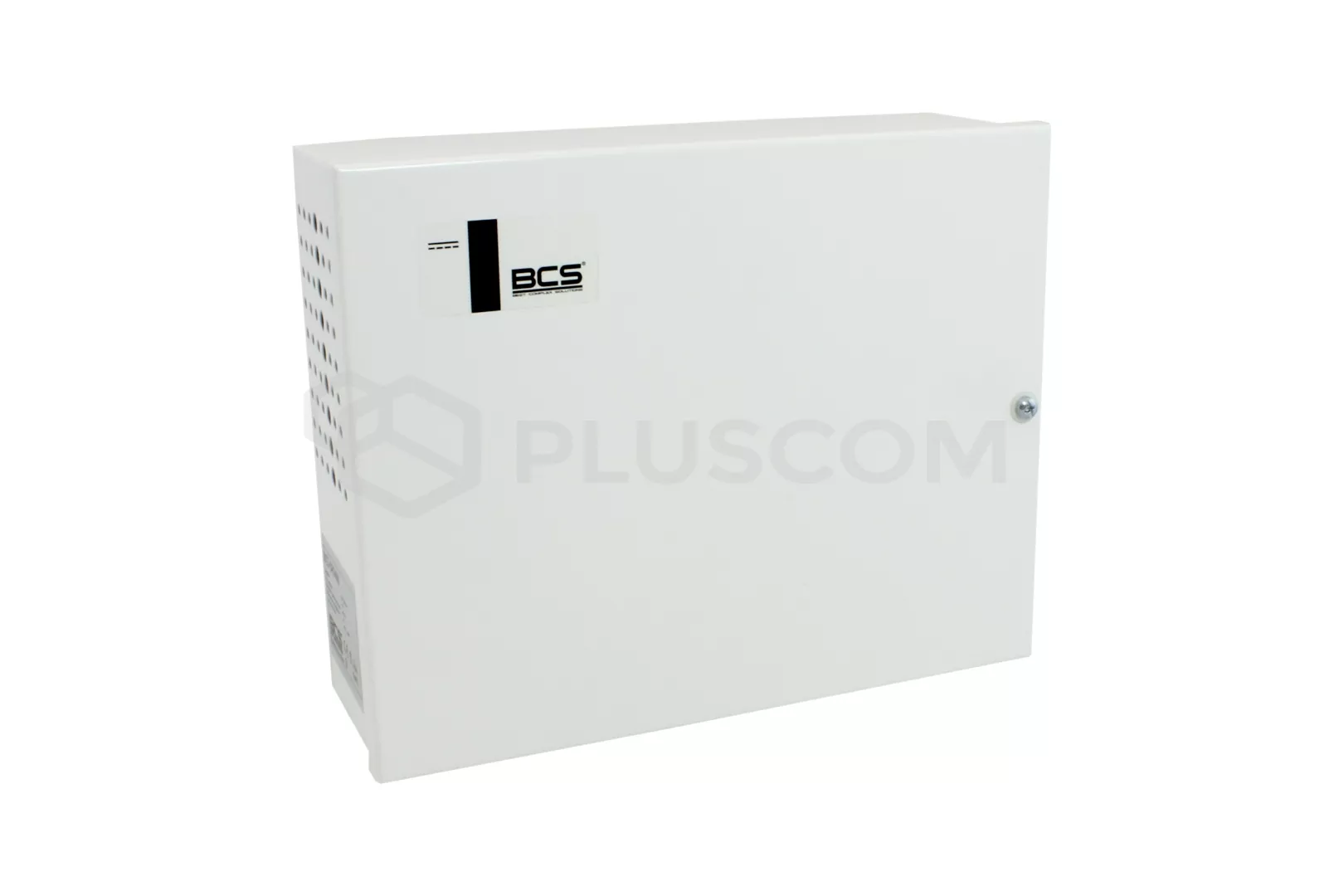

PoE 24V to power IP video monitors BCS-SP0406

172,82 EUR including 23.00% VAT
Product code: #8073
Manufacturer: BCS
  • 4-ports PoE - 24V
  • AC Power Supply + Switch PoE + the inner housing
  • optical signaling: power and transmission
  • short circuit protection for each channel

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PoE Switch BCS - SP0406

It is a comprehensive power solution for IP video monitors BCS system and other devices operating at 24V PoE. The device has a built-in AC adapter and provides support 4 monitors IP PoE.
The device has been built based on high-performance and reliable switching power supply modules and  BCS-xPoE6. The elements were placed in a small (250x200x85mm) IP20 metal housing.

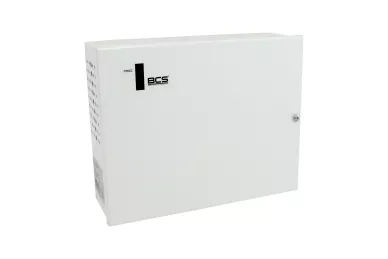

PoE 24V to power IP video monitors BCS-SP0406

PoE 24V to power IP video monitors BCS-SP0406


KEY FEATURES:
  • centralized convenient way to connect and power up the IP monitors BCS
  • optical signaling transmission and power supply for each output
  • the ability to disable the PoE for each output using a jumper
  • insulation faults for each port, a short circuit on one port does not interfere with other system components
  • signaling the presence of the power supply output voltage, the blue LED in the housing
  • easy expansion of the system, switches can be connected together allowing you to connect a larger number of units
PARAMETERS POWER SUPPLY
  • nominal output voltage of 24V DC
  • 3A output current
  • 72W AC adapter power (continuous power)
  • input Voltage: 180-240V AC
  • Protection:
  • overload at 4A
  • short-circuit protection DC_OUT
  • the surge protector DC_OUT
  • the surge protector AC_IN
  • thermal protection

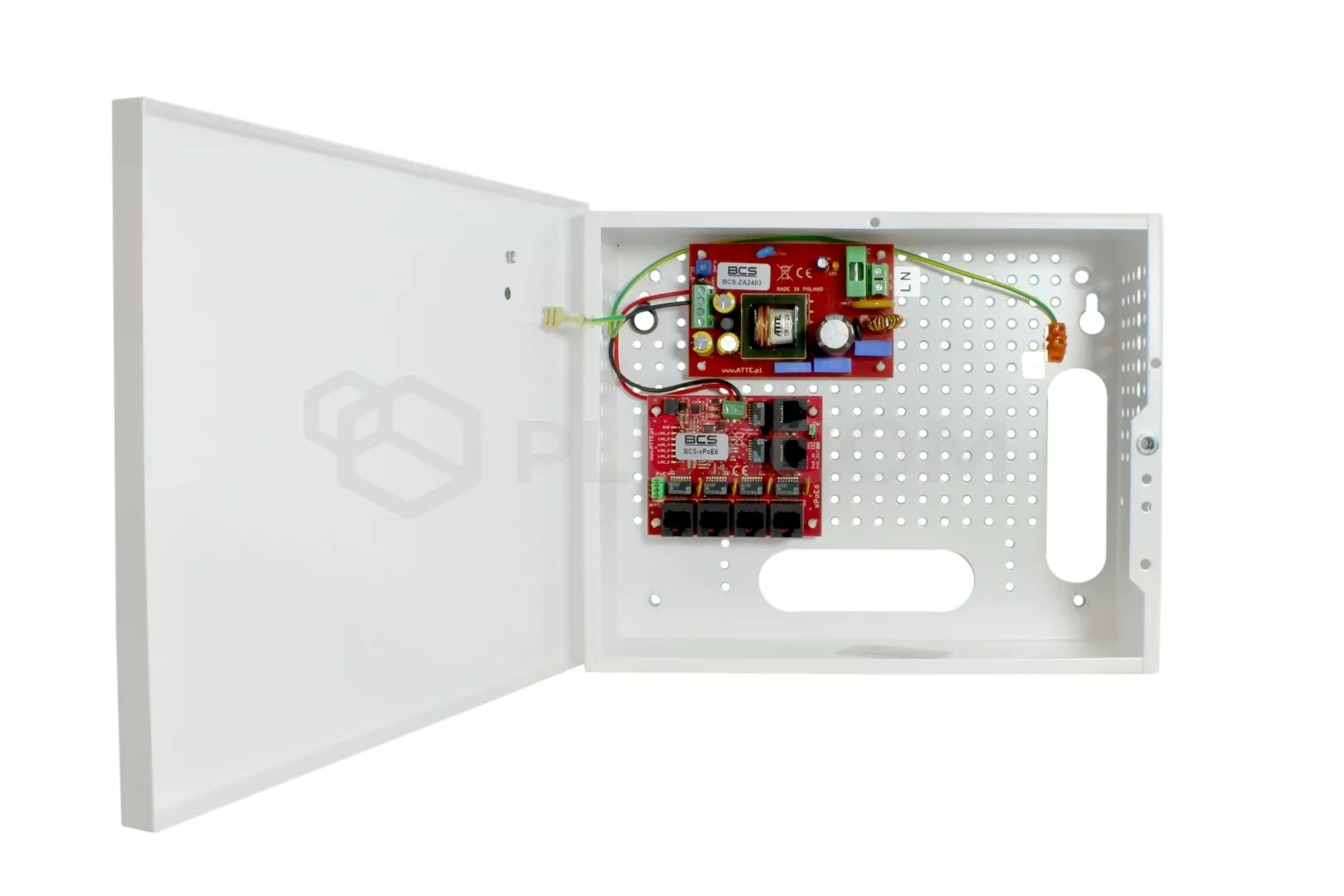

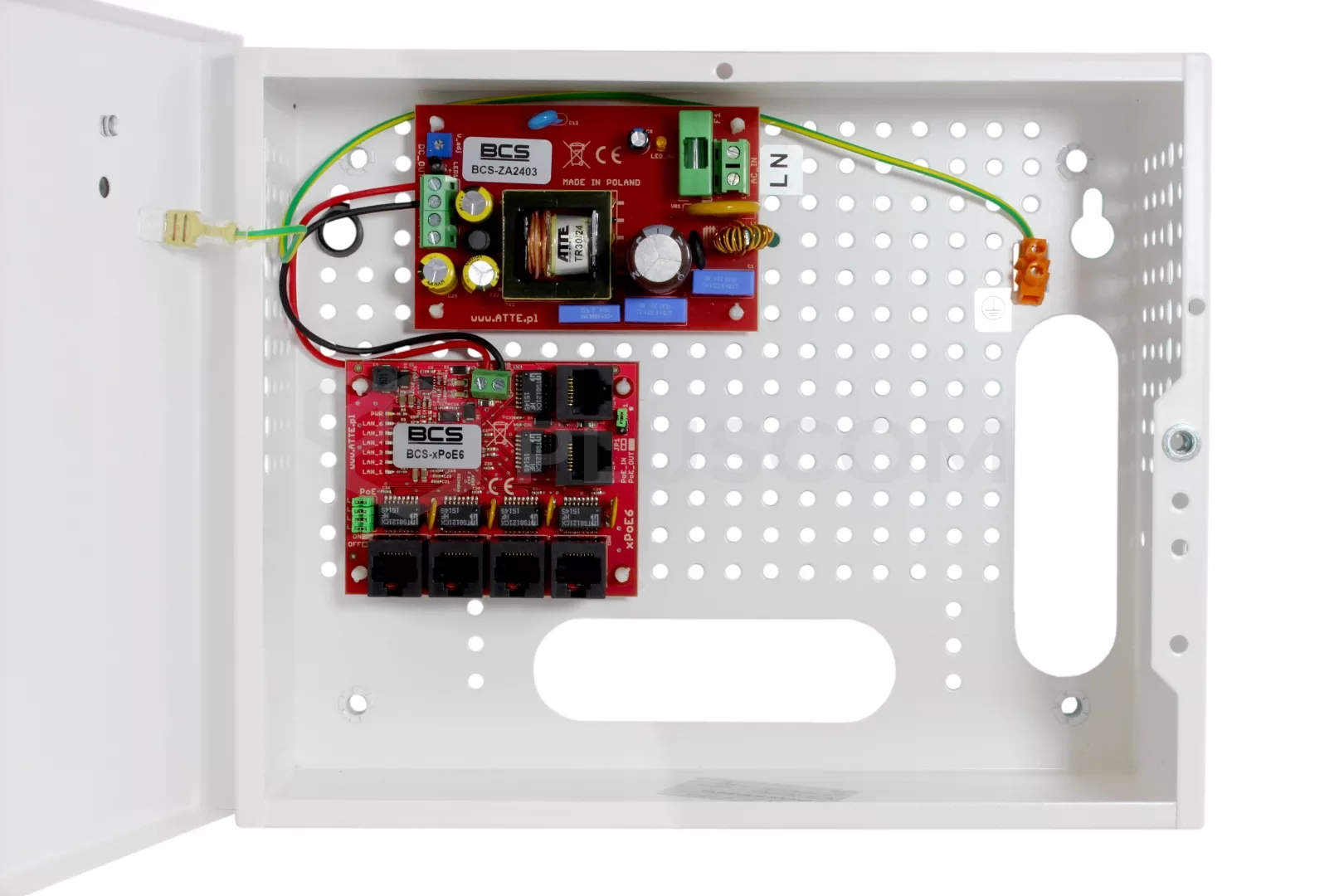

Power supply module, switch PoE:

Power supply module, switch PoE:

PARAMETERS POE SWITCH
  • voltage: Uout = Uwe
  • LAN ports 6 (4x LAN + PoE OUT 1xLAN, 1xLAN / LAN + PoE)
  • LAN type: speed 10 / 100Mbit
  • power type: passive (4,5+) (7,8-)
  • protection of outputs: a polymer fuse 1,1A / channel

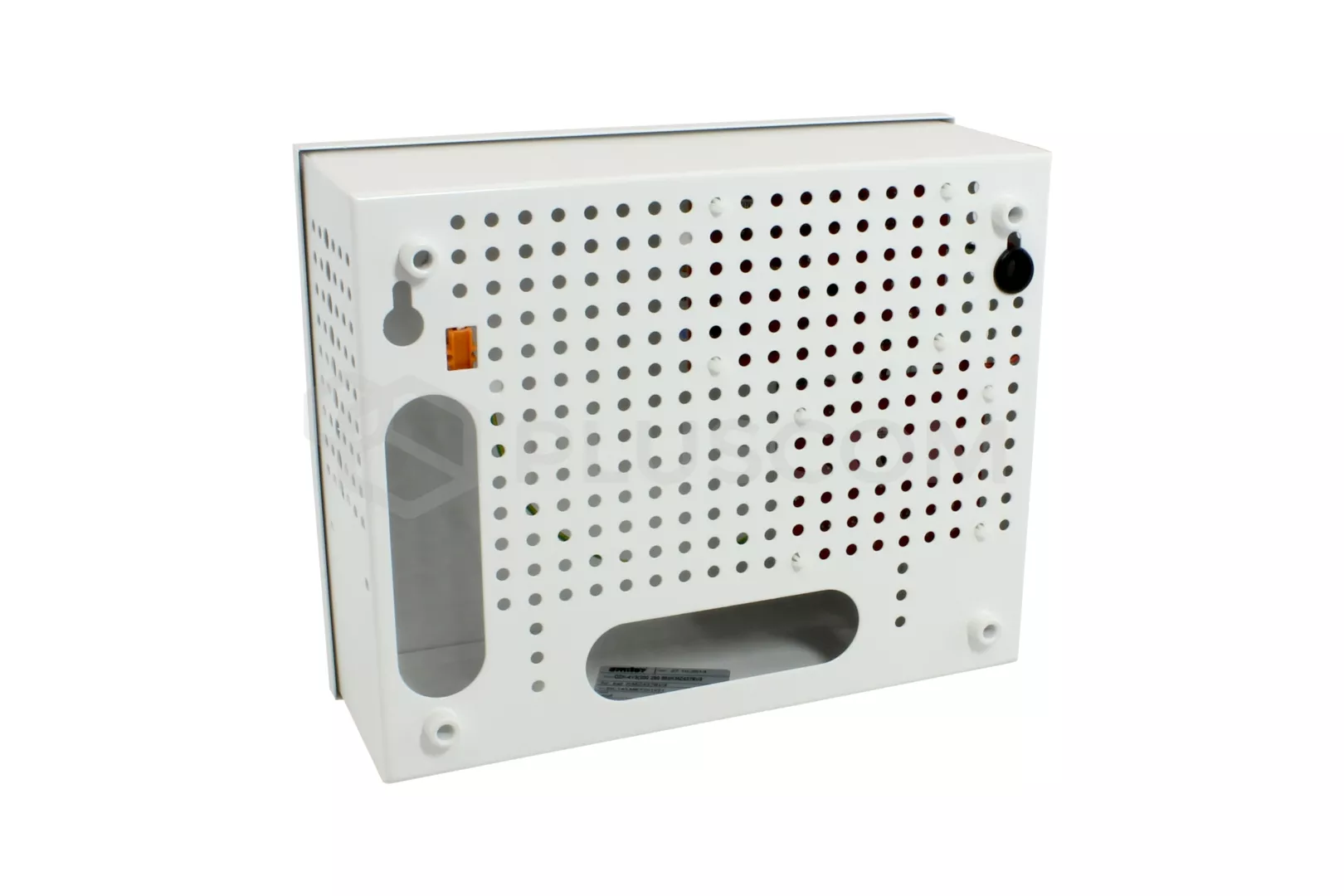

Rear view:

Rear view:
