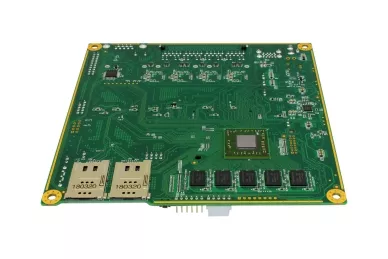

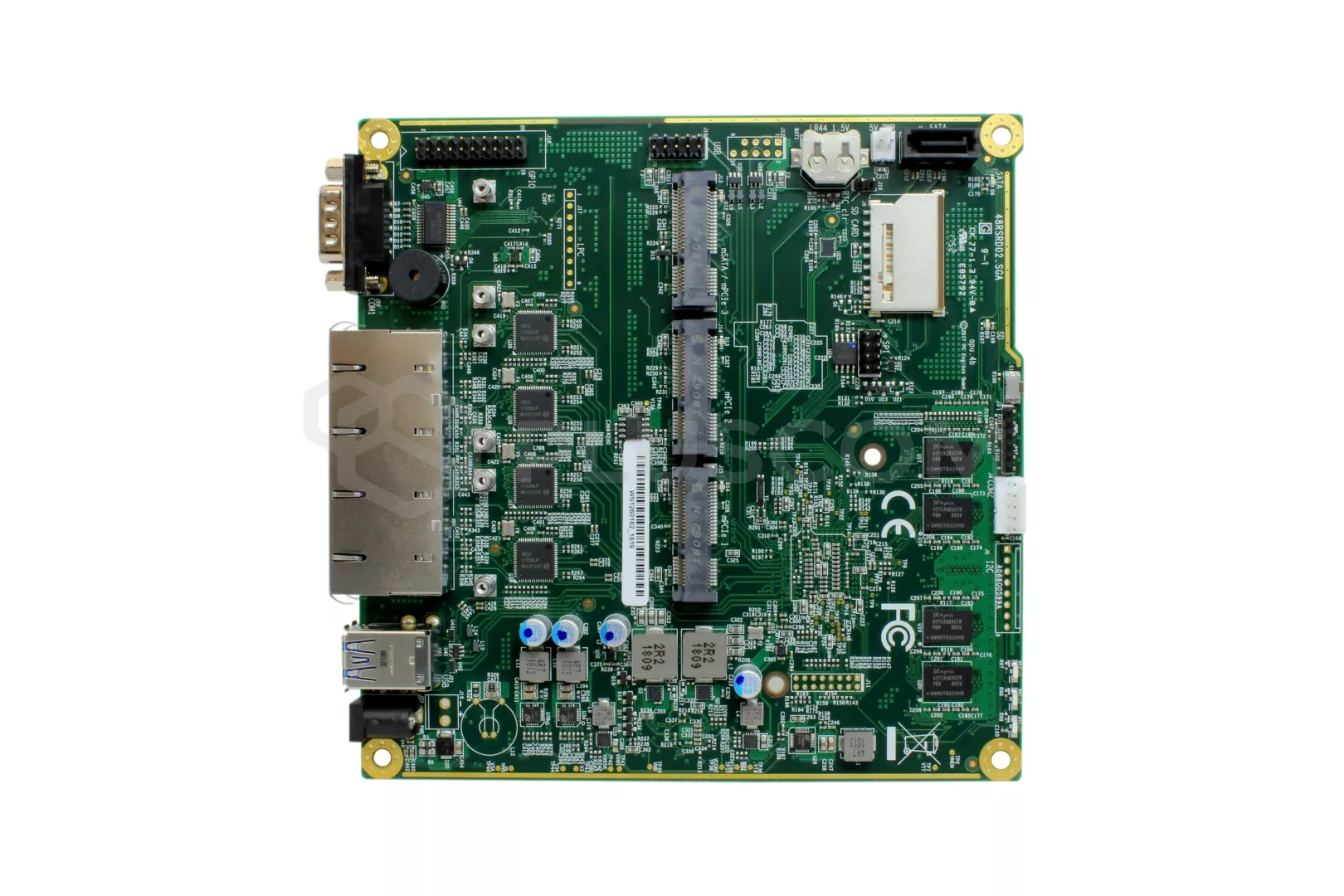

PC Engines APU.4B4 System board 4xGigabitLAN, 4GB RAM, AMD GX-412TC CPU

Out of stock. Archived Product.

Items bought with this product:
Compex WLE600VX 802.11ac miniPCI Express Card WIFI

PC Engines APU 4B4 / GX-412TC / 4GB / 4 LAN Intel i211AT / LED / USB / BUZZER

PC Engines APU.4B4 System board 4xGigabitLAN, 4GB RAM, AMD GX-412TC CPU

PC Engines APU.4B4 System board 4xGigabitLAN, 4GB RAM, AMD GX-412TC CPU


PC Engines APU 4B4 is a great platform for advanced networking solutions such as routing, network security applications.
System board is fully comatybile with open source systems, Linux Debian, Ubuntu and BSD, OpenWRT, pfSense.

    The platform is characterized by small size 152,4x152,4mm (6''x 6''), low power (6-12W, depending on CPU load) and above-average performance which provides 64-bit AMD GX-412TC, 1 GHz quad core and 4GB of RAM. When mounted in a dedicated enclosure cooling the CPU is performed passively.

    TECHNICAL PARAMETERS

    • processor 64-bit AMD GX-412TC, 1 GHz quad-core 2MB L2 cache
    • RAM 4 GB DDR3-1333 DRAM
    • mass memory:
      • SD card slot
      • USB connector
      • m-SATA
      • SATA + Power connector
    • Expansion joints:
      • 3 miniPCI express
      • GPIO header, optional I2C bus
      • COM2 (3,3V RXD / TXD).
    • communication:
      • 4x Gigabit Ethernet (Intel i211AT)
    • DC 12V / 1,5A 2,5mm plug
    COOLING

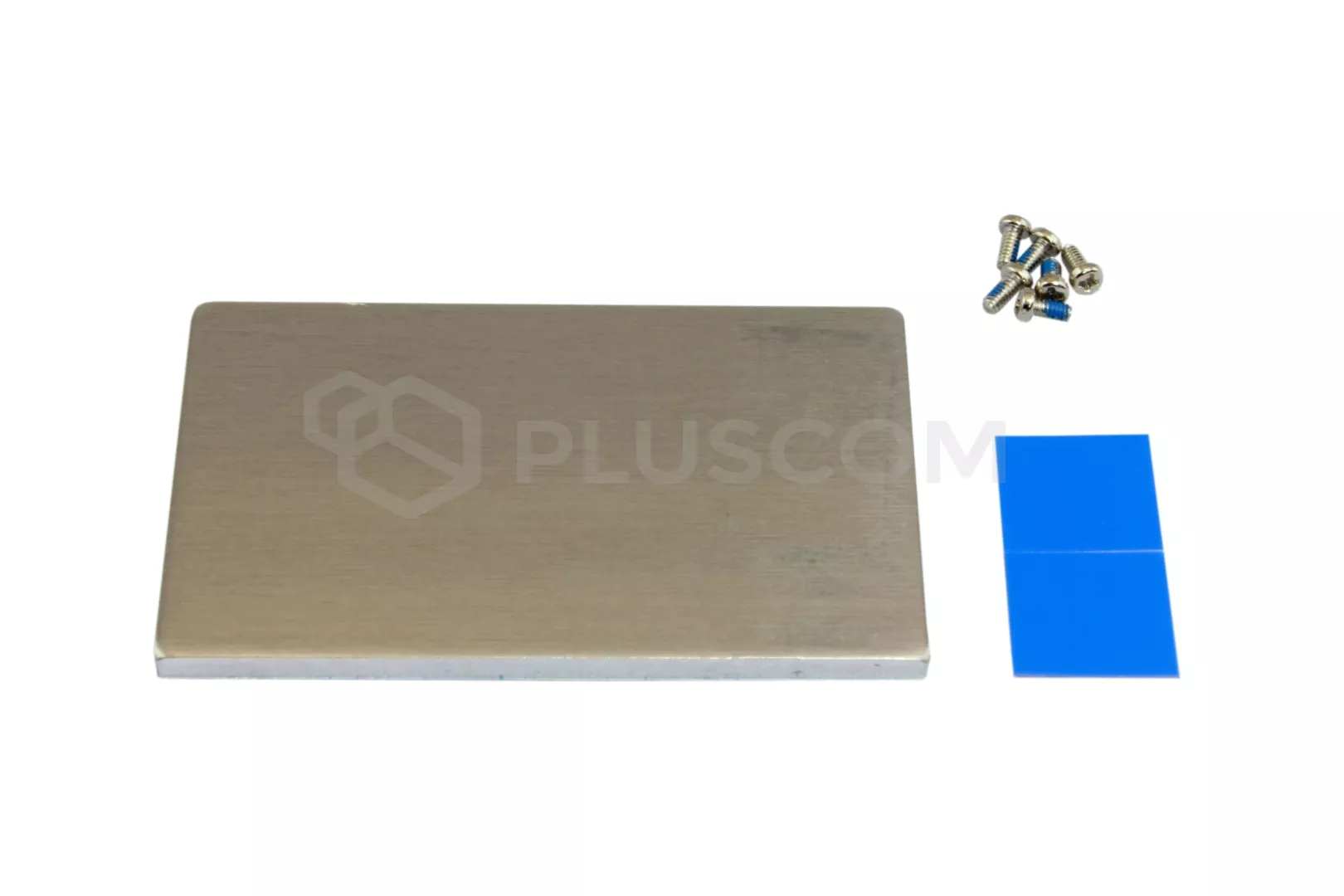

    For APU 4B4 is included aluminum plate and thermally conductive strips which allows drainage of excess heat out of the housing
