Overvoltage module Pulsar AWZ540

7,48 EUR including 23.00% VAT

Add to cart

Product code: #10657

Manufacturer: Pulsar

Ask about this product

Voltage: 9÷40VDC
Output voltage: 9V÷14VDC
Output current: 4A
LED indication

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWZ540 Over voltage protection module MZN1

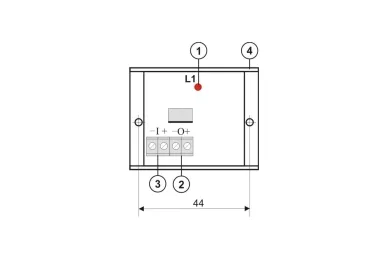

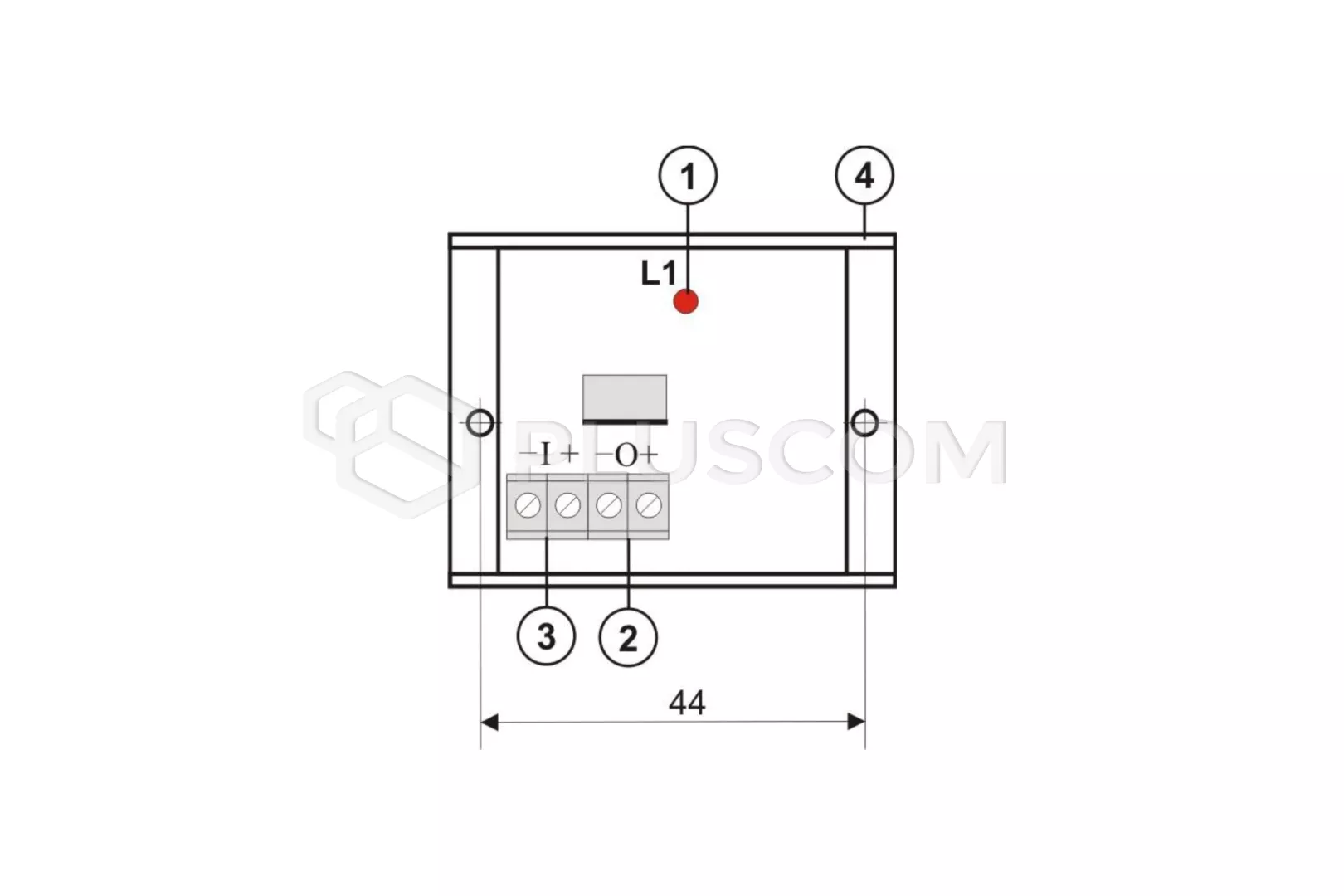

The over voltage protection module is intended for protecting systems powered with 12V DC against being supplied with too high supply power (e.g. as a result of damaged stabilising system of a PSU). When the maximum accessible input voltage is detected, the output is cut off protecting the receivers from damaging. Activation of the system is indicated by the red LED – L1.

Protections against:

overvoltage OVP

Overvoltage module Pulsar AWZ540

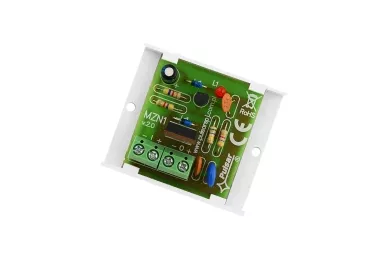

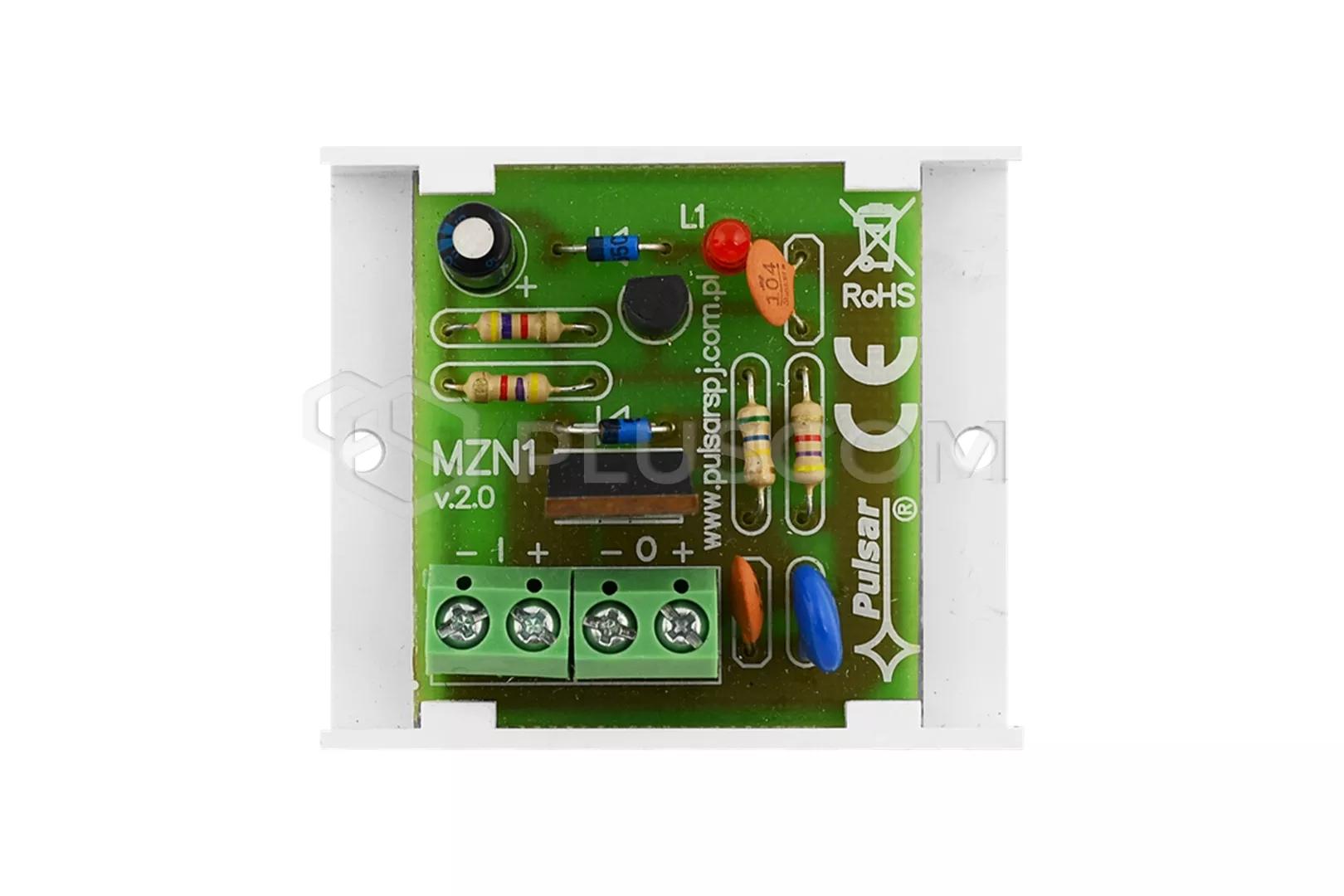

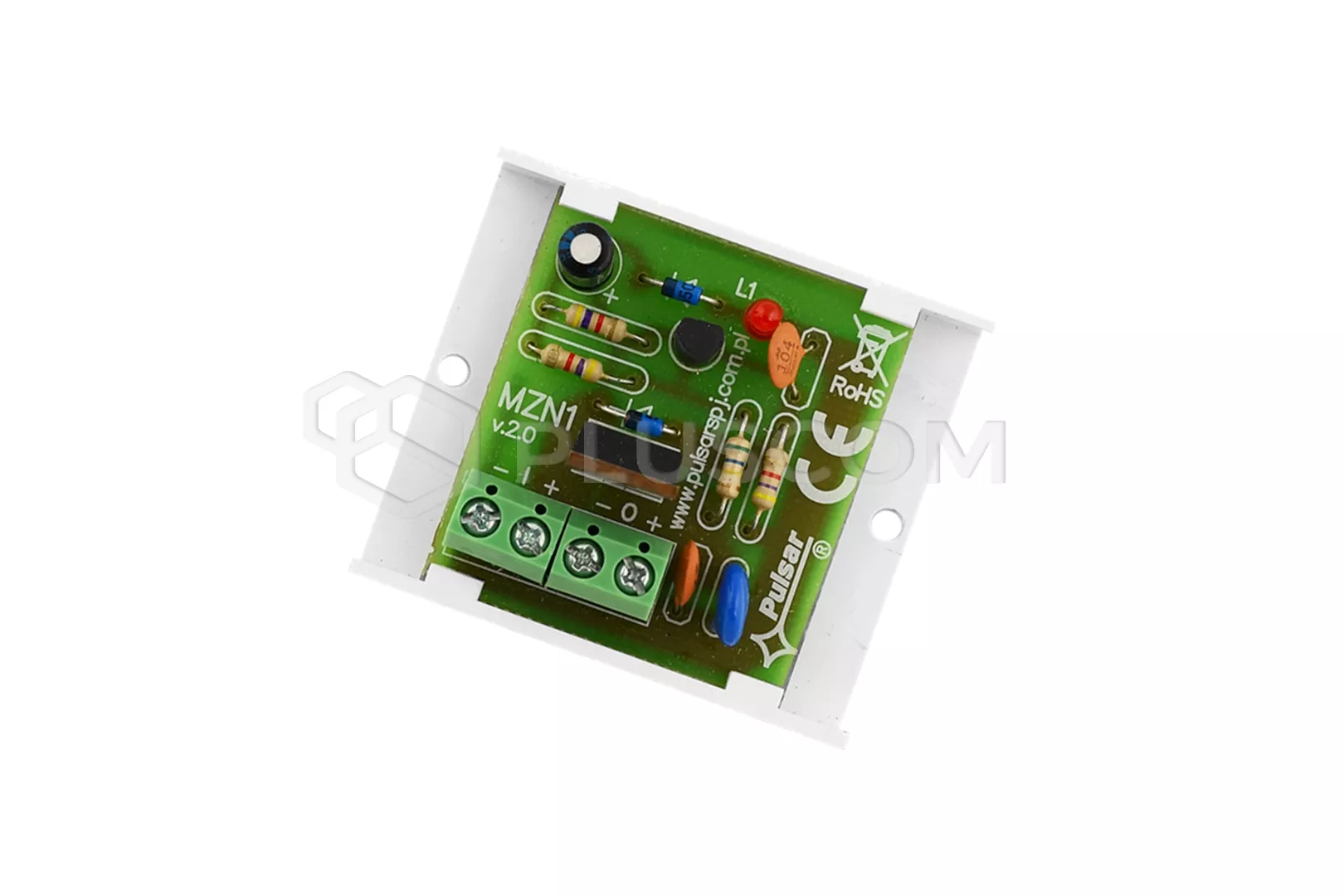

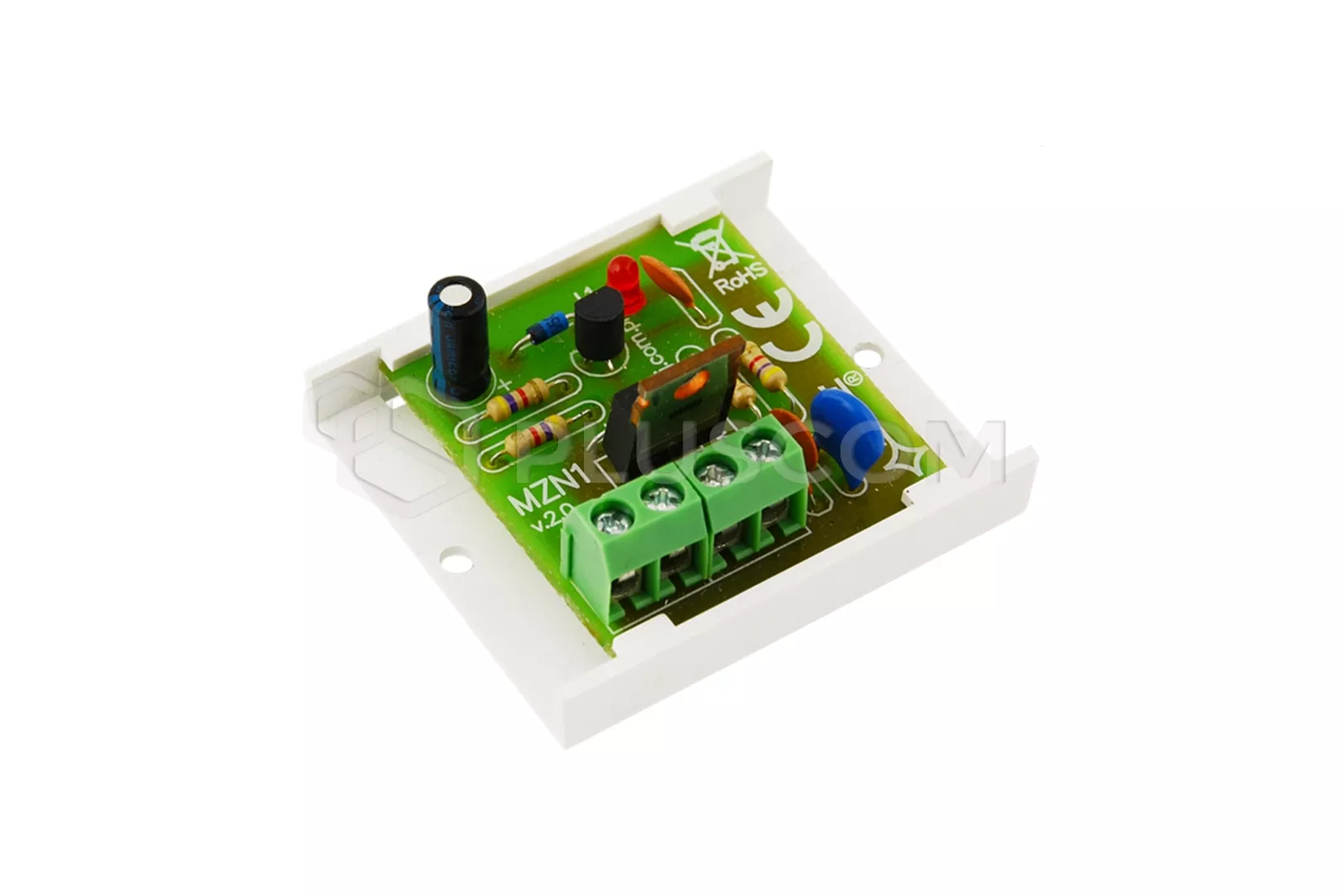

The module board is mounted on a plastic base plate, which can be mounted to a flat substrate by means of two screws or integrated adhesive tape.

TECHNICAL PARAMETERS:

voltage: 9V-40V DC
output voltage: 9V ÷ 14,1V DC (+/-0,4V)
output disconnection voltage: 14,1V (+/-0,4V)
load current 4A max
LED indication
operating temperature: -10°C..50°C
dimensions: 50x43x26mm
weight: 0.04kg

Overvoltage module Pulsar AWZ540

Download

Datasheet 0.52 MB

Declaration CE 0.32 MB

Instruction 0.14 MB
