Nice Z100 AUTOMATIC AUT Set for sectional doors for industrial use up to
30m² AUTOMATIC
NDCM0199 is a drive that complies with the latest European safety standards and
technology.
It is solidly made. Bronze gears that are constantly lubricated (oil bath
reducer), make the engine reliable. Moment rotating up to 100Nm and rotational
speed 24 rpm, give very high efficiency.
The use intensity is 60%.

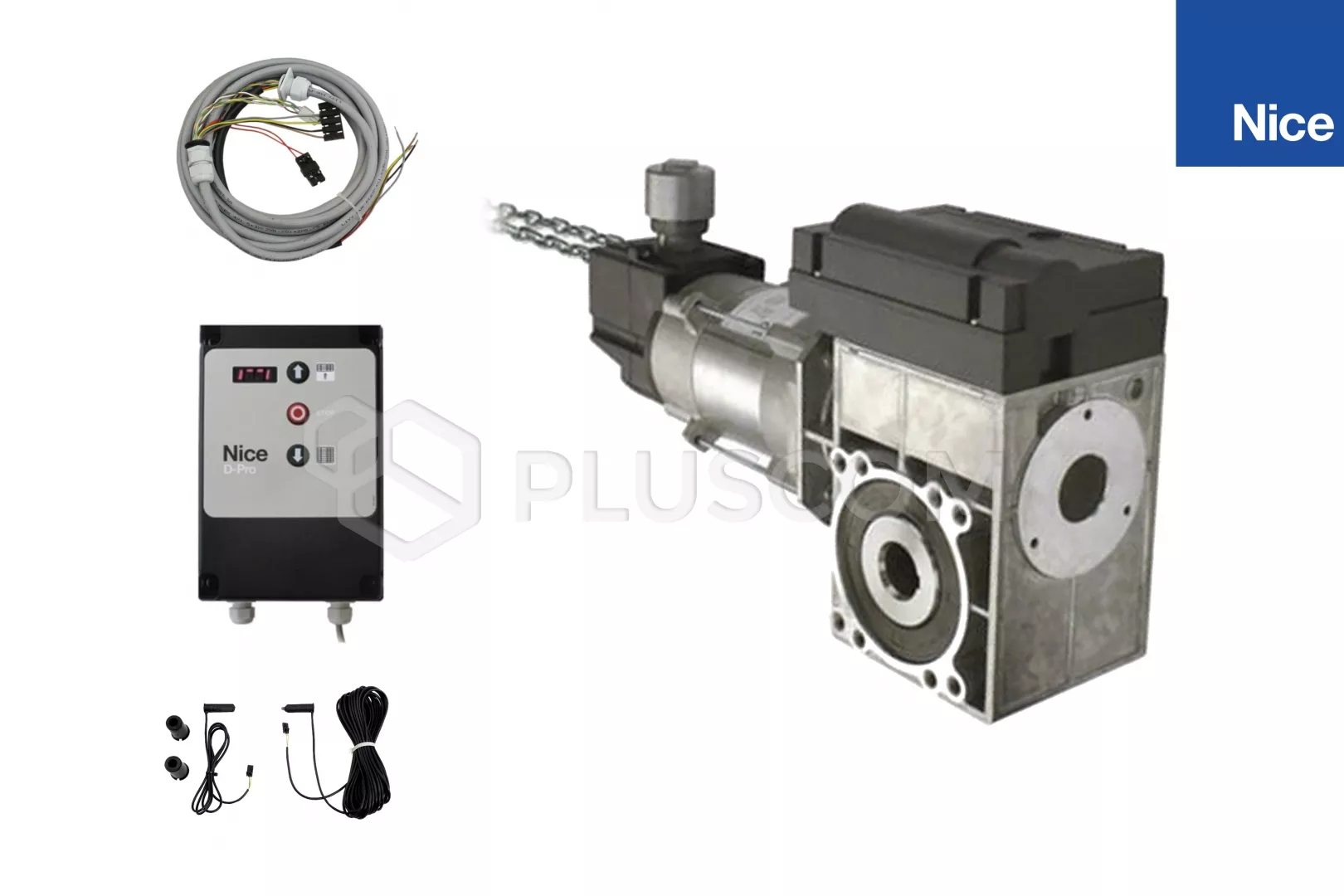

Set contains:
Nice Z100 AUTOMATIC AUT Set for sectional doors for industrial use up to 30m2 AUTOMAT
EASY TO INSTALL:
The motor gear can be mounted directly on the drive shaft of a sectional door
(for shafts with a diameter of 25.4 mm) and the connecting cables are equipped
with appropriate plugins. Additionally, the control panel has numbered sockets
and quick couplings, which means that the installation and starting of the
engine is extraordinary easy.
PROGRAMMING:
The actuator is equipped with an electronic limit switch, which makes it
programming, adjustments and end position settings are made from control panel.
In emergency cases,
emergency gate opening will be done with
chain
D-PRO AUTOMATIC is a control panel cooperating with single-phase motors without
inverter and 3-phase. Works with all types of edge moldings, no excluding those
wireless.
The control panel works in Totman or automatic mode.
D-PRO AUTOMATIC is a universal control panel, dedicated to
receivers on the SM or OXIBD connector, a thanks to cooperation with the OVIEW
programmer (an IBT4N interface is necessary) instalarot friendly. By using a
cover to avoid paralysis, also safe.
A useful function of the control panel is the option of programming the service
review automation.
TECHNICAL PARAMETERS OF THE ACTUATOR :
- gate shaft hole diameter: 25.4 mm
- max torque: 100Nm
- max weight of the gate: 300 kg
- output RPM/min: 24
- motor power: 0.37kW
- power supply: 3x400V
- duty cycle: S3-60%
- rev. Shaft / rev. Encoder: 15
- working temperature: -5 ° C to + 40 ° C
- degree of protection: IP54
