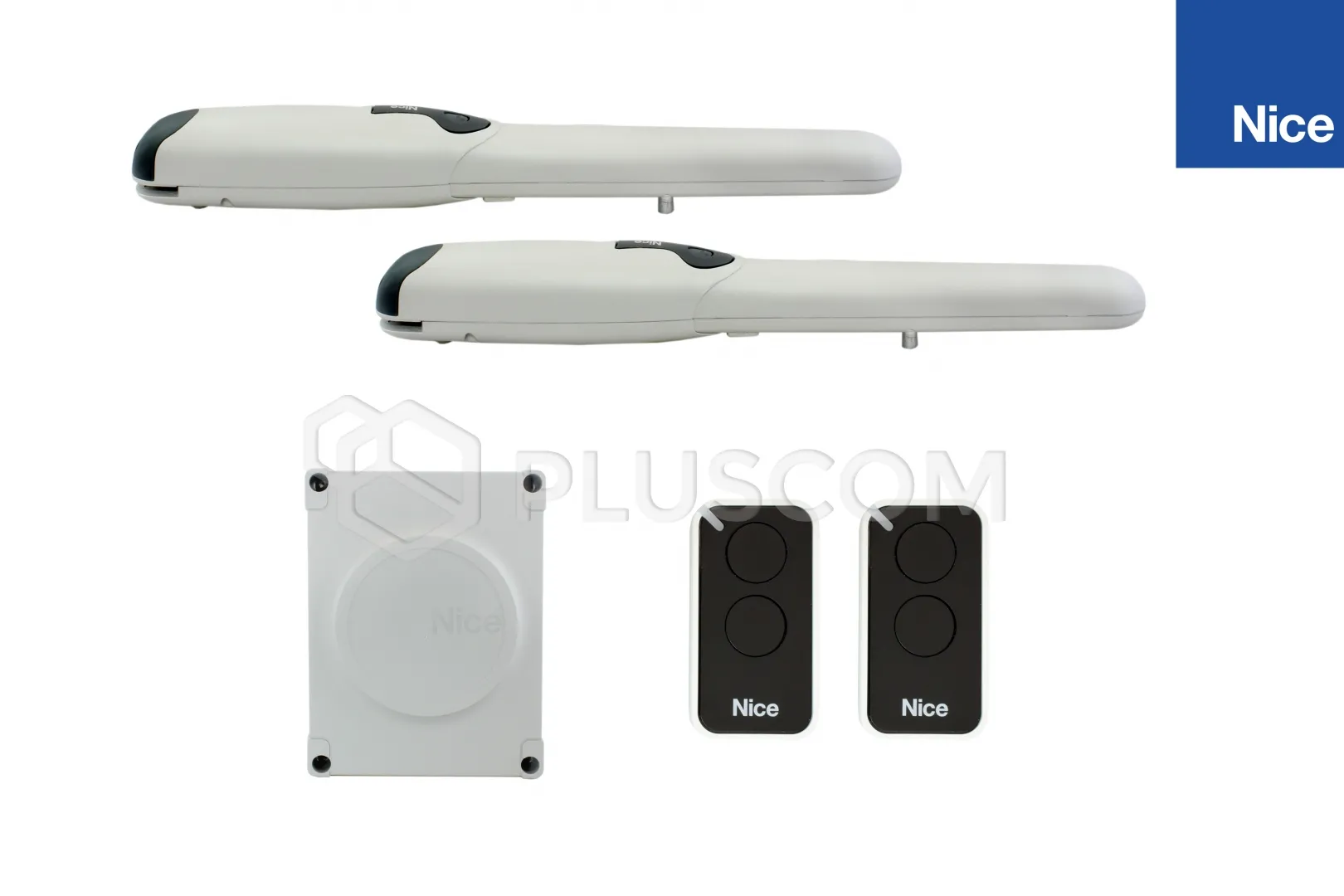

Nice WINGO3524KCER30 WINGO 3524 Era Flor - set for double-leaf gates with a
leaf length of up to 3.5m and a weight of up to 200kg
Nice WINGO3524KCER30 Set WINGO 24V ERA FLOR
A reliable and quiet drive for residential and residential gates. Its
patented internal component system, simple design with a minimum number of
moving parts, and high-quality materials ensure the drive will last for many
years.
When closed, the drive locks the gate, preventing it from
opening. There's no need for additional locks. Additionally, both
actuators are equipped with limit switches that determine the gate's
opening limit.
Nice WINGO3524KCER30 Set WINGO 24V ERA FLOR
The Wingo3524 features an amperometric obstacle detection system – it
detects any obstacles that may occur during normal gate movement. This
feature stops the gate and reverses its movement when it encounters an
obstacle.
To avoid a sharp jerk when opening or closing the gate, the motors
feature a smooth release during closing and a soft start.
The heart of the system is the proven and reliable MC424L control unit
with the latest specifications provided by the manufacturer for a given quarter
(firmware-optimized version), while maintaining identical connection diagrams,
electrical parameters, and full functionality of the BlueBUS system and Yubii
device support.
The latest version of the electronics features updated firmware, improved
overload characteristics (amperometrics), and improved native compatibility
with new accessories from the Nice ecosystem (e.g., OXIBD receivers and Smart
Home systems).

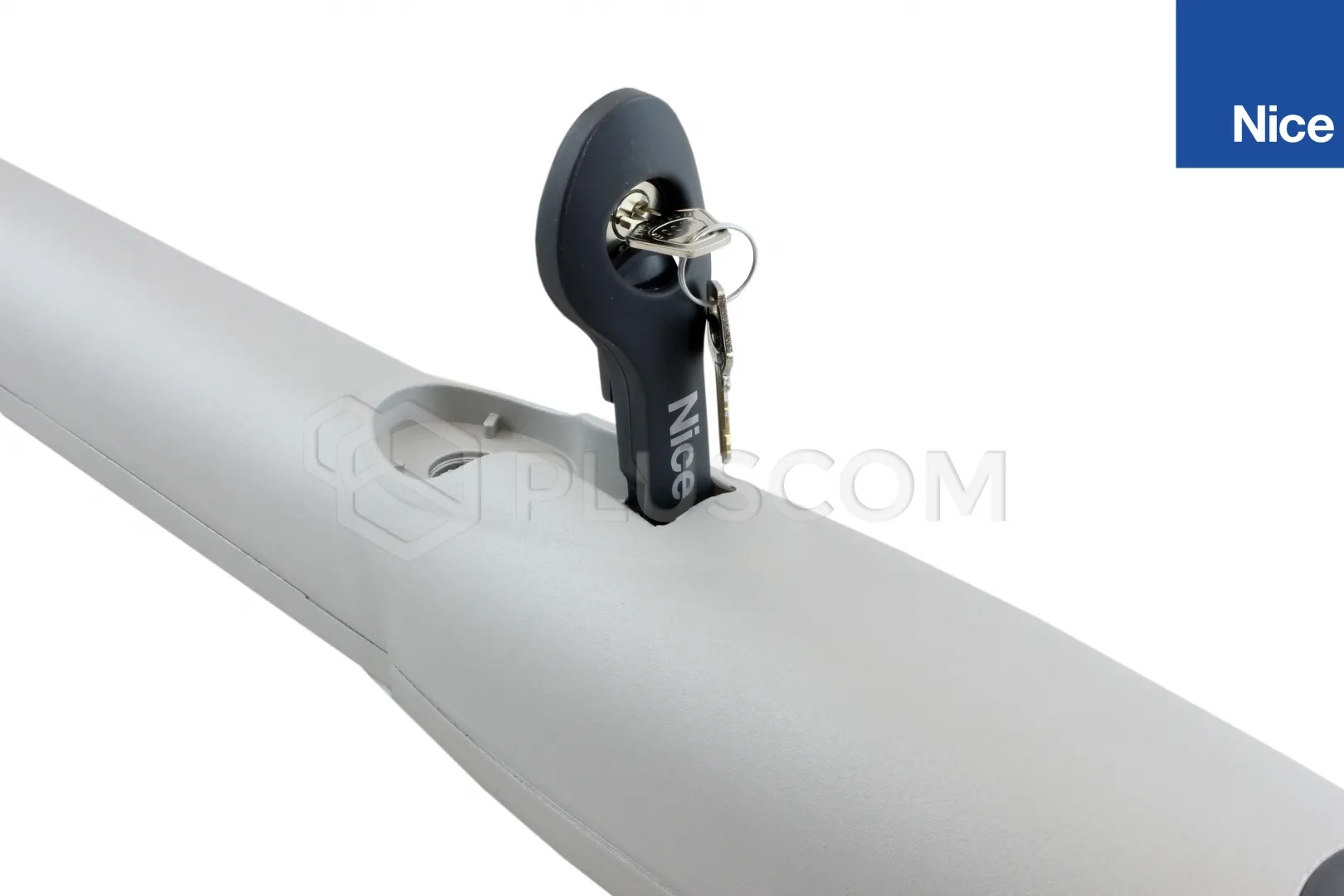

The actuators are equipped with an emergency release mechanism that allows the
drive to be unlocked and opened in the event of a power outage.

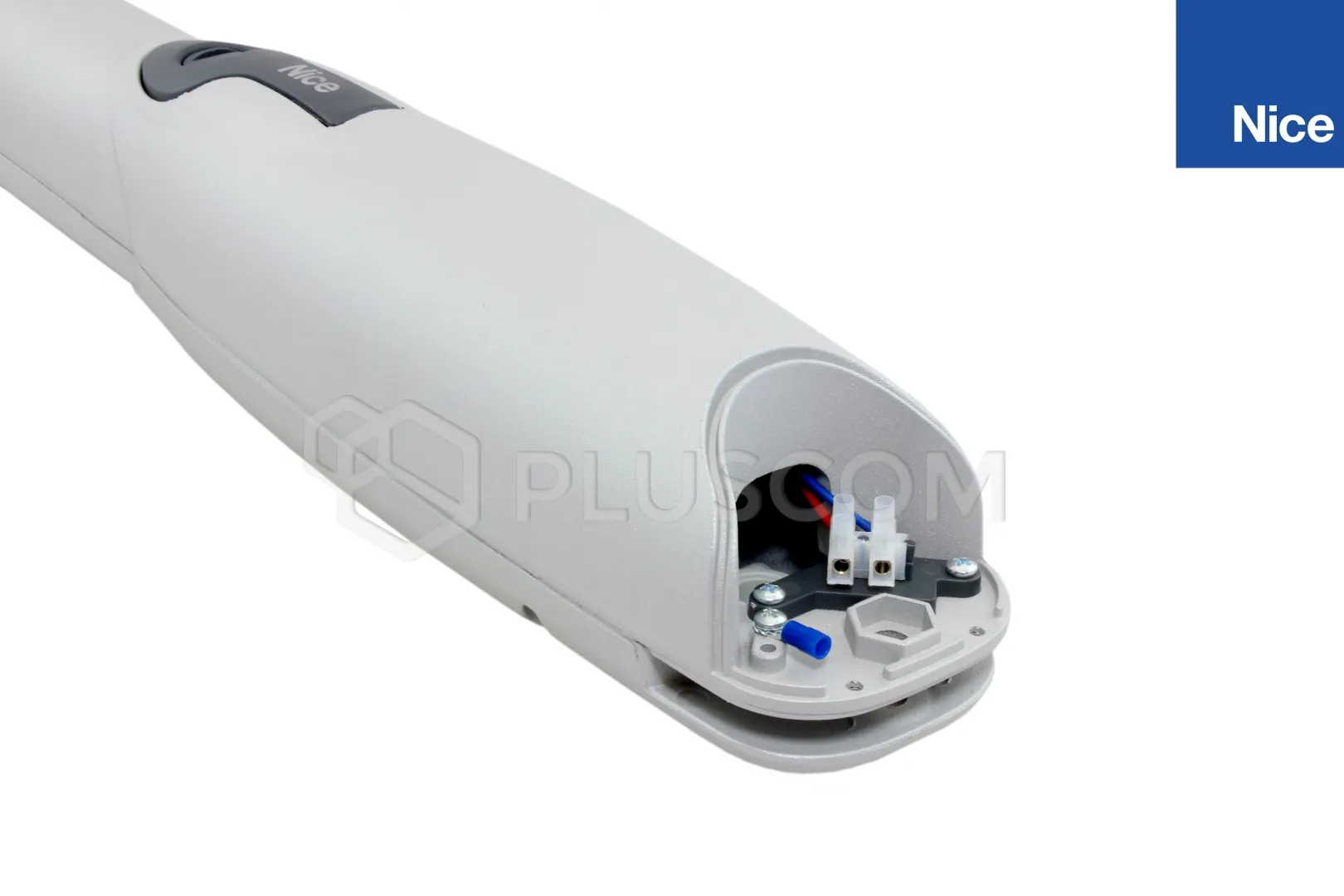

After installing the actuators, the installer has easy access to all electrical
connections, as they are made "from above," which significantly
simplifies installation and subsequent maintenance.

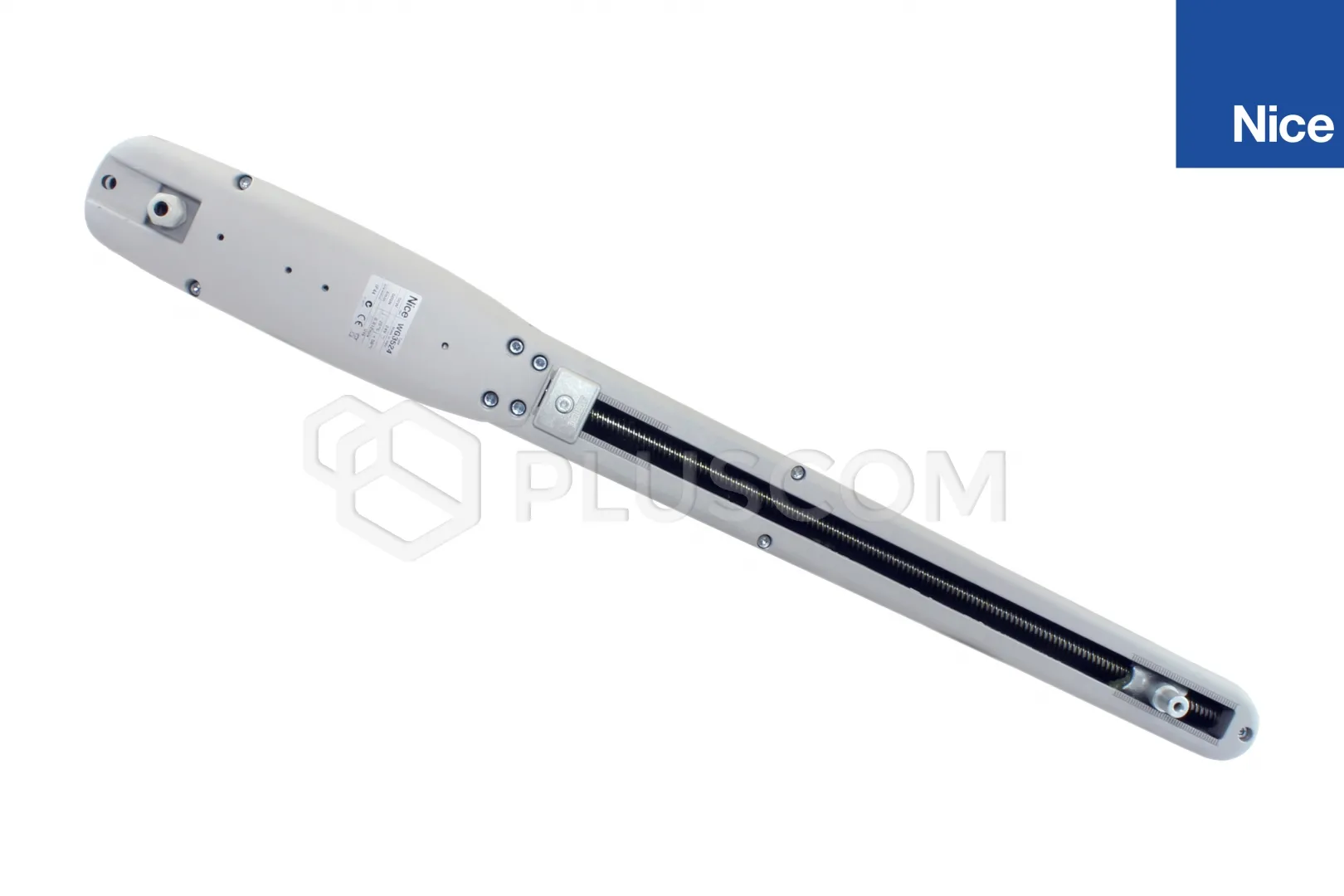

The robust housing, consisting of four aluminum covers and a bronze slip screw
nut, ensures that the drive will operate in all weather conditions, high and
low temperatures.
The INTI2 is a 2-channel remote control compatible with other
Nice remote controls, such as One and Flor, but is not compatible with the
Smilo system.
Transmission security is ensured by a 72-bit dynamically changing code; each
transmission is different. Only the control unit into which the transmitter has
been programmed knows which code will be transmitted.
A practical and elegant remote control with an LED indicator on the remote
control that indicates signal transmission. A weak or absent LED signal
indicates the need to replace the batteries.
TECHNICAL DATA:
- Motor power supply: 24V
- Current consumption: max 3.5A
- Power consumption: 85W
- Speed: 0.012m/s
- Force: max 1500N
- Operating temperature: -20°C...+50°C
- Protection rating: IP44
- Dimensions: 920x98x95mm
- Weight: 6kg
