Nice WINGO3524HS PLUS MYGO Kit for double-leaf gates 3m/200kg

Nice WINGO3524HS PLUS MYGO Kit for double-leaf gates 3m/200kg

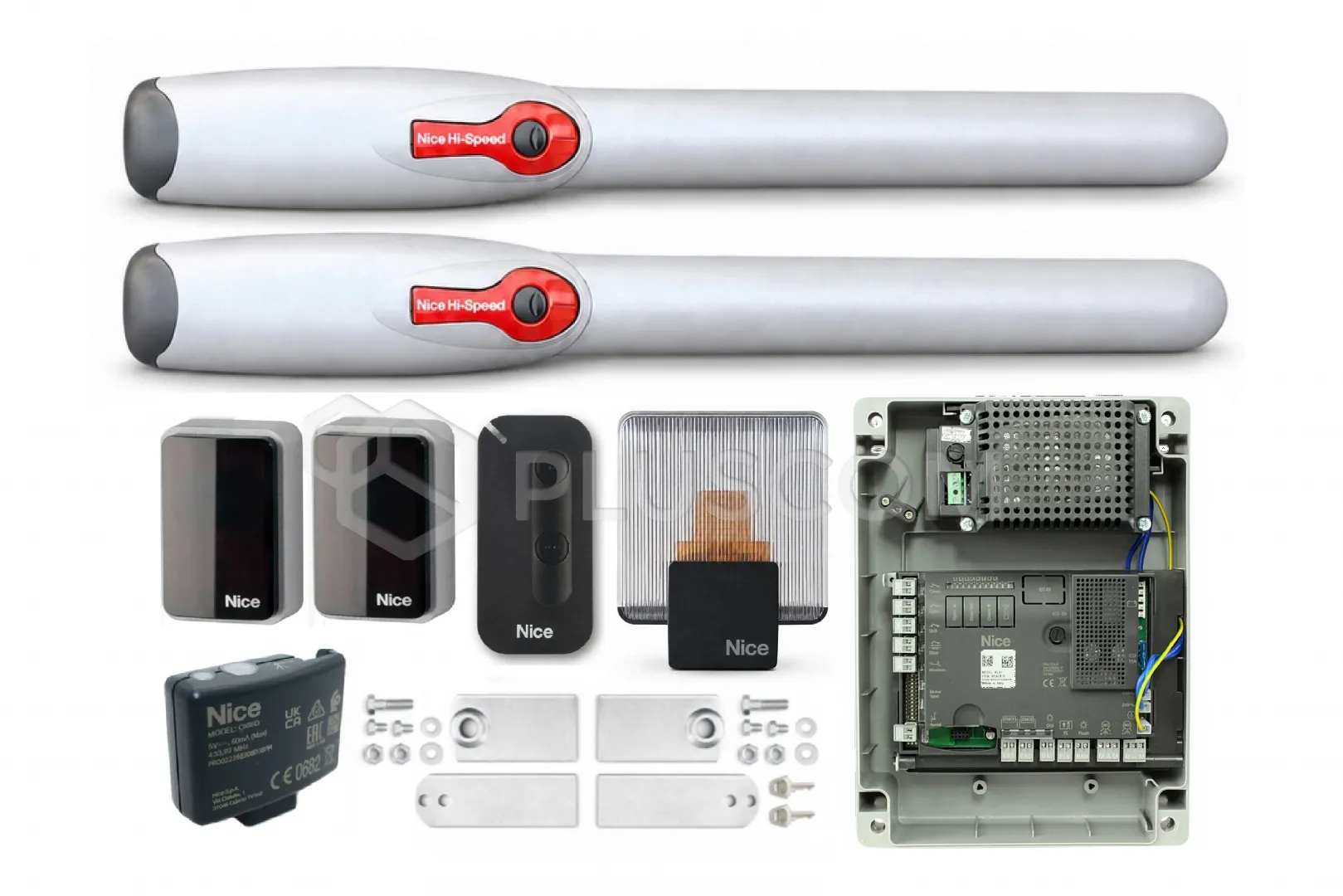

SET INCLUDES Nice WG3524HS actuator for a wing gate up to 3m/200kg - 2 pcs Nice MC824H R10 BLUEBUS Control unit Nice OXIBD 4-channels receiver two-way Nice ON2E 2-channel remote Photocell Nice EPMB ERA Medium BLUEBUS Nice ELDC LED flashing signal light 12/24V

Nice WINGO3524HS PLUS MYGO Kit for double-leaf gates 3m/200kg

WINGO3524HS - HI-SPEED is a new, faster version of the drive whose travel speed is 40-60% higher than the standard product. Opening the leaf to 90° can take approximately 10 seconds (with the soft start and slowdown functions disabled).
Key advantages of the Wingo 3524HSR10 model:

• Increased operating speed

• Thanks to the patented internal component system, fewer moving parts guarantee quiet operation and reliability.

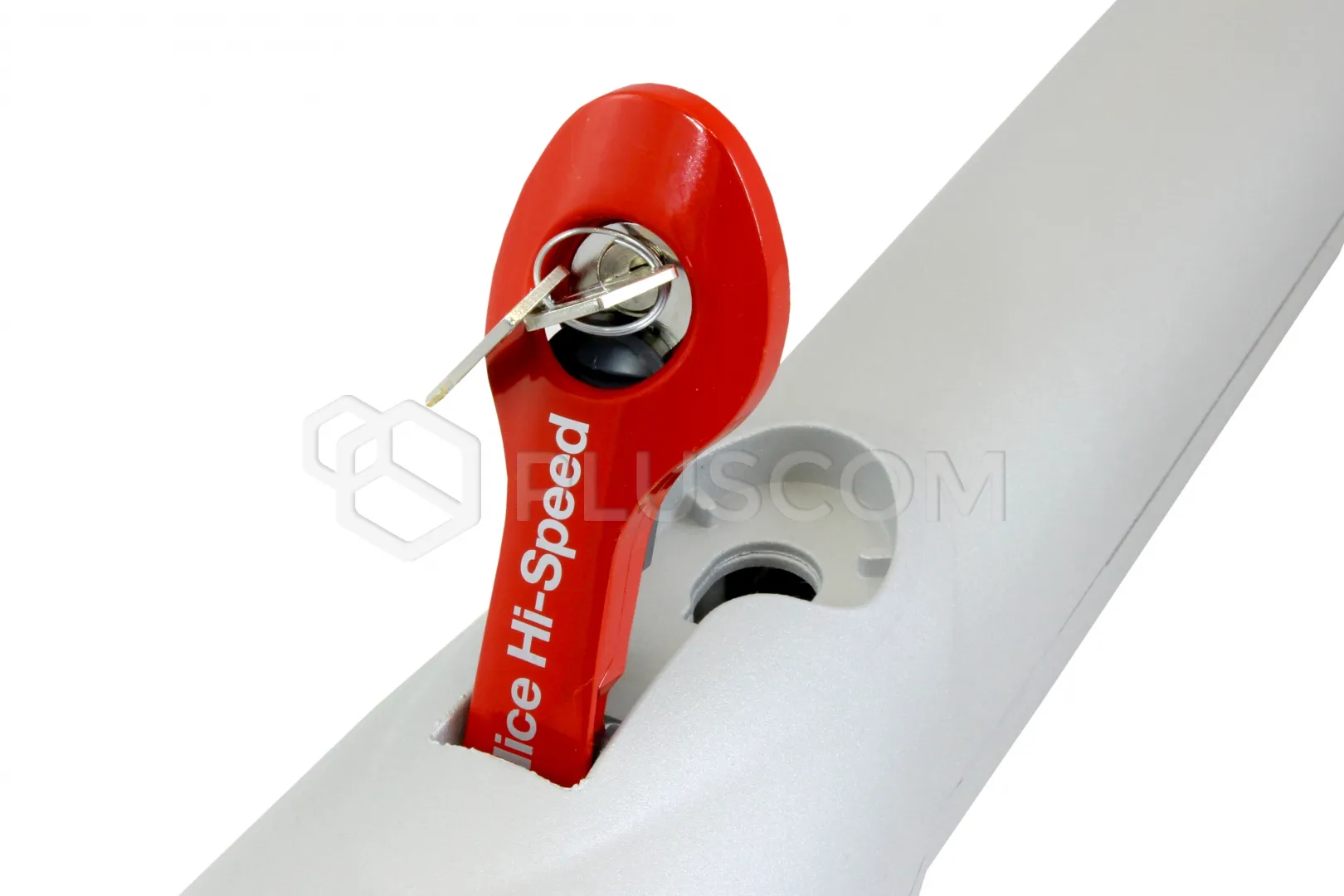

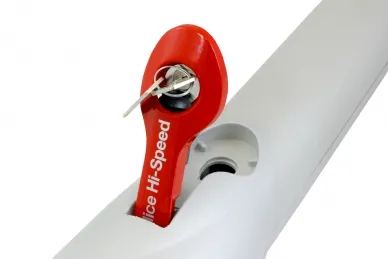

• Equipped with a convenient emergency release mechanism in the event of a power outage, mechanical operation allows the gate to be opened and closed manually in the event of a power outage or gate malfunction.
• Amperometric obstacle detection system - used to detect any obstacles that may occur during normal gate movement. Thanks to this function, when it encounters an obstacle, the drive stops the gate and reverses its movement.
• Smooth release during closing and soft start functions – this reduces the speed to avoid a strong jerk when opening or closing the gate. This ensures smooth operation and reduces noise.
• PHOTOTEST function – before each gate movement, the control unit automatically checks whether the photocells are operational, and if everything is working properly, the gate starts.
• Wicket function, which allows the gate or one leaf to be partially opened – This function allows you to walk or cycle without having to wait for the gate to fully open and close.
• Self-locking drive, which means the gate locks mechanically after the motor stops. This eliminates the need for additional mechanical locking of the gate, nor is it possible to manually open it.

Design with an extended body. Can be mounted on wide posts.

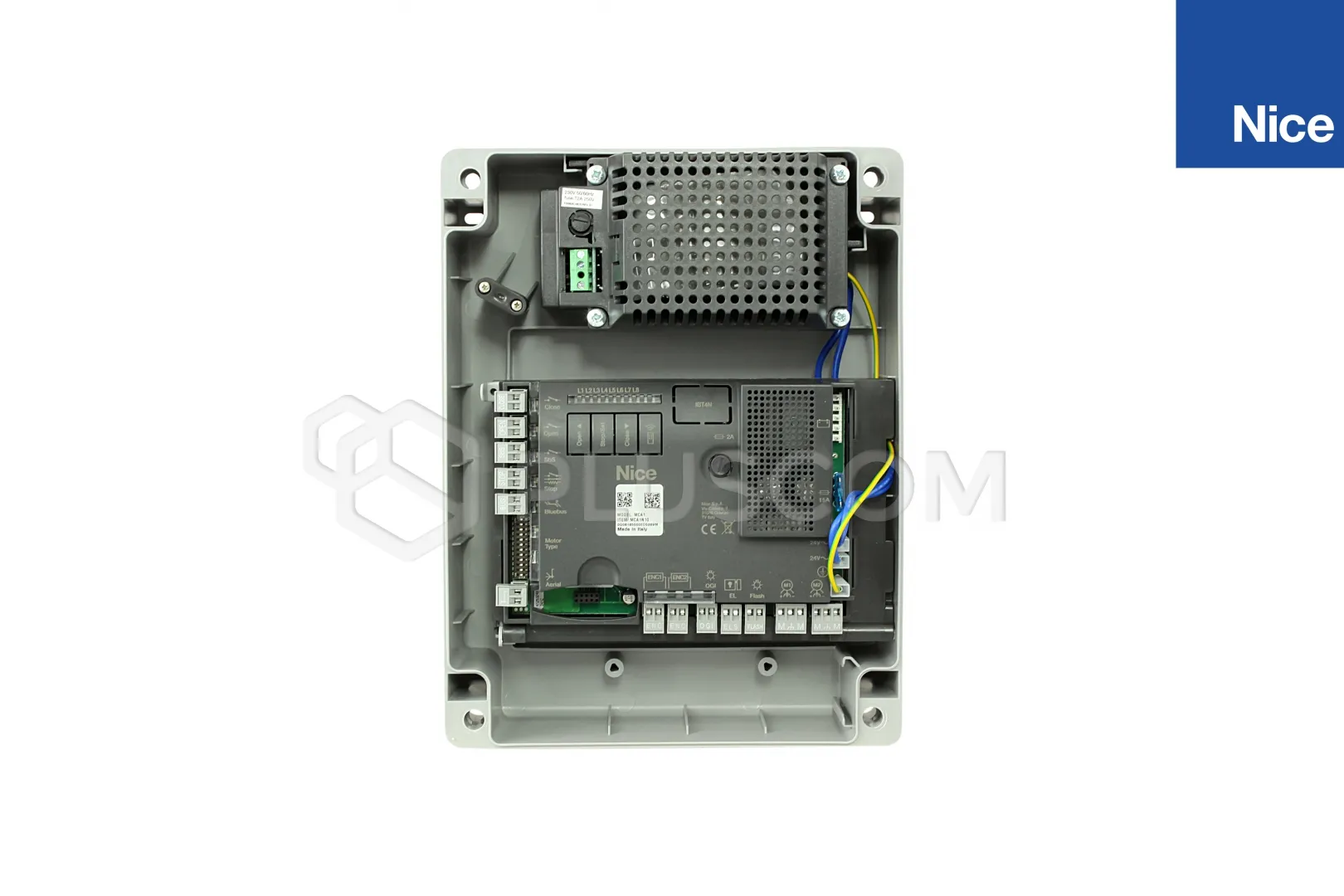

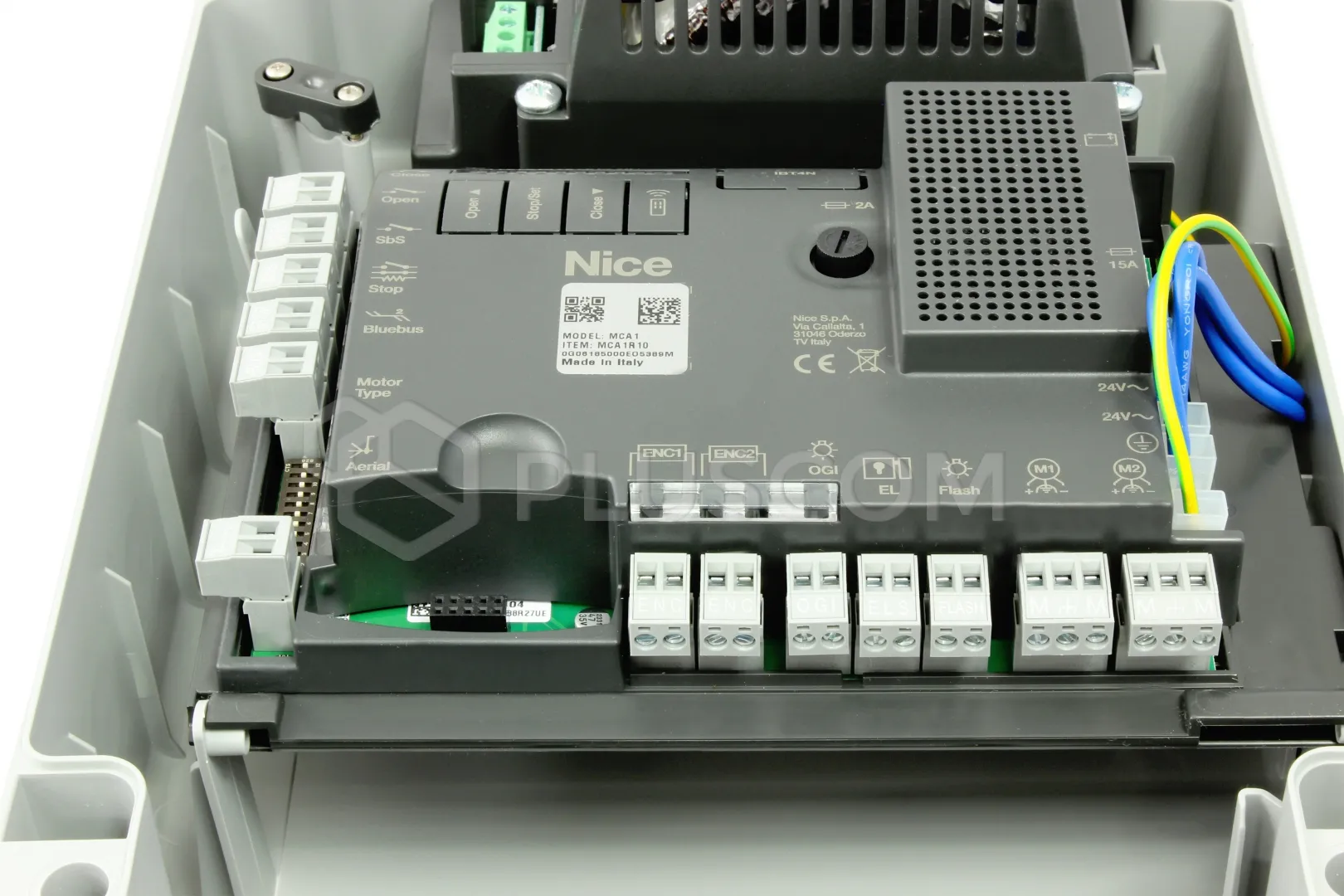

MC824H Control Unit Features:

• Controls two 24V actuators with encoders
• Manual, semi-automatic, and automatic operation
• Built-in radio
• SM-type connector for plug-in radio receivers
• IBT4N connector for connecting BusT4 devices
• BLUEBUS technology
• Automatic programming: During initial programming, the control unit automatically determines and stores the gate's end positions.

• Soft start and slowdown when closing.

• Adjustable actuator speed.

• Partial gate opening function. - gate


Sophisticated electronics: amperometric obstacle detection system, ability to connect an 8.2KΩ resistive strip, programmable pause time, partial gate opening (gate function), slowdown during closing and soft start during opening. Possibility of operating an electric lock.

Always working: thanks to the PS124 backup battery (optional), the actuators will open and close the gate, even in the event of a power outage.

The technology used allows the use of a solar power system ''Solemyo''.

List of accessories that can be used with the drive:

BLUEBUS photocells

Signal lamps:

Additional remote controls (series Flor):
