Nice TOONA 6024HS Base set

1883,79 EUR including 23.00% VAT
Product code: #22815
Manufacturer: Nice
  • maximum leaf width 6m, maximum leaf weight 1450kg
  • magnetic encoder and limit switch when opening and closing
  • 24V AC motors
  • auto programing, works with Oview, BLUEBUS intput
  • SM, OXIBD radio connector
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice IT4WIFI BusT4 interface - Wi-Fi Nice OVIEW/A R01 Display programmer +IBT4N interface Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger Nice Core WiFi-radio interface

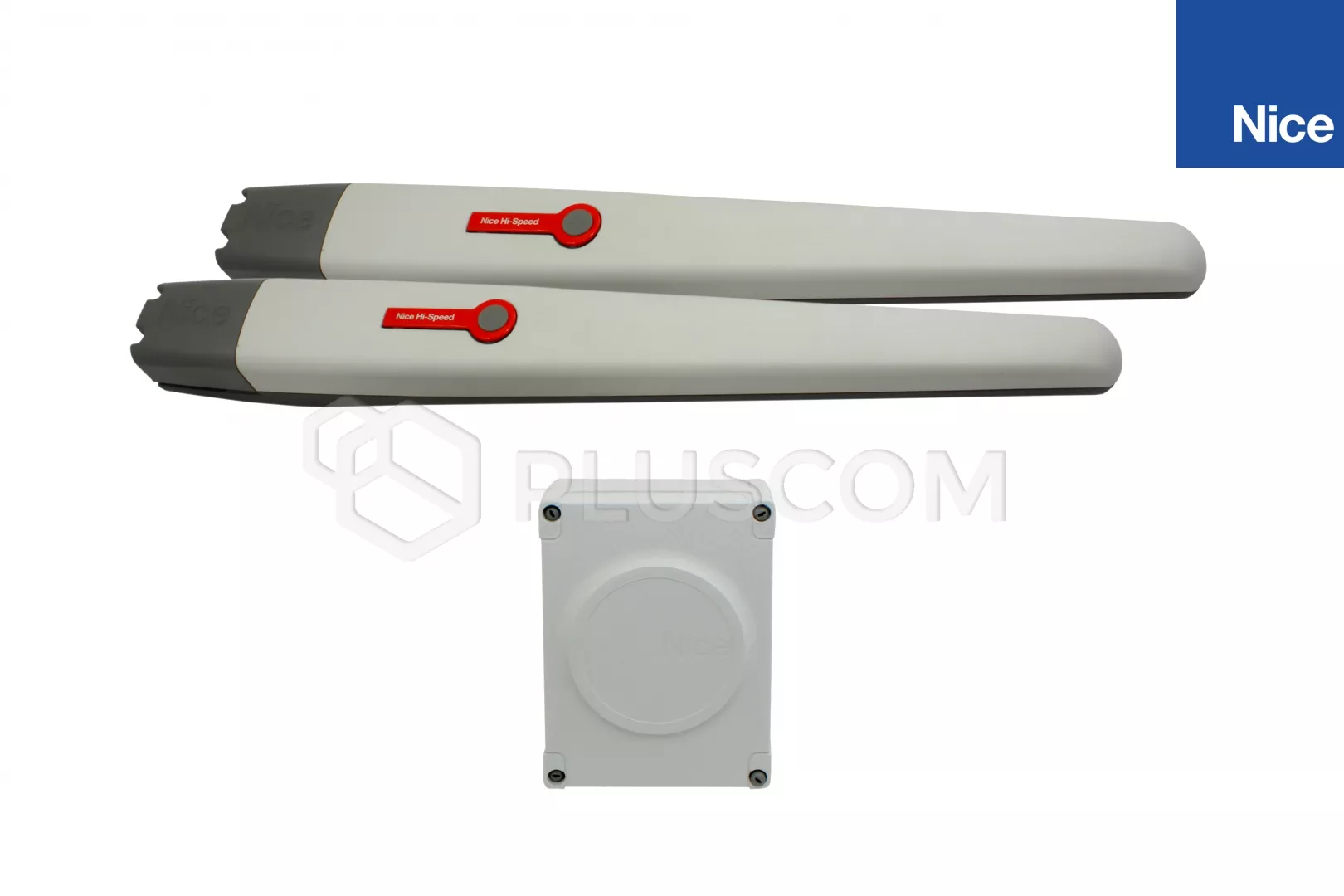

Nice TOONA 6024HS Electromechanical gear motor 24V witch MC824HR10 control panel HI-SPEED version


KIT CONTENTS:
Nice TOONA6024HS Electromechanical gear motor witch MC824HR10 control panel

Nice TOONA6024HS Electromechanical gear motor witch MC824HR10 control panel

For hi-speed automation of swing gates with leaves up to 6m or 1450kg, ideal for residential and industrial applications.

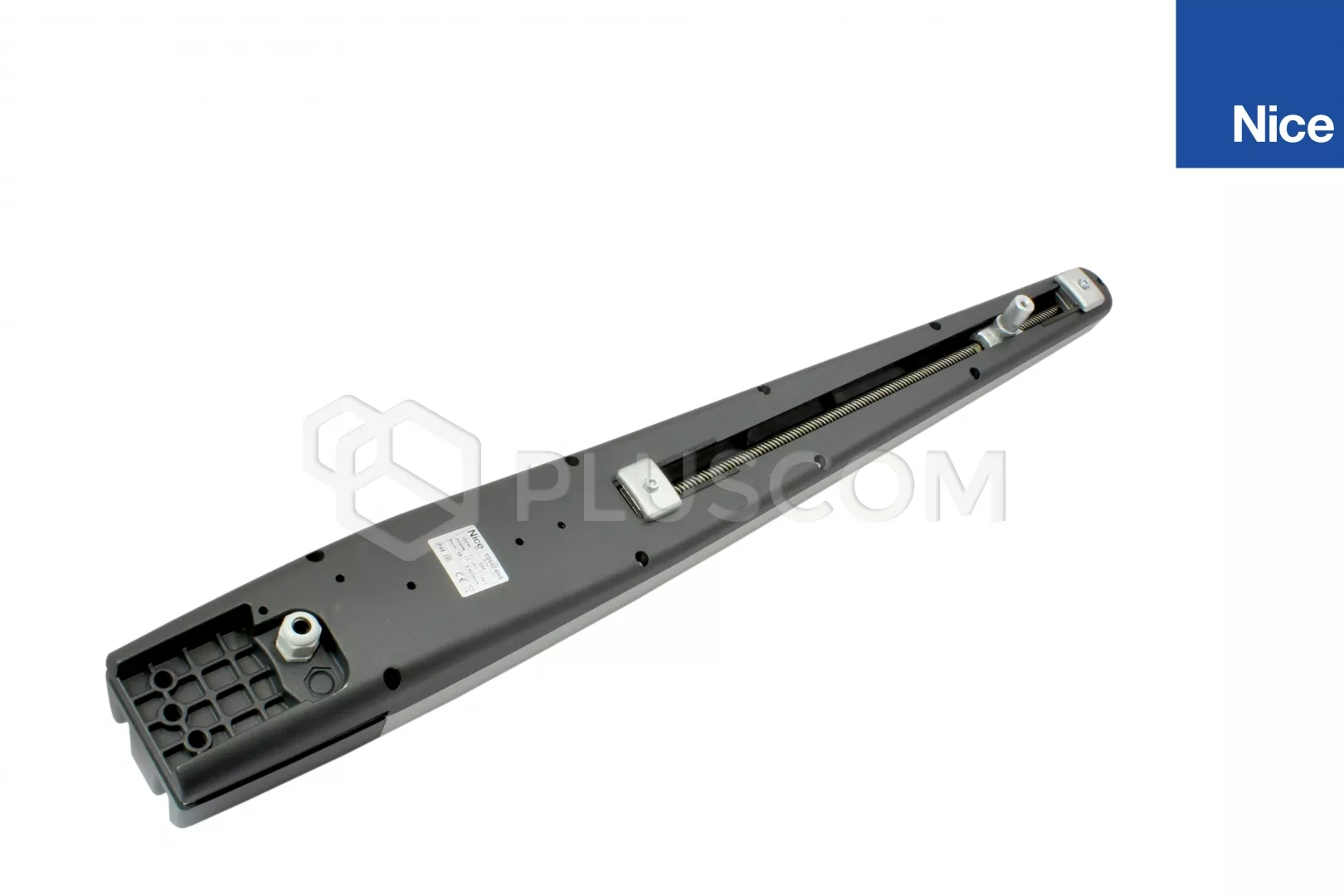

24 Vdc, electromechanical gear motor, surface mounted, with magnetic encoder.

Reliable: the magnetic encoder ensures the safeguard of set values over time and precise obstacle detection.

Silent: patented layout of internal parts and lead nut in bronze.

Sturdy: thanks to the housing, made up of two tough aluminium shells with polyester paint finish; more resistant to atmospheric agents. Internal moving parts completely in steel, light alloys and technopolymers.

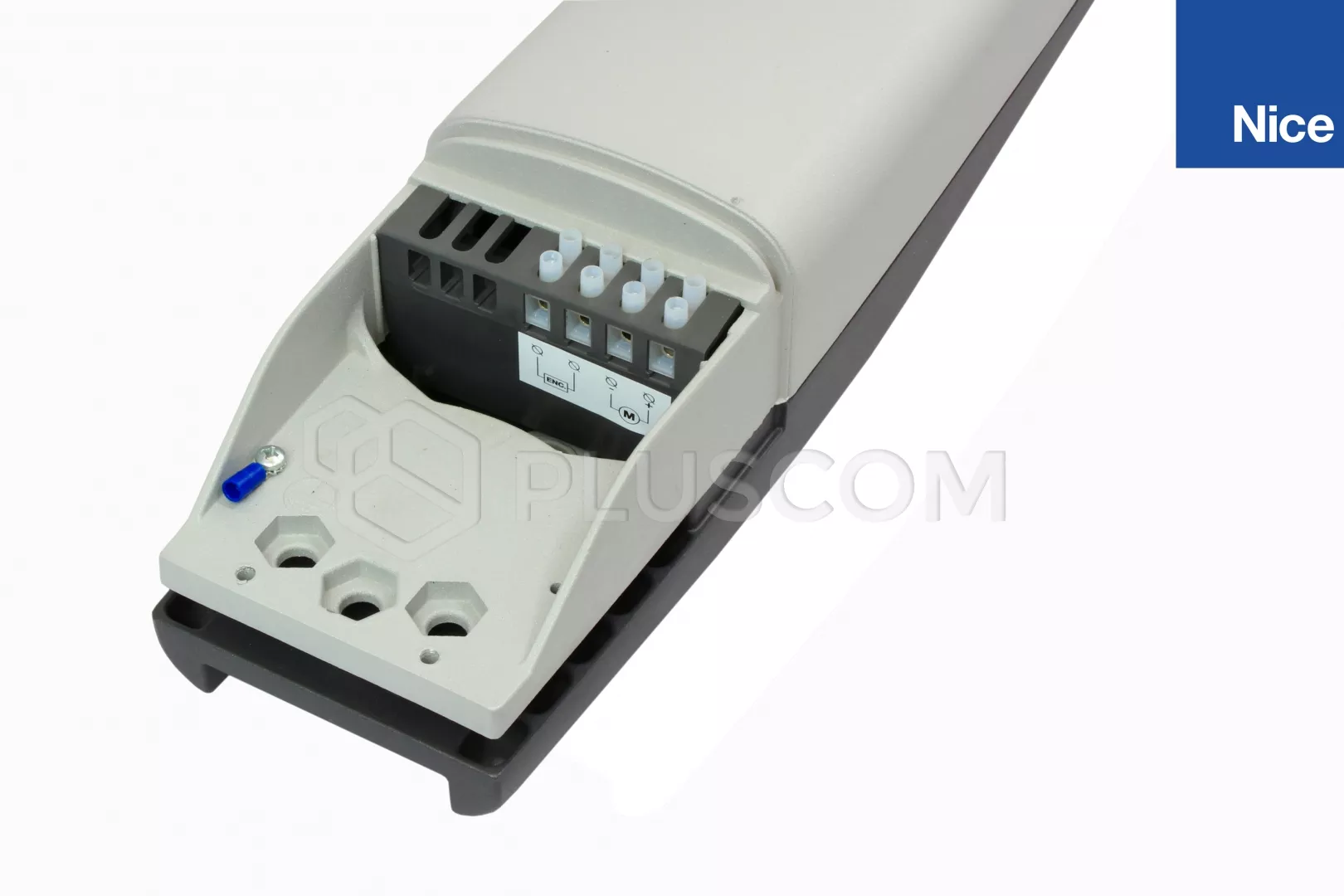

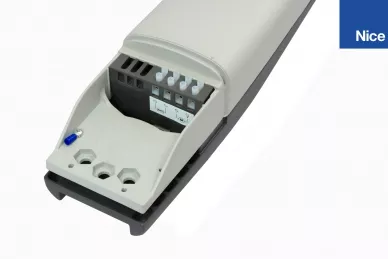

Generously sized and practical connection compartment: rapid and easy access from above to internal parts located in the upper section of the motor.

The work of the actuators is controlled by the MC824HR10 control panel, which implements a number of useful ones functions:
  • controlling the operation of two 24V actuators with an encoder
  • manual, semi-automatic, automatic operation
  • SM type connector for plug-in radio receivers
  • IBT4N connector for connecting BusT4 devices
  • BLUEBUS technology
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • gentle start and release at closing
  • regulation of the speed of the actuators
  • function of partial opening of the gate - wicket
  • possibility of connecting the PS124 battery thanks to which the gate will open even when the mains power supply is disconnected
  • possibility of connection to the '' Solemyo '' solar power system
  • service of an electric lock
CONTROL UNIT PARAMETERS:
  • power supply of the control panel: 230V AC
  • rated power consumed from the 200W grid
  • degree of protection: IP54
  • working temperature -20 ° C ... + 50 ° C
  • dimensions: 310x232x122mm
  • Weight: 4.1 kg

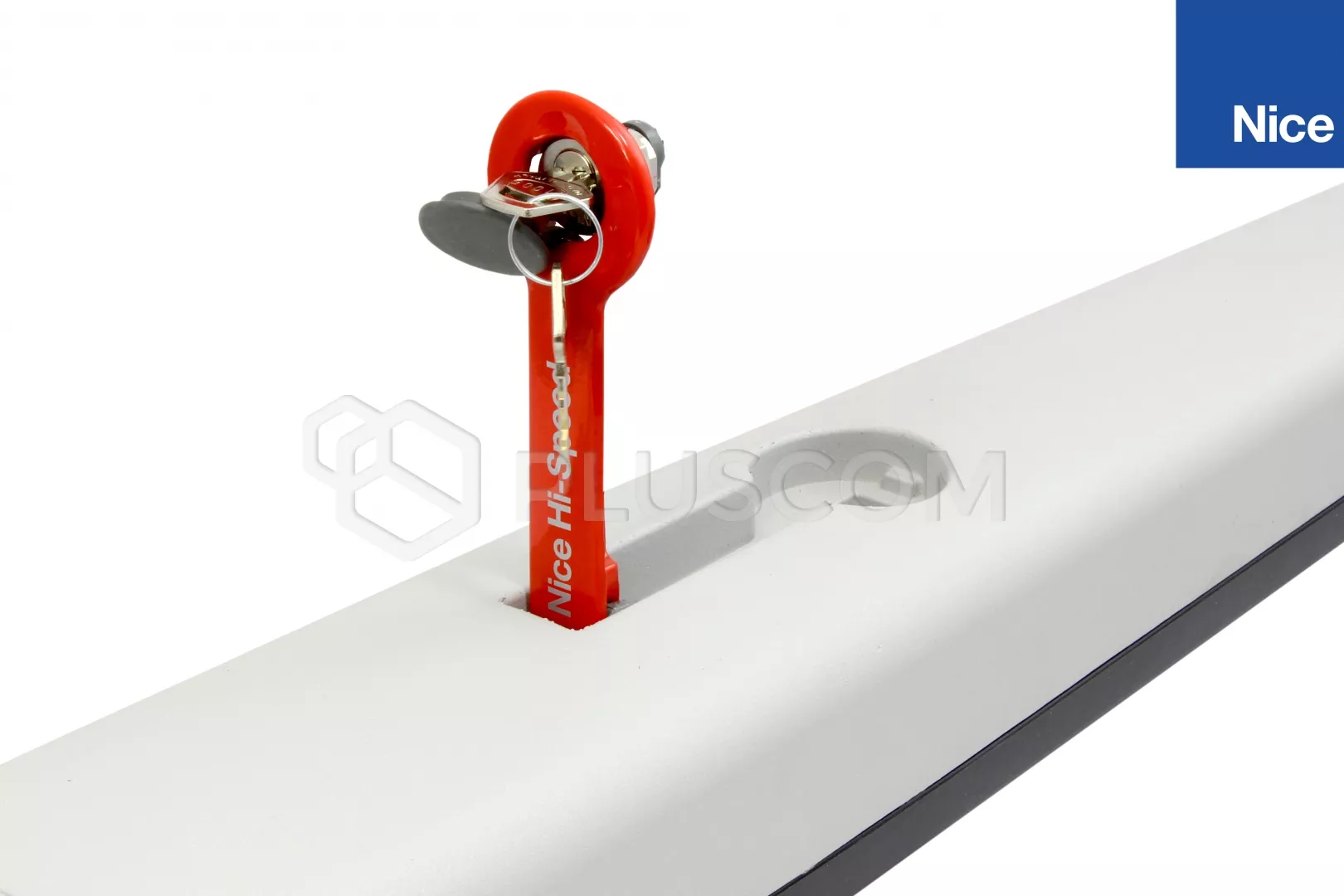

An aluminum lever is used for emergency disengagement of the drive. Together with the actuator, brackets are included for mounting the actuator on the post and to gate wings. The handles require welding.

ACTUATOR PARAMETERS:
  • motor power supply: 24V
  • current load: max 5A
  • power consumption: 120W
  • speed: 0,016m/s
  • working stroke: 584mm
  • strength: max 2200N
  • intensity work: 41 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • weight: 15kg
