Nice TOONA 5016 Base set

1181,65 EUR including 23.00% VAT
Product code: #22808
Manufacturer: Nice
  • maximum leaf width 5m, maximum leaf weight 200kg
  • limit switch when opening and closing
  • 230V AC motors
  • auto programing, works with Oview, BLUEBUS intput
  • SM, OXIBD radio connector
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice IT4WIFI BusT4 interface - Wi-Fi Photocell Nice EPM ERA Medium Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger

Nice TOONA 5016 Self-locking limit load actuators for gates wing doors 5m / 200kg with the MC800 control unit

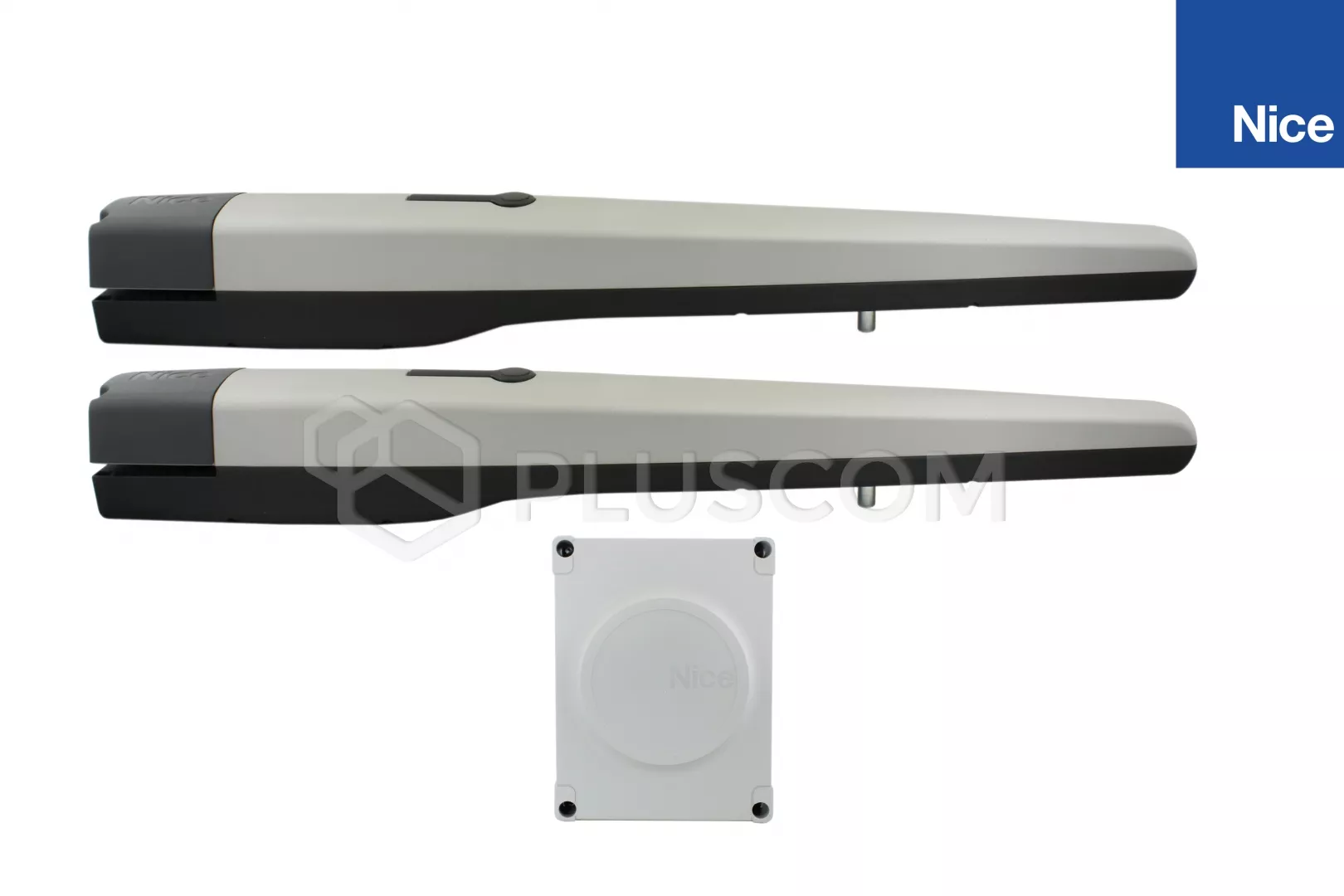

KIT CONTENTS:

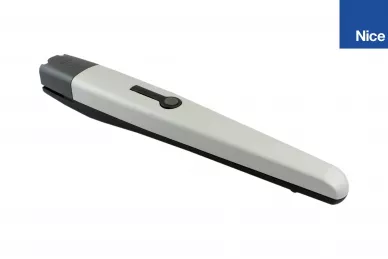

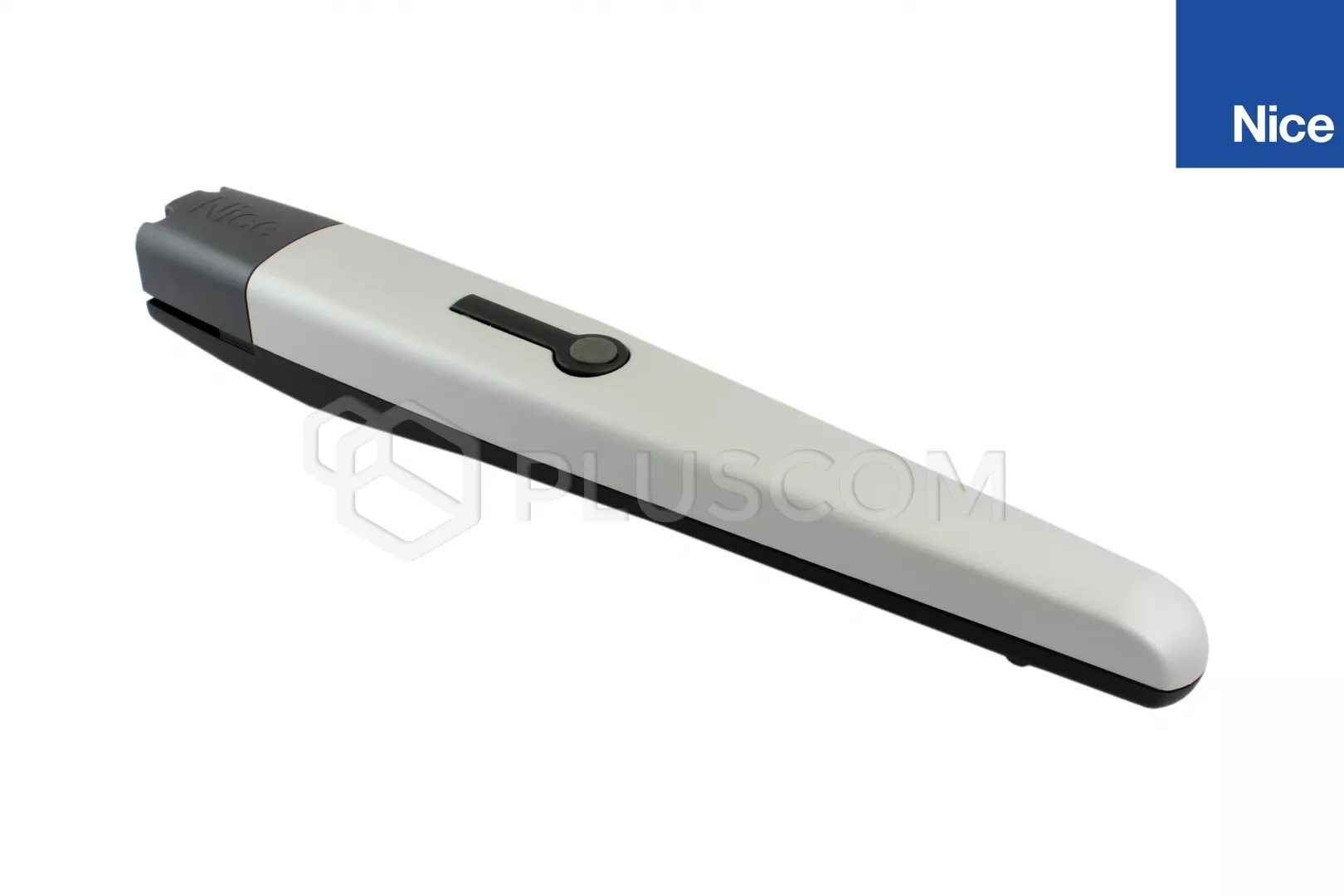

Nice TOONA 5016 230V Electromechanical gear motor witch MC800 control panel

Nice TOONA 5016 230V Electromechanical gear motor witch MC800 control panel

APPLICATION:
Version with a 230V motor designed for home use. TOONA actuators stand out more strength and a reinforced structure to cope with heavier and longer gate wings.

TOONA 5016 is especially recommended for gates with the following parameters:
  • leaf length 5m
  • weight 200kg
The current third generation cylinders are of high quality materials. The solid housing with two aluminum covers is secured polyester varnish. The internal elements are made of light steel alloys and techno-polymers.
The actuator is resistant to adverse weather conditions. It is reliable and durable. The service is limited to one in year of maintenance inspection. In return, he will work for long periods patch.

The work of the actuators is controlled by the MC800 control panel, which implements a number of useful ones functions:
  • recognition of BLUEBUS line devices (including - input STOP status)
  • recognition of the range of motion of each gate leaf
  • cooperation with the Oview programmer (via the IBT4N)
  • simple programming, friendly two-level programming way 8 1st level functions (ON-OFF) and 8 parametric functions
  • soft start and close release
  • partial gate opening function - wicket
  • control of two 230V actuators
  • semi-automatic, automatic operation
  • auto programming during the first programming by the control panel automatically determines and stores the end positions of the gate
  • support for electric lock
CONTROL UNIT PARAMETERS:
  • power supply of the control panel: 230V AC
  • rated power consumed from the 900W grid
  • flashing lamp output: 120 / 230V, 21W
  • degree of protection: IP54
  • working temperature -20 ° C ... + 50 ° C
  • dimensions: 310x232x122mm
  • Weight: 4.1 kg

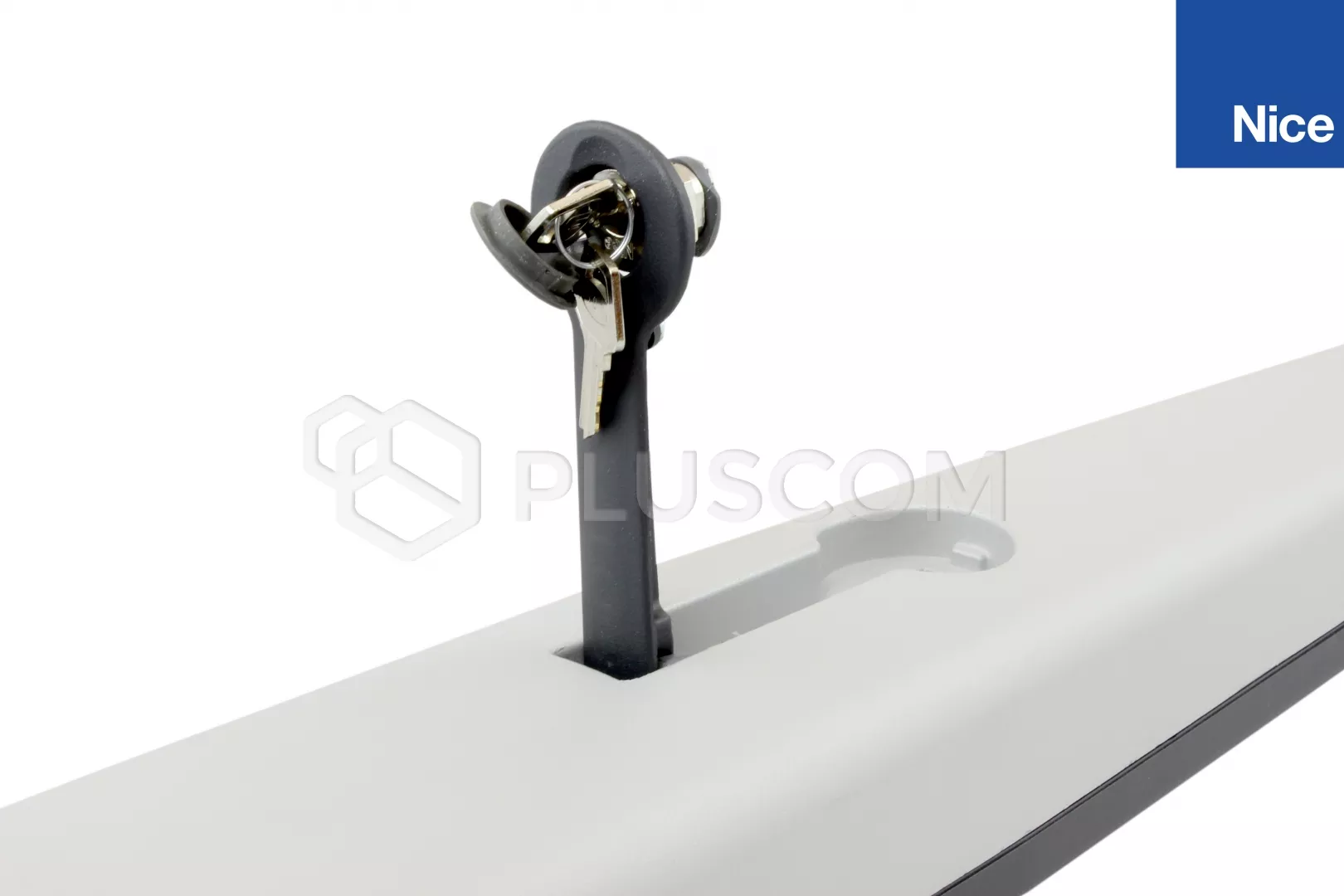

The actuator is equipped with an end stop for opening and closing. The aluminum is used for emergency disengagement of the drive lever. Brackets for attaching the actuator are included with the actuator on the post and to the gate leaf. The handles require welding.
ACTUATOR PARAMETERS:
  • motor power supply: 230V
  • current load: max 1,5A
  • power consumption: 340W
  • built-in capacitor: 7uF
  • speed: 0,013m/s
  • working stroke: 540mm
  • strength: max 1800N
  • intensity work: 54 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • weight: 7kg
Download
User Manual 2.45 MB
