Nice TO6024HSKCE/PL TOONA 6024HS Kit for double-leaf gates HI-SPEED
ACTUATOR SUITABLE FOR SWING GATES:
- with a maximum leaf length of up to 6m
- with a maximum weight of up to 1450kg
- with a maximum number of cycles (opening/closing) of up to 41 per hour

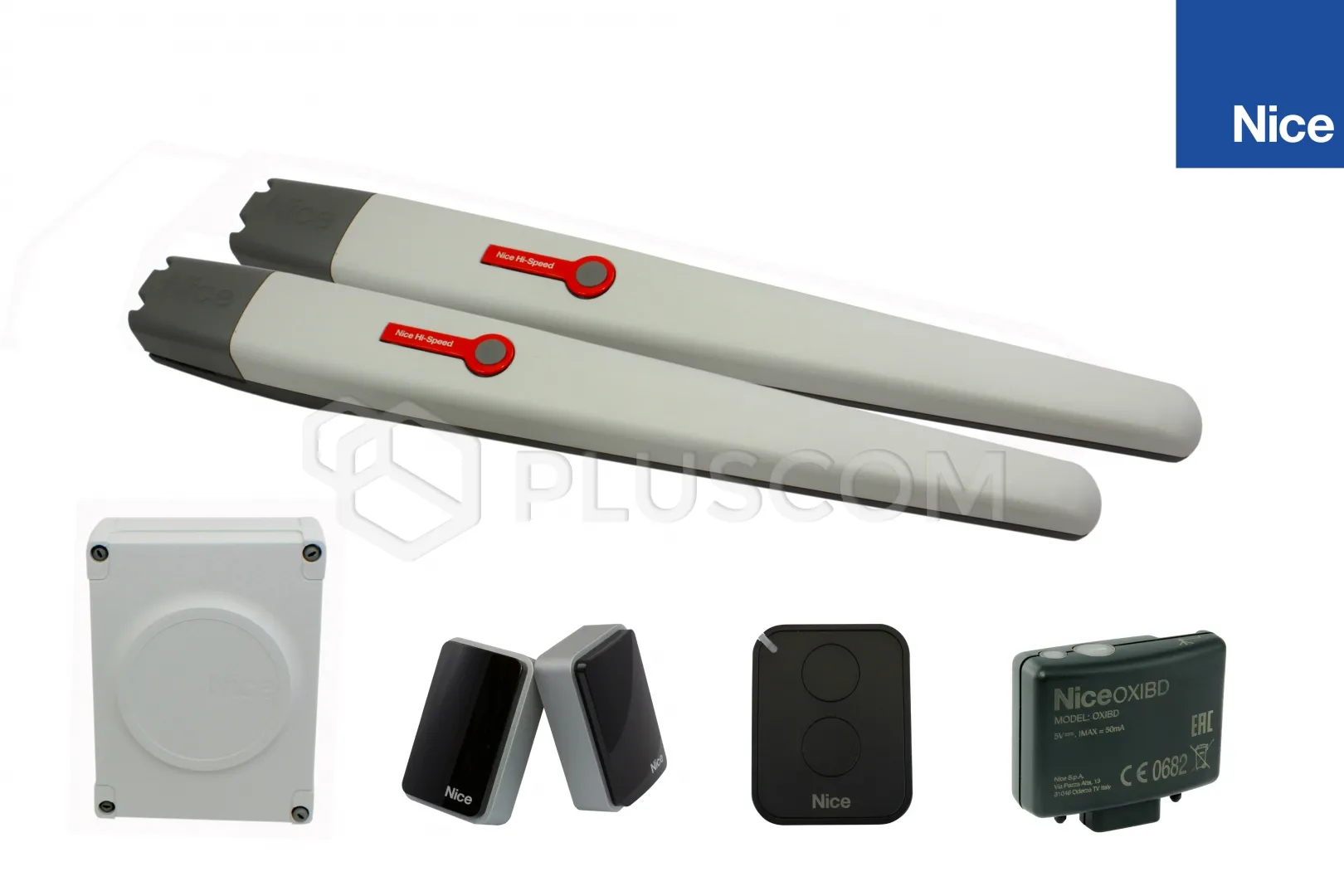

SET CONTAINS:
|
Nice TO6024HSKCE/PL TOONA 6024HS set for gates max. 6m
|
STRONG AND GENTLE
The TOONA 6024 HS motor is distinguished by its very solid and durable
construction and exceptional strength. The built-in encoder ensures
exceptionally precise and consistent operating parameters. The control unit
determines the gate's end positions, gently starts the cycle, and slows
down at the end.

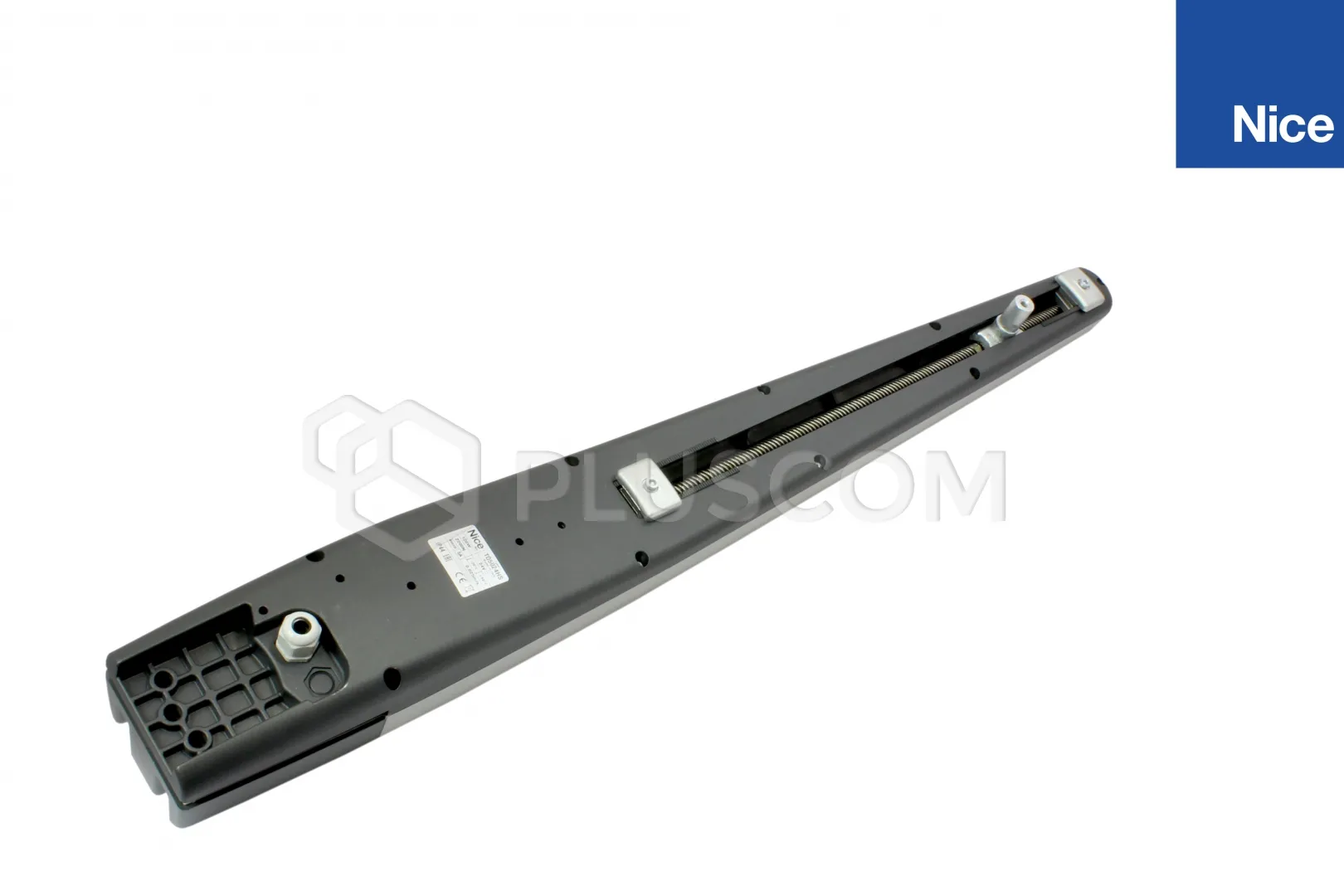

The motor's robust construction is made of a two-piece aluminum housing.
Its strength and dimensions allow for installation on both metal and wide brick
posts. It can handle intensive use in locations requiring intensive use:
industrial environments, housing estates, condominiums, guarded parking lots,
etc. However, in residential and residential environments, it can handle
exceptionally heavy gate structures.
The internal components are made of light alloys, technopolymers, and steel,
while the lead screw is made of bronze (this element works the hardest). Modern
materials ensure long and trouble-free operation of the actuator. This is
confirmed by the intensity of work the actuator can withstand up to 41 cycles
per hour.
COMFORTABLE
Using the additional, optional Nice PS324 battery, the user will not be
surprised by power outages; the gate will always open. However, if you need to

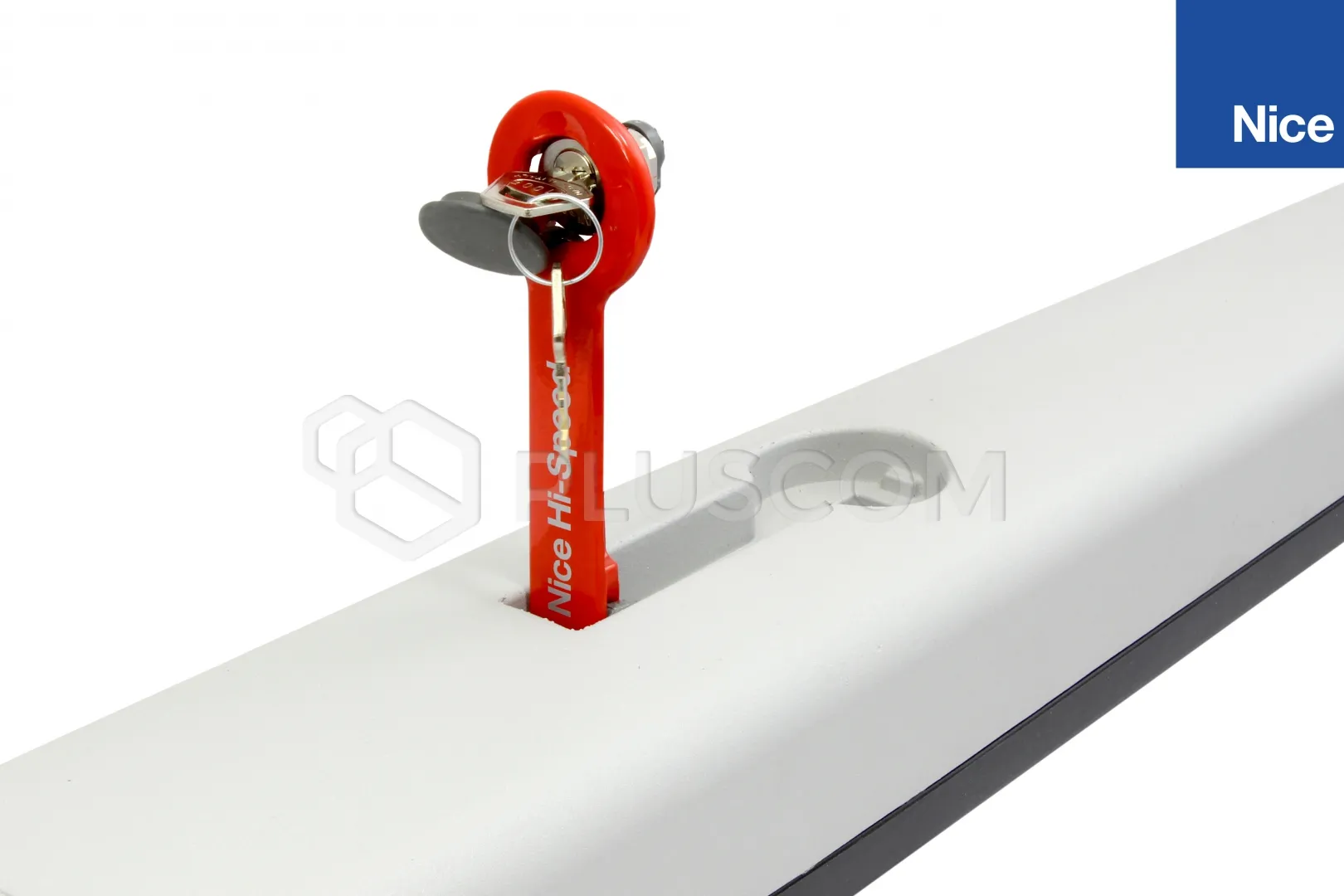

unlock the drive, you can easily do so using the lever.
MC824HR10 CONTROL UNIT FUNCTIONS
- Controls the operation of two 24V actuators with encoders
- Manual, semi-automatic, and automatic operation
- IBT4N interface for connecting BusT4 devices
- BLUEBUS technology
- Automatic programming: During initial programming, the control unit
automatically determines and stores the gate's end positions.
- Soft start and slowdown upon closing.
- Adjustable actuator speed.
- Partial gate opening function.
- Option to connect a PS124 battery, allowing the gate to open even in the
event of a power outage.
- Option to connect to a solar power system. ''Solemyo''
- Electric lock operation
OXIBD bidirectional radio receiver for mounting directly
in the drive control unit.
The receiver can memorize up to 750 bidirectional transmitters or 1024
unidirectional transmitters.
The bidirectional radio protocol offers many advantages
(function
available only with ON3EBD remote controls):
- Extended radio range up to 500 m (max. 10 jumps)
- Confirmation of correct command reception by the automation
- Ability to check the automation status at any time
- High security thanks to encrypted communication
- Low power consumption in standby mode
compatible with
other Nice remote controls, such as One and Flo-R, but is not compatible with
the Smilo system. Practical and elegant, it features an LED on the remote
control to indicate signal transmission.
Transmission security is ensured by a 72-bit dynamically changing
code; each transmission is unique. Only the control unit into which
the transmitter was programmed "knows" what code will be transmitted.
EPMB photocells, for outdoor installation, combine excellent
technical parameters and exquisite design. The operating range of the devices
is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which connection to
the control unit is made using a 2-wire cable, which significantly simplifies
installation and significantly shortens installation time.
The photocell housing protects against dust and rain, allowing them to be
installed outdoors and operate in the temperature range of -20°C...+50°C.
