Nice SPO32BKCE 30 SPIDO 600 kit for garage doors rail 1 x 3.2 m BELT

Nice SPO32BKCER30 SPIDO 600 Kit for garage doors up to 260cm high and surface area up to 9.6m² with a 3.2m rail with reinforced belt

PURPOSE OF THE DRIVE:
Automation of garage doors up to 260cm high and surface area:

• Up-and-over door - up to 8.4m
• Sectional door - up to 9.6m

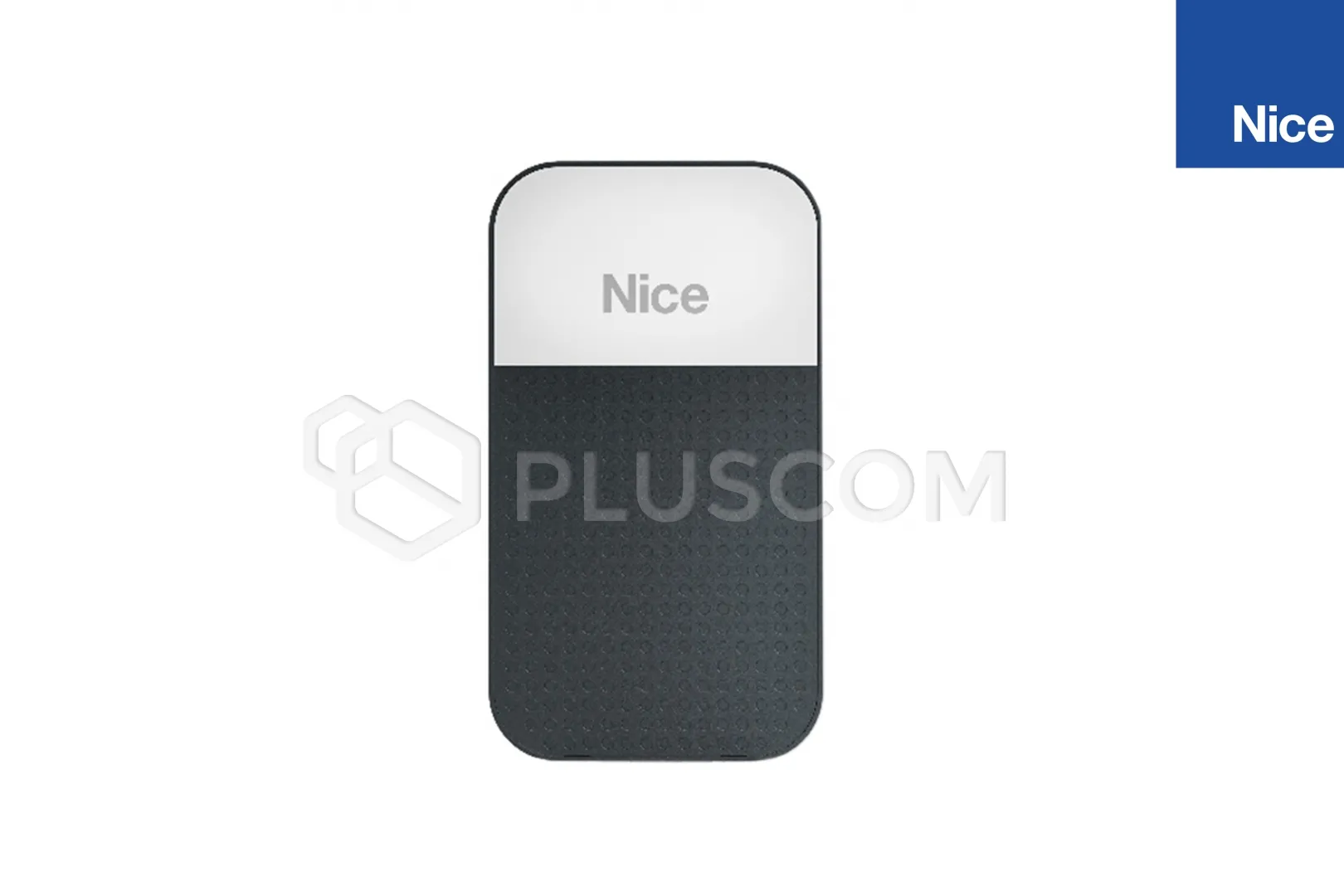

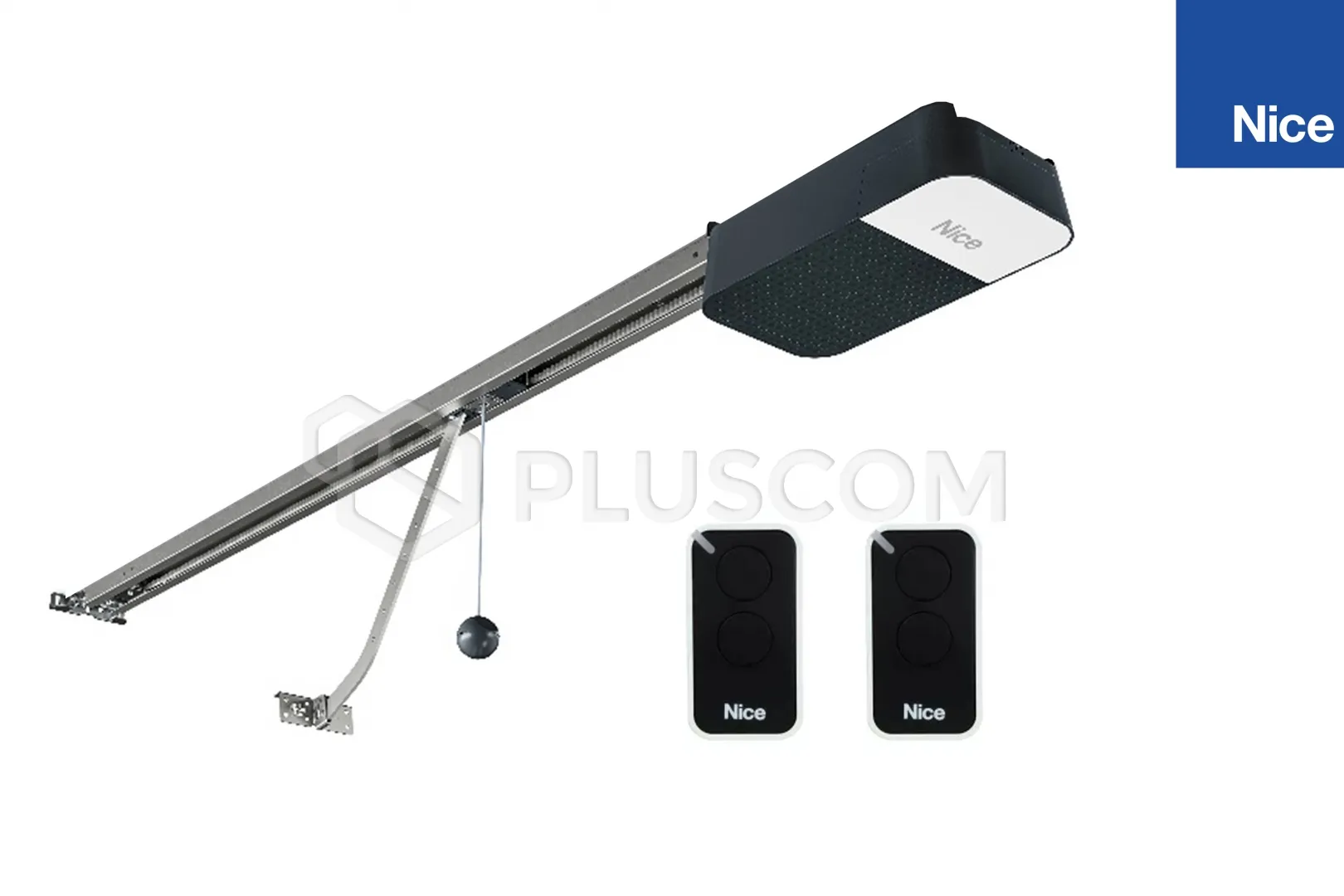

KIT COMPOSITION: Nice SPO600KLT Actuator head SPIDO600 Built-in SPSPA600R30 control unit and SPTB807A stand-by board Nice Inti2 black 2-channel remote - 2 pcs Nice SR32B Single-element rail 3.2m with reinforced strip

Nice SPO32BKCE 30 SPIDO 600 kit for garage doors rail 1 x 3.2 m BELT

A fast, convenient, and reliable drive guarantees peace of mind for many years of use. The single-piece rail and reinforced belt drive guarantee long-term, reliable operation.

The new 600N actuator with a built-in control unit and receiver can be remotely controlled via the MyNice app, thanks to the Nice Core Wifi-Radio interface.
Using the O-View/Pro-View programmer, it is possible to precisely set the function parameters.

The gearmotor is equipped with a mechanical unlocking system that enables manual opening and closing of the gate.

Key features of the SPIDO600:

• Precise adjustment of the limit switches. No need to install or adjust end stops on the rail.
• Easy programming thanks to the single-digit display.
• Nice, modern design.
• Convenient and safe transport: The rail is 30 mm high and fully integrated with the carriage and rail end.
• Only 9 cm high, it fits perfectly into your garage.
• Easy access to the control unit thanks to the convenient cover.
• Fast - opens the garage door in just 10 seconds.
• Longer effective travel: the rail is 20 cm longer, ideal for most garage doors on the market.
• Very bright additional LED lighting.
• The built-in SPSPA600R30 control unit includes a radio receiver compatible with all transmitters supporting the NICE OPERA radio coding protocols. Additionally, the control panel is connected to a stand-by power supply board (SPTB807A), which reduces power consumption in sleep mode.


  TECHNICAL DATA:

  • Power supply: 230 VA
  • Maximum force: 600 N
  • Maximum power consumption: 350 W
  • Nominal power consumption: 150 W
  • Maximum speed: 0.20 m/s
  • Maximum cycles/day: 40
  • Maximum continuous operation time: 4 minutes
  • PHOTOTEST output
  • Inputs:
  • • STOP
    • SbS
    • PHOTO
    • ANTENNA
  • Ingress Protection: 40IP
  • Operating Temperature: -20°C ... +55°C
  • Insulation Class: I
  • Dimensions: 192x344x90mm
  • Weight: 3.8kg
