Nice SPIN 6041L R10 ERA ONE Set for garage doors up 13 m²

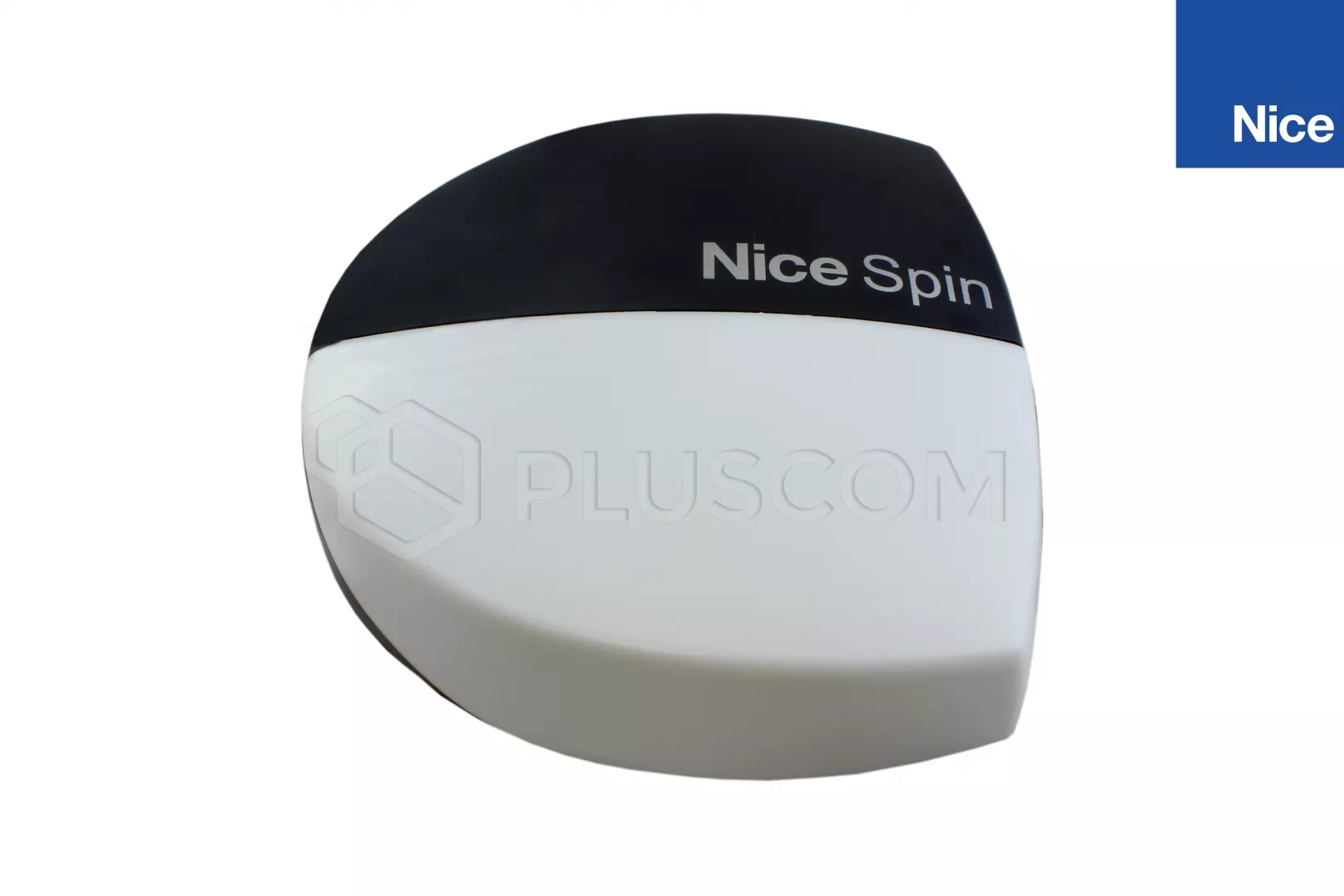

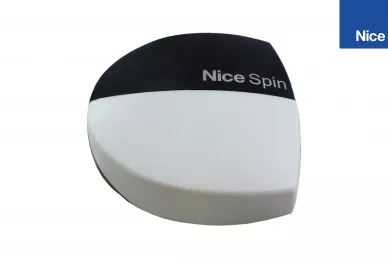

230 V AC irreversible electromechanical gear motor, for residential
use, with belt drive, 24 V DC motor, with magnetic encoder.

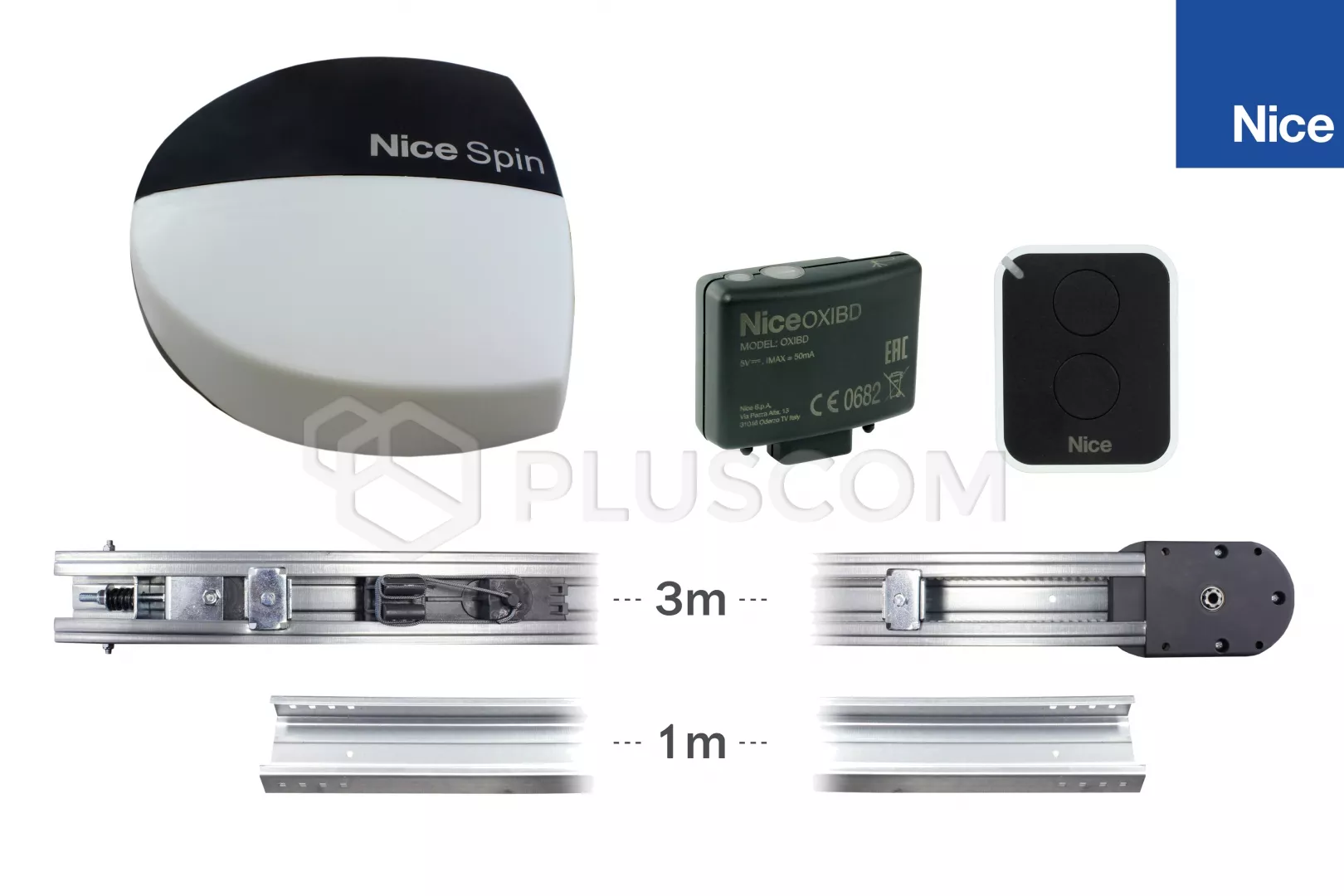

SET COMPOSITION:
TECHNICAL PARAMETERS:
- pulling force: 1000N
- work intensity: 50 cycles per day
- power: 230V
- motor power: 24V
- input power: 370W
Nice SPIN 6041 LR10 ERA ONE Set for garage doors
PRODUCT DESCRIPTION:
Easy to use and at the same time very functional gate actuator garage. A
durable reinforced toothed belt was used to transfer the drive whose biggest
advantage is
quiet operation and no
necessity
maintenance. A modern control panel with BLUEBUS technology makes it
easy function programming (only three convenient buttons and LEDs) and
automatically recognizes connected additional devices such as photocells,
resistance strip or warning lamp.
Several practical functions implemented by the modern SNA40R10 control panel
and features that distinguish the SPIN6041 model:
cself-programming: when starting the actuator for the first
time automatically determines and remembers the door end positions
electronic speed control: during start the gate will move
gently and slowly, before closing, the drive slows down to silently close the
gate, all movement it runs smoothly without jerks or noise
economical: when the system is not in use, it goes into
"sleep" mode, reducing energy consumption
safe: constant control of connected devices, the lamp signals
system malfunction - the number of flashes indicates the type of error
(self-diagnosis), amperometric obstacle detection system, release when opening
and closing the gate. It is possible to connect a strip 8.2 kΩ resistive
amperometric obstacle detection system: allows detection any
obstacle, the gate stops and the direction changes immediately her move
partial gate opening: a practical function enabling
ventilation of the garage from exhaust gases

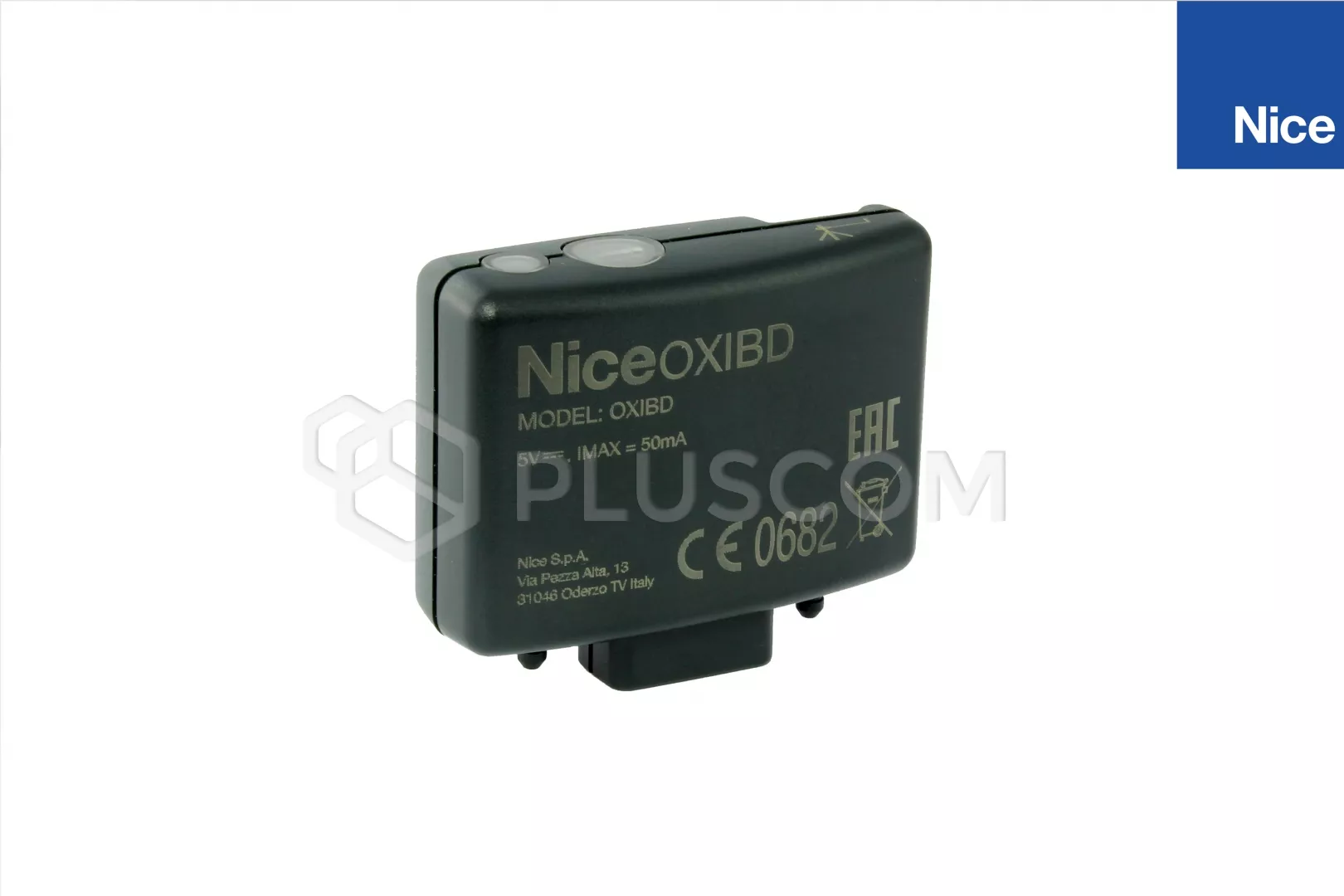

Two-way OXIBD radio for installation directly in the drive control unit.
The two-way radio protocol has many advantages:
- radio range extension up to 500 m (max. 10 jumps)
- confirmation by the automation of the correct receipt of commands
- the ability to check the status of automation at any time
- high security thanks to encrypted communication
- low power consumption in standby mode
, but not compatible with the Smilo system.
Transmission security is ensured by a 72-bit dynamically variable
code , each broadcast is different. Only the control panel to which
the transmitter has been memorized & quot; knows & quot; what code will be
transmitted.
New remote controls can be added to the device without being present in the
installation site of the device.
