Nice SPIDO600 INTI garage door kit with 2x1.6m rail and chain

Nice SPIDO 600 Set for garage doors 260cm high and up to 9.6m² with 2 x 1.6m rail and chain

DRIVE PURPOSE:
Automation of garage doors up to 260 cm high and area:

• overhead gate - up to 8.4m
• sectional door - up to 9.6m

SET COMPOSITION: actuator 600N with built-in control unit i the radio Nice Inti2 black 2-channel remote - 2pcs two-piece guide rail SR16C 2 x 1.6m with chain

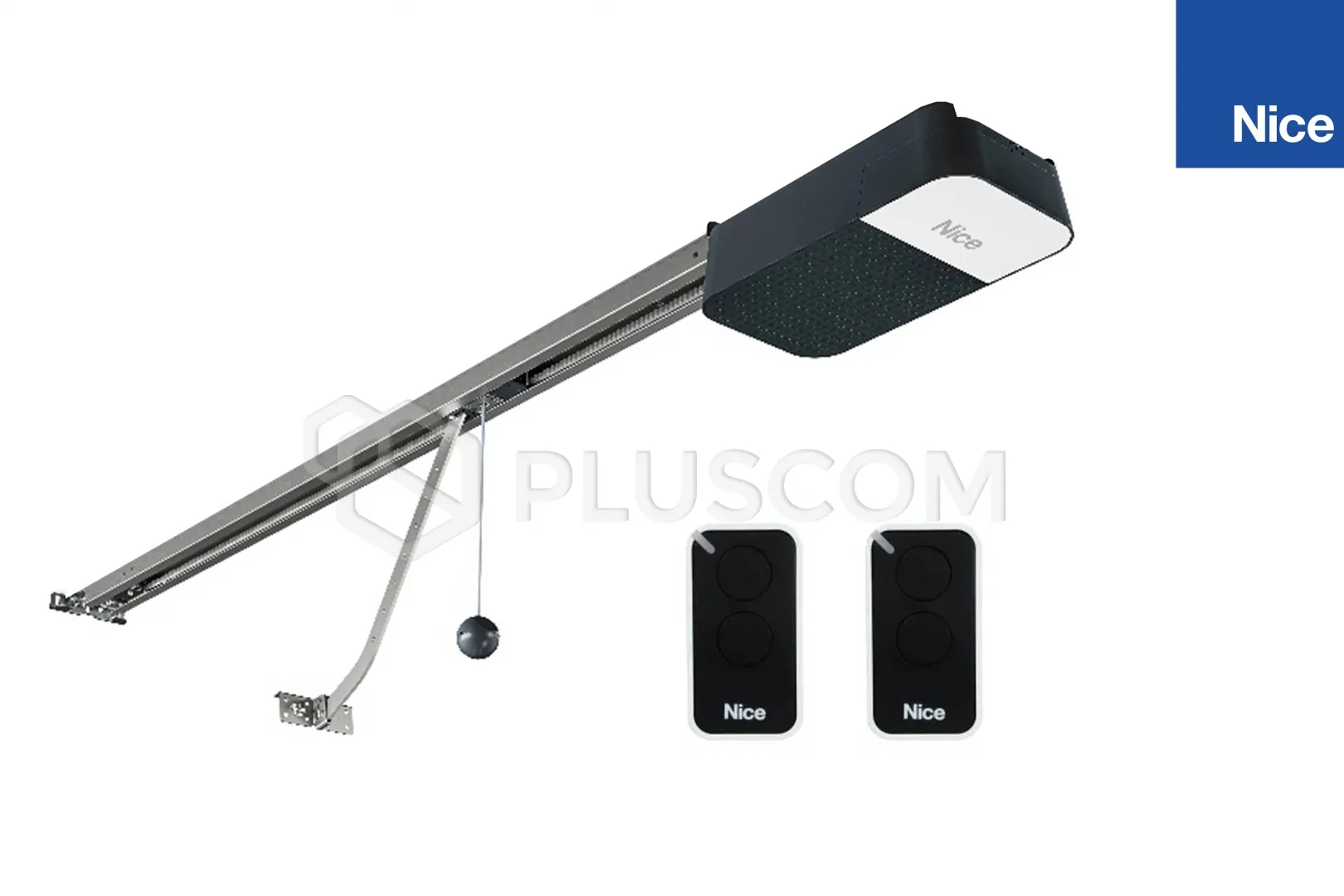

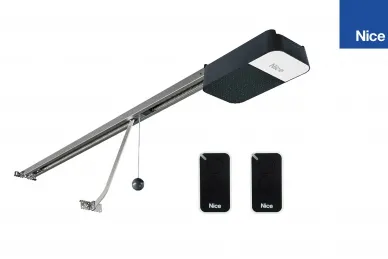

Nice SPIDO 600 set with 2x1.6m rail and chain

Fast, convenient and reliable drive, guarantees peace of mind for a long time years of use.

We can use the new 600N actuator with a built-in control panel and receiver remotely control via the MyNice app thanks to the Nice Core Wifi-Radio interface.
With the O-View / Pro-View programmer it is possible to be very precise function parameter settings.

The gearmotor is equipped with a mechanical unlocking system which enables manual opening and closing of the gate.

Highlights of SPIDO600:

• fine adjustment of the limit switches. There is no need to install and adjustment of end stops on the rail
• user-friendly programming thanks to the single-digit display
• nice, modern design
• convenient and safe transportation: The rail is 30mm high and fully integrated with the trolley and rail end
• only 9 cm high, fits perfectly in your garage
• easy access to the control panel thanks to a convenient cover
• fast - opens the garage door in just 10 seconds
• longer usable travel: rail 20 cm longer, ideal for most doors garage on the market
• very bright LED auxiliary lighting

The built-in control panel includes a radio receiver compatible with all transmitters supporting the NICE protocols of radio coding OPERA. Has 90 memory units. One unit can memorize one transmitter (i.e. the set of its buttons and commands) or one button with the appropriate command.

TECHNICAL DATA:

• power supply: 230Va
• maximum force: 600 N
• maximum power consumption: 350W
• nominal power consumption: 150W
• maximum speed: 0.20m / s
• maximum number of cycles / day: 40
• maximum time of continuous operation: 4 minutes
• PHOTOTEST output
• inputs:
• • STOP
  • SbS
  • PHOTO
  • AERIAL
• protection class: 40IP
• working temperature: -20 ° C ... + 55 ° C
• isolation class: I
• dimensions: 192x344x90mm
• weight: 3.8 kg
