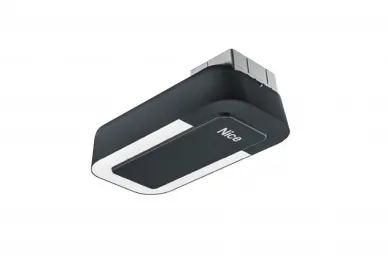

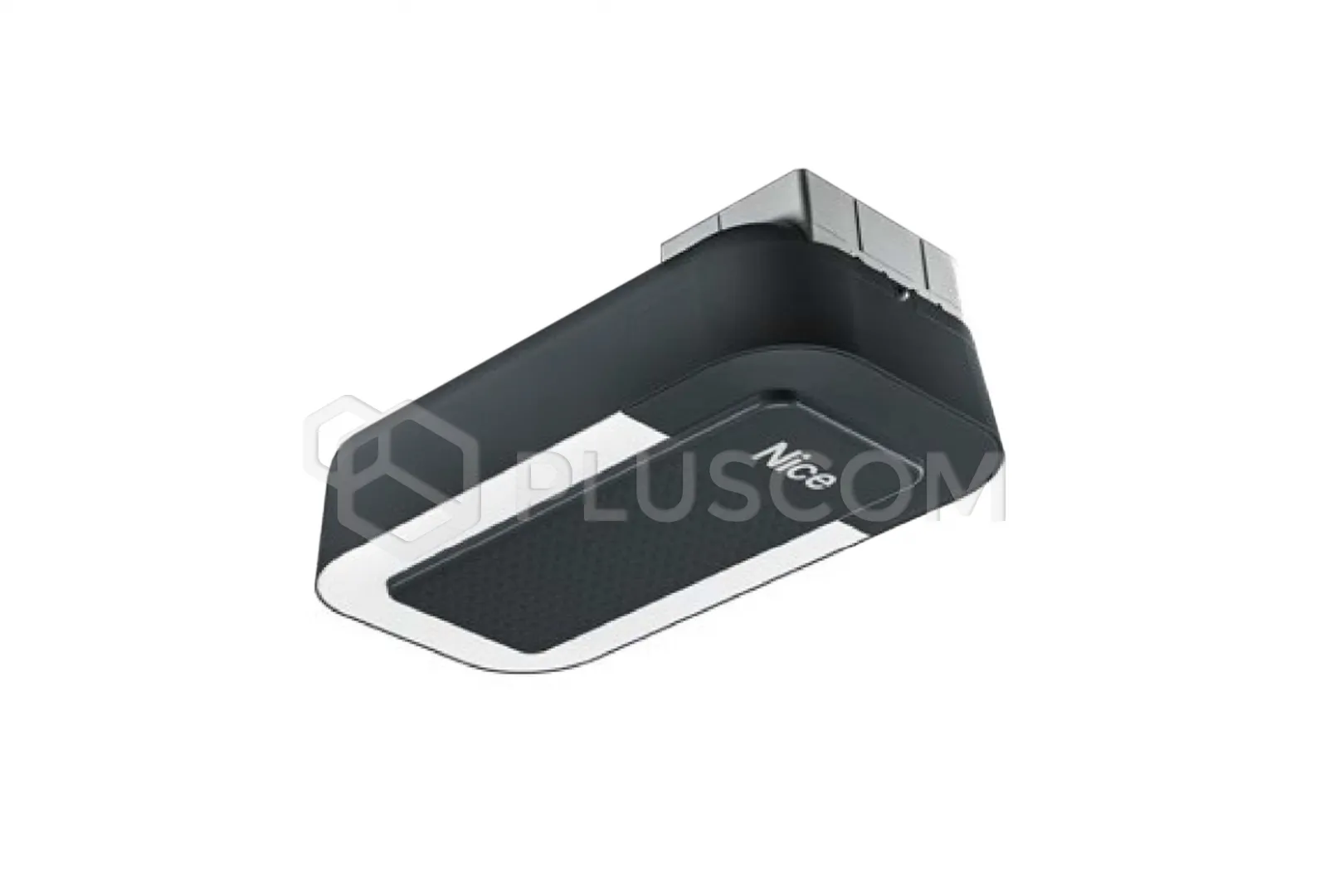

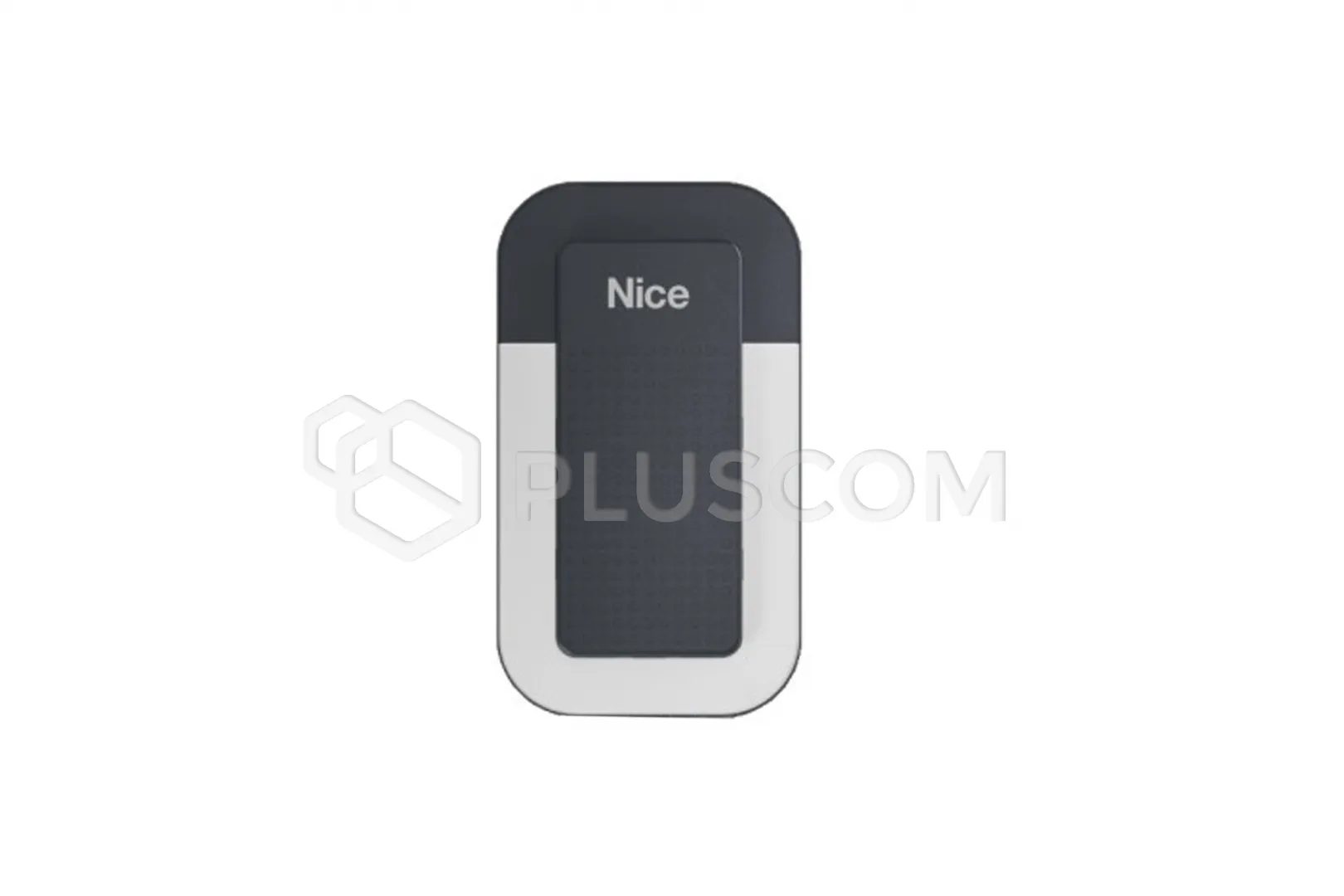

NICE SPIDER 800W Motor for sectional doors up to 11.4m² and tilting doors
up to 12.6m²
SPIDER is an electromechanical actuator for the automation of sectional,
protruding and non-protruding swinging doors.
The control unit included with the product, in addition to powering the DC
motor, enables excellent regulation of the torque and speed of the gear motor,
precise reading of the position limiter, gradual start-up and closing, reading
of obstacles. In addition, it is equipped with an internal counter that allows
recording of the manoeuvres performed by the gear motor during the entire use
period.
The integrated standby power supply module guarantees 90% lower energy
consumption when the product is in standby mode.
Compatible
Always connected thanks to the
new built-in Wi-Fi module. It
allows you to control, manage, check and know everything about your garage door
automation anywhere, anytime using your smartphone.
Security:
- Anti-theft function: if an attempted break-in is
detected, a notification will be received via the MyNice app and a new
closing manoeuvre will be automatically forced
- Eye Check, a visual control system: green and red LEDs
built into the motor signal potential problems / maintenance necessity or
show that everything is working smoothly
Gate lock after opening and closing. After the gate movement is finished,
the actuator automatically locks it, which prevents it from opening. Thanks to
this feature, the user does not have to additionally lock the gate with a lock
or bolt, which increases the comfort and safety of use.
The gear motor is equipped with a mechanical release system that allows manual
opening and closing of the gate. These manual operations must be performed in
the event of power failure, faults and during installation operations.
The actuator is equipped with additional LED lighting. Thanks to this, after
starting the manoeuvre, the space under the actuator is illuminated. The
lighting turns off automatically when the actuator stops.
TECHNICAL DATA:
- Power supply: 230 VAC 50/60 Hz
- Current: 1.1A
- Power: 180W
- Power in standby mode: <1W
- Speed: 0.2m/s
- Force: 800N
- Work intensity: 50 cycles/day
- Protection class: IP40
- Working temperature: -20°C / +55°C
- Dimensions: 225 x 395 x 105.5 mm
- Weight: 4.9 kg
