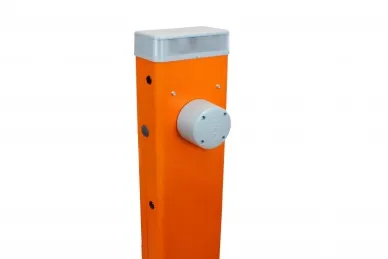

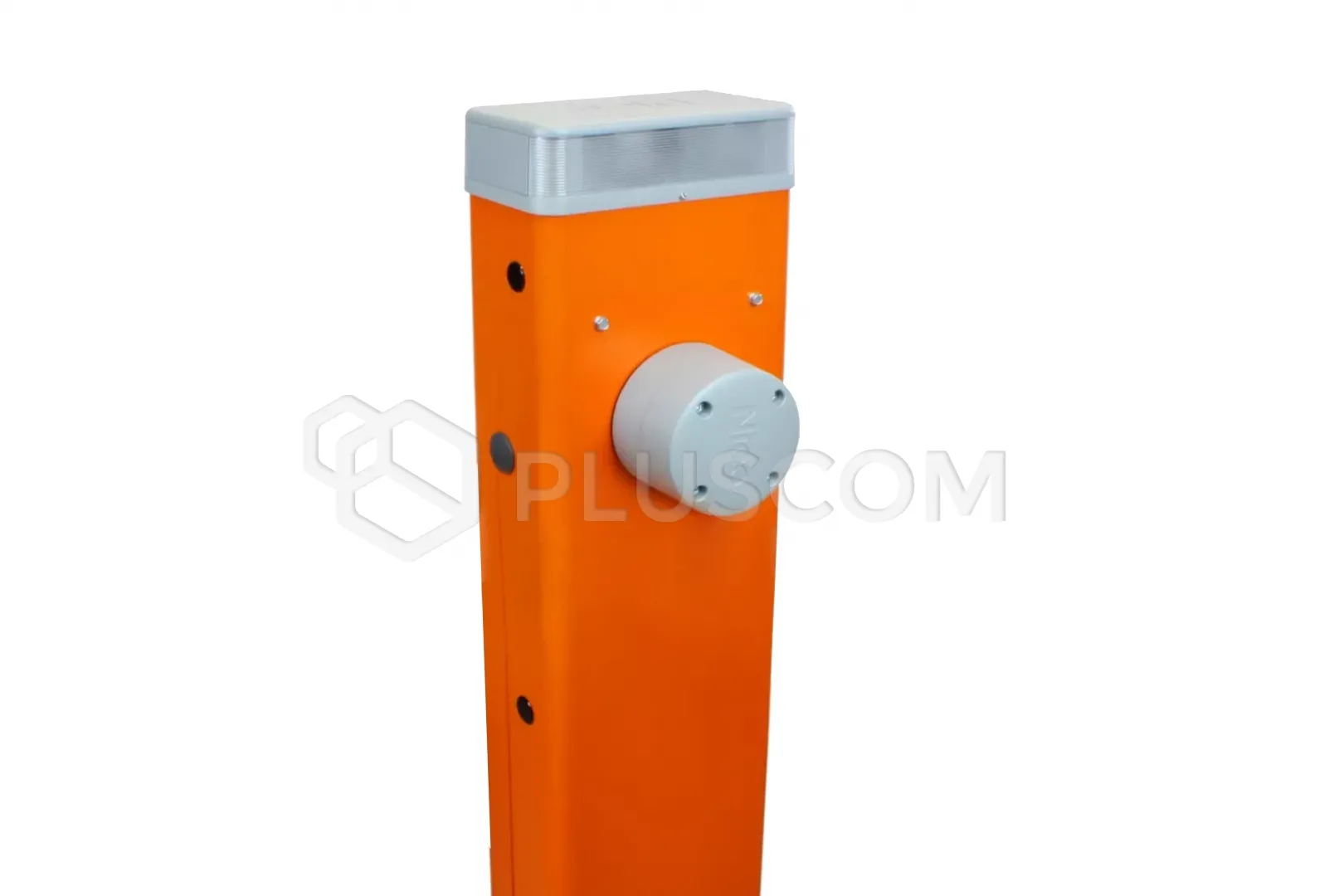

NICE SBARR30 Central unit of the SBAR barrier for
an arm up to 4 m
Electromechanical barrier as part of access control is ideal for any guarded
parking lots, at universities, offices, condominiums and other industrial
facilities. Robust construction barriers NICE makes it suitable for intensive
use and provides up to one million cycles. The modular design of the shoulders
and a very large number of accessories allow for a unique fit barrier to a
particular place of installation.
PARAMETERS
- bar length max 4m
- labor intensity: 100cykli / h
- the minimum opening time: 4s
We DELIVER
- 24V gearmotor with housing
- control unit XBA20R10 BLUEBUS
- mounting bracket for bar eliptic
- anchors and base plate
The Nice S-BARR30 central unit allows for the installation of a boom with
a maximum length of 4m. The 24V motor with a 300W encoder has a torque of
100Nm. The built-in XBA20R30 control unit with Bluebus technology has an SM,
OXIBD radio connector.
DISTINGUISHING FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY
Steel structure, durable balancing springs, elliptical arms resistant to strong
winds.
VISIBLE
The distinctive
orange color, optional LED
lighting in the unit cover and LED warning lights on the arm (optional),
semaphore support, and the ability to attach warning stickers make the NICE
barrier impossible to ignore.
SAFE
Photocells can be installed in the central unit housing using special optional
brackets, protecting the area directly under the operating barrier arm. During
operation, the control unit monitors the current drawn by the motor. If an
obstacle is detected, it immediately stops movement and performs a programmed
response, e.g., (reversing, short reversing, stop). Optionally, the arm can be
equipped with red rubber protective strips or a resistive strip (8.2 KOhm).
ECONOMICAL AND ALWAYS READY FOR OPERATION - POWER SUPPLY
The drive is powered by 230V as standard. The optional SOLEMYO system can also
be used. The additional PS124 battery provides emergency power in the event of
a power outage, ensuring the barrier is always operational. In standby mode,
the control panel reduces energy consumption by switching to "Stand
by" mode.
The heart of the kit is the proven and reliable XBA20 control unit with
the latest specifications provided by the manufacturer for a given quarter
(version optimized for firmware), maintaining identical connection diagrams,
electrical parameters, and full functionality of the BlueBUS system and Yubii
device support.
The latest version of the electronics features updated firmware, improved
overload characteristics (amperometrics), and better native compatibility with
new accessories from the Nice ecosystem (e.g., OXIBD receivers and Smart Home
systems).
PROGRAMMING AND SERVICE
Separate areas in the housing for the electronics and mechanics significantly
simplify operating the drive. The control unit is located at the top of the
barrier, giving the installer easy access to settings and plug-ins.
The self-diagnosis function detects barrier malfunctions and uses light flashes
to determine the type of error.
The built-in XBA20R30 Bluebus modular control unit works with the O-View
programmer. It allows access to additional function parameters and
configuration of very detailed parameters.
Below are some useful functions:
- opening angle adjustment with an accuracy of 1°
- release adjustment in the final opening phase
- additional reactions in the event of a photo alarm: e.g., stop and
reverse, stop and short reverse, momentary stop
- setting times for remote control authorizations
TECHNICAL DATA
- Power supply: 230V /SOLEMYO
- Motor power supply: 24V
- Backup power supply: PS124
- Current intensity: 1A
- Protection class: IP44
- Torque: 100Nm
- Operating temperature: -20°C to +50°C
- Working intensity: 100 cycles/h
- Weight: 46kg
