Nice S-FAB XME2024 Underground actuator 24V

Nice S-FAB XME2024 Underground actuator 24V

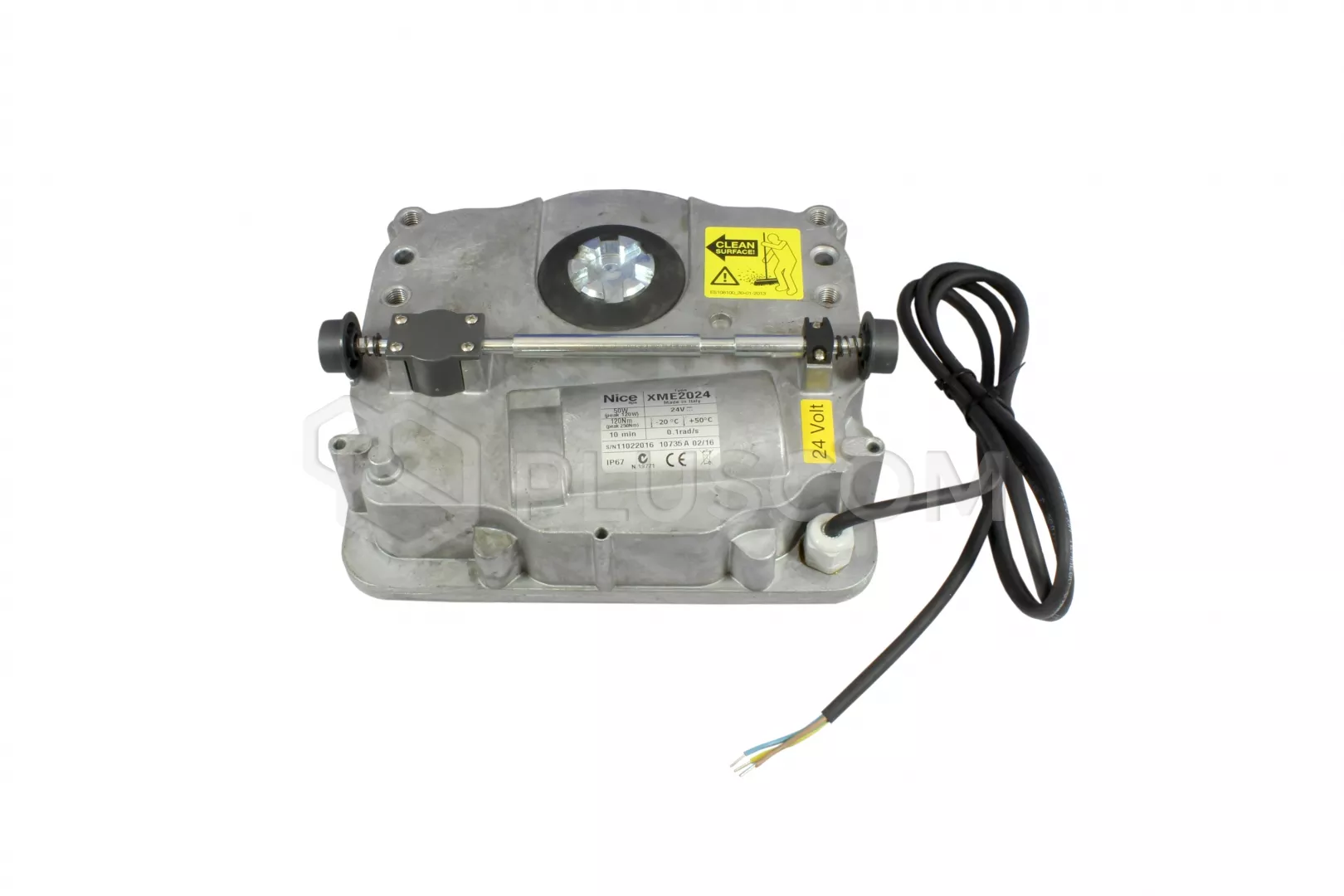

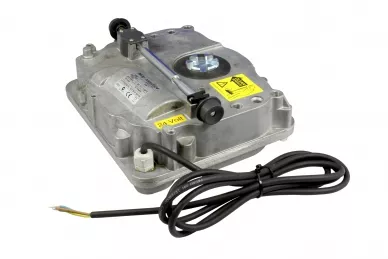

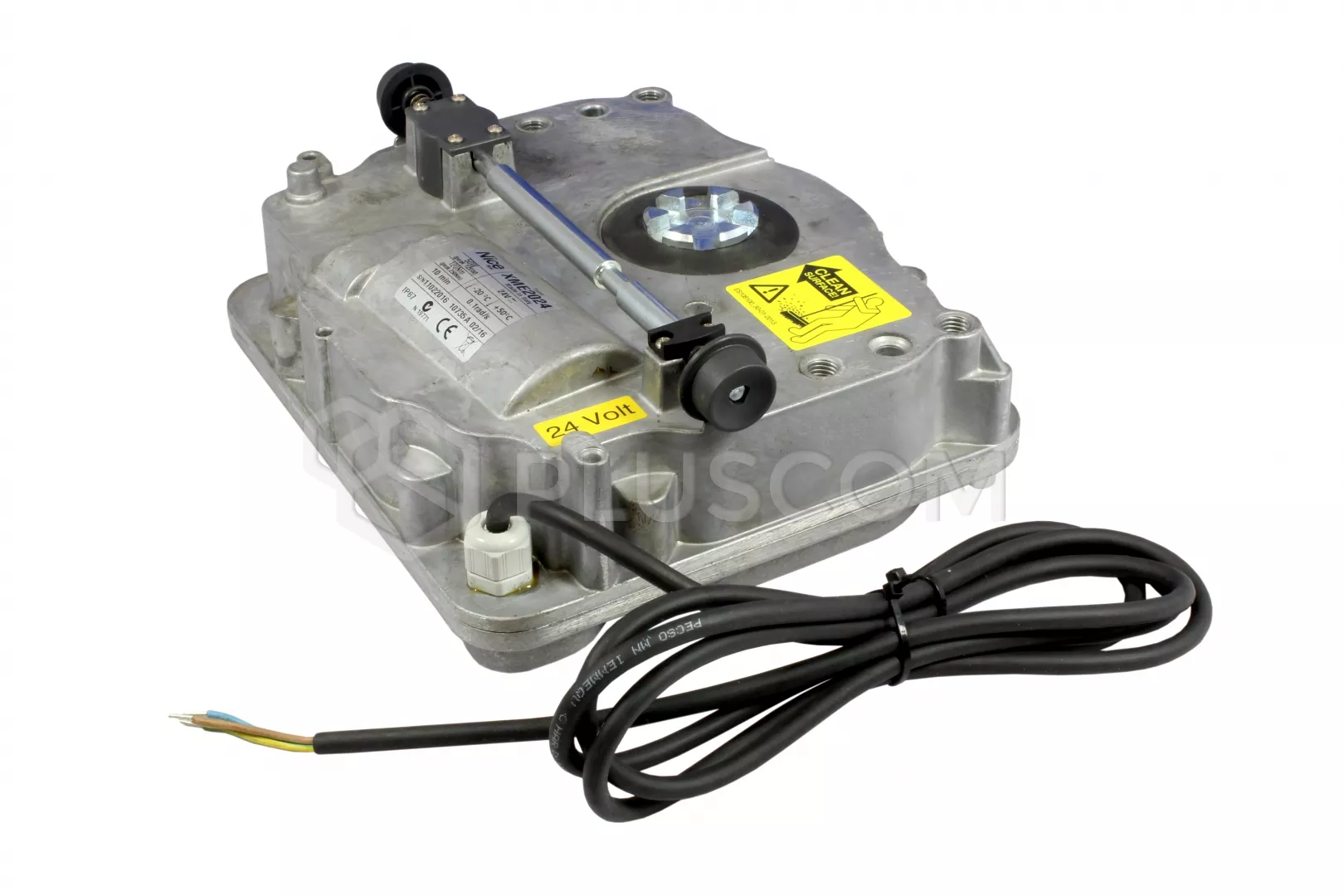

Nice XME2024 is an electro-mechanical gear motor, with a 24 Vdc motor. The gear motor is powered by the external control unit, to which it must be connected. If the electric energy is interrupted (black-out), the gate panels can be moved by releasing the gear motor using the relevant wrench.

The biggest advantage of underground actuators is the aesthetics and discretion of the drive it is invisible and does not spoil the image of the gate
Another important strength of underground drives is the possibility of installation in place where because of

• narrow entry
• for very narrow posts where dimension A is less than 100mm
• there is no place to install screw or swing arm drives

Before installing the underground actuator, proper drainage is required drain excess water. Although the actuator is locked in sealed housing with protection class IP67, it must not be in fully submerged for more than 30 minutes.

GATE PARAMETERS

• gate weight up to 400kg
• wing length: up to 2.3m


ACTUATOR PARAMETERS

• motor power: 24V
• power consumption: 120W max

• torque: 250Nm
• work intensity: 60 cycles / h

• protection class: IP67
• working temperature: -20 ° C ... + 50 ° C

• dimensions: 230x206x88mm
• weight: 6kg
