NICE Robus 600 MYGO4 set for sliding gates
weighing 600kg

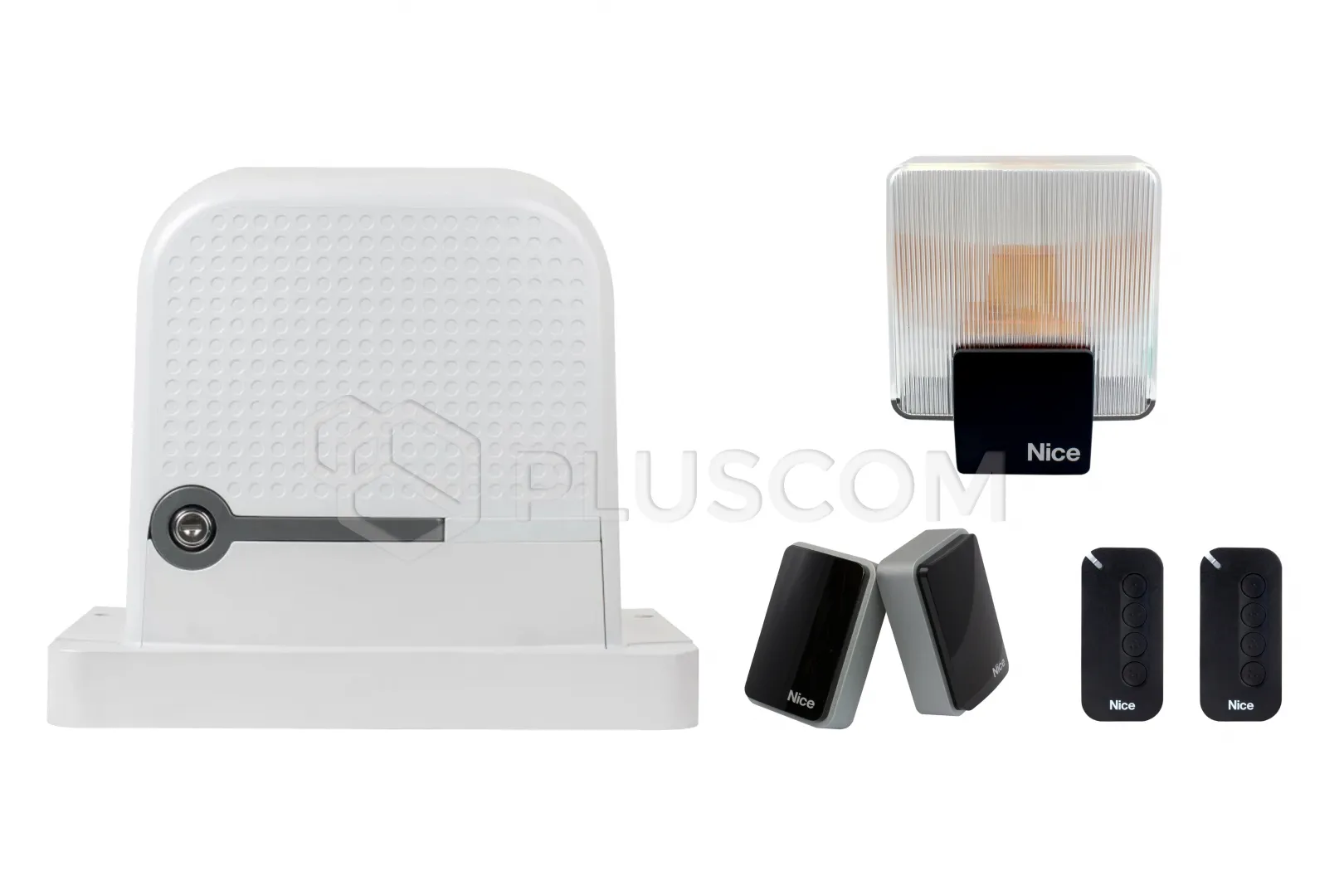

SET INCLUDES:
|
Nice ROBUS 600 MYGO4 Set
|
Sliding gate drive with built-in control unit and magnetic limit
switches. Strong, fast, with advanced electronics. Thanks to advanced technical
parameters, opening even heavy gates is quiet and smooth.
The choice of materials, the design of internal components and the use of
high-quality systems guarantee solidity and maximum efficiency.
The most important advantages of the drive and the set
include:
- gate function, i.e. partial opening of the gate – thanks to it, when you
are walking or riding a bike, you do not have to wait for the gate to open
completely
- automatic gate closing function - with the option of setting the time
after which the gate will close after a vehicle enters, so you do not have to
remember to close the gate yourself
- amperometric obstacle detection system - is used to detect any obstacles
that may occur during normal gate movement. Thanks to this function, when an
obstacle is encountered, the actuator stops the gate and changes the
direction of its movement
- phototest function – before each gate movement, the control unit
automatically checks whether the photocells are operational and if everything
works properly, the gate is set in motion
- smooth release function during closing and soft start – consists in
reducing the speed so as to avoid a strong jerk when the gate is opened or
closed. Thanks to this, the gate works smoothly and does not make noise
during operation.
The MYGO4 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of use safety and makes the code impossible to copy.
MYGO4 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from a memorized transmitter to a new transmitter, the
latter is recognized (and remembered) automatically by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
The Nice ELDC signal lamp works with control units that supply
a voltage of 12/24V at the output of the warning lamp.
The light source
is a super bright LED diode emitting white light. An orange lampshade
has been installed above it that disperses the light. The LED diode is an
energy-saving, reliable, shock-resistant light source.
The lamp housing has an
integrated 433.92MHz antenna using a
50 Ohm RG58 coaxial cable that we connect to the control unit's antenna
output, we significantly increase the range of the remote controls.
EPMB photocells, for external installation, are a combination
of excellent technical parameters and excellent design. The operating range of
the devices is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which the
connection to the control unit is made using a 2-wire cable, which is a
significant facilitation during installation and significantly shortens its
time.
The photocell housing protects against the ingress of dust and rain, which
means that they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
TECHNICAL PARAMETERS:
- power supply: 230V AC
- current consumption 2.1A
- power: 450W
- engine power supply: 24V DC
- force: 400N
- speed: 0.34m/s
- work intensity: 40 cycles per hour
- protection class: IP44
- working temperature: -20°C...55°C
- dimensions: 340x220x303mm
- weight: 11kg
